Plan 42377DB
2-Bed Craftsman House Plan with Laundry Option
Heated S.F.
1,676
Beds
2
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 42377DB

Main Level
slide image 0
Optional
slide image 1

Plan 42377DB

1-800-854-7852

1-262-521-4596

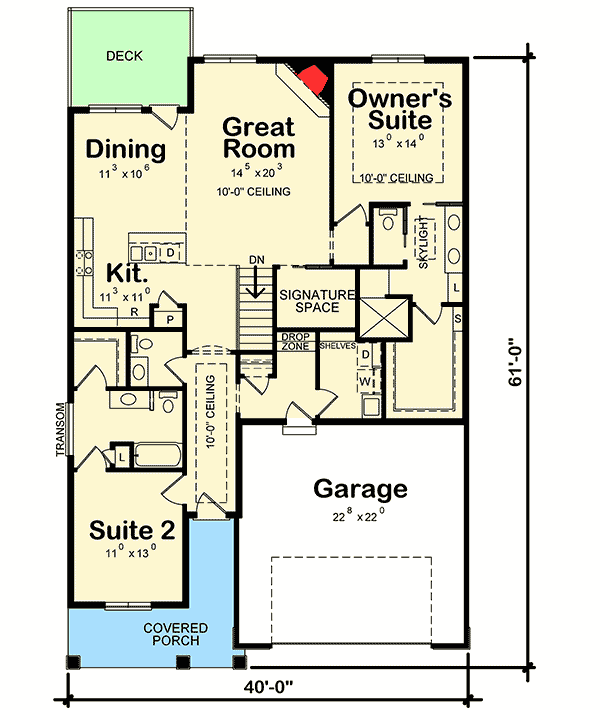

Main Level
floor plan image Main Level
Optional
floor plan image Optional
Plan Details

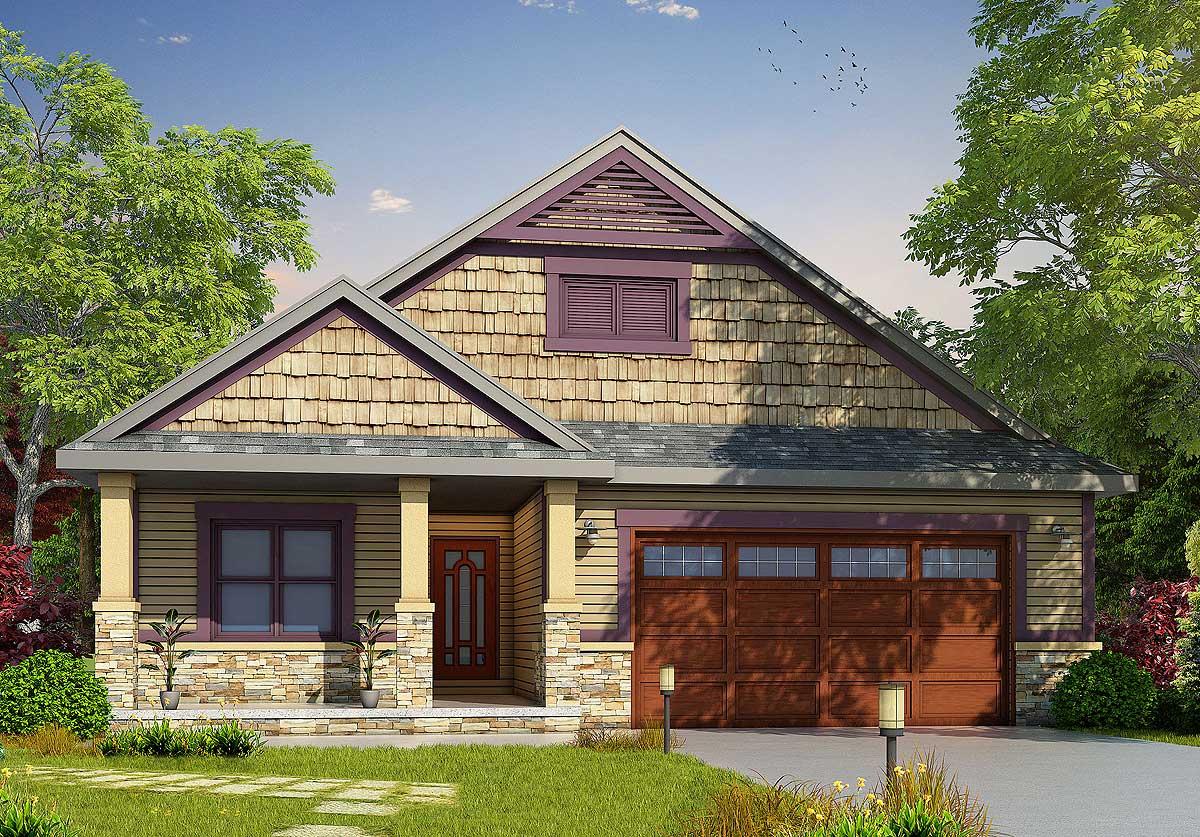

  • This 2 bed Craftsman house plan has a covered porch with an attractive gable and columns with stone at the base.
  • A hall leads you to the open layout in back with the great room, dining room and kitchen combined into a single great space defined by changes in ceiling heights.
  • The island in the kitchen gives you room for sinks, workspace and casual seating. The dining area is steps away and a door leads to a deck for al fresco eats.
  • There are two suites in the home, one in the front and one in back. Both have walk-in closets.
  • There is a large laundry room with a walk-through option from the master suite.
What's Included
  • General Notes

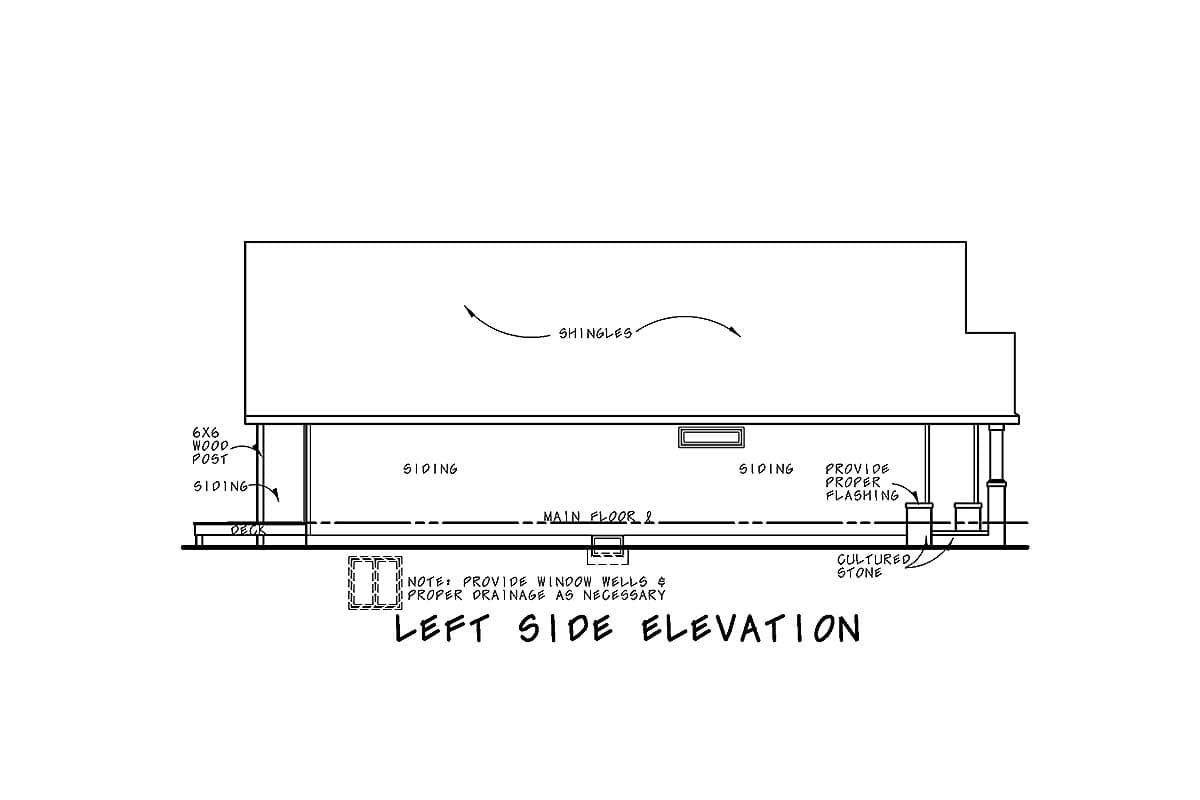

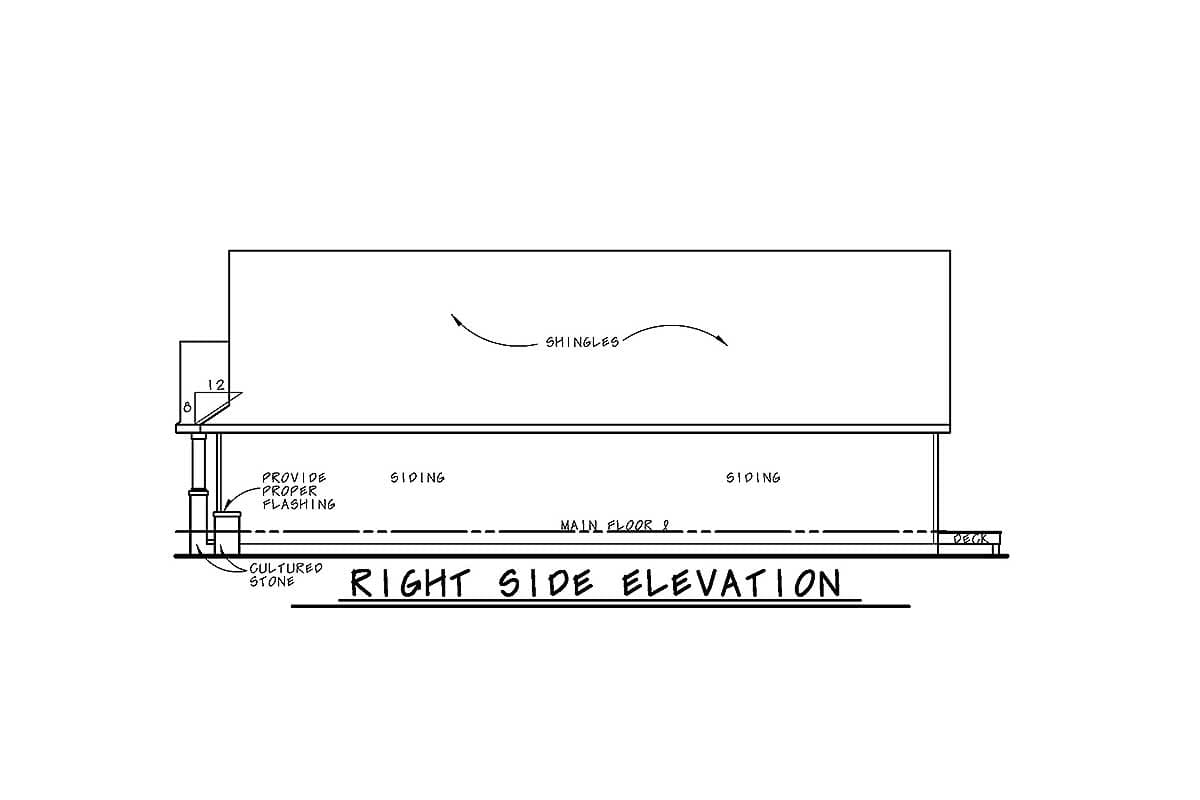

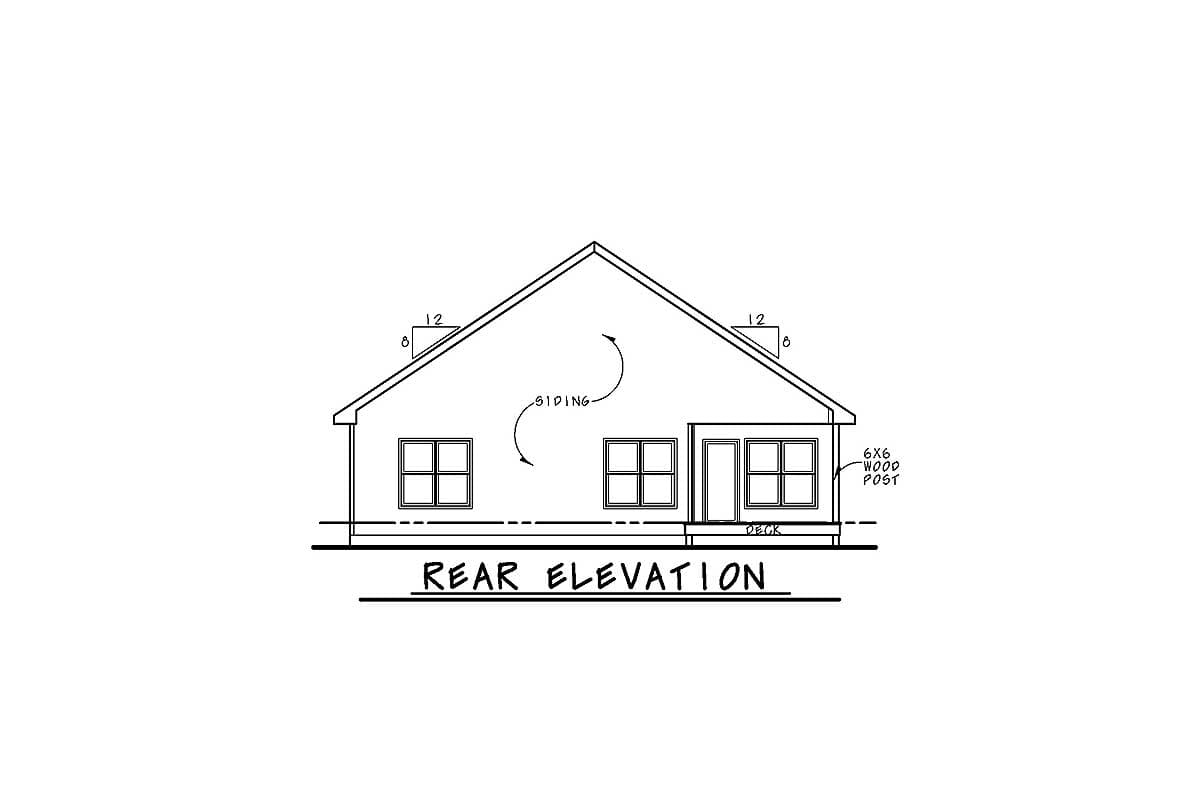

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,676 sq. ft.

1st Floor

1,676 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

61' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

518 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom
