Plan 62643DJ
2-Bed Craftsman Ranch House Plan with Angled 3-Car Garage - 2172 Sq Ft
Heated S.F.
2,172
Beds
2
Baths
2.5
Stories
1
Cars
3
Tour
Floor Plan

Plan 62643DJ

Main Level
slide image 0

Plan 62643DJ

1-800-854-7852

1-262-521-4596

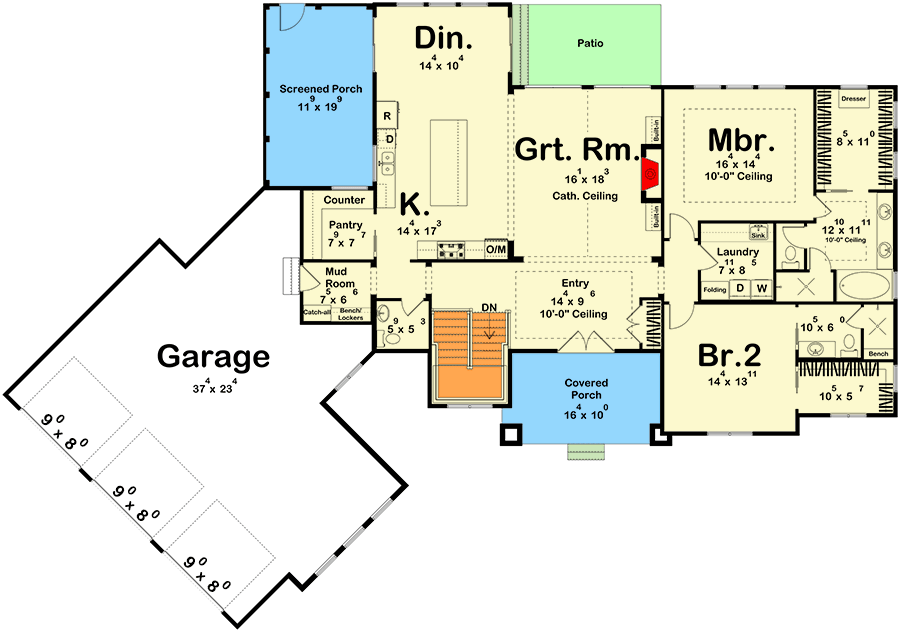

Main Level
floor plan image Main Level
Plan Details
  • This one-story 2 bedroom Craftsman home plan welcomes you with it's inviting front porch and and angled 3 car garage.
  • Inside, you'll enjoy an open floor plan with a large kitchen and entertaining spaces both outdoor and indoor that are perfect for the family gatherings. The kitchen has a large pantry and easy access to the garage entrance making grocery unloading a breeze.
  • The great room has a cathedral ceiling and a fireplace flanked by built-ins with views extending to the patio i back.
  • The master has a large walk-in closet and a bath with both a spa tub and shower. A secondary bedroom suite is at the front of the home and your laundry room separates the two rooms.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,172 sq. ft.

1st Floor

2,172 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

98' 0"

Depth

69' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

1095 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

Ranch

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,172 sq. ft.

1st Floor

2,172 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

98' 0"

Depth

69' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

1095 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

Ranch

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
