Plan 890140AH
2-Bed Craftsman Ranch House Plan with Vaulted Great Room - 1569 Sq Ft
Heated S.F.
1,569
Beds
2
Baths
2
Stories
1
Cars
3
Floor Plan

Plan 890140AH

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 890140AH

1-800-854-7852

1-262-521-4596

Main Level

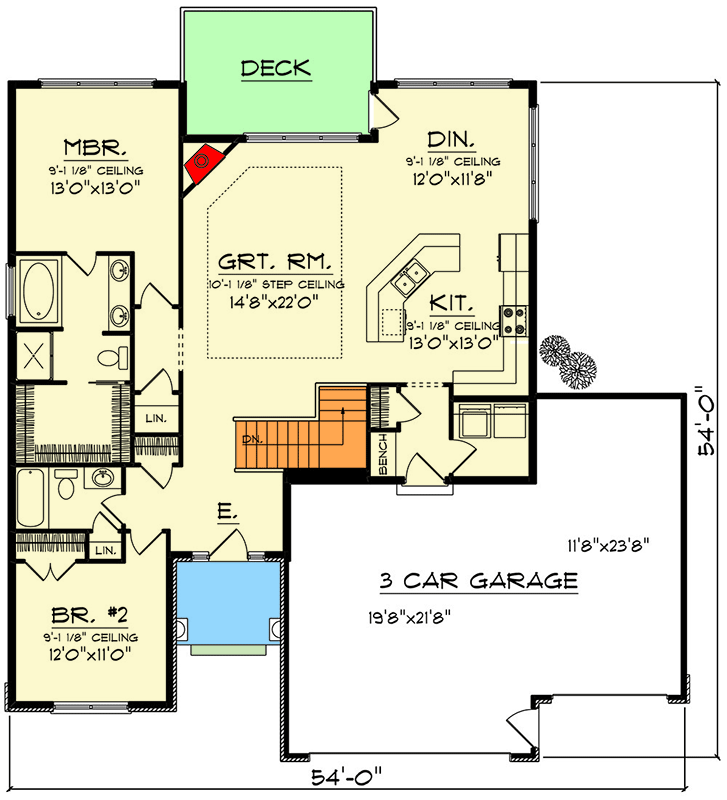

floor plan image Main Level
Optional Lower Level

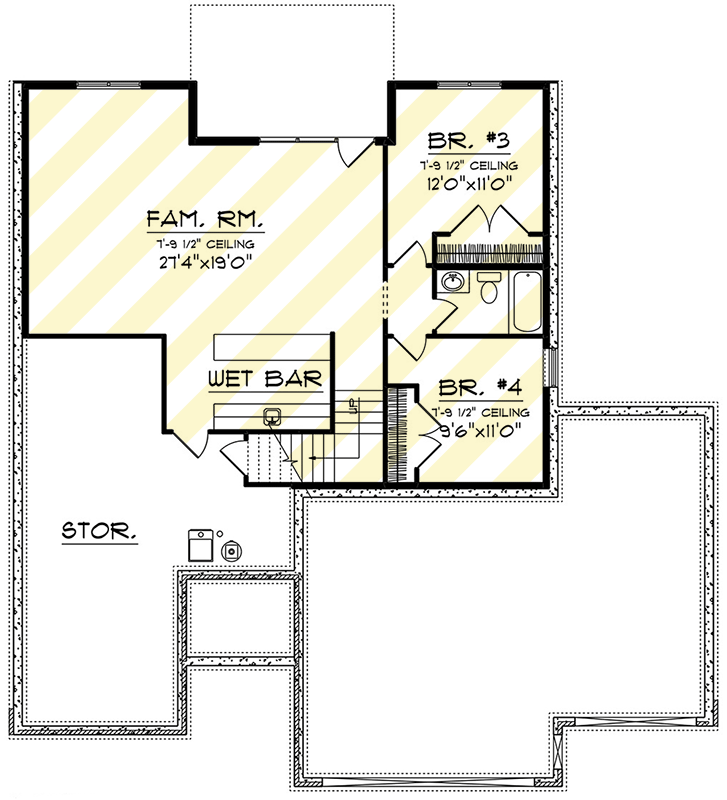

floor plan image Optional Lower Level
Plan Details
  • This craftsman ranch features beamed gables, vertical siding, and black windows, offering modern curb appeal.
  • An open-concept layout merges the kitchen—with an angled breakfast bar—with the dining and great rooms for a spacious living area. Bedrooms, including the master suite, lie to the right of the entry.
  • The optional walkout basement adds two more bedrooms, a full bath, a game room, and a family room with a wet bar.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,569 sq. ft.

1st Floor

1,569 sq. ft.

Optional Lower Level

998 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

54' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

730 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Garage

Flat

0' 0''

Mudroom

Flat

9' 0''

Laundry Room

Flat

9' 0''

Kitchen

Flat

9' 0''

Dining Room

Flat

9' 0''

Great Room

Step

10' 0''

Entry

Flat

9' 0''

Bedroom 2

Flat

9' 0''

Bath 2

Flat

9' 0''

Master Bedroom

Flat

9' 0''

Master Bath

Flat

9' 0''

Master WIC

Flat

9' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

1,569 sq. ft.

1st Floor

1,569 sq. ft.

Optional Lower Level

998 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

54' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

730 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Garage

Flat

0' 0''

Mudroom

Flat

9' 0''

Laundry Room

Flat

9' 0''

Kitchen

Flat

9' 0''

Dining Room

Flat

9' 0''

Great Room

Step

10' 0''

Entry

Flat

9' 0''

Bedroom 2

Flat

9' 0''

Bath 2

Flat

9' 0''

Master Bedroom

Flat

9' 0''

Master Bath

Flat

9' 0''

Master WIC

Flat

9' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar
