Plan 51886HZ

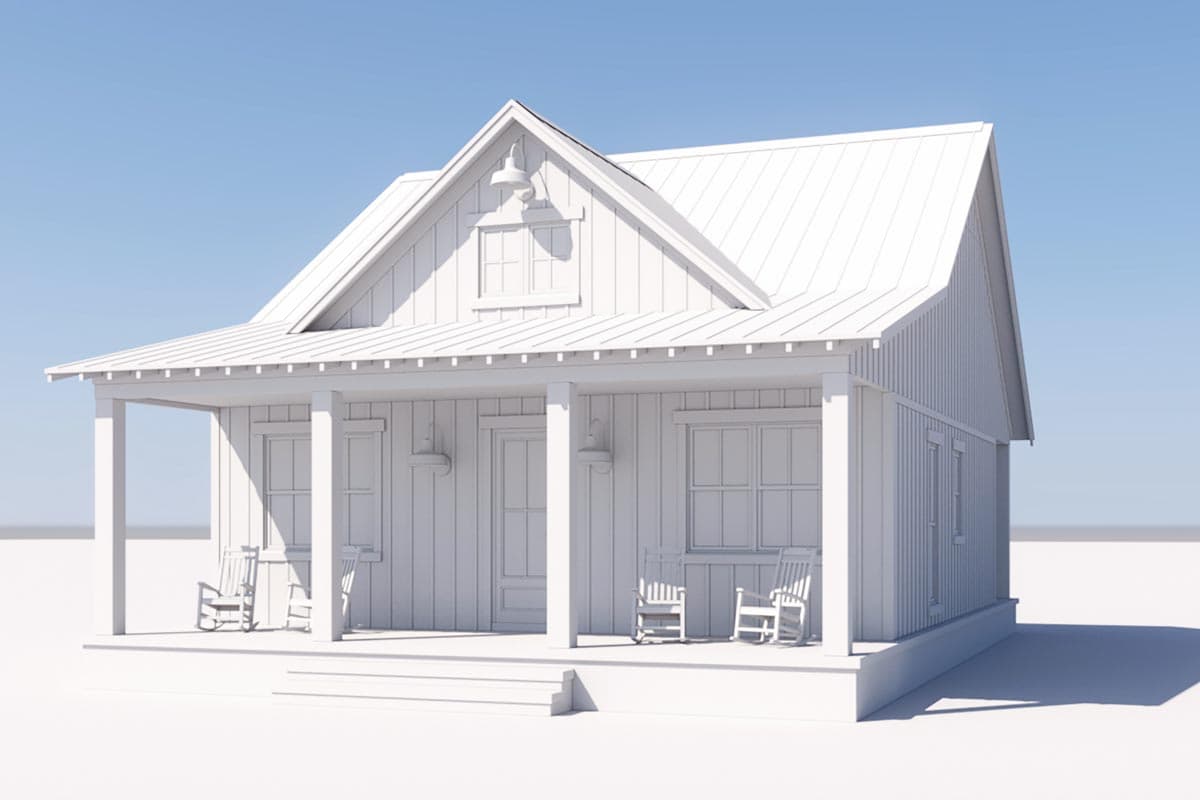

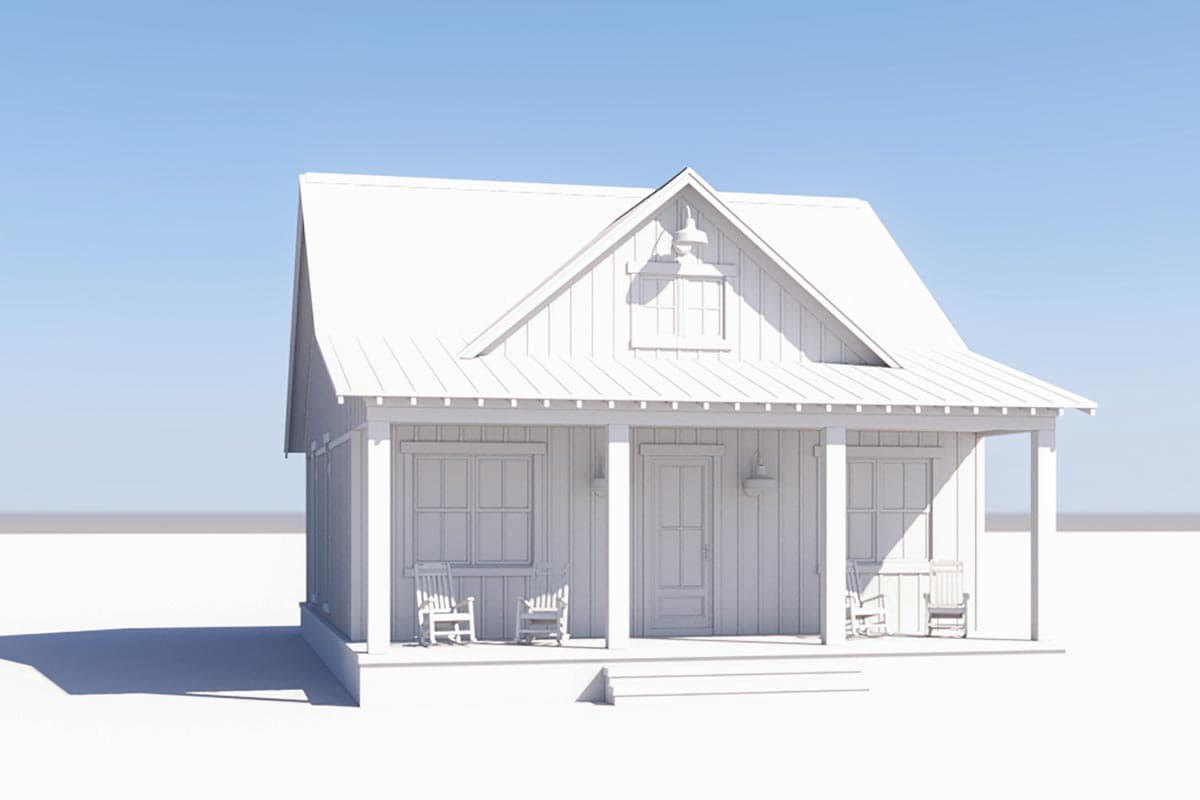

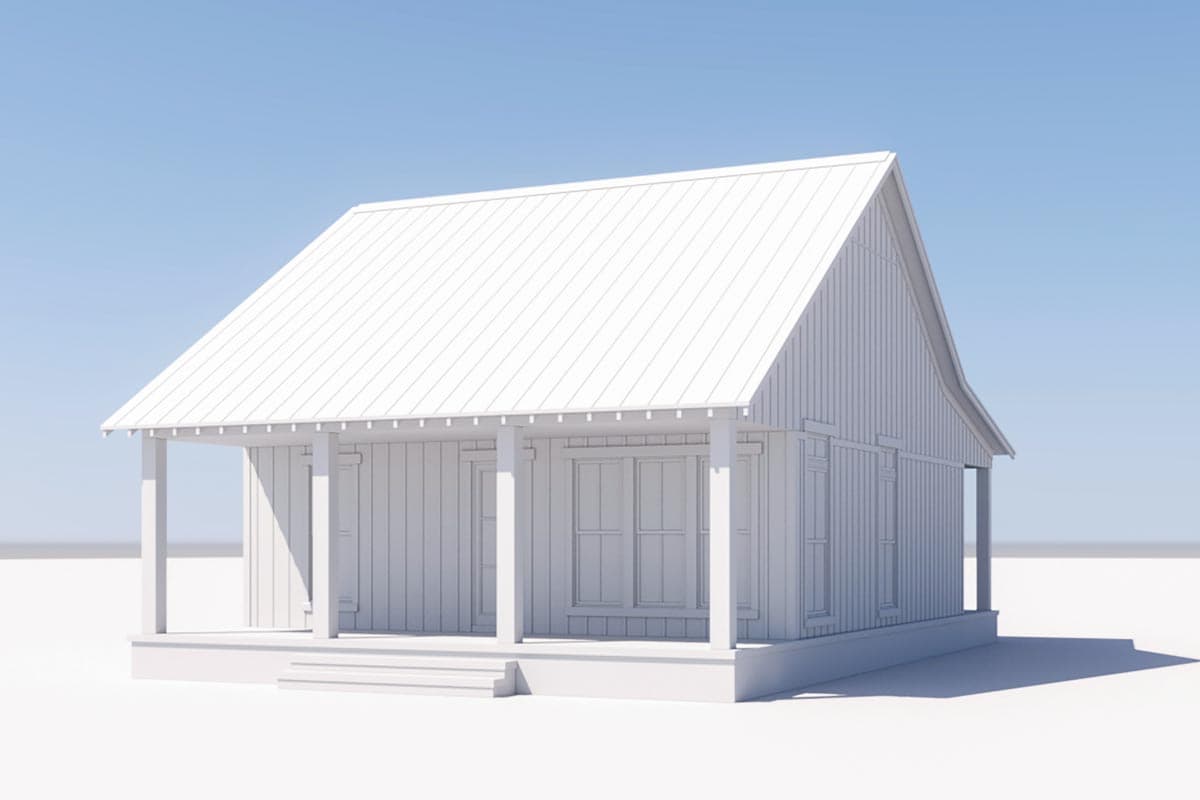

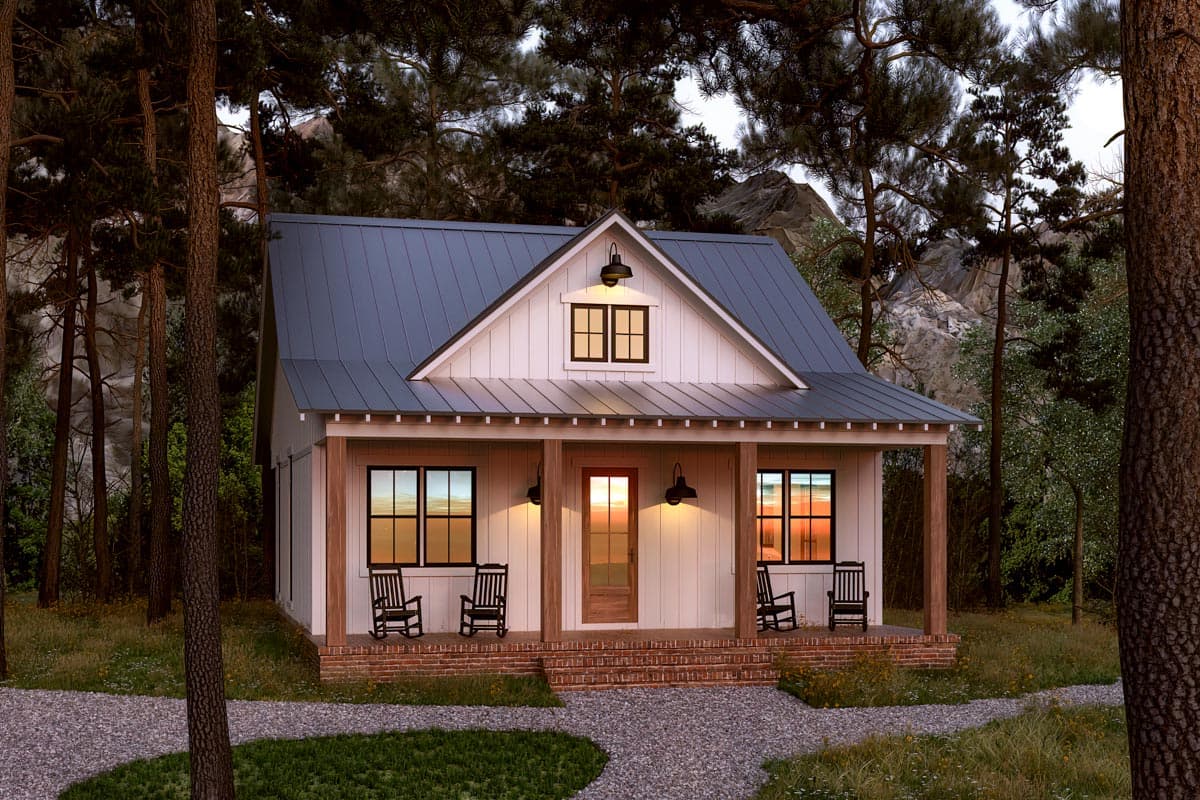

2-Bed Farmhouse Cottage House Plan with Vaulted Great Room - 960 Sq Ft
Heated S.F.
960
Beds
2
Baths
1
Stories
1
Tour
Floor Plan

Plan 51886HZ

Main Level
slide image 0

Plan 51886HZ

1-800-854-7852

1-262-521-4596

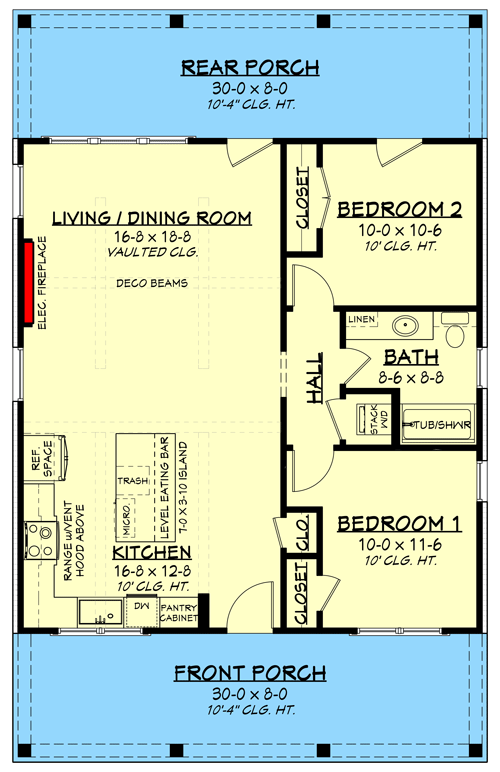

Main Level
floor plan image Main Level
Plan Details

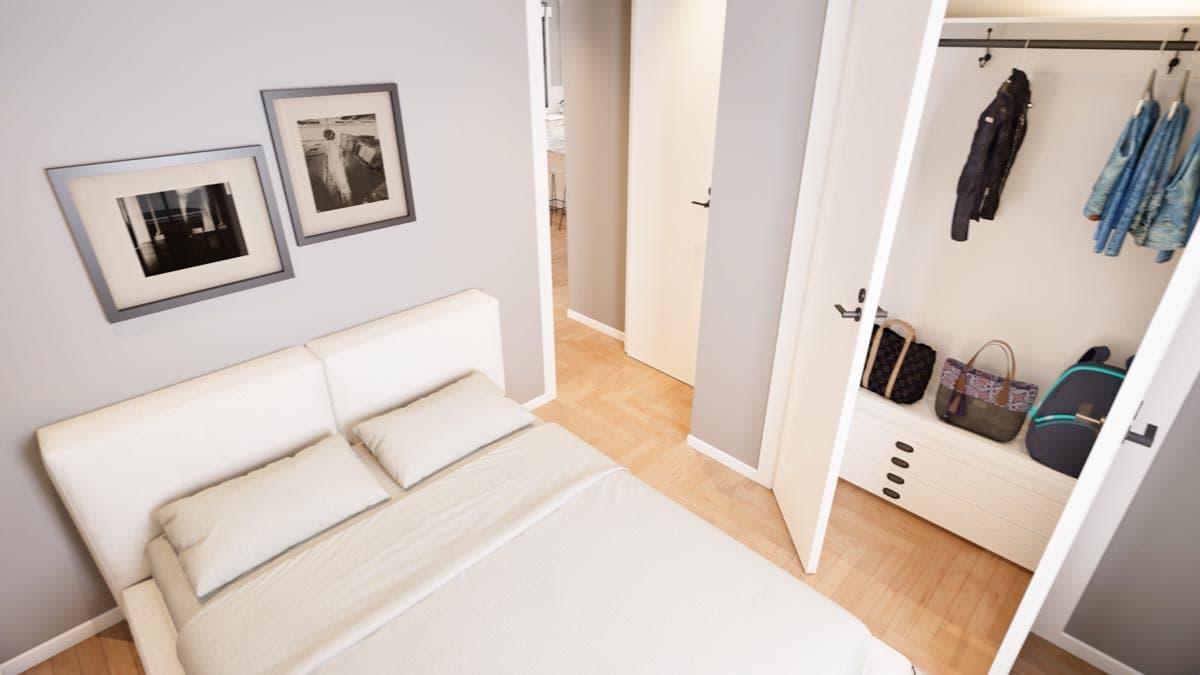

  • This charming farmhouse plan offers two bedrooms, a full size bath, and laundry space.

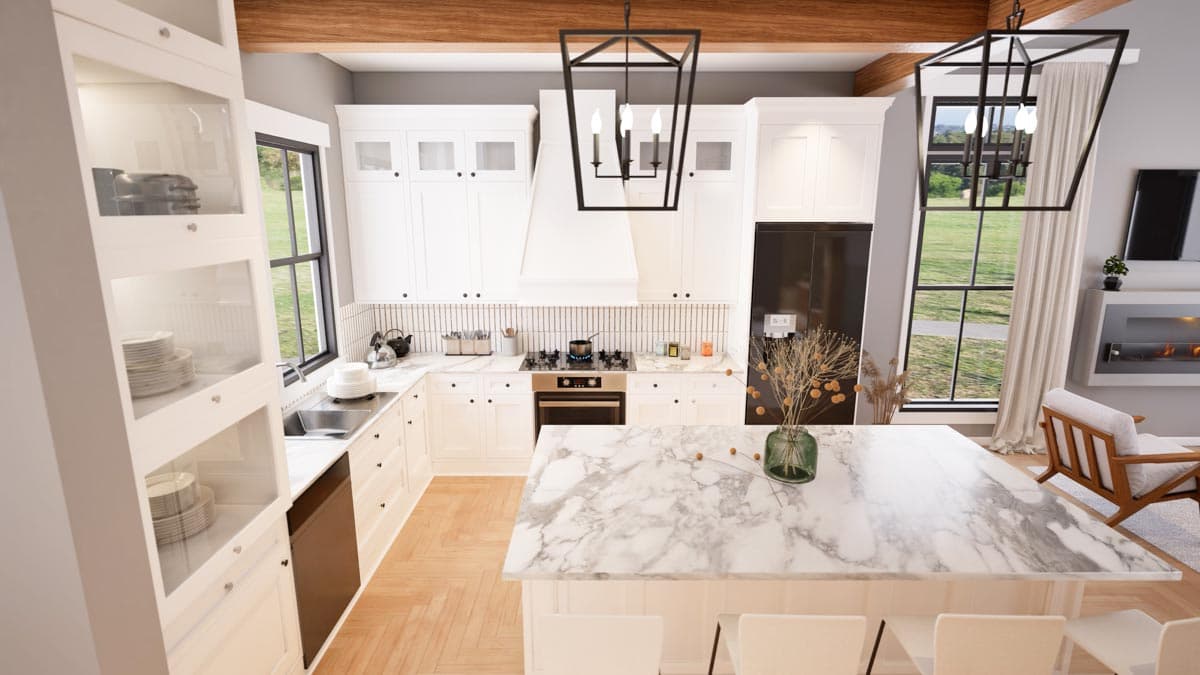

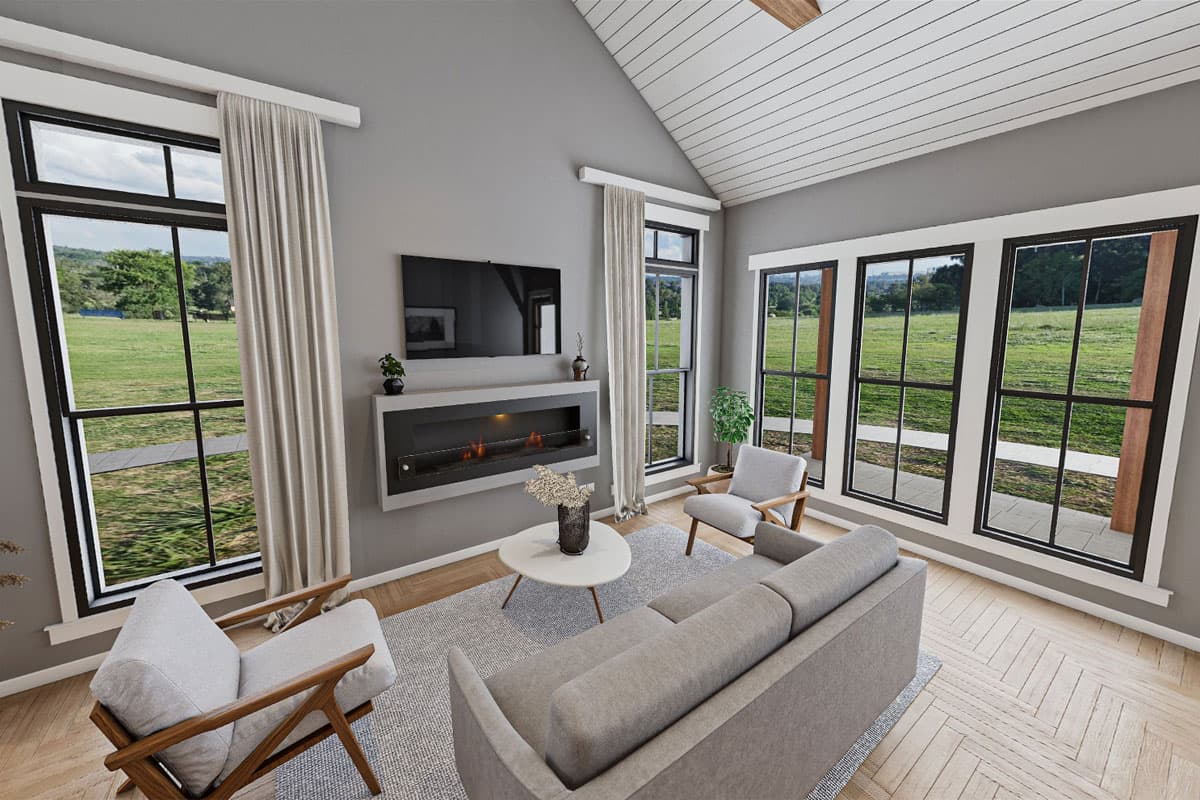

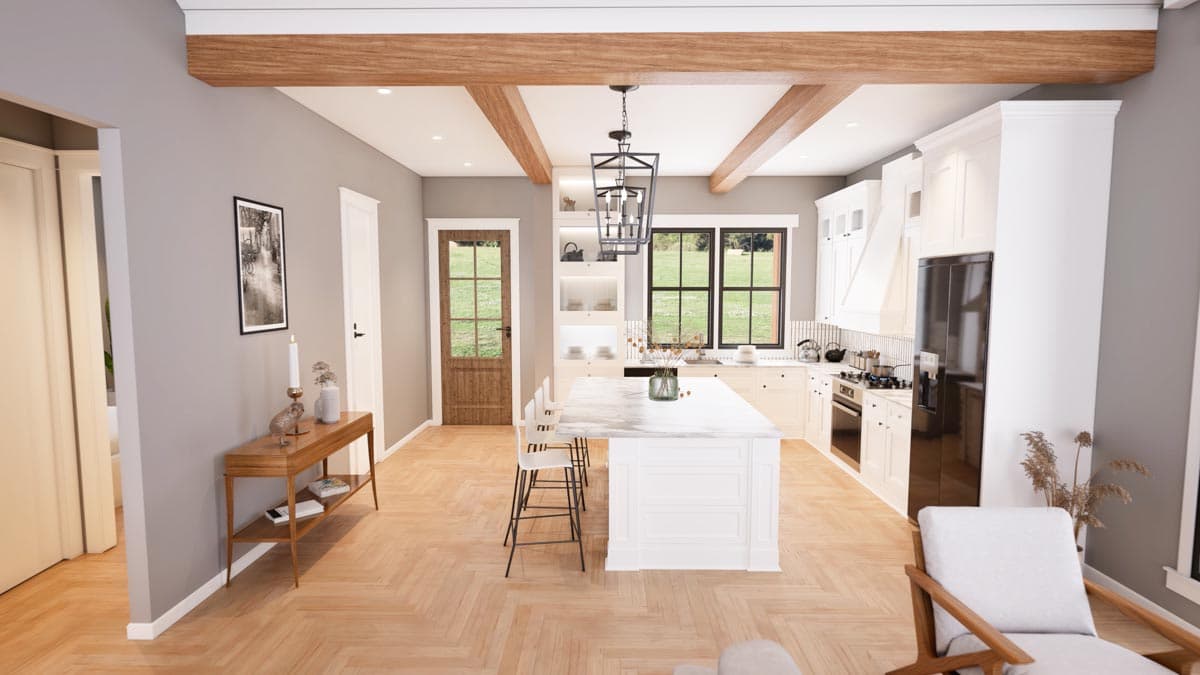

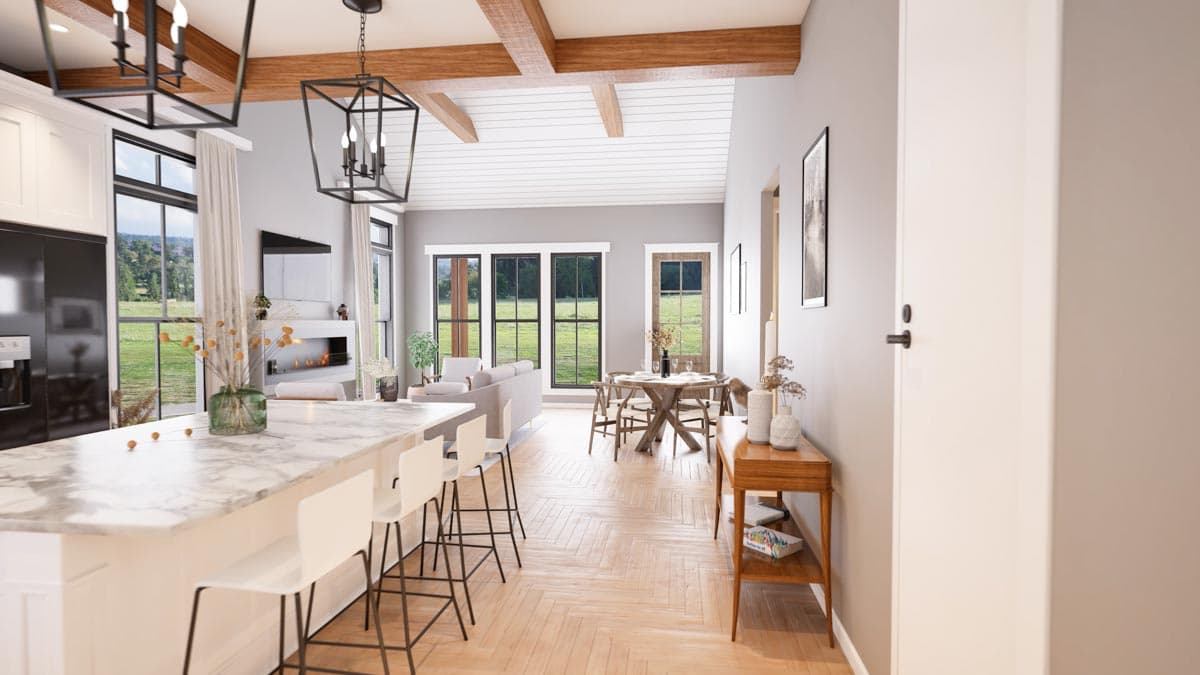

  • The living, dining, and kitchen are all open for easy entertaining and plenty of windows for natural light and to take in those amazing views.

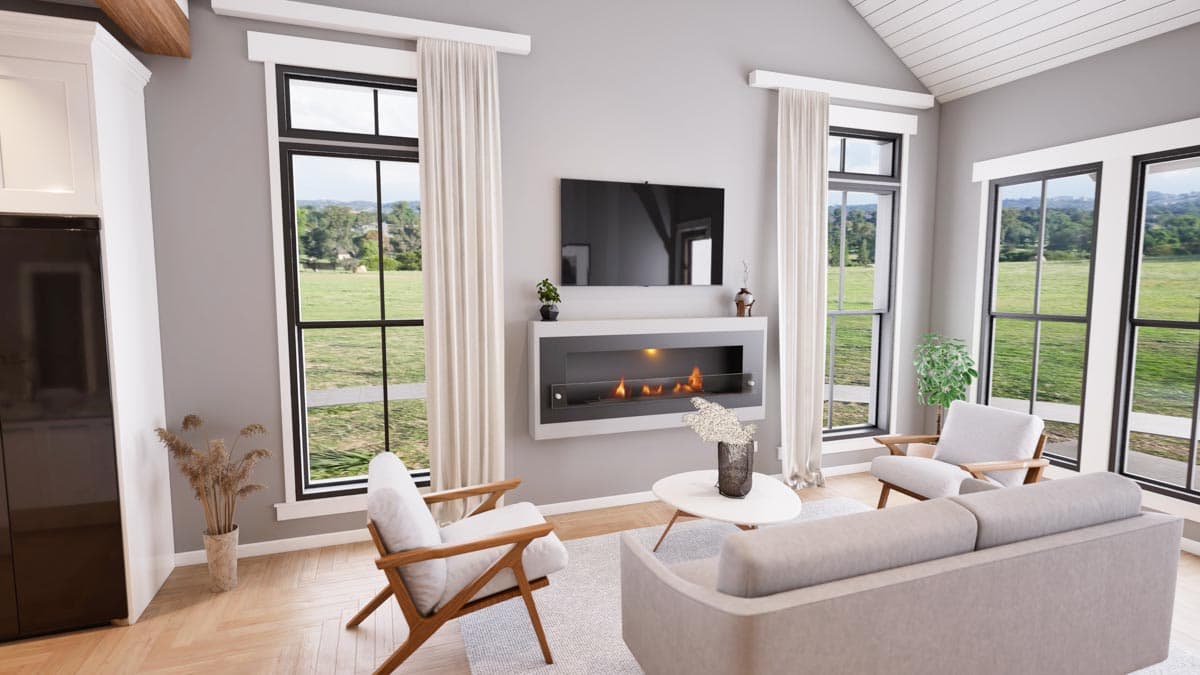

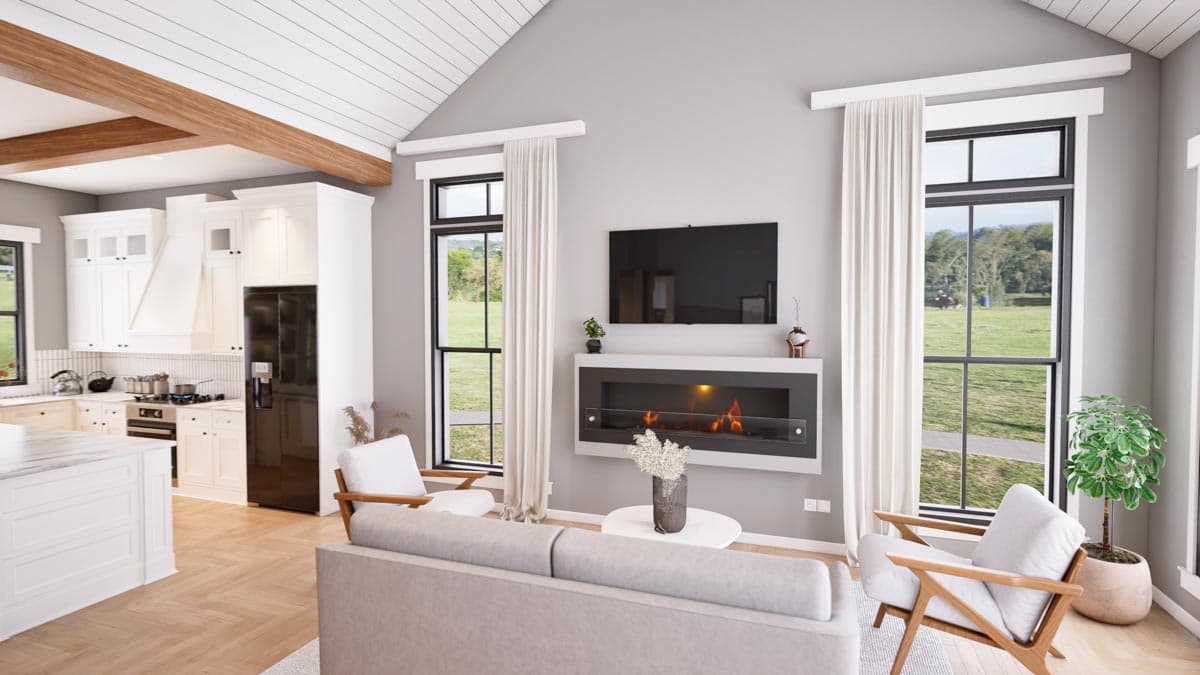

  • This design offers 10' ceilings with a vaulted ceiling in the living/dining space.
  • Related Plans: Get a smaller version with house plan 51866HZ (732 square feet) and get a larger version with house plans 51903HZ (1,299 sq. ft.), 51835HZ (1,257 square feet), 51891HZ (1,064 sq. ft.) and house plan 51847HZ (1,070 square feet).
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

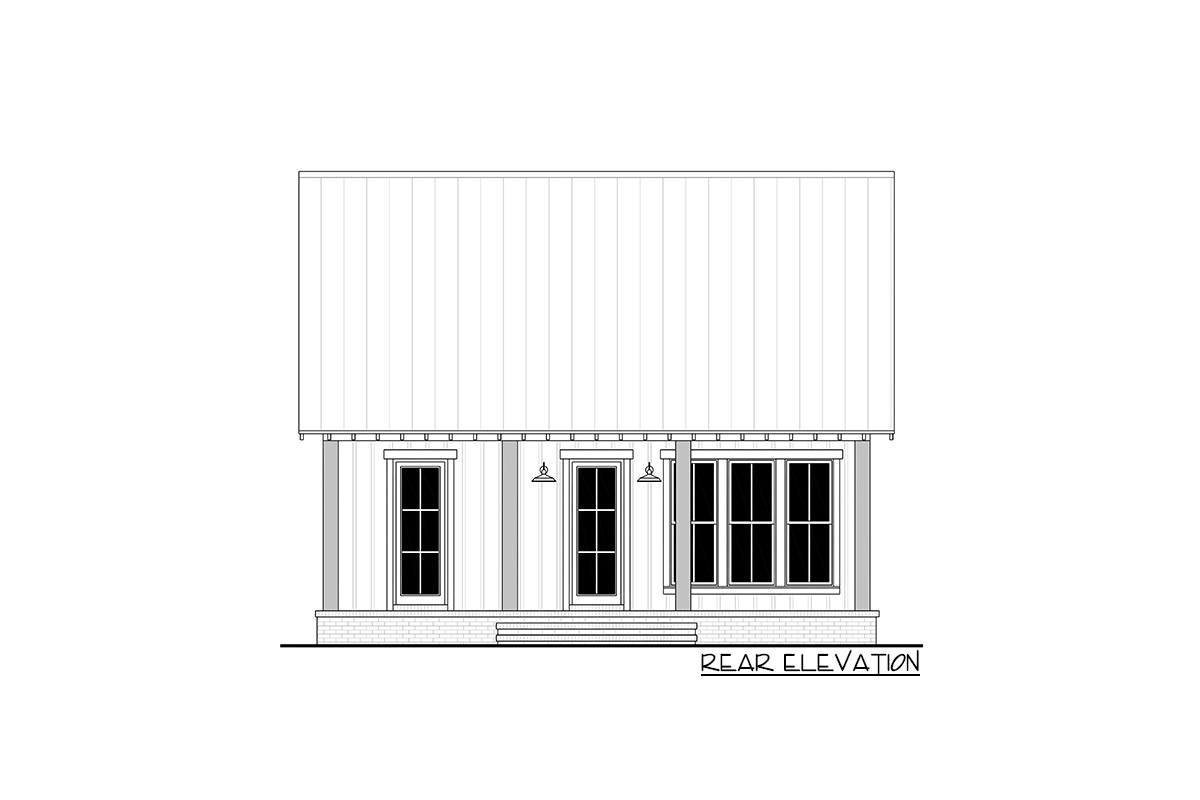

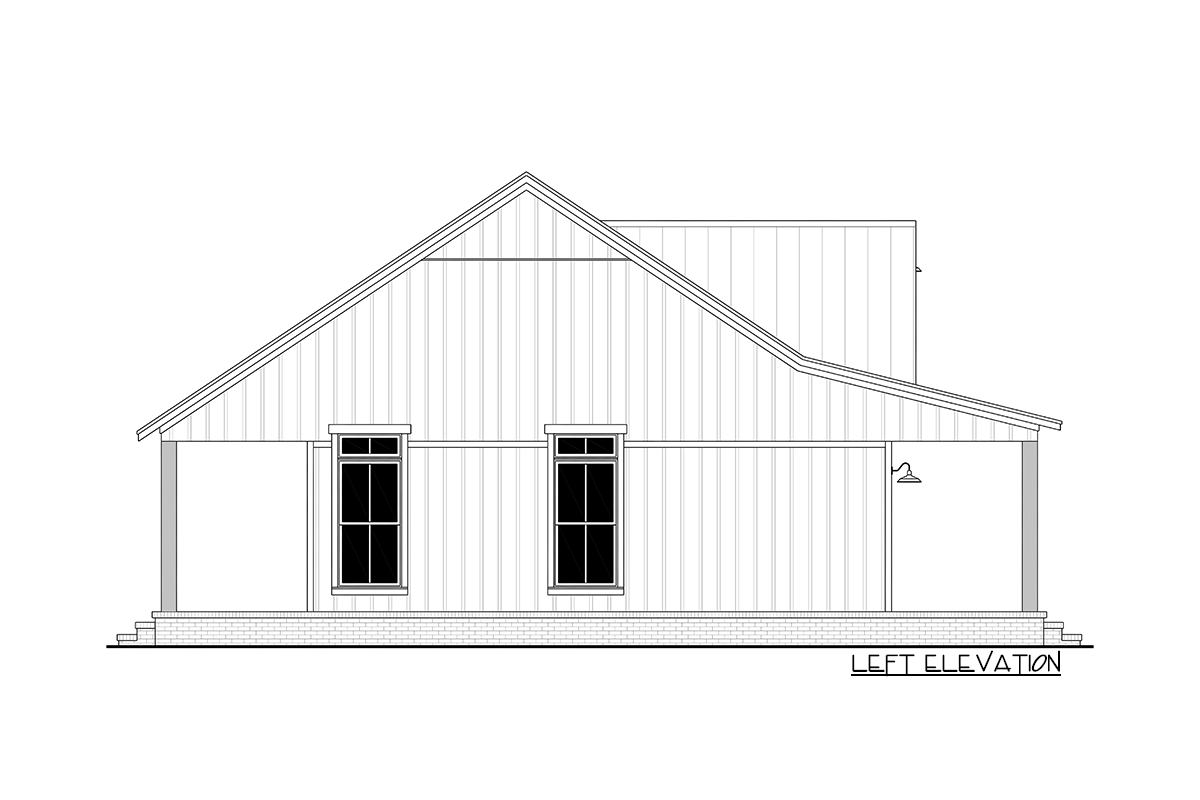

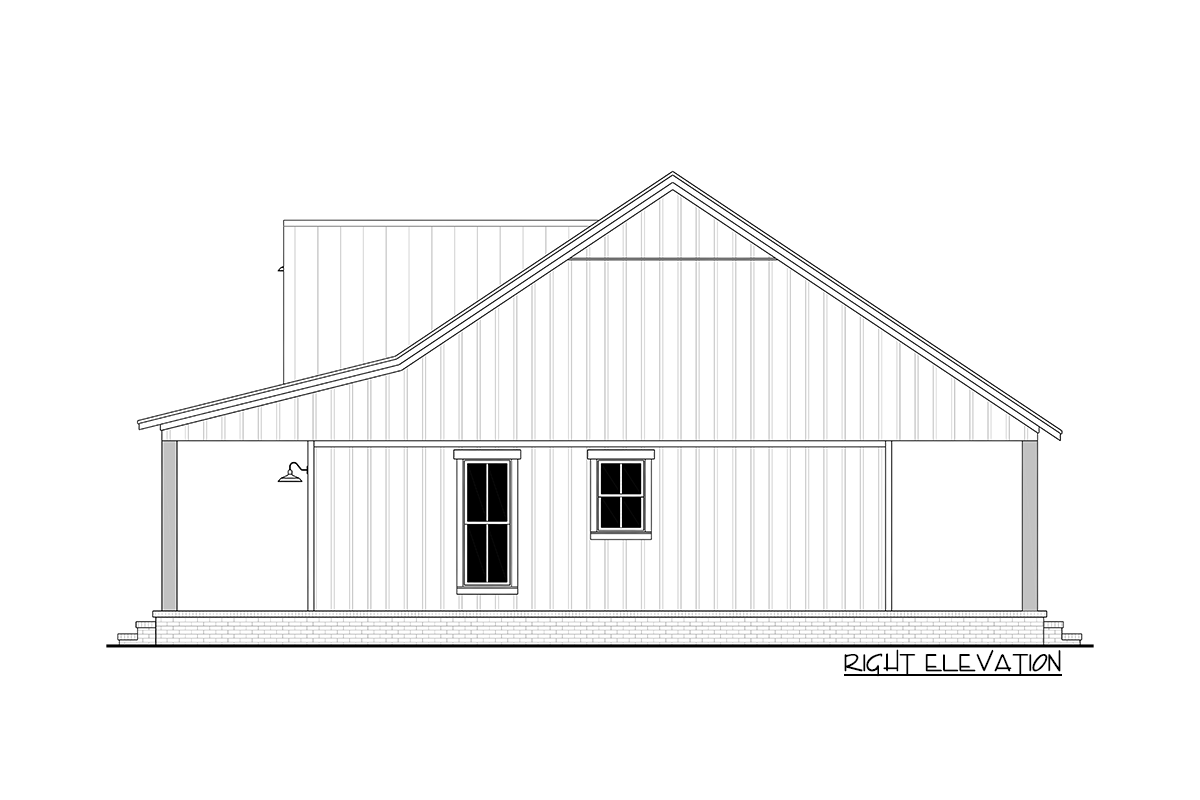

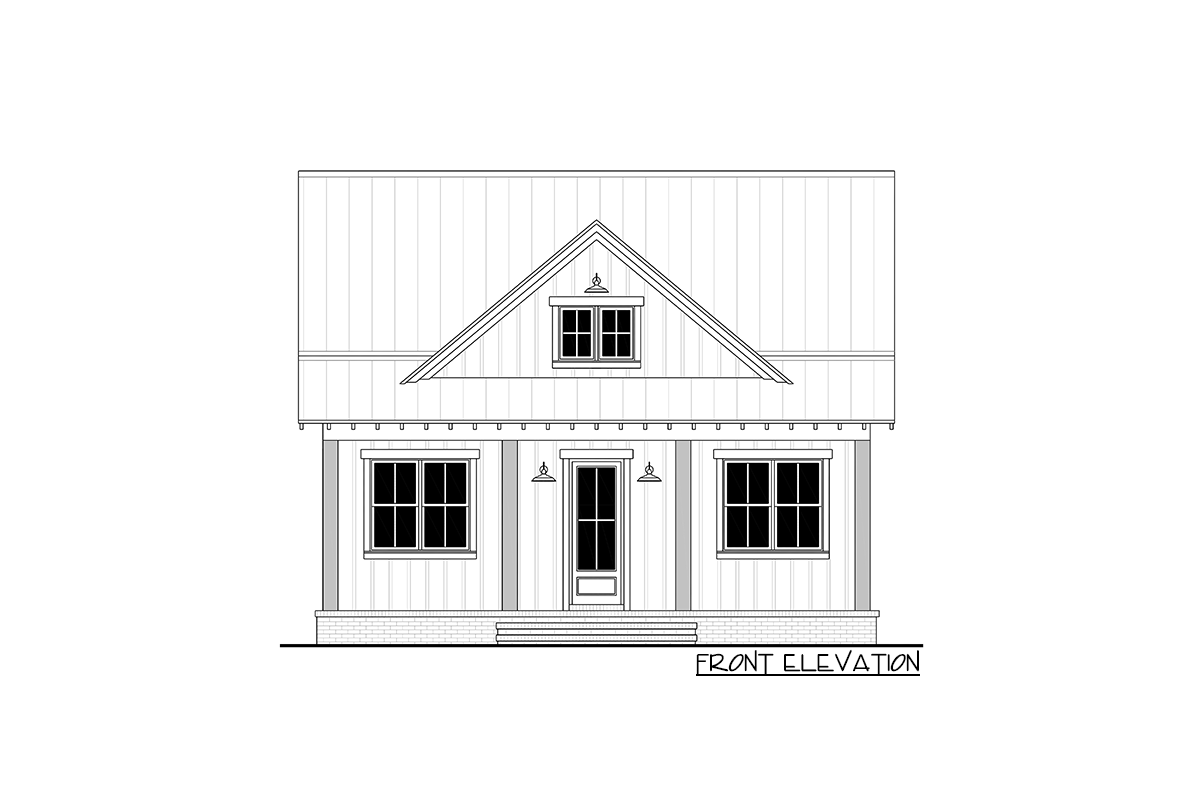

Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

960 sq. ft.

1st Floor

960 sq. ft.

Porch, Front

240 sq. ft.

Porch, Rear

240 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

48' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 On 12; 3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Craftsman

Farmhouse

Modern Farmhouse

Rustic

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Tiny Home House Plans
