Plan 68964VR
2-Bed Garage Apartment Above a 2-Car Garage with Traditional Exterior
Heated S.F.
819
Beds
2
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 68964VR

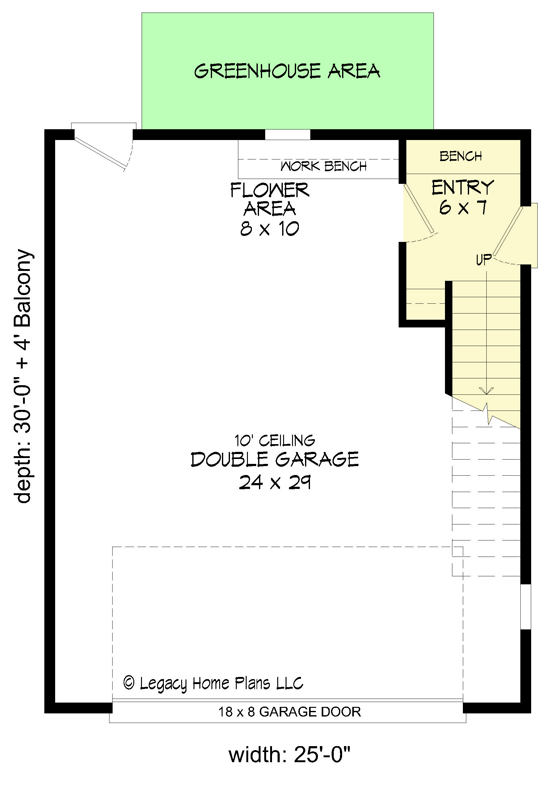

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68964VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

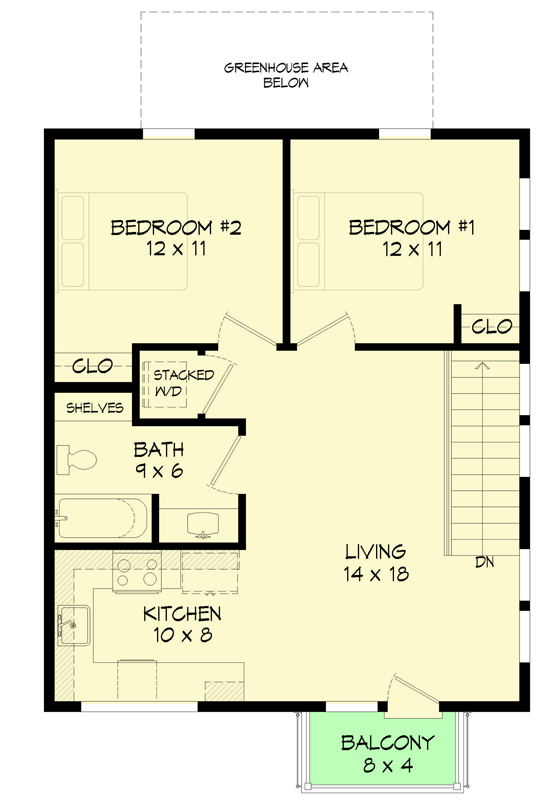

2nd Floor
floor plan image 2nd Floor
Plan Details

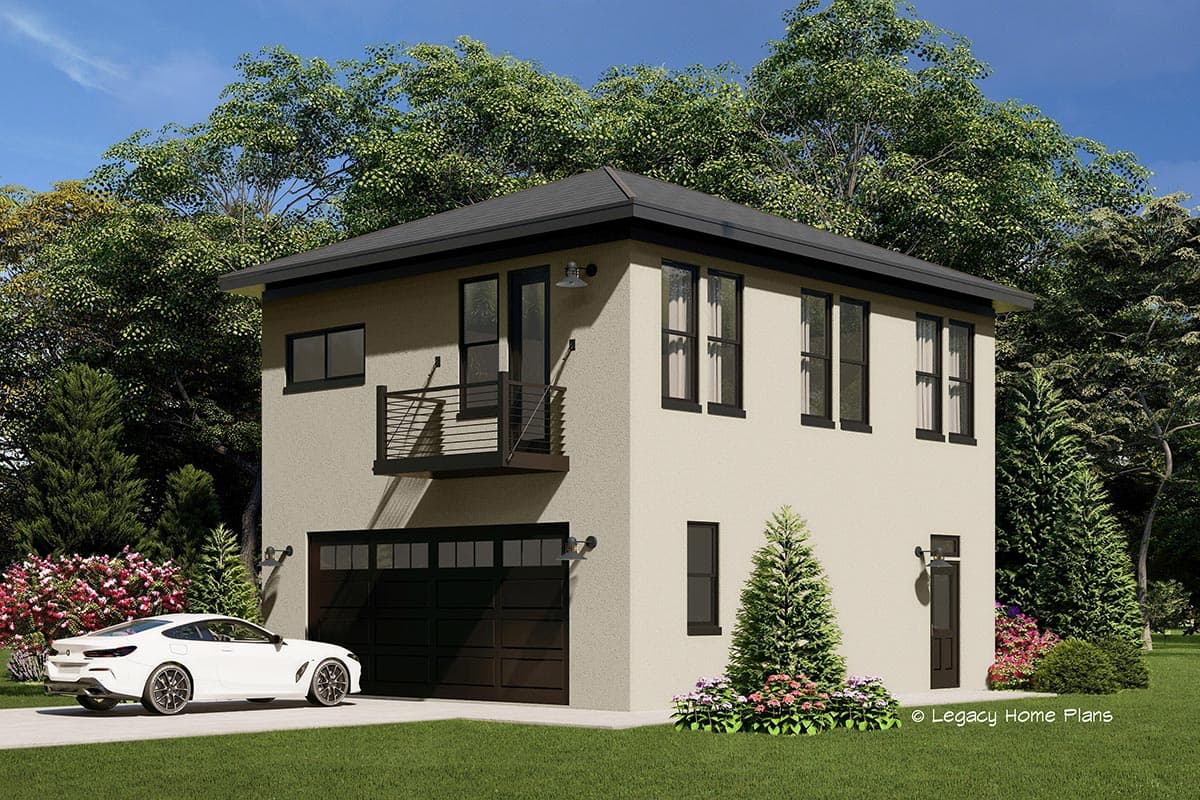

  • This traditional narrow-lot garage-with-2-bed-aparnent-above house plan is great for an outbuilding, a rental or even a full-time home. A single 18' by 8' garage door has opens giving you room to park two cars inside.

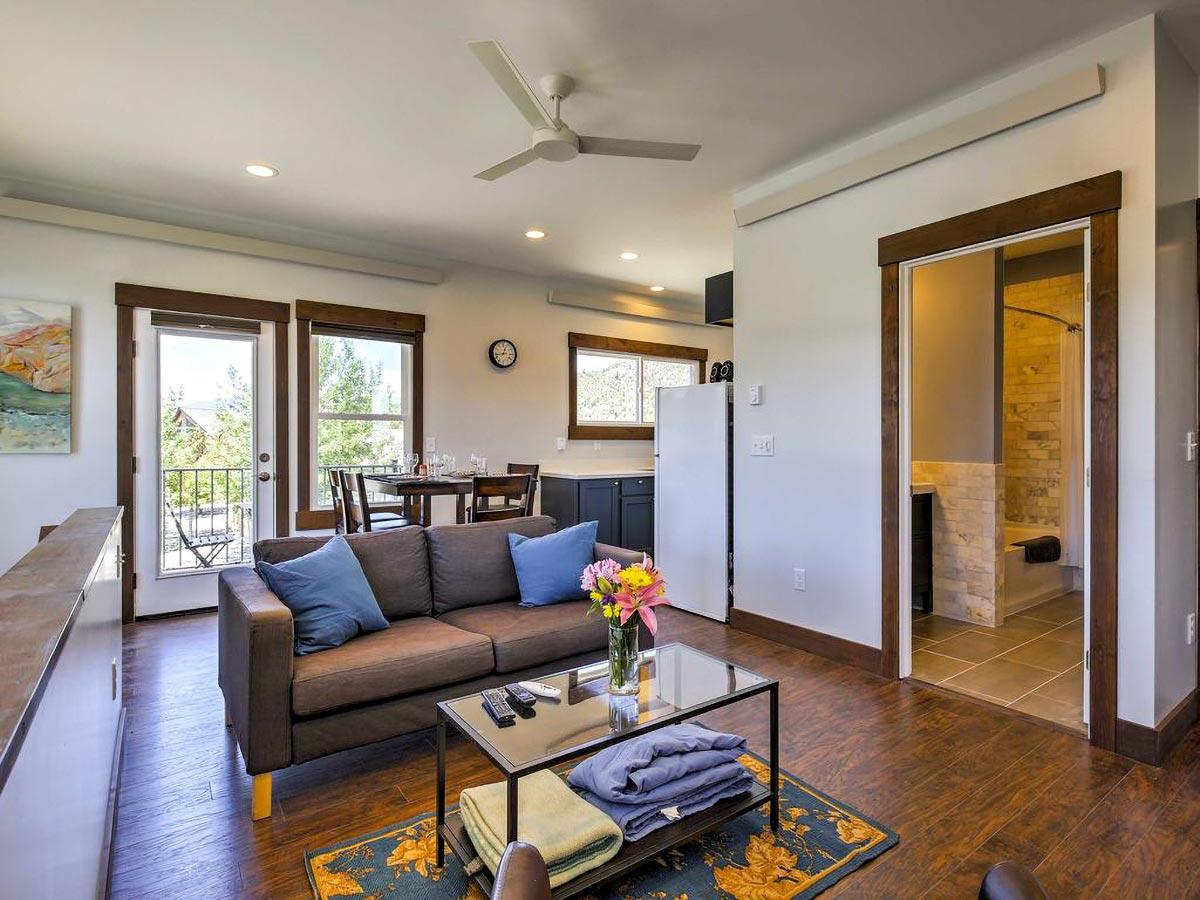

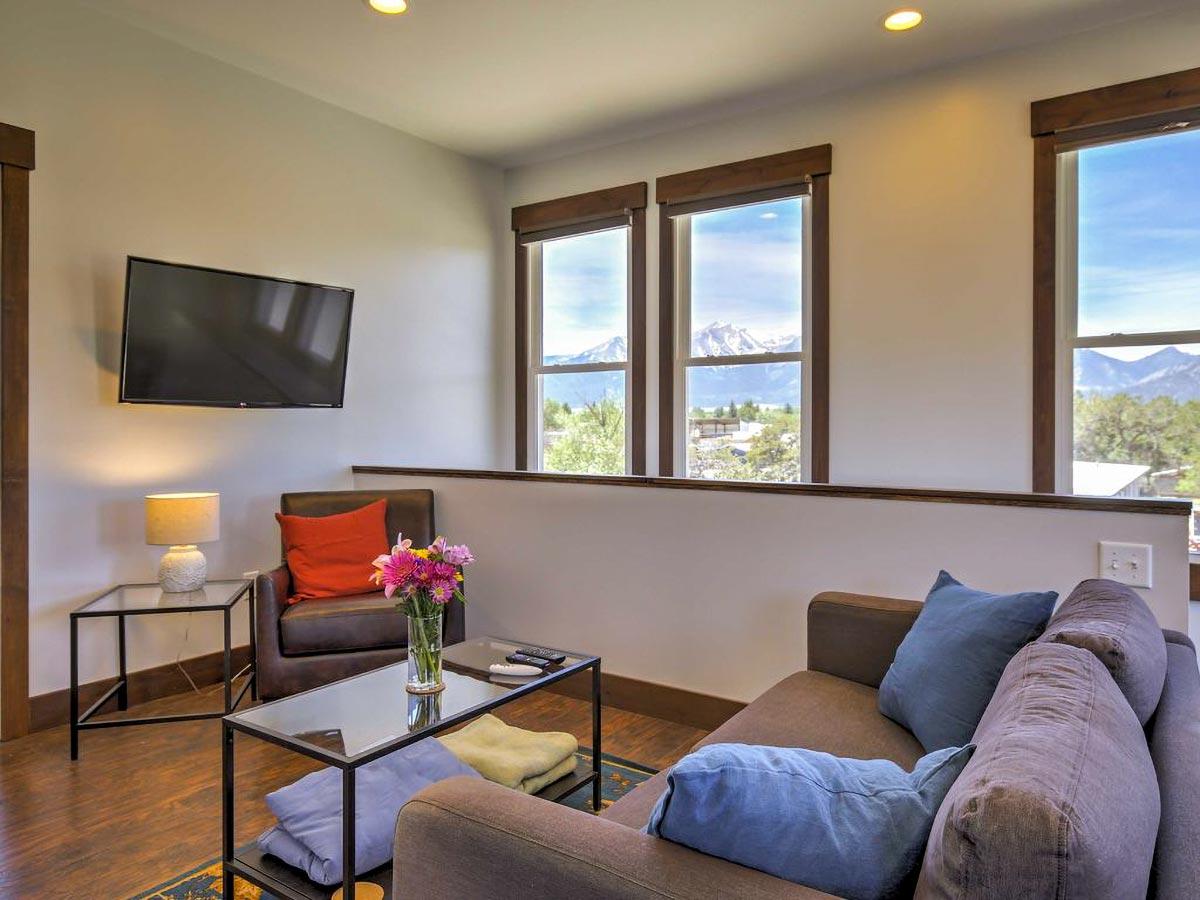

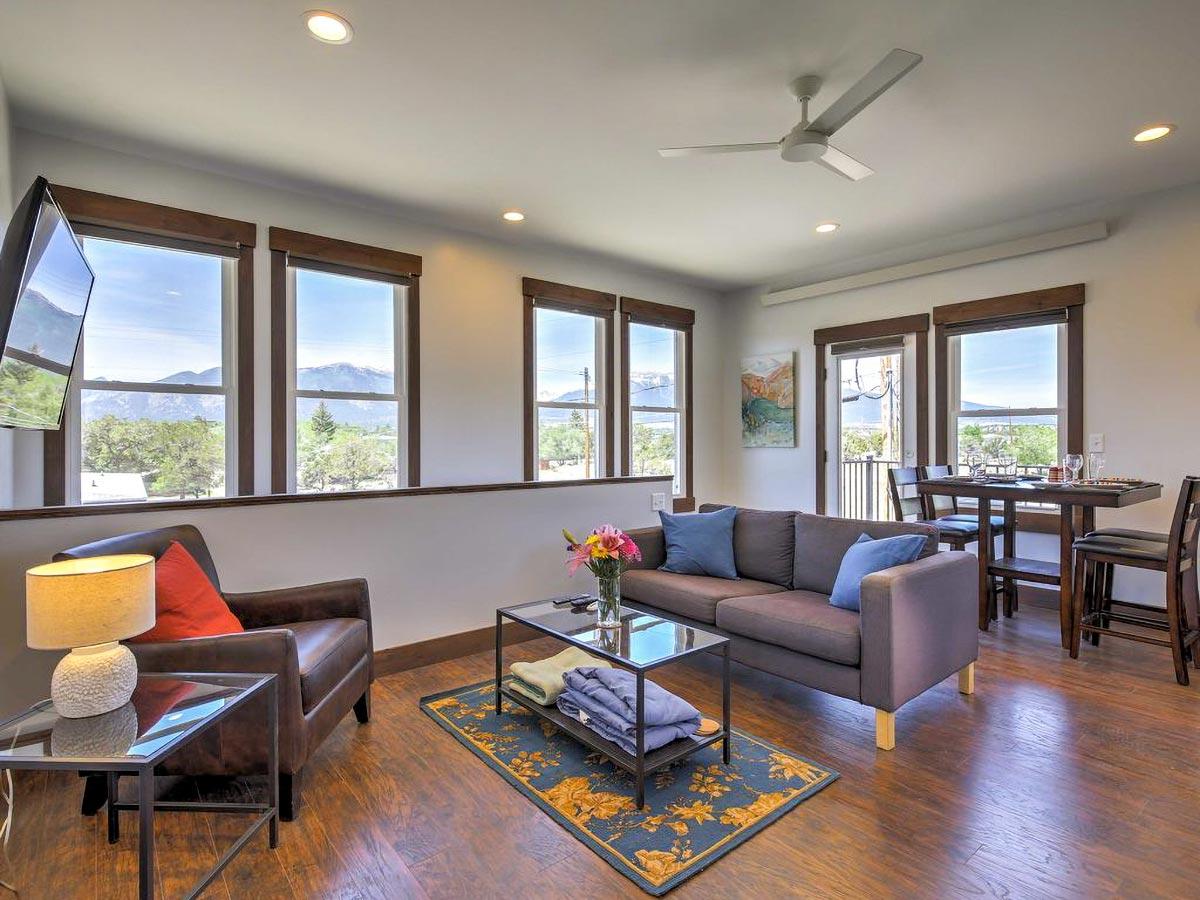

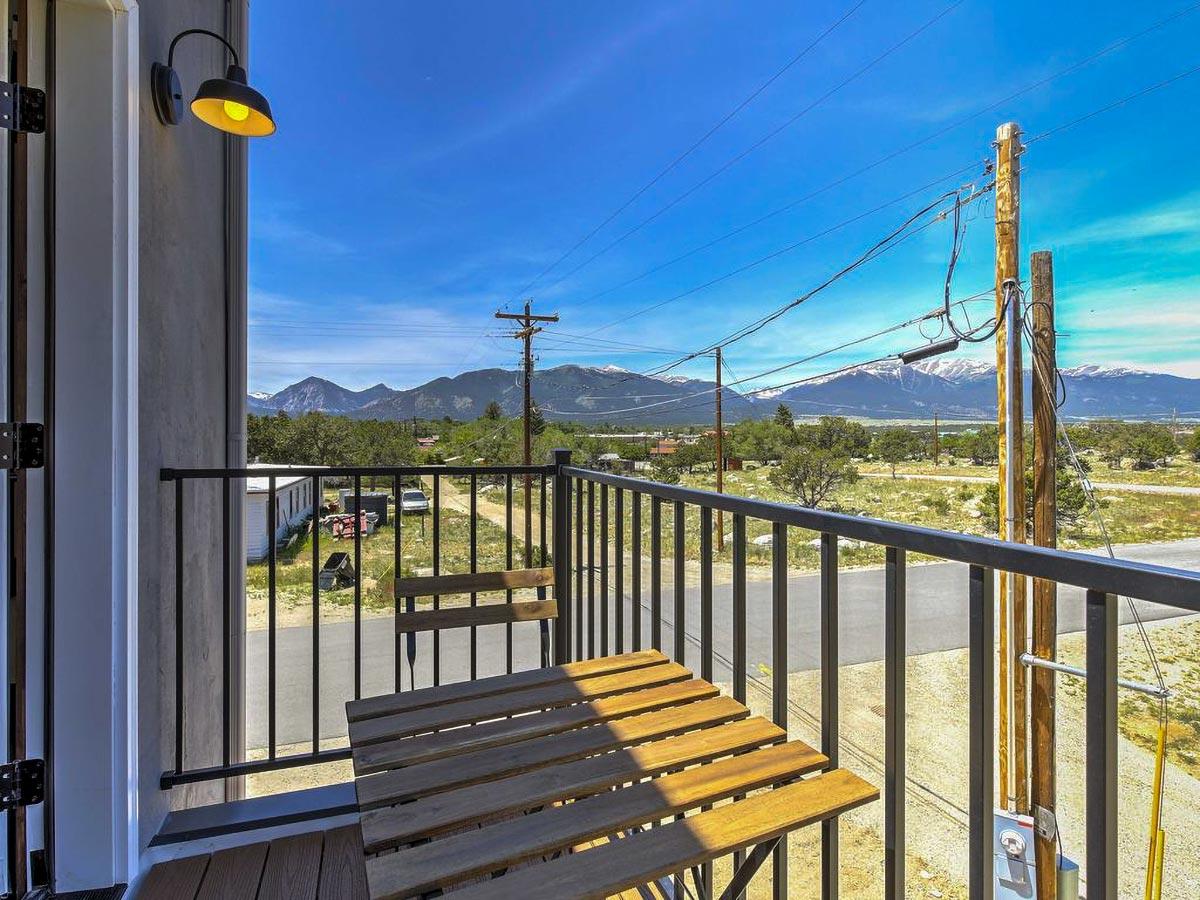

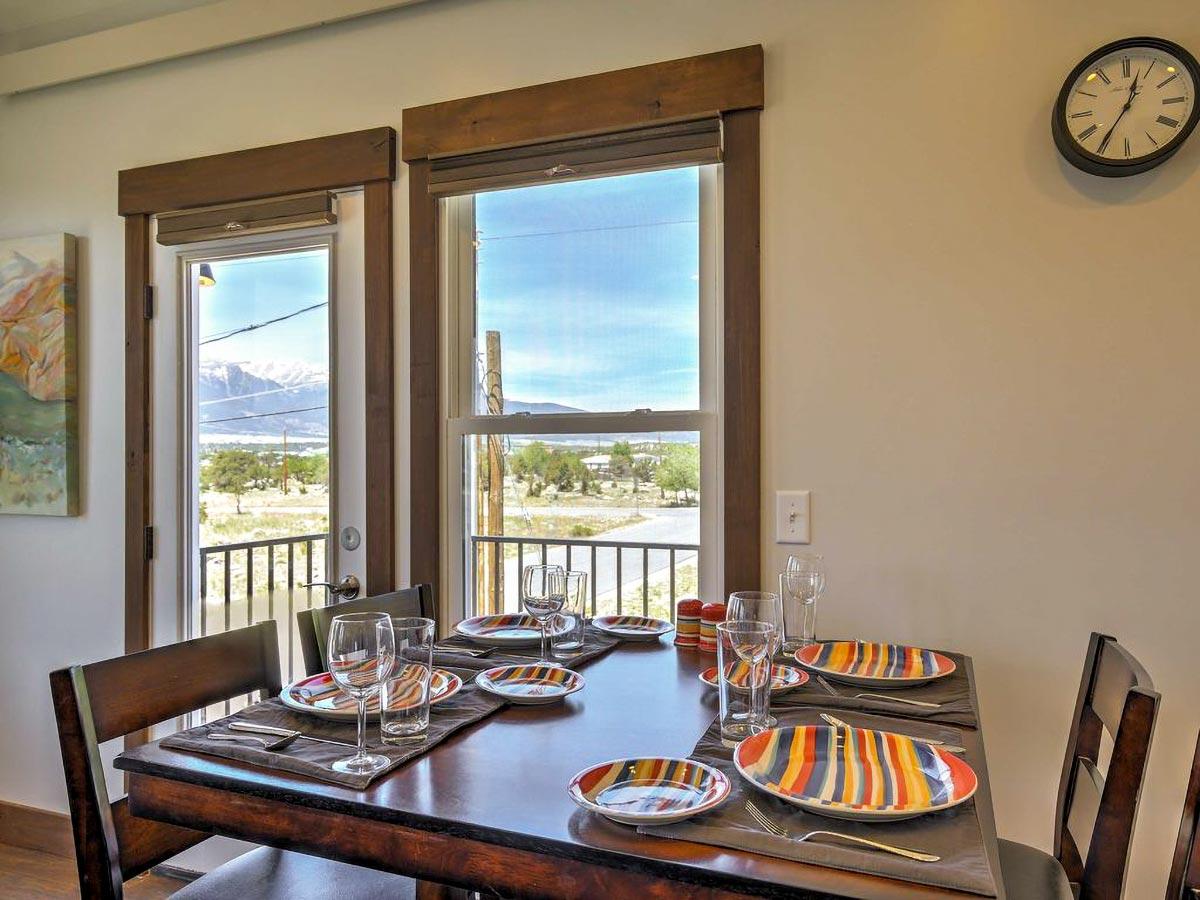

  • Stairs along the left side take you to the living room which opens to the kitchen. A door on the front wall takes you to a small balcony looking out across the drive.

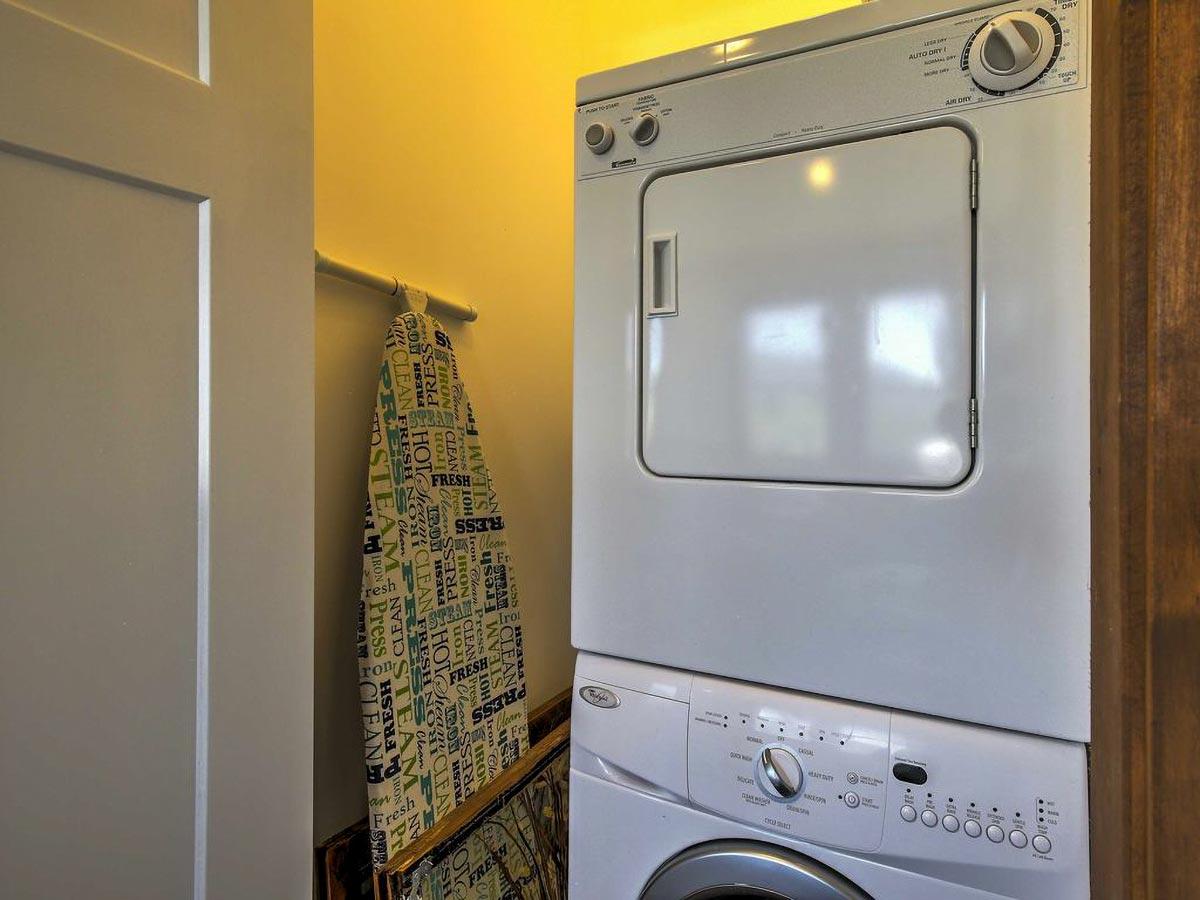

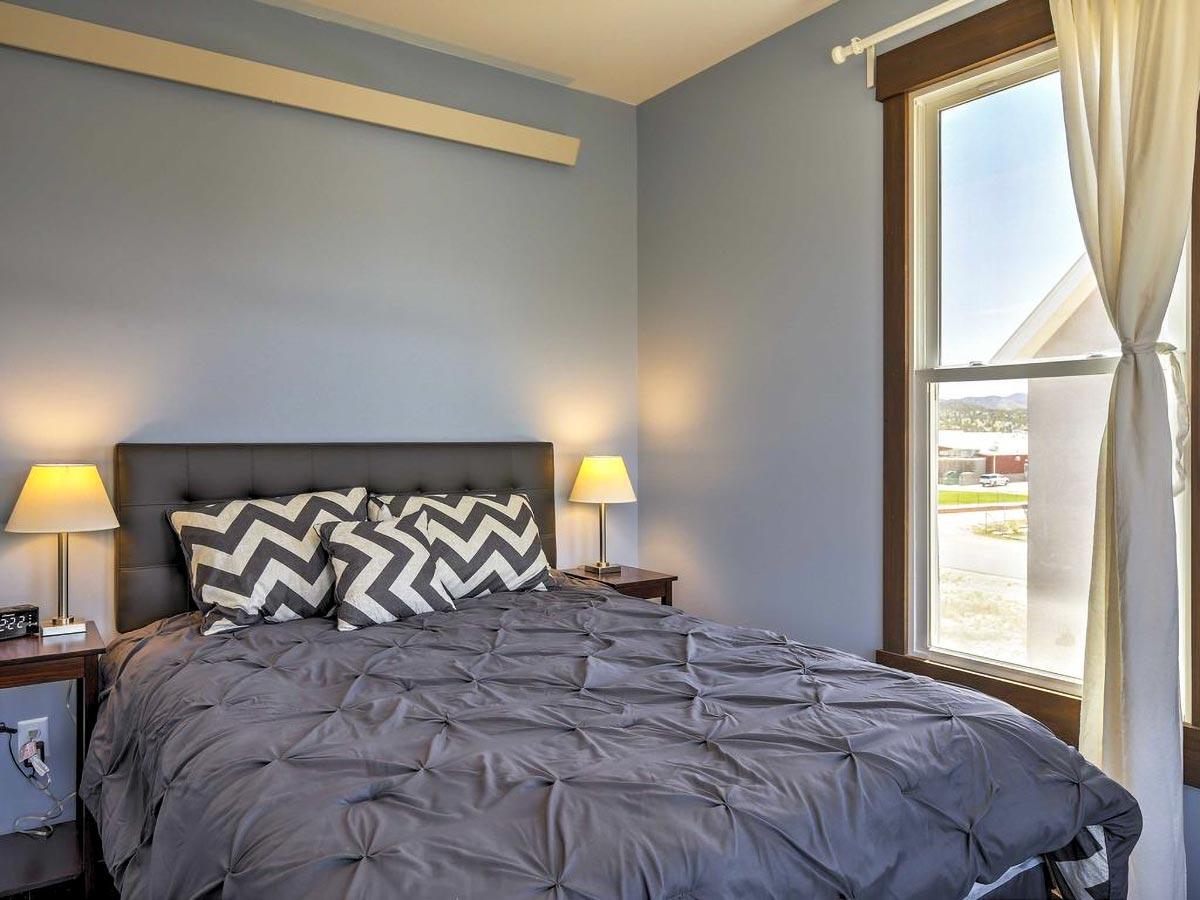

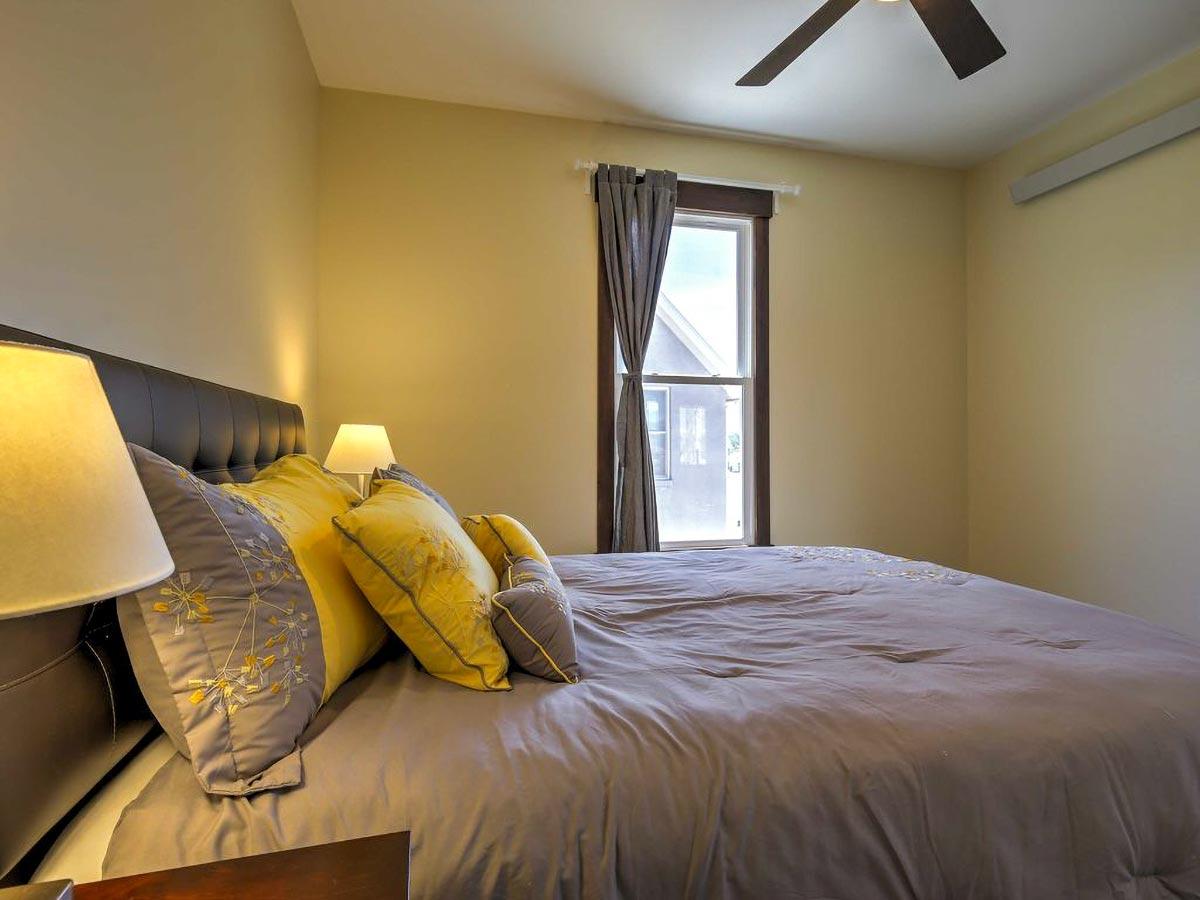

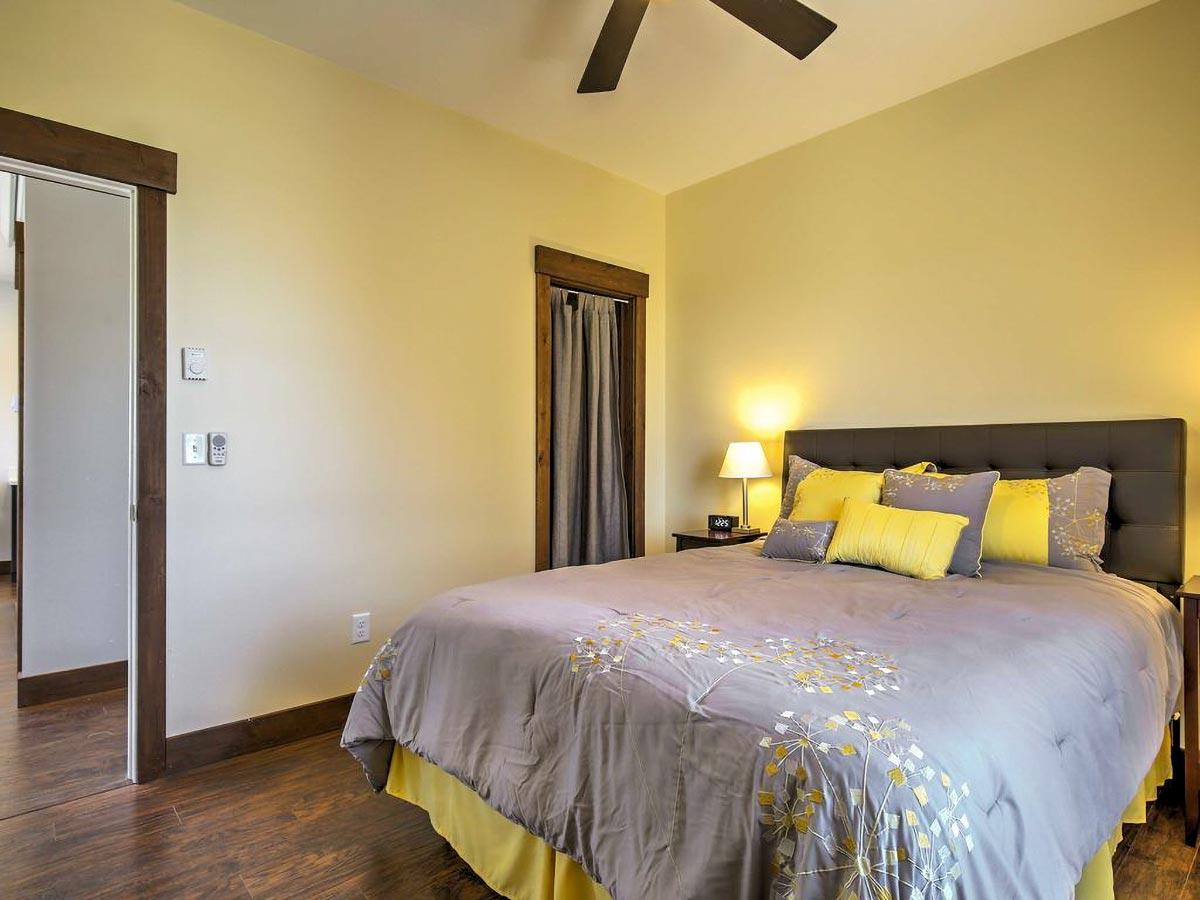

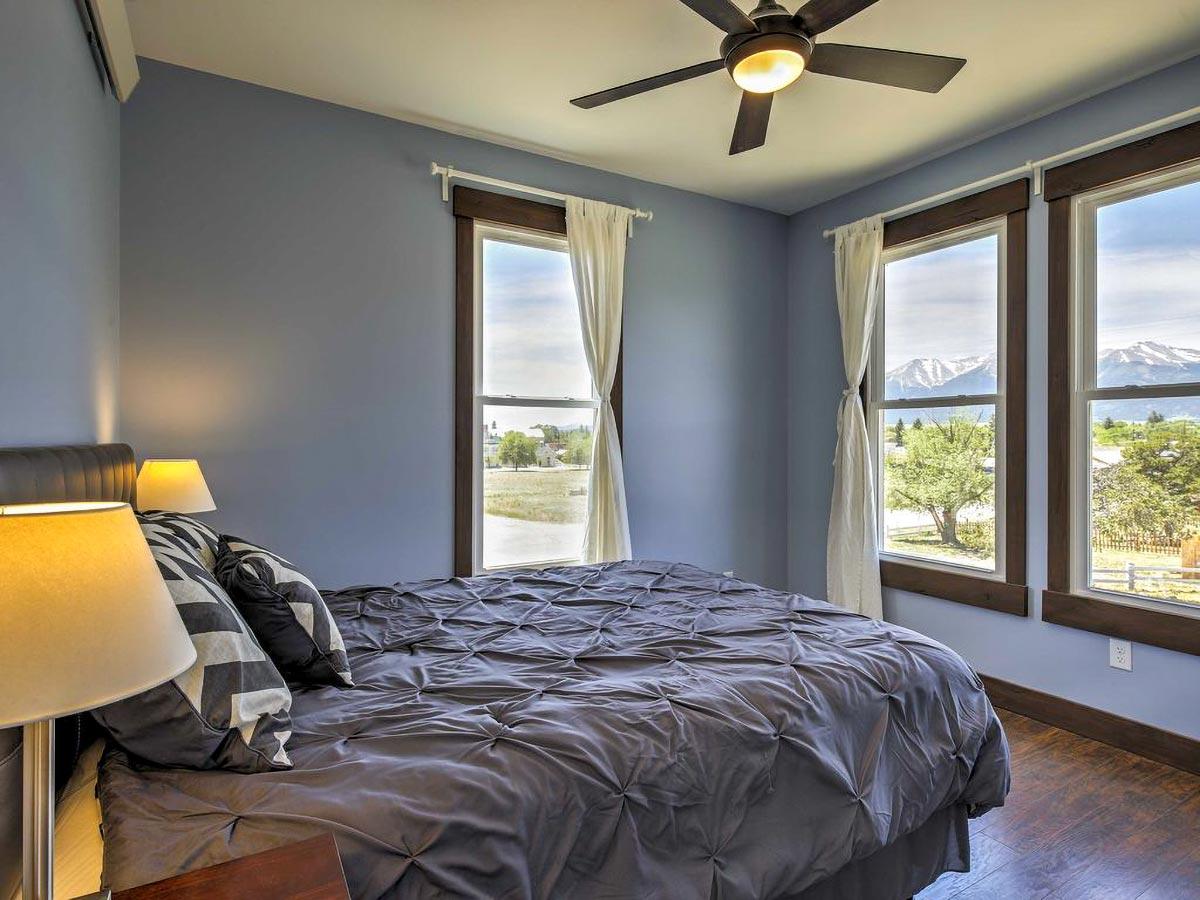

  • Both bedrooms are in the back of the home and share laundry and a bath.
  • Related Plans: Get a more modern version with house plan 68461VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

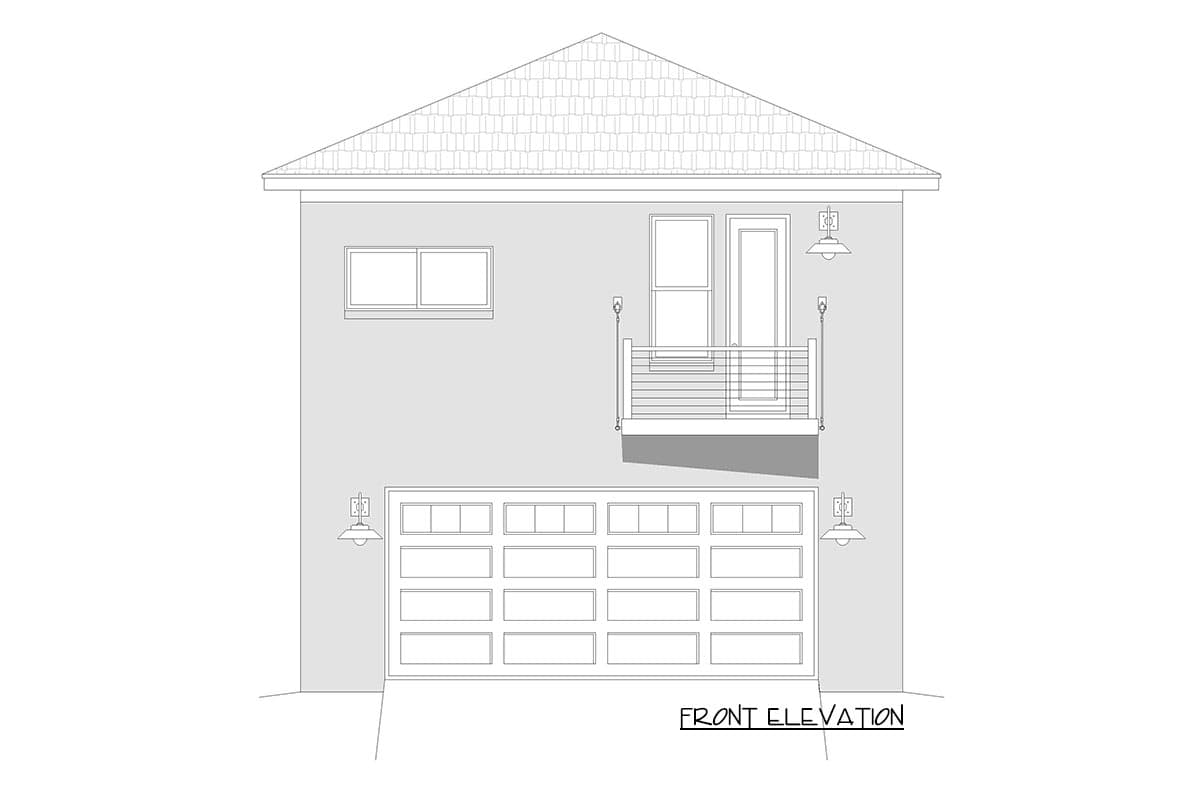

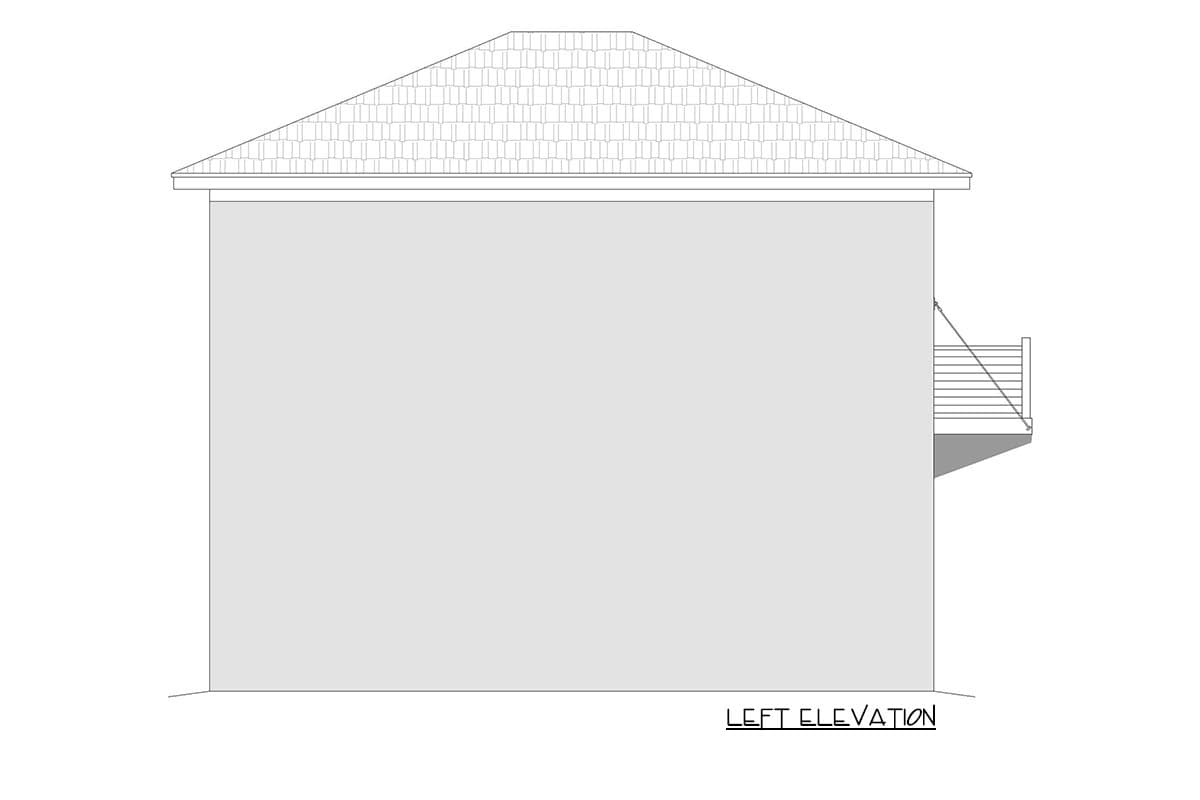

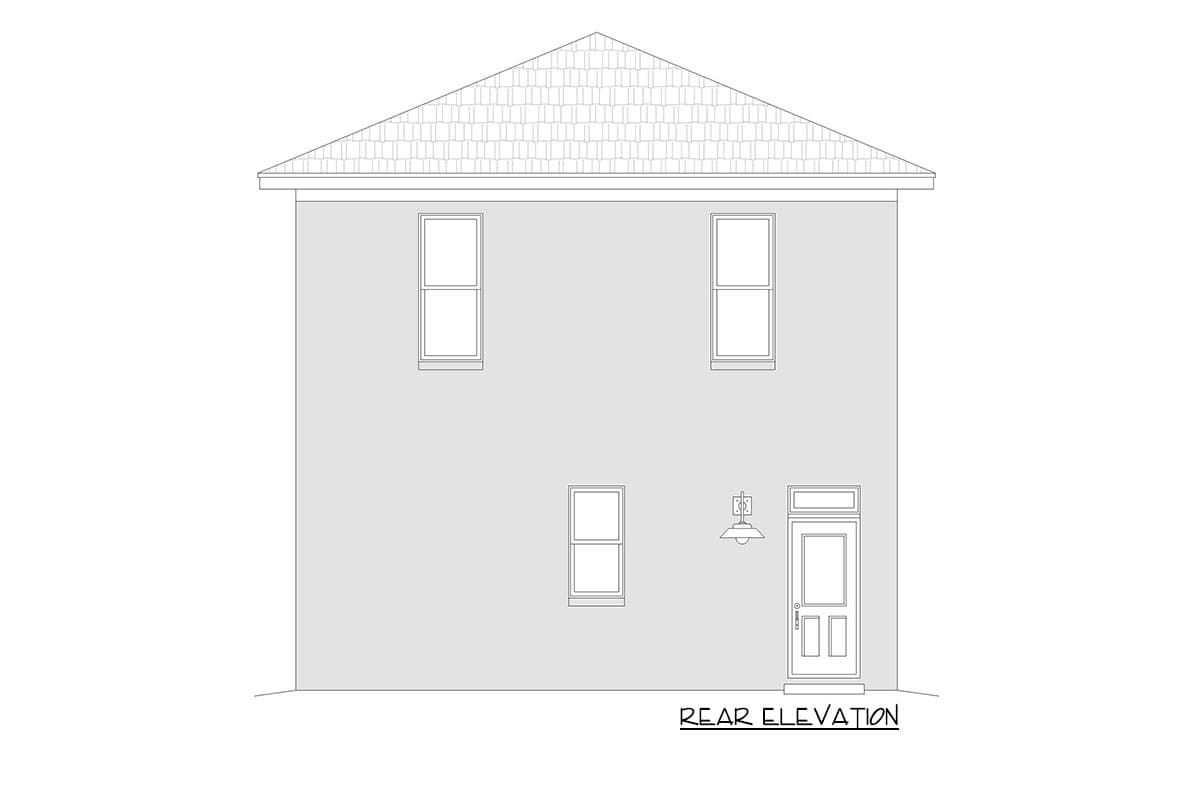

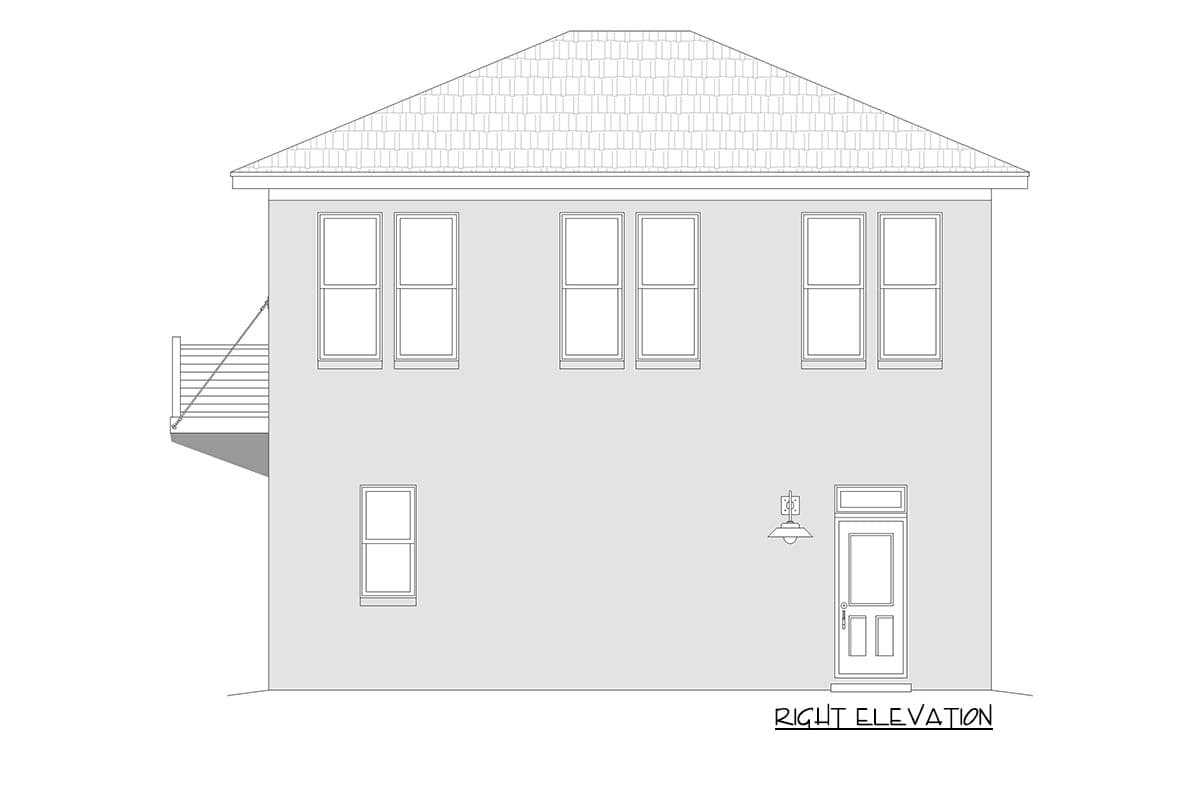

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

819 sq. ft.

1st Floor

69 sq. ft.

2nd Floor

750 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

34' 0"

Max Ridge Height

26' 10"

Garage

Type

Attached

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
