Plan 350023GH
2 Bed House Plan with 1 Car Front Garage and a 3 Car Rear Drive Under Garage
Heated S.F.
993
Beds
2
Baths
2
Stories
1
Cars
1- 3
Floor Plan

Plan 350023GH

Main Level
slide image 0
Lower Level
slide image 1

Plan 350023GH

1-800-854-7852

1-262-521-4596

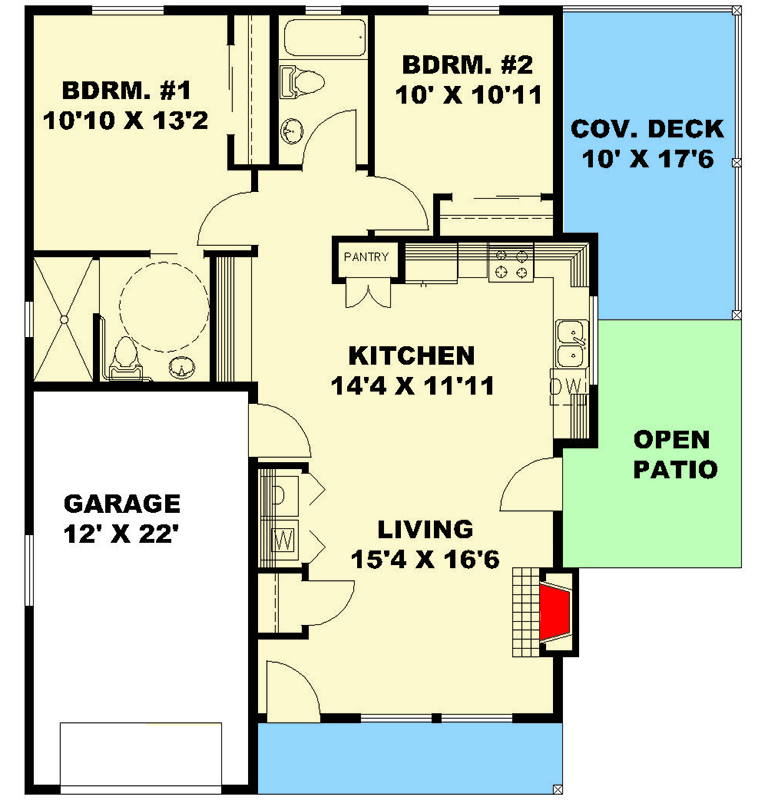

Main Level
floor plan image Main Level

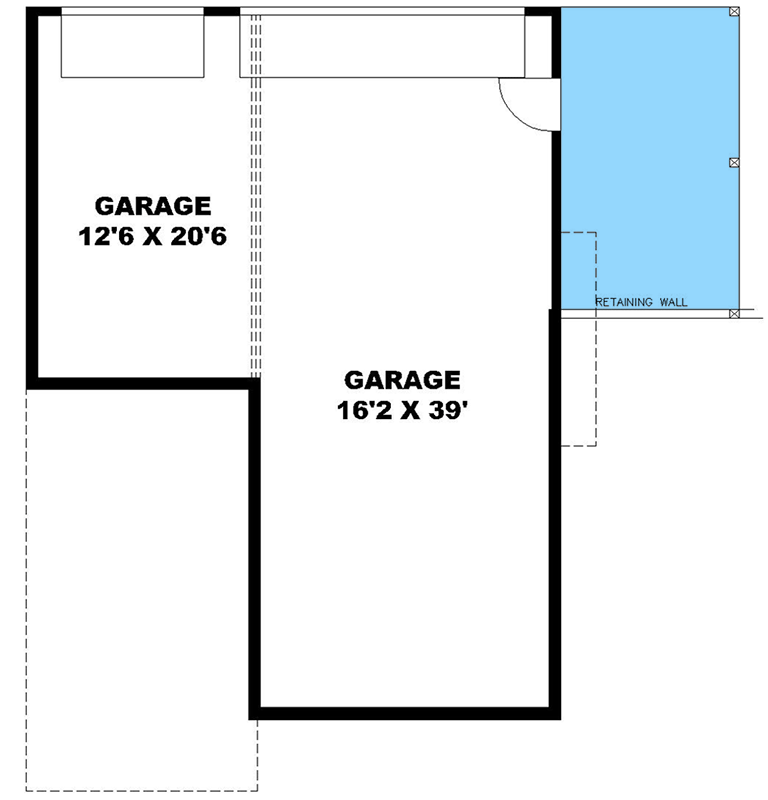

Lower Level
floor plan image Lower Level
Plan Details
  • This 2 bed house plan is perfect for someone with a rear sloping lot who likes cars and trucks. In addition to the 1-car front-facing garage, there is parking for 3 cars in the lower level that is accessible from the back.
  • The front of the home is open between the living room and kitchen. An open patio on the side connects to a covered deck with views to the side and back.
  • Two bedrooms are separated by a shared bath and laundry is tucked away behind bifold doors in the living room.
What's Included
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

993 sq. ft.

1st Floor

993 sq. ft.

Lower Garage

969 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

44' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached, Drive Under

Area

283 sq. ft.

Count

1, 2, or 3 Cars

Entry Location

Front, Rear

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

993 sq. ft.

1st Floor

993 sq. ft.

Lower Garage

969 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

44' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached, Drive Under

Area

283 sq. ft.

Count

1, 2, or 3 Cars

Entry Location

Front, Rear

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
