Plan 311009RMZ

Exclusive

2-Bed Mid-Century Modern Home Plan with Outdoor Kitchen and Carport
Heated S.F.
1,601
Beds
2
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 311009RMZ

Main Level
slide image 0

Plan 311009RMZ

1-800-854-7852

1-262-521-4596

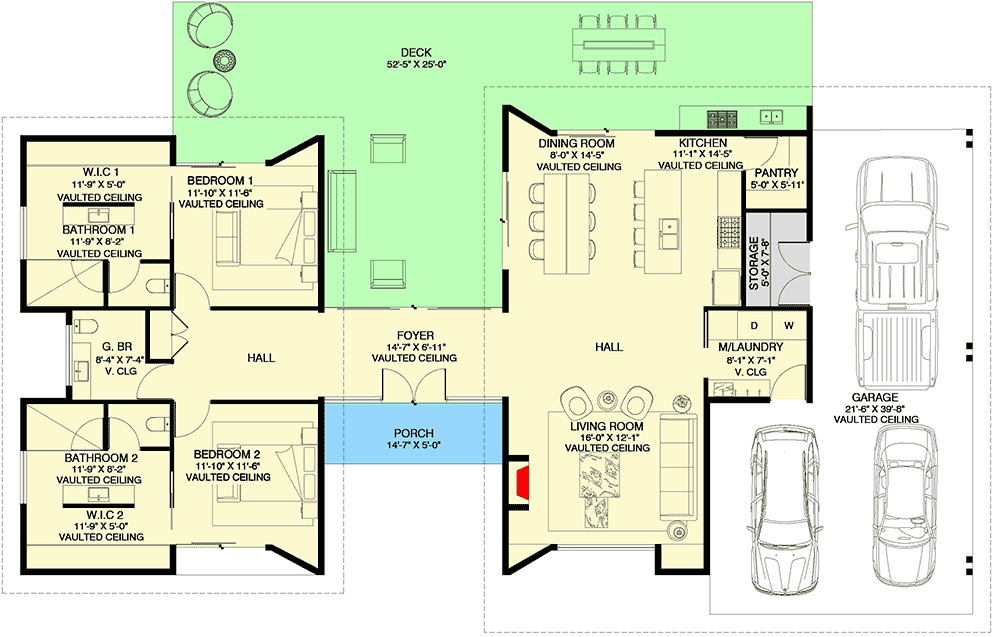

Main Level
floor plan image Main Level
Plan Details
  • Sharp angles and low-pitched rooflines add to the modern appeal on this 2-bedroom home plan.
  • The glass-lined foyer provides views onto the spacious back deck, while serving as the connector between the left and right wings.
  • An open-concept living space consumes the right wing of this home plan, which is filled with natural light. The spacious kitchen includes a double-bowl sink in the island, walk-in pantry, and a 6-burner range.
  • A carport attached to the right side of the home offers space for 3 cars, and opens into a mud / laundry room with hooks above a built-in bench.
  • Two identical bedrooms are located to the left of the foyer, separated by a guest powder bath. Each of the attached bathrooms include vaulted ceilings and a walk-in closet.
What's Included

  • General notes
  • Floor plans
  • Roof plan
  • Sections
  • Framing detail
  • Foundation plan
  • Elevations (all four sides)
  • Electrical plans
  • Window and door schedules

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,601 sq. ft.

1st Floor

1,601 sq. ft.

Carport

665 sq. ft.

Porch, Combined

72 sq. ft.

Deck

782 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 11"

Depth

36' 5"

Max Ridge Height

14' 10"

Garage

Type

Carport

Area

665 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Prairie

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Exclusive
