Plan 67791NWL
2 Bed Mid-Century Modern House Plan with Attached Garage
Heated S.F.
1,627
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 67791NWL

Main Level
slide image 0

Plan 67791NWL

1-800-854-7852

1-262-521-4596

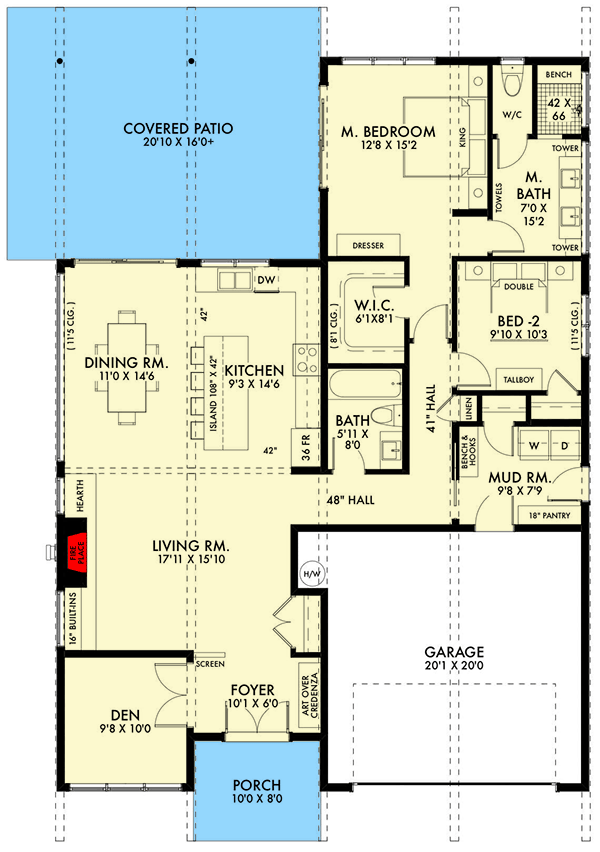

Main Level
floor plan image Main Level
Plan Details

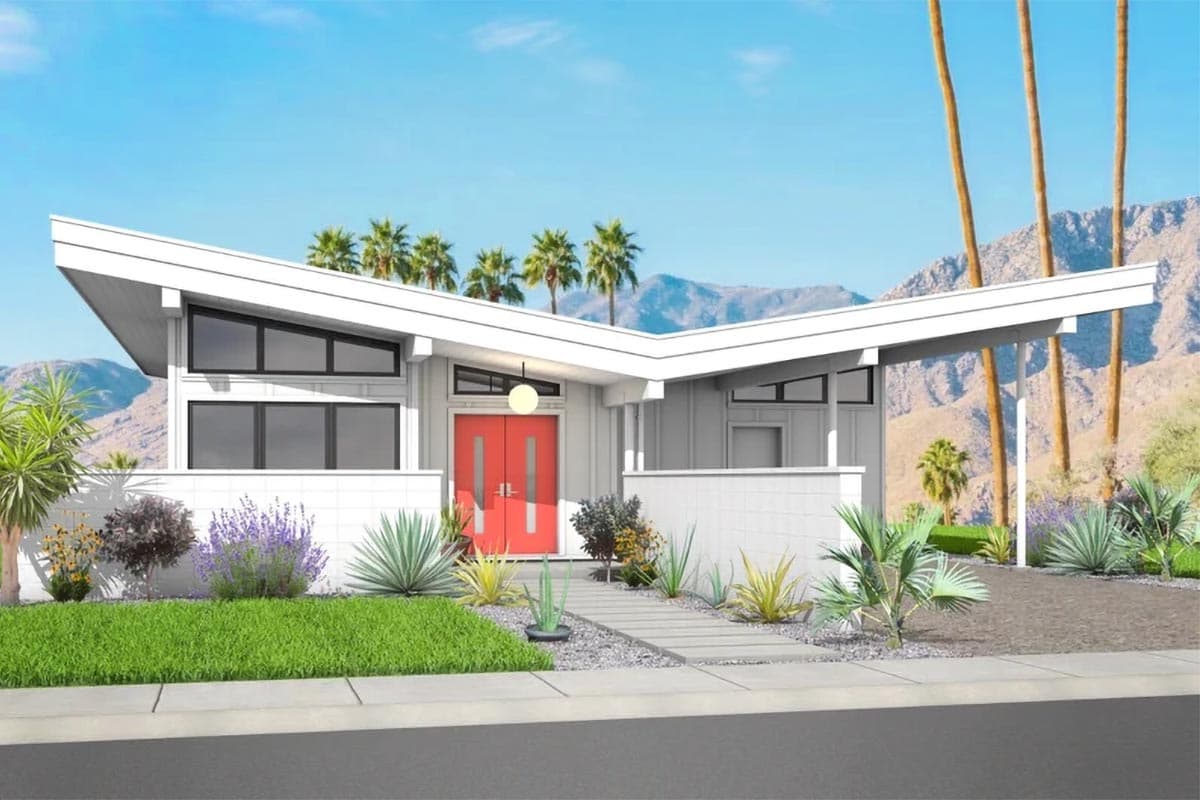

  • Live your mid-century dreams in this efficient modern house plan. The eye-catching exterior has 4'-deep eaves creating a welcoming covered entry. Inside, you are greeted with an open floor plan combining the vaulted living room the blended kitchen and dining room space. The average ceiling height is 9'9" and the dramatic butterfly roof gives you soaring ceilings that rise to 11'5" at their highest point.
  • The bedrooms are located on the right and each have their own bathrooms. The master suite has access to the covered patio.
  • Related Plan: Turn the garage into a carport and get a slightly smaller home with house plan 67790MG (1,488 sq. ft.).
What's Included
  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

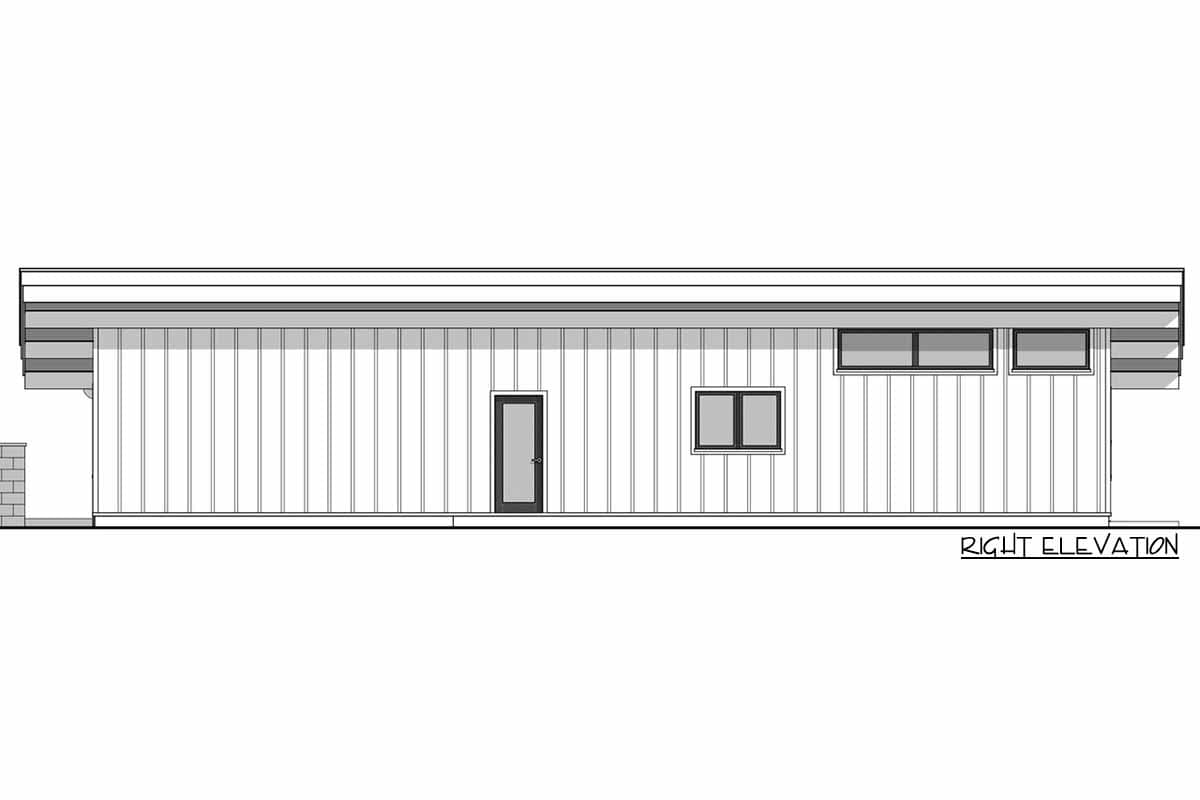

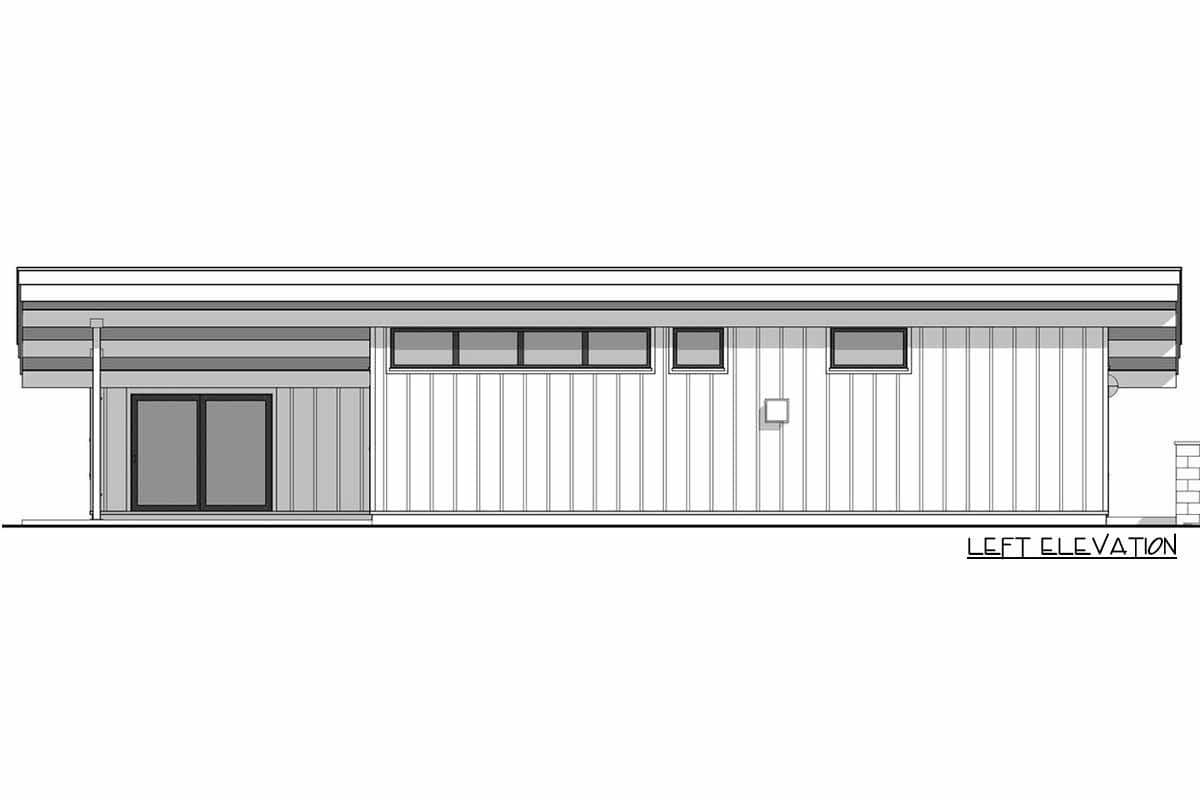

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,627 sq. ft.

1st Floor

1,627 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

333 sq. ft.

Deck

333 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

58' 0"

Max Ridge Height

13' 9"

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

8' 0''

Kitchen

Vaulted

8' 0''

Dining Room

Vaulted

8' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
