Plan 80870PM
2 Bed Modern Home with Sunken Entrance
Heated S.F.
1,025
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 80870PM

Main Level
slide image 0

Plan 80870PM

1-800-854-7852

1-262-521-4596

Main Level

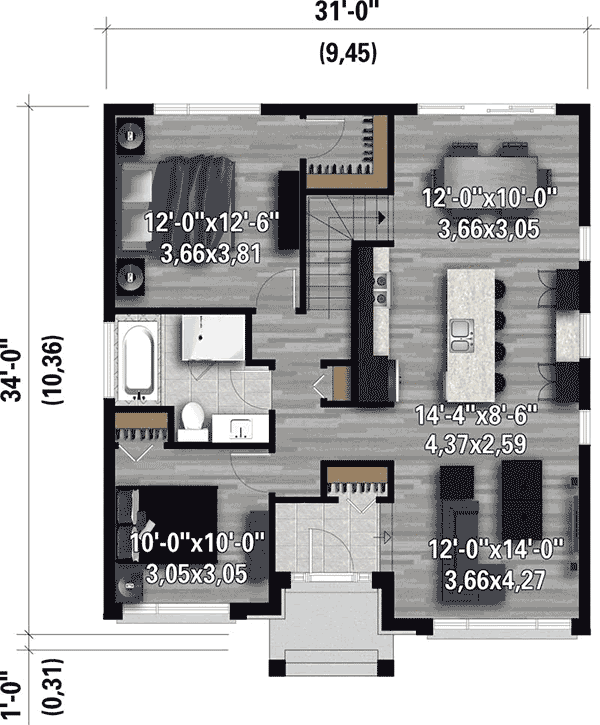

floor plan image Main Level
Plan Details
  • This small urban bungalow stands out with its lovely entrance porch and exterior siding of brick, wood and aluminum.
  • The home features a sunken entrance with a 10'5" ceiling.
  • The main open area has 9' ceilings and encompasses the living room, kitchen with two pantries and dining room.
  • The master bedroom has a walk-in closet and shares the bath with the other bedroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,025 sq. ft.

1st Floor

1,025 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 0"

Depth

34' 0"

Max Ridge Height

210' 0"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,025 sq. ft.

1st Floor

1,025 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 0"

Depth

34' 0"

Max Ridge Height

210' 0"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
