Plan 67790NWL
2 Bed Modern House Plan with Carport
Heated S.F.
1,488
Beds
2
Baths
2
Stories
1
Cars
2

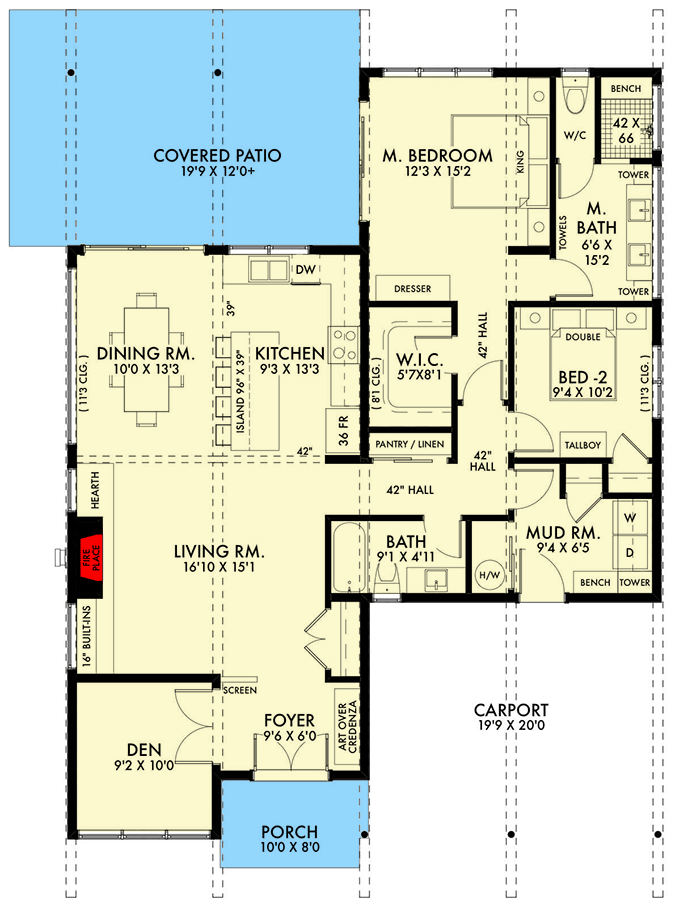

Floor Plan

Plan 67790NWL

Main Level
slide image 0

Plan 67790NWL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

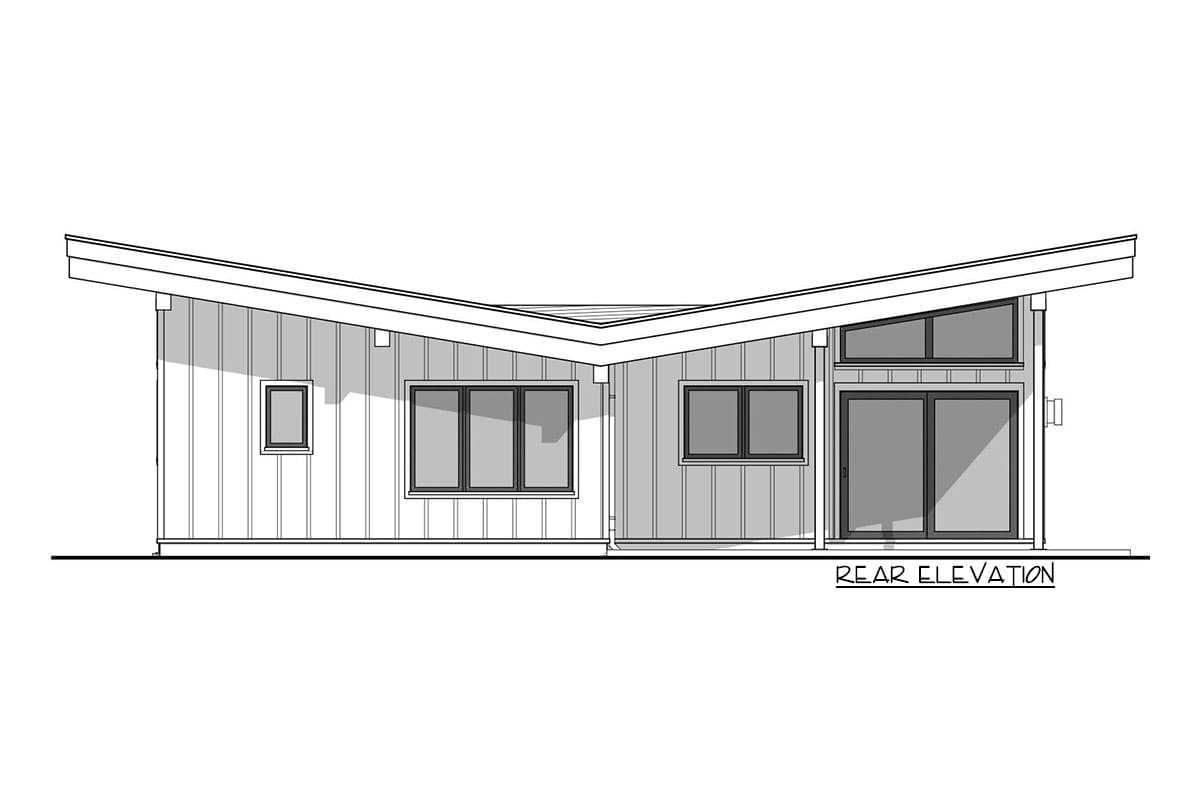

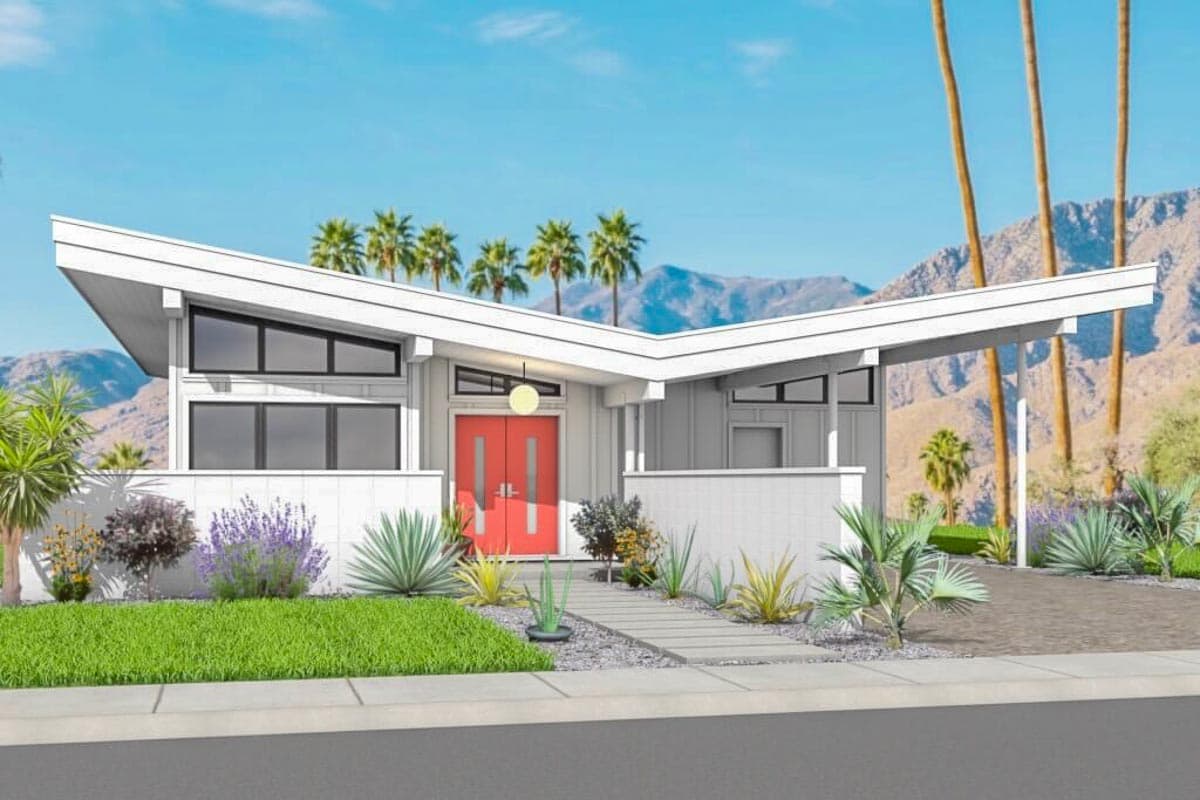

  • Live your mid-century dreams in this efficient modern house plan. The eye-catching exterior has 4'-deep eaves creating a welcoming covered entry. Inside, you are greeted with an open floor plan combining the vaulted living room the blended kitchen and dining room space. The average ceiling height is 9'9" and the dramatic butterfly roof gives you soaring ceilings that rise to 11'5" at their highest point.
  • The bedrooms are located on the right and each have their own bathrooms. The master suite has access to the covered patio.
  • Related Plan: Turn the carport into a garage and get a little more room with house plan 67791MG (1,627 sq. ft.).
What's Included
  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan
  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,488 sq. ft.

1st Floor

1,488 sq. ft.

Carport

394 sq. ft.

Porch, Front

80 sq. ft.

Deck

237 sq. ft.

Covered Patio

237 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Max Ridge Height

13' 9"

Garage

Type

Carport

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

8' 0''

Dining Room

Vaulted

8' 0''

Kitchen

Vaulted

8' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,488 sq. ft.

1st Floor

1,488 sq. ft.

Carport

394 sq. ft.

Porch, Front

80 sq. ft.

Deck

237 sq. ft.

Covered Patio

237 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Max Ridge Height

13' 9"

Garage

Type

Carport

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

8' 0''

Dining Room

Vaulted

8' 0''

Kitchen

Vaulted

8' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
