Plan 81854AB
2-Bed Modern Vacation House Plan with Loft - 840 Sq Ft
Heated S.F.
840
Beds
2
Baths
2
Stories
2
Floor Plan

Plan 81854AB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 81854AB

1-800-854-7852

1-262-521-4596

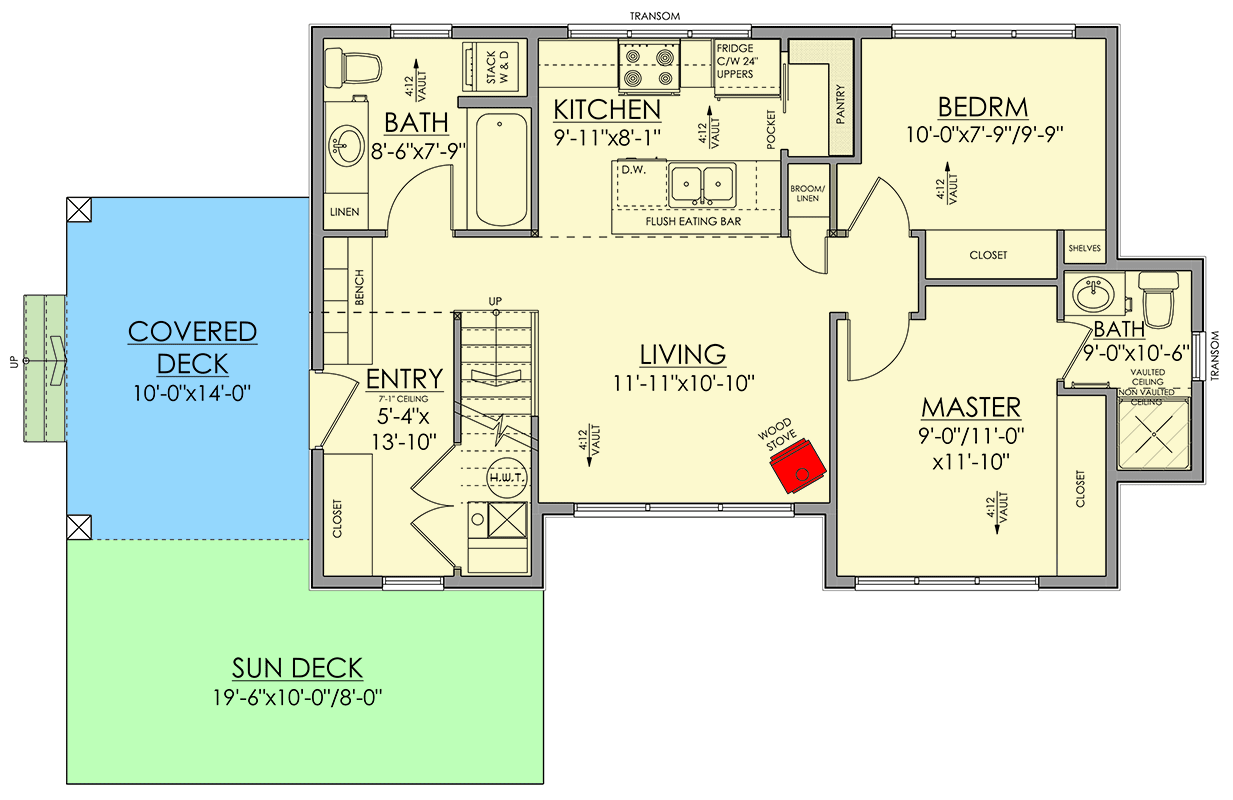

Main Level
floor plan image Main Level

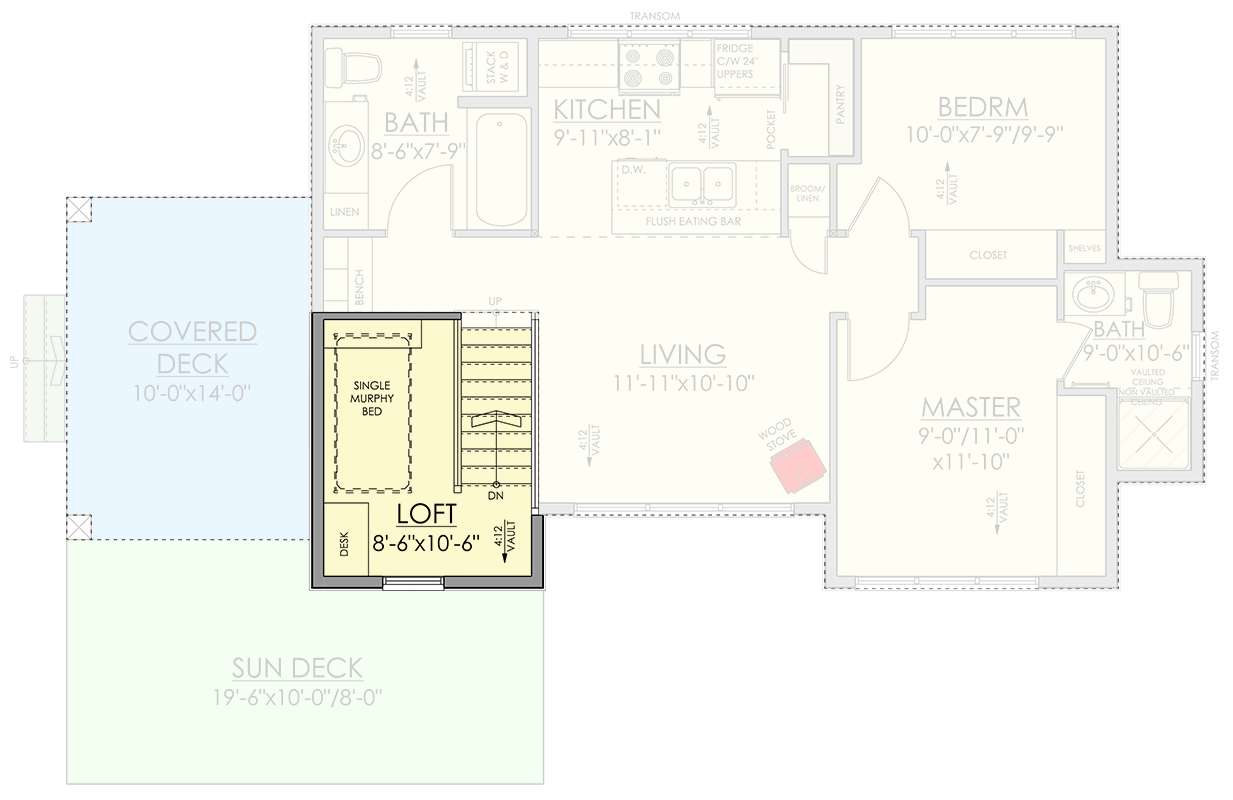

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern vacation house plan offers you 840 square feet of heated living space with 2-3 beds, 2 baths and a loft above.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

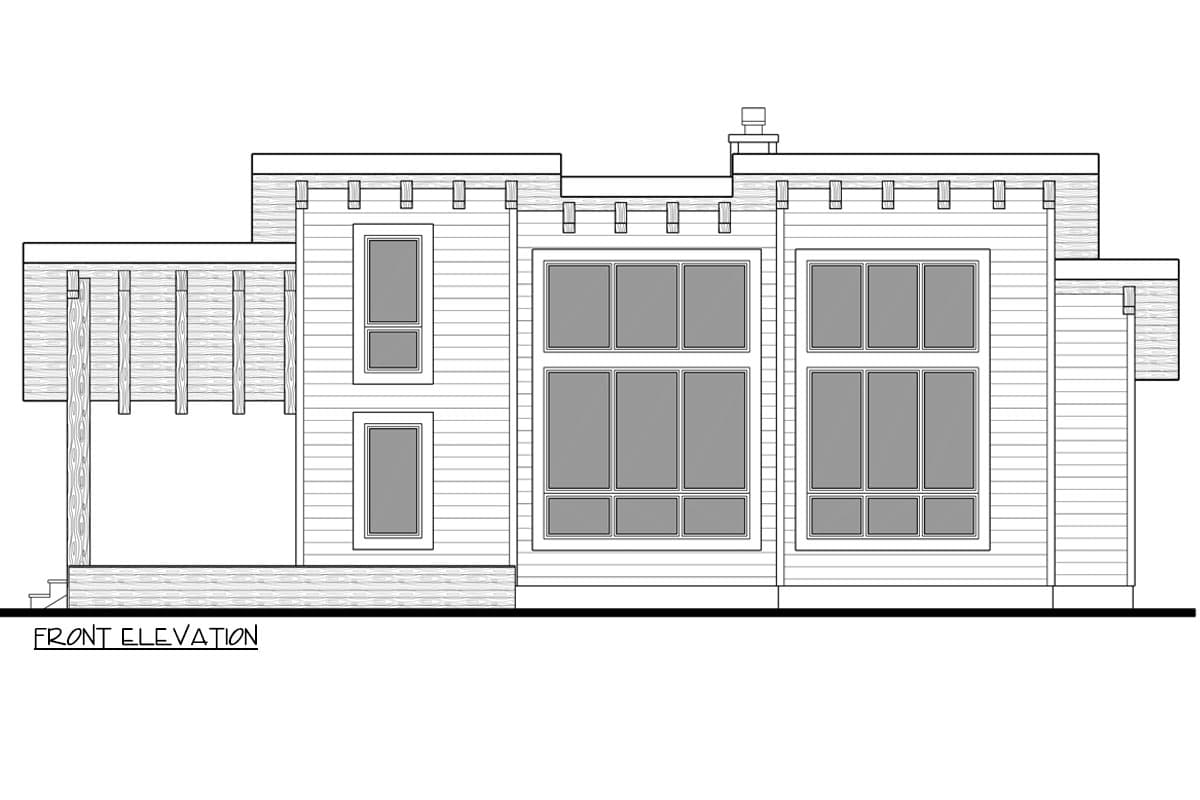

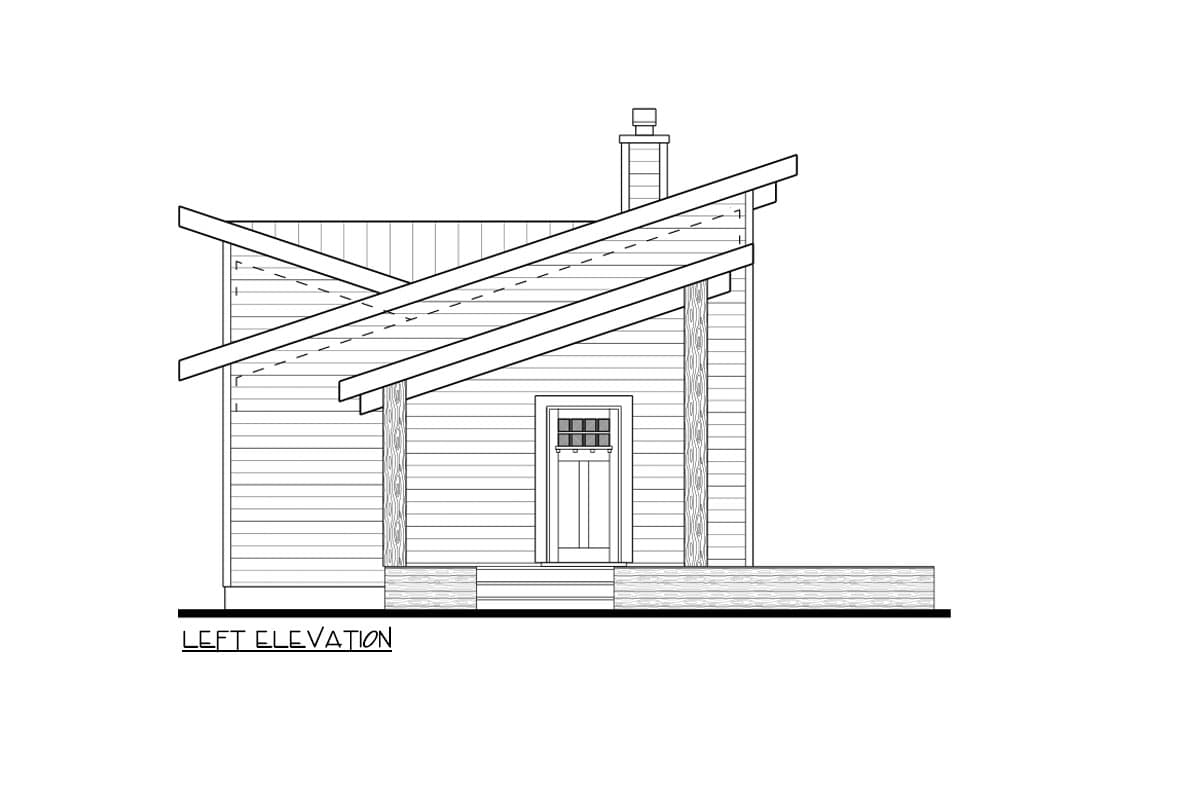

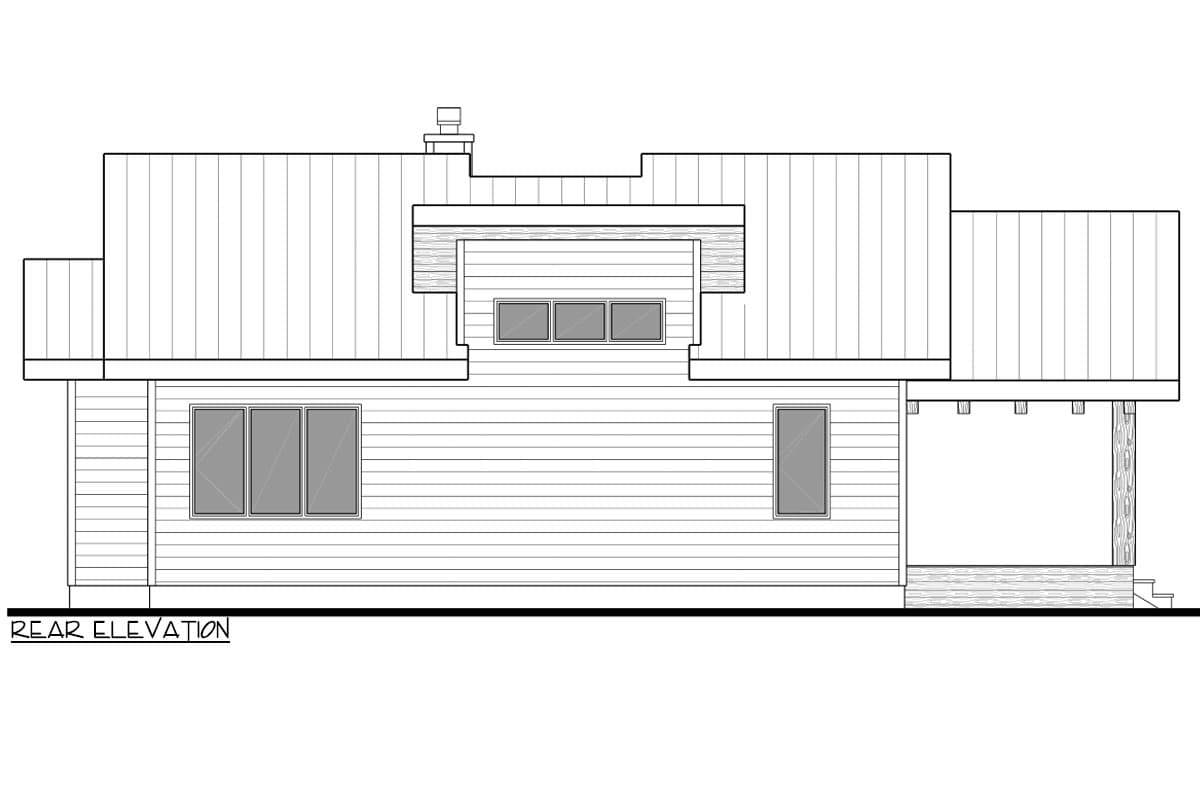

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

840 sq. ft.

1st Floor

757 sq. ft.

2nd Floor

83 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Vaults

15' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Vacation

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
