Plan 307727RAD

Exclusive

2-Bed Mountain Lake House Plan with Two Master Suites - 2367 Sq Ft

Heated S.F.

2,367

Beds

2

Baths

3

Stories

2

Cars

1

Floor Plan

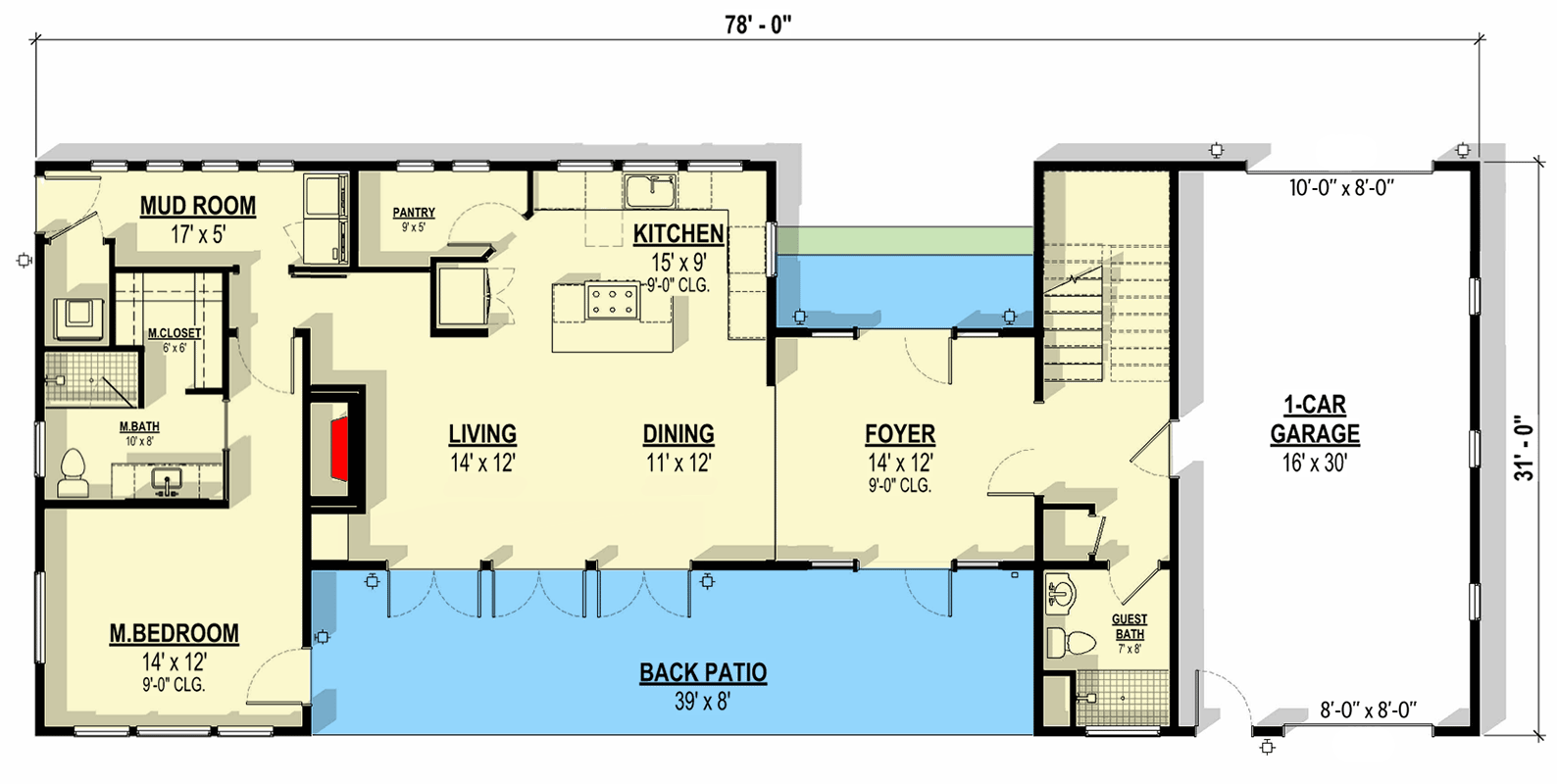

Main Level

floor plan image Main Level

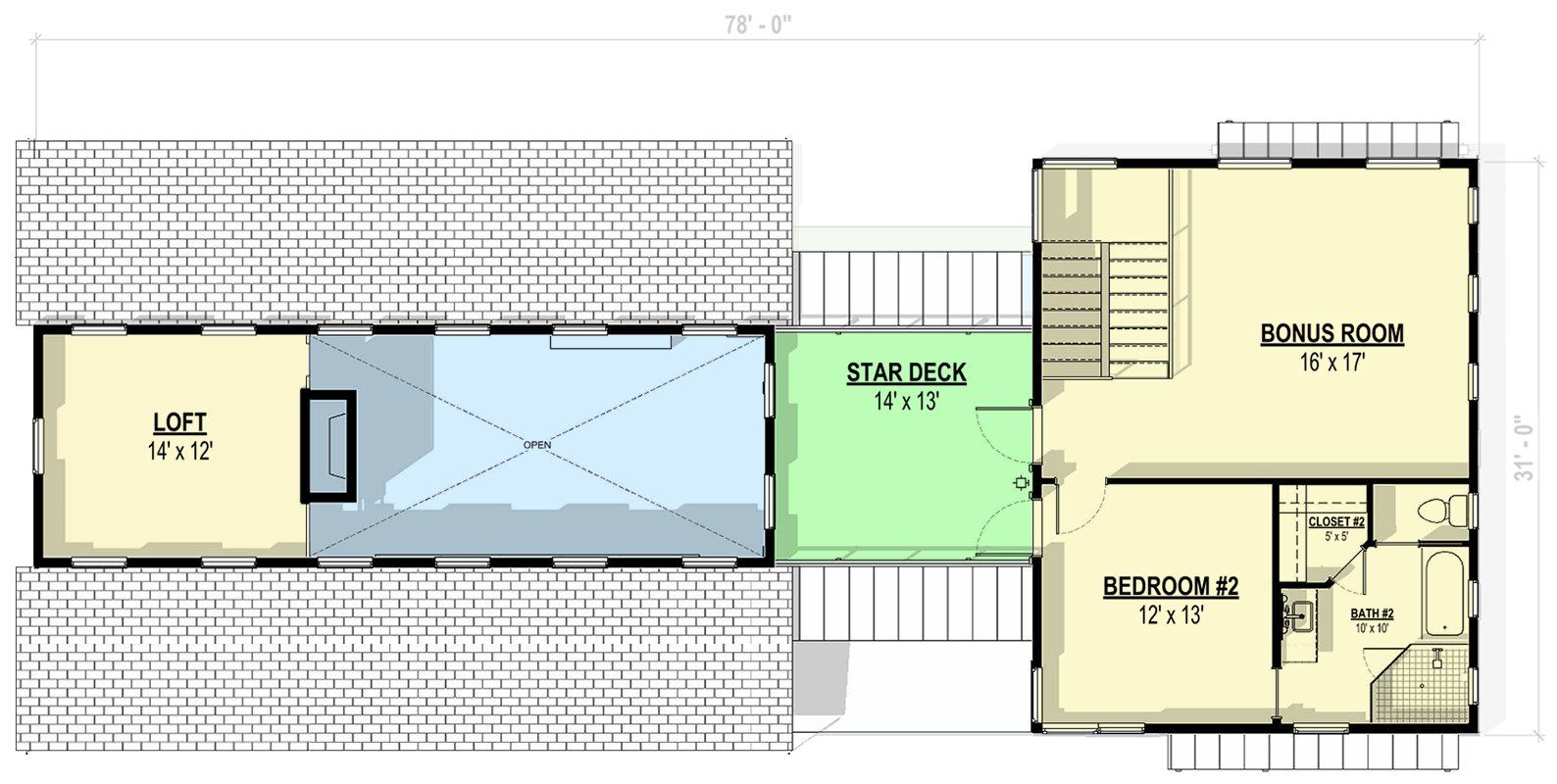

2nd Floor

floor plan image 2nd Floor

Plan Details

This mountain house plan

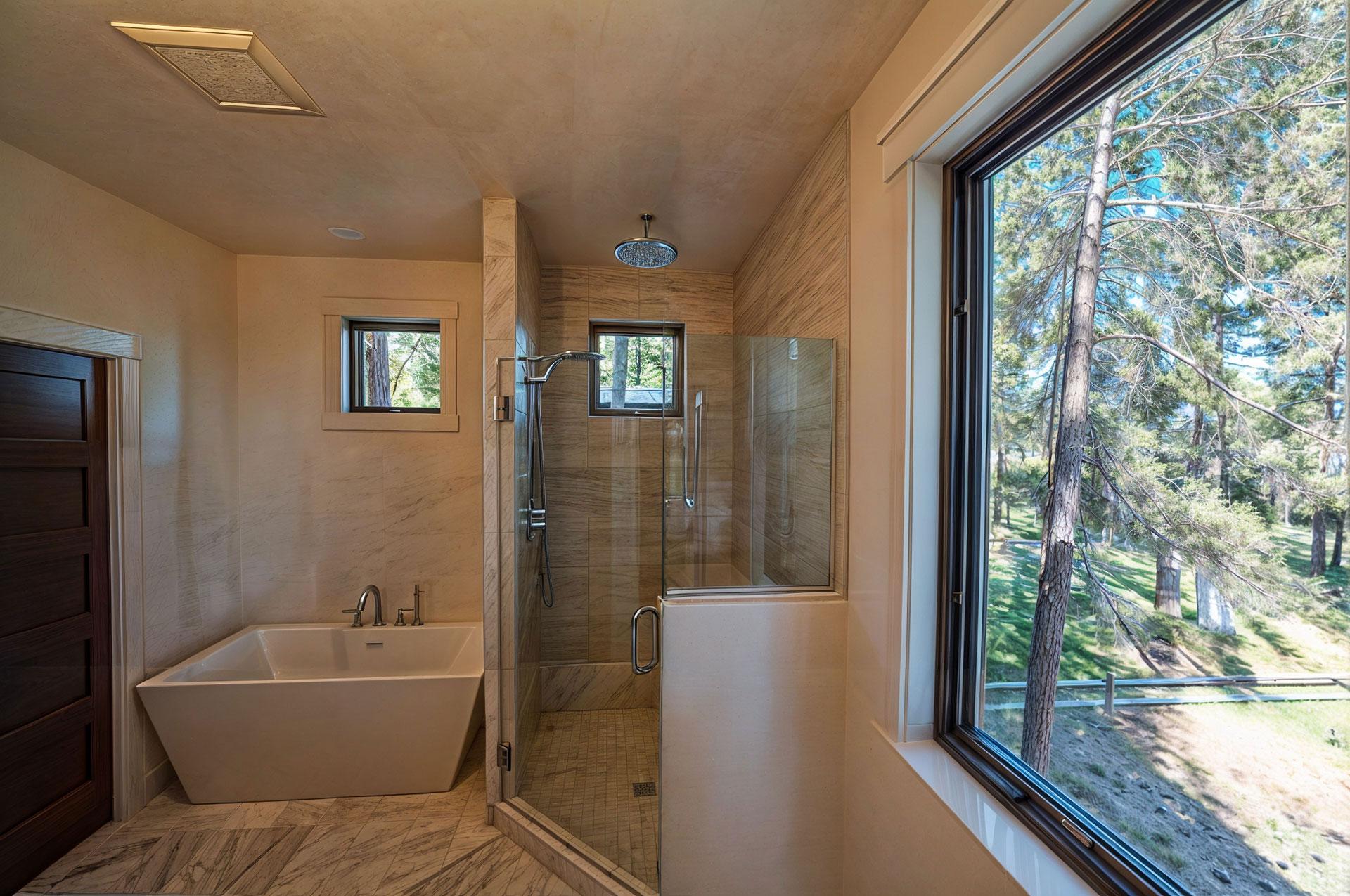

combines functionality and style, ideal for families, multi-generational living, or hosting guests. It features two master suites: one on the main floor with a spa-like bath and outdoor access, and another private suite above the garage.

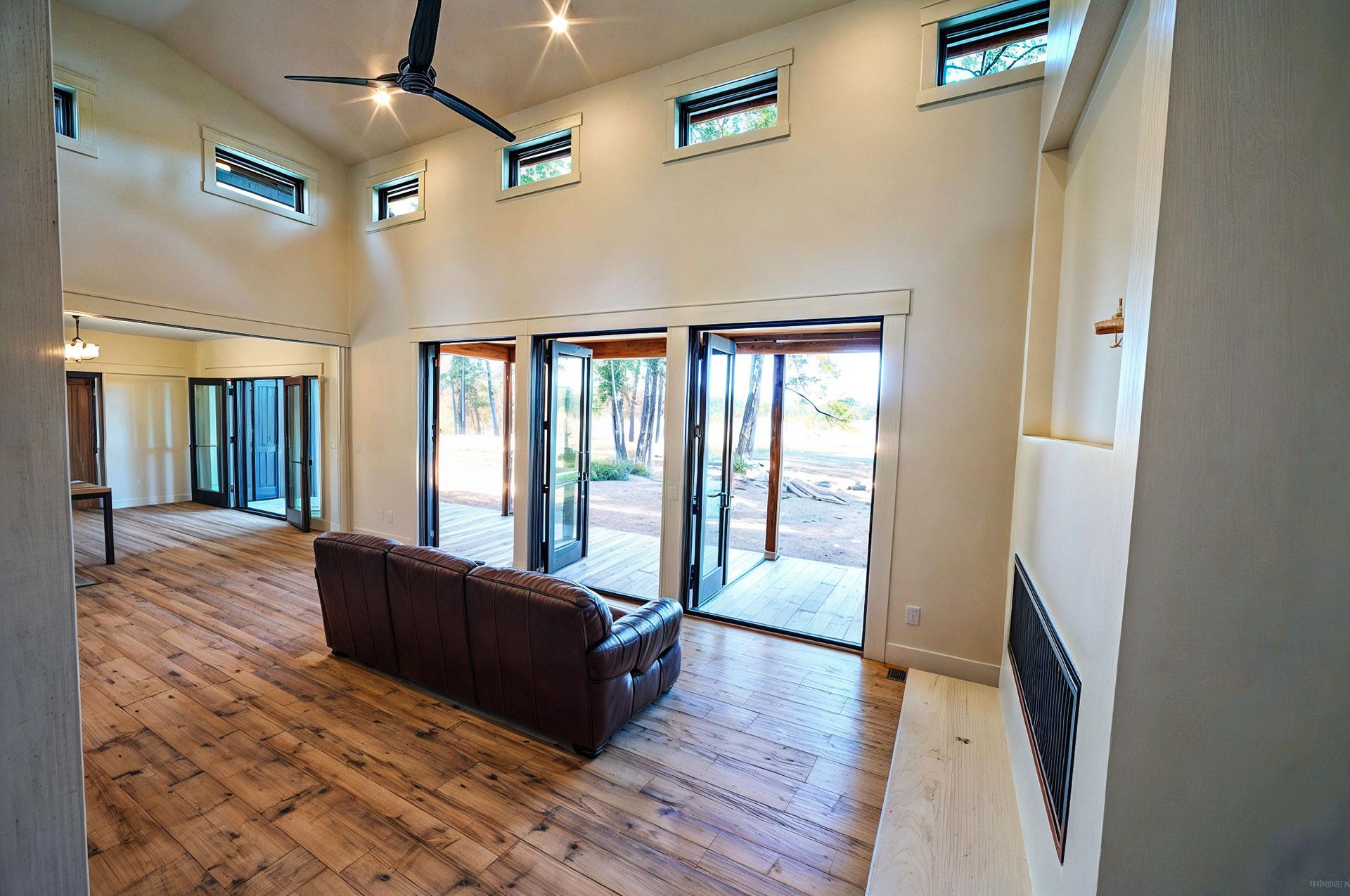

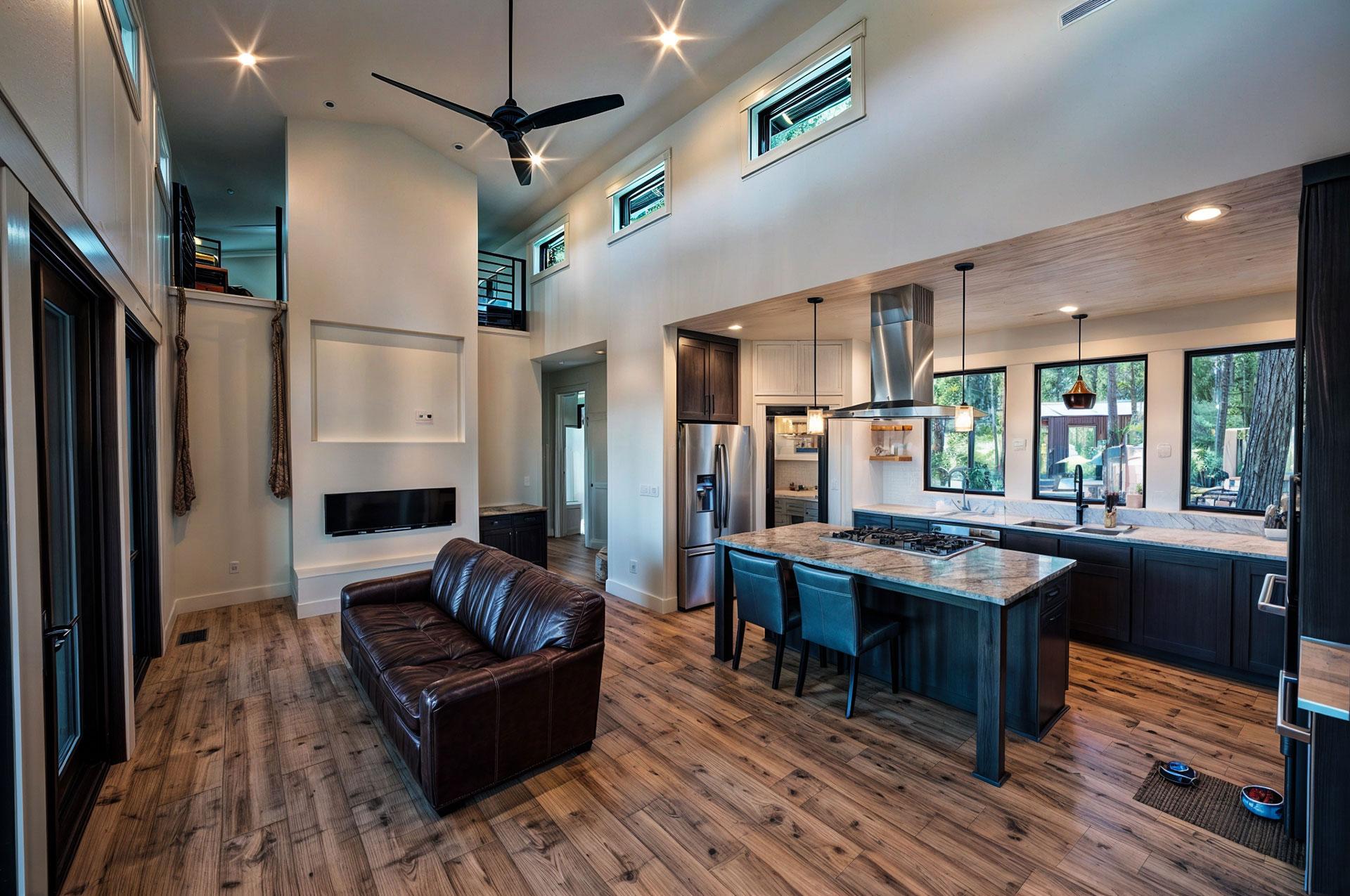

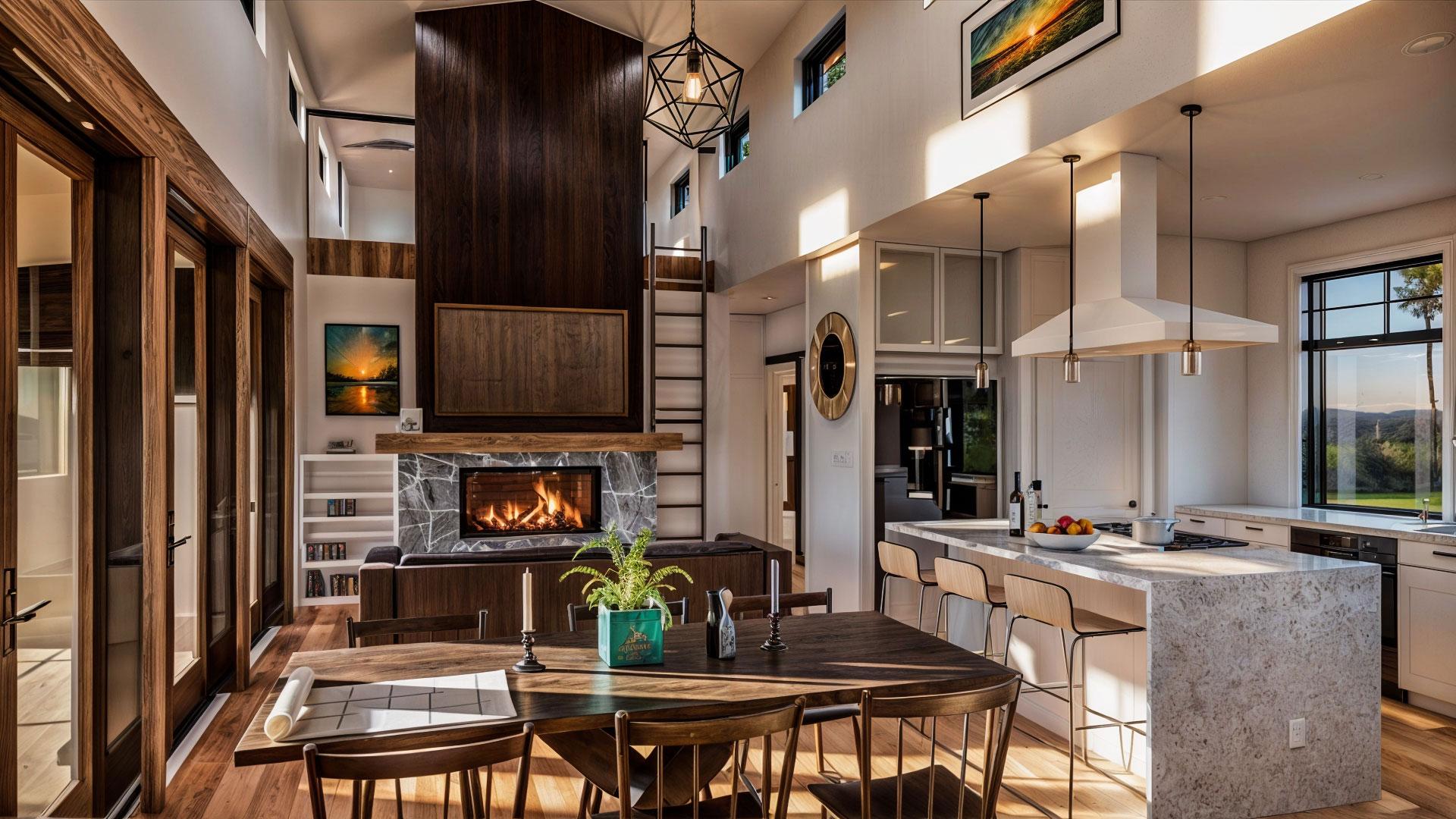

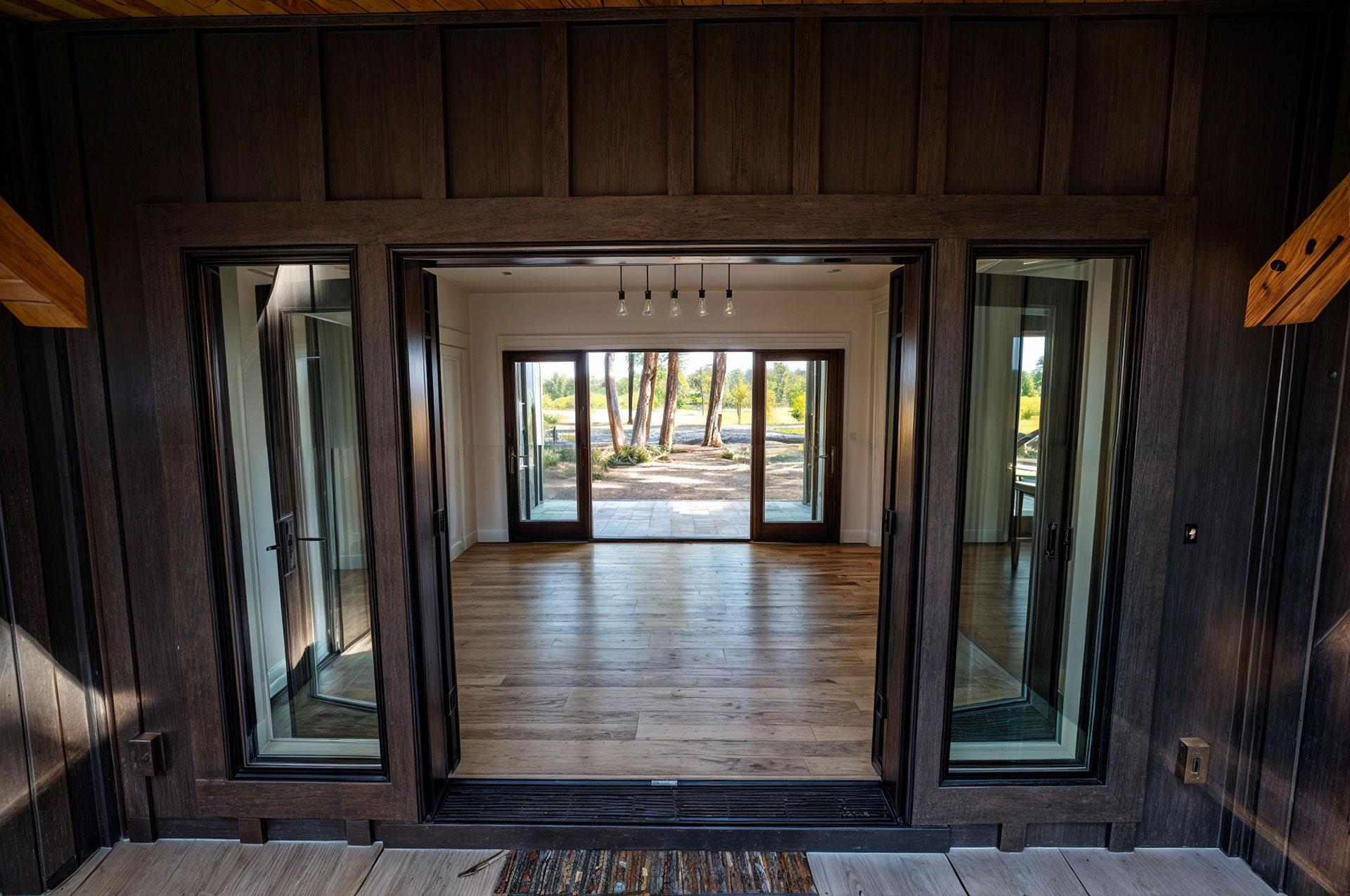

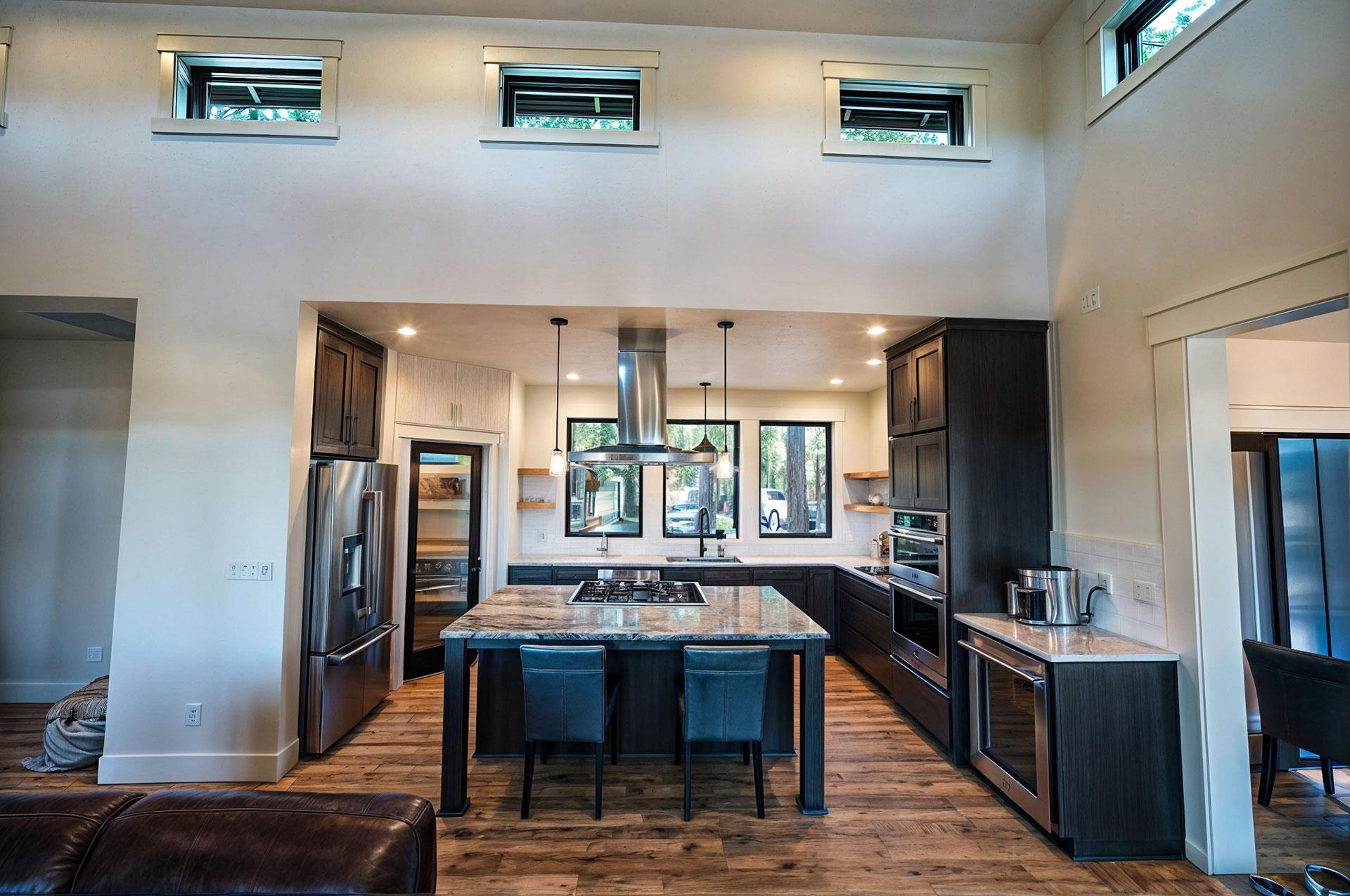

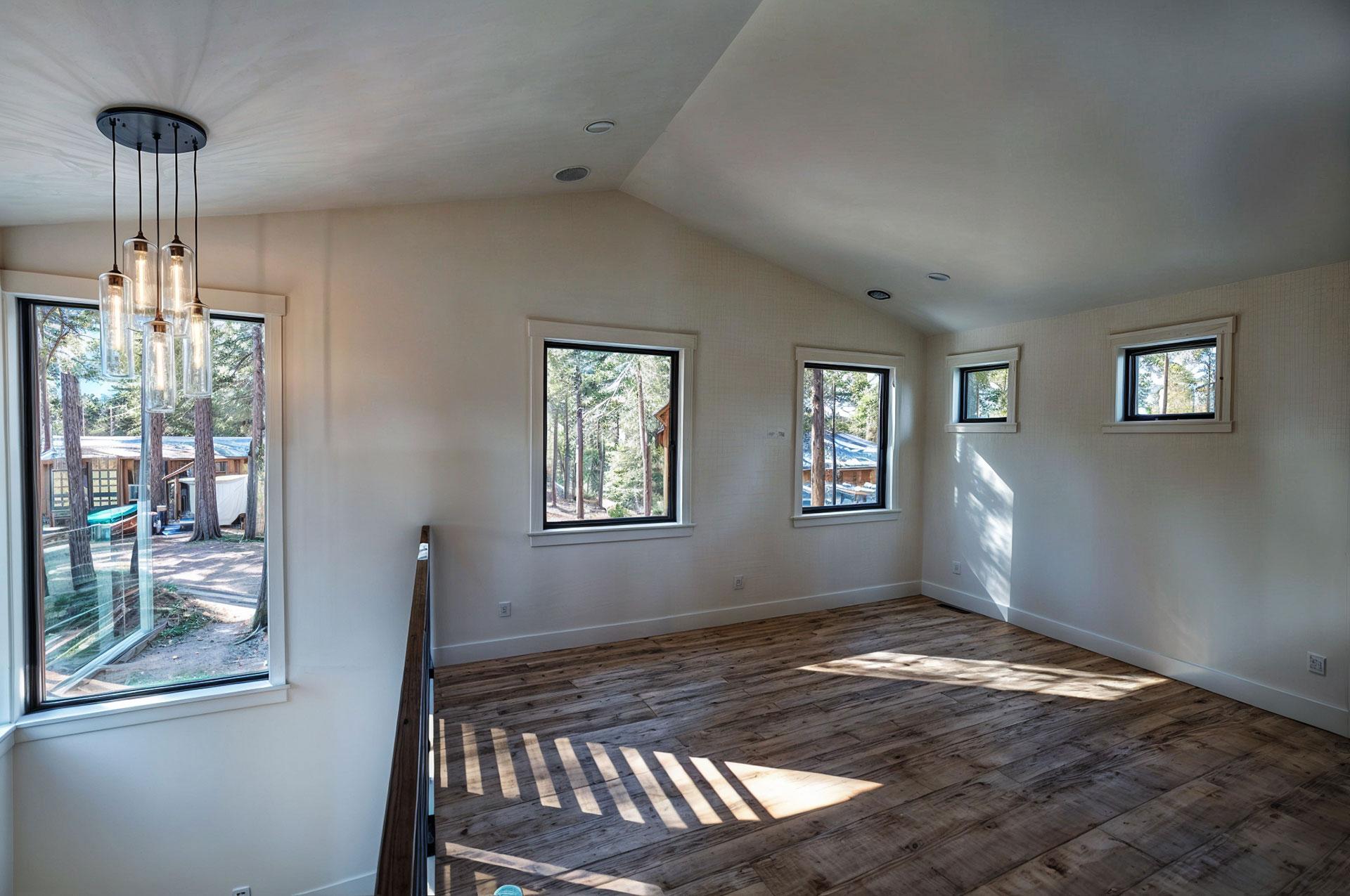

The entry foyer connects two living areas. To the right are the kitchen and main living space with a two-story fireplace and a loft above, perfect for an office or extra living space. A straight path leads to a covered outdoor area for entertaining or enjoying the views.

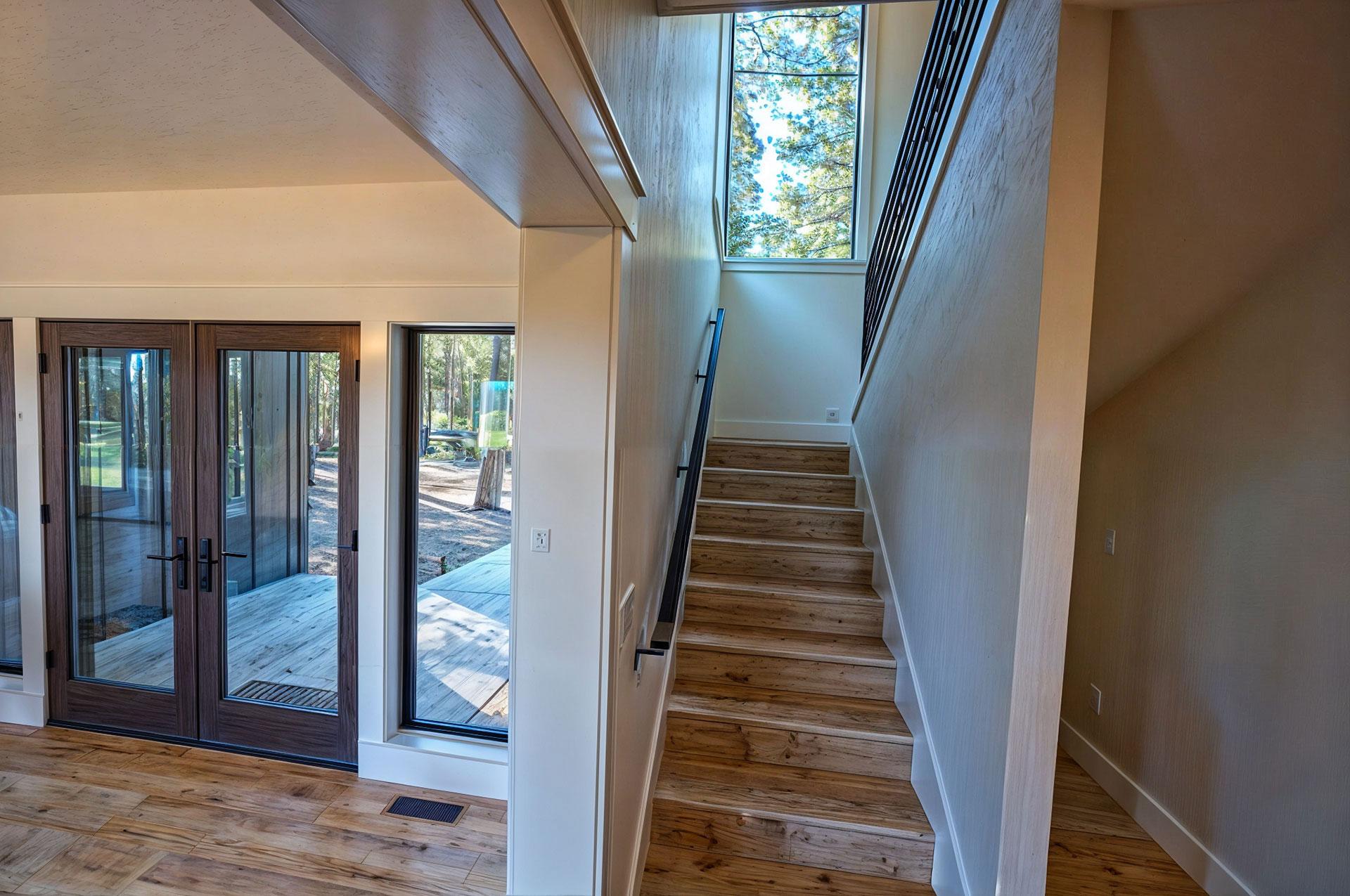

The upper-level suite, accessible via a staircase near the foyer, offers a quiet retreat. Additional features include a pass-through garage for storage or hobbies and a design that maximizes natural light and scenic vistas.

What's Included

Cover Sheet
Elevations
Floor Plan
Section & interior elevations
Lighting Plan
Ceiling details
Schedules

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,367 sq. ft.

1st Floor

1,429 sq. ft.

2nd Floor

938 sq. ft.

Porch, Front

174 sq. ft.

Porch, Rear

352 sq. ft.

Porch, Combined

526 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 0"

Depth

31' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

511 sq. ft.

Count

1 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Master Suites

Two Story Great Room

Plan Collections

Lake House Plans
