2-Bed Mountain Ranch with Covered Front Porch - 864 Sq Ft - 420101WNT

Plan 420101WNT

Exclusive

2-Bed Mountain Ranch with Covered Front Porch - 864 Sq Ft

Heated S.F.

864

Beds

Baths

Stories

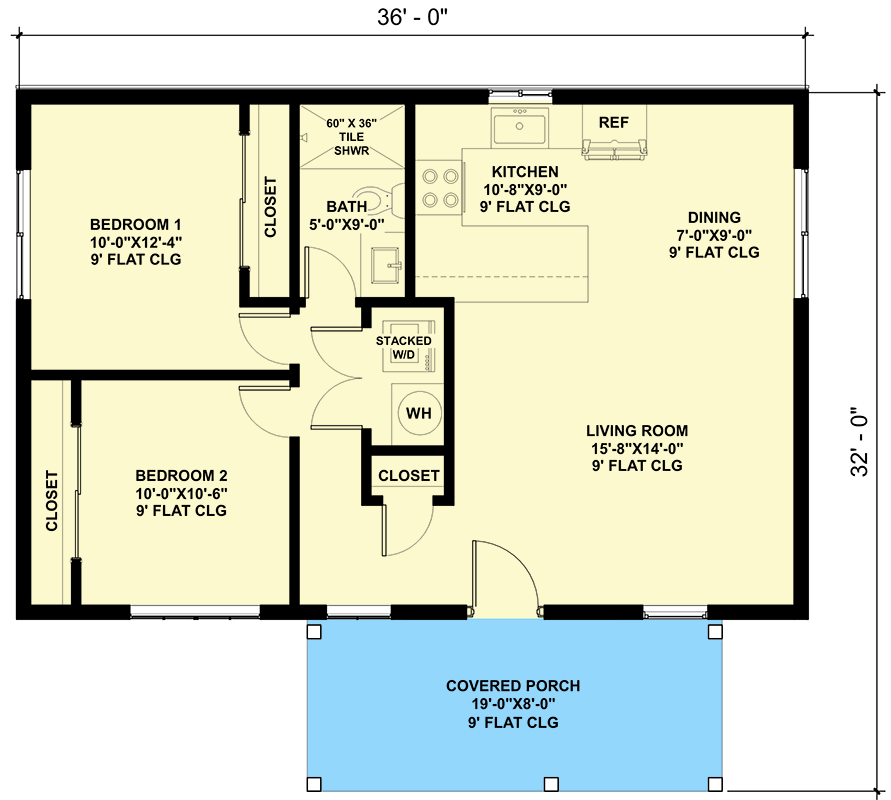

Floor Plan

Main Level

Plan Details

With a total of 864 heated square feet, this Cabin provides a new take on the rustic, mountain style of home with board and batten siding rising up to meet a ribbed metal roof.
A pergola-style front porch extends from the front of the home to offer an outdoor living space for all to enjoy.
Clean sight lines between the living room, dining area, and kitchen create a comfortable space for everyday living.
U-shaped cabinetry forms the kitchen and includes an eating bar for quick meals and snacks.
The bedrooms consume the left side of the design and sit across the hall from a full bath and utility closet.
Related Plan: Get an alternate house plan with a 2-car garage with 420158WNT (864 sq ft).

What's Included

Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

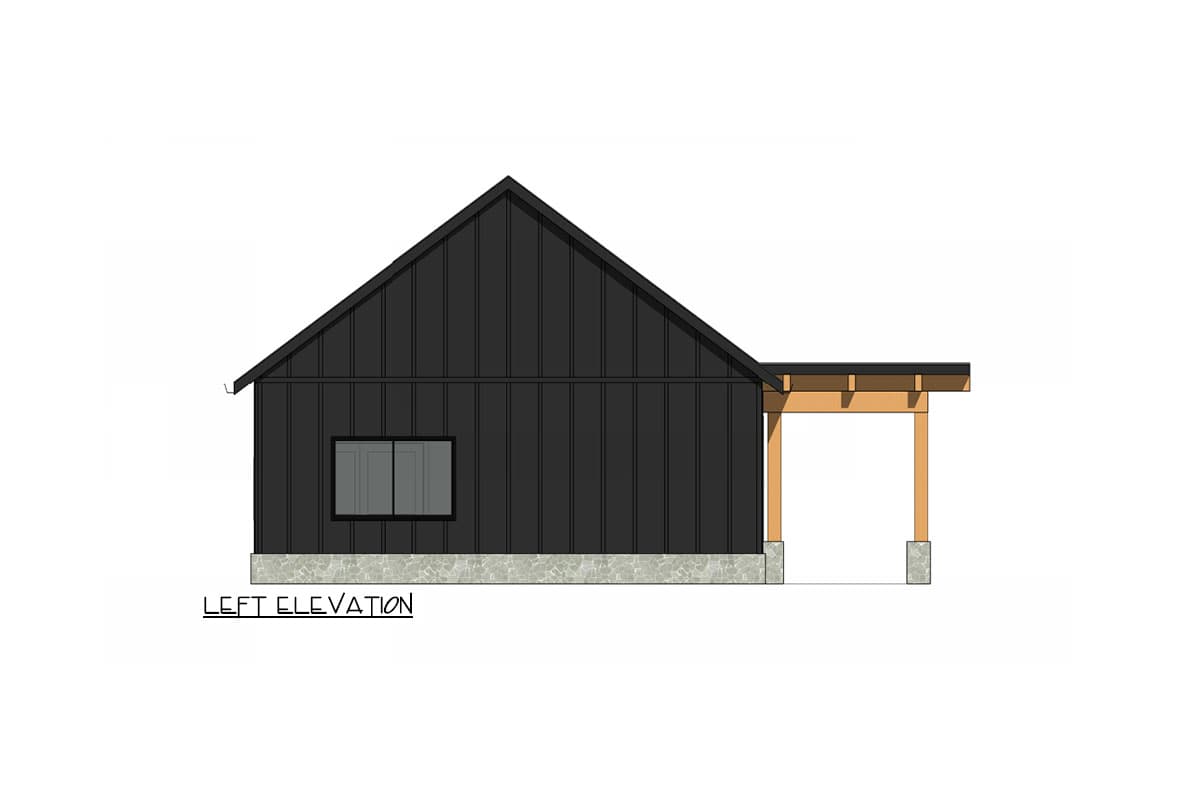

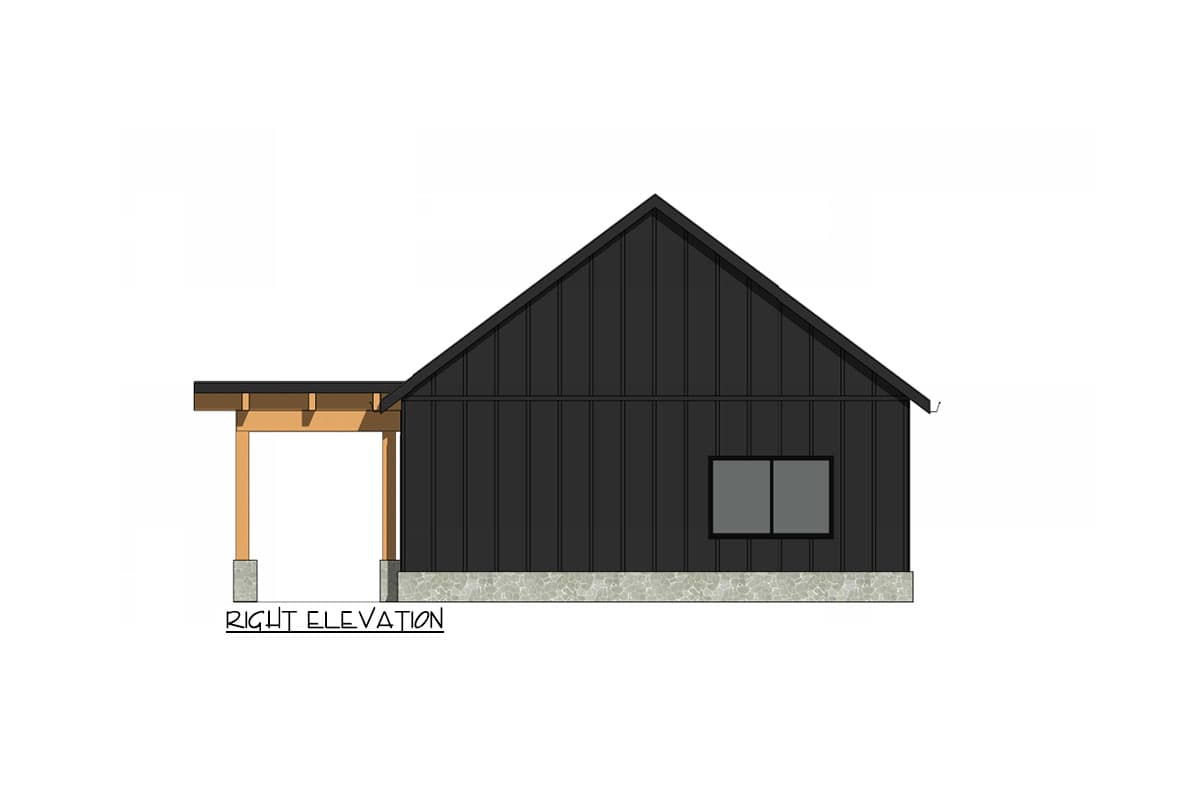

Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
Building Cross Section - View that depicts a vertical slice through the building.
Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.

What's Not Included

Architectural or Engineering Stamp
Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
