Plan 420163WNT

Exclusive

2-Bed Ranch Duplex with L-Shape Kitchen - 752 Per Unit
Heated S.F.
1,504
Units
2
Width
Depth

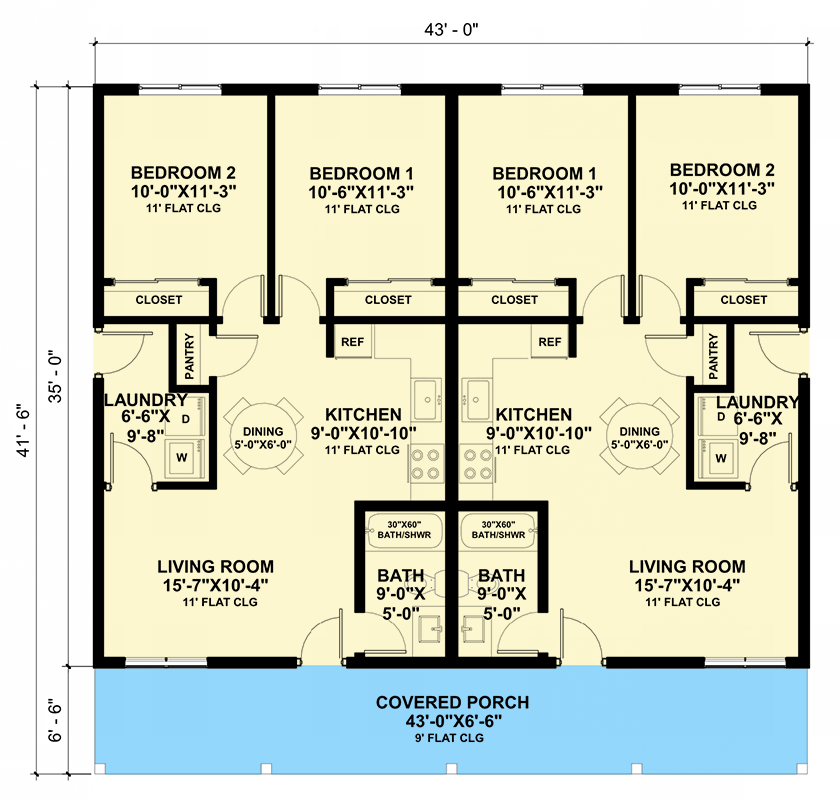

Floor Plan

Plan 420163WNT

Main Level
slide image 0

Plan 420163WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This duplex-family house plan gives you 2 units each with 752 square feet of heated living space, 2 beds and 1 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
752Sq. Ft.
752 Sq. Ft.
1st Floor
2Beds
1Full Bath
None
21' 6"width
41' 6"depth
18' 7"height
Unit B
752Sq. Ft.
752 Sq. Ft.
1st Floor
2Beds
1Full Bath
None
21' 6"width
41' 6"depth
18' 7"height
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

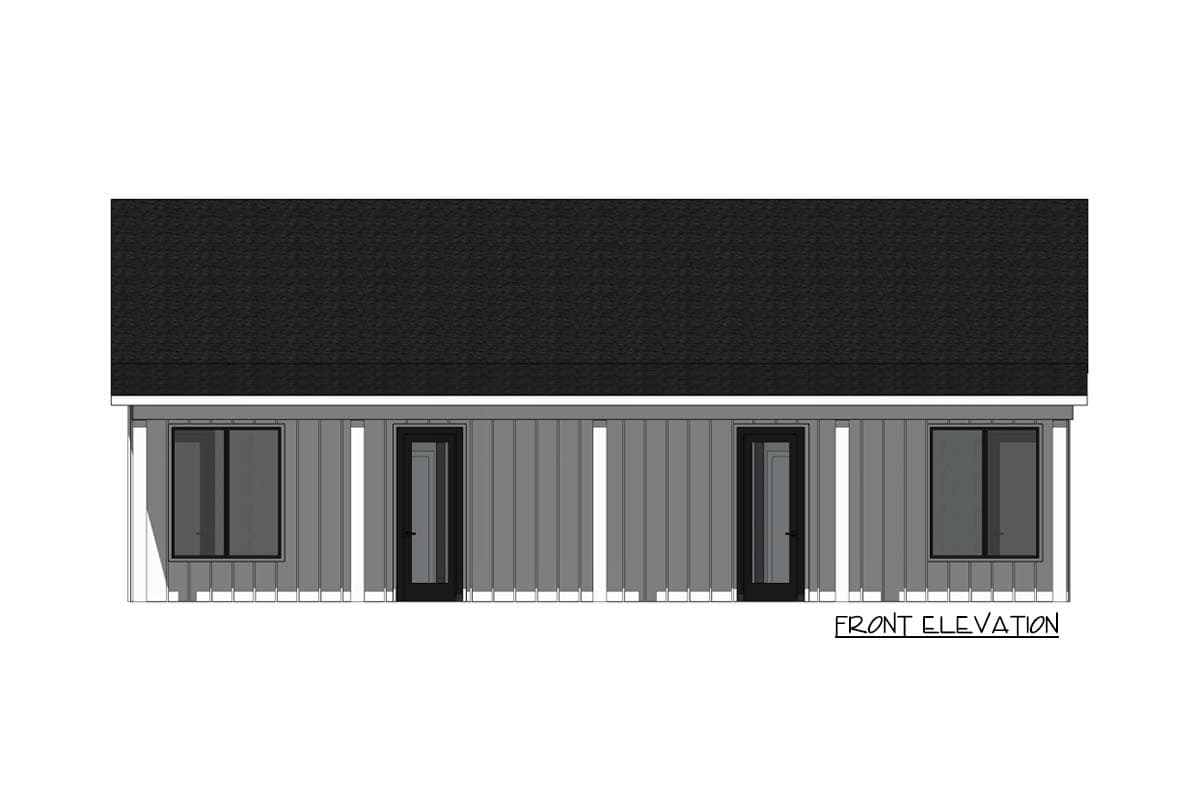

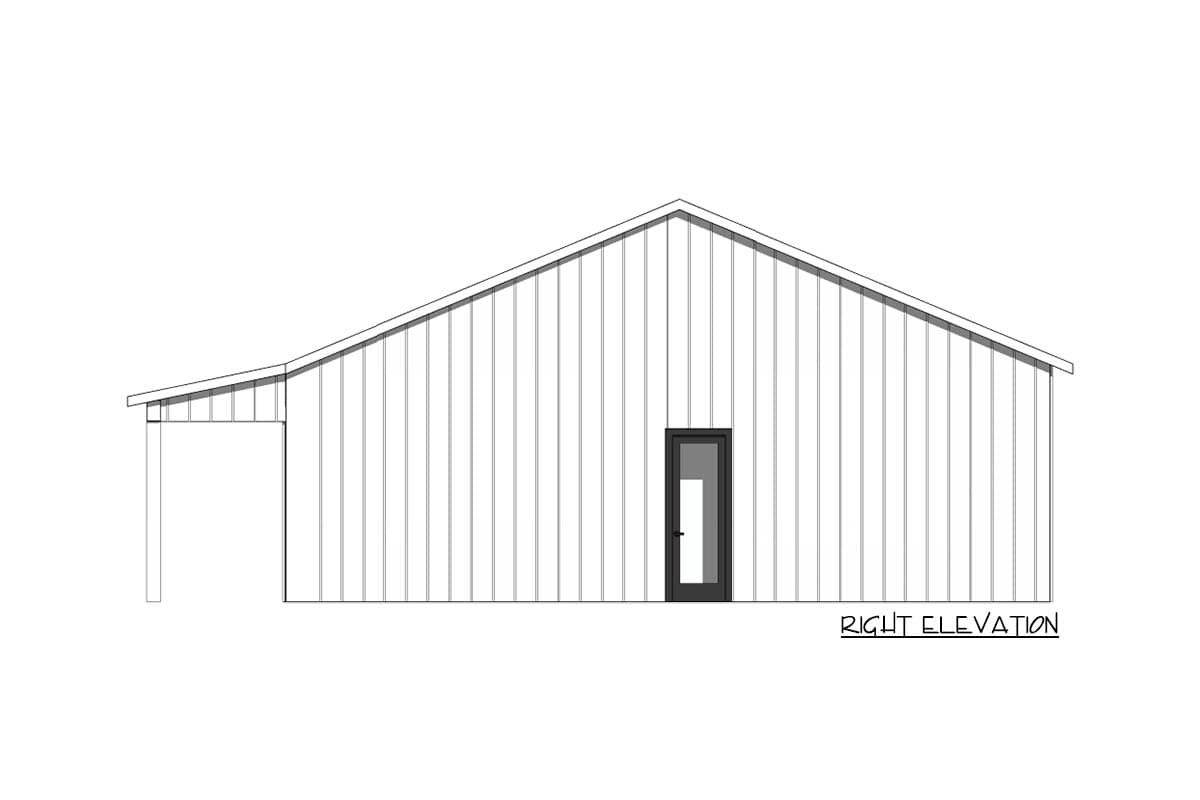

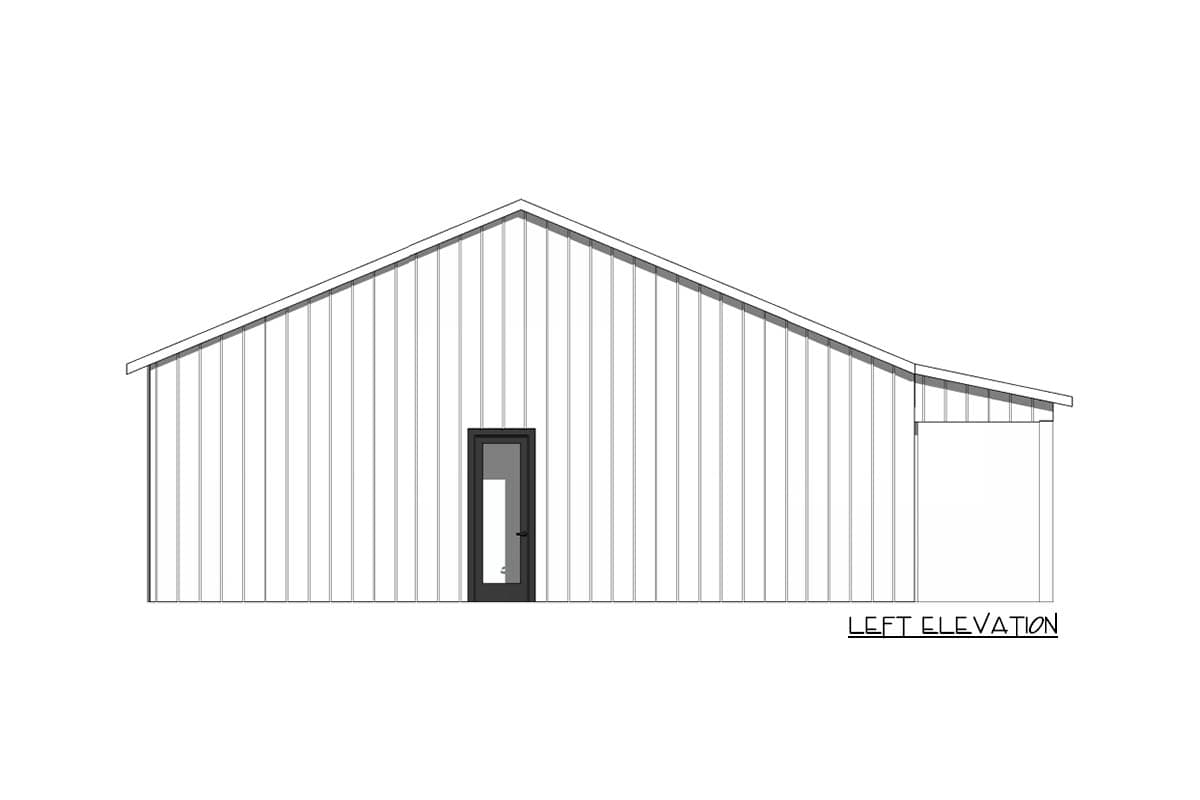

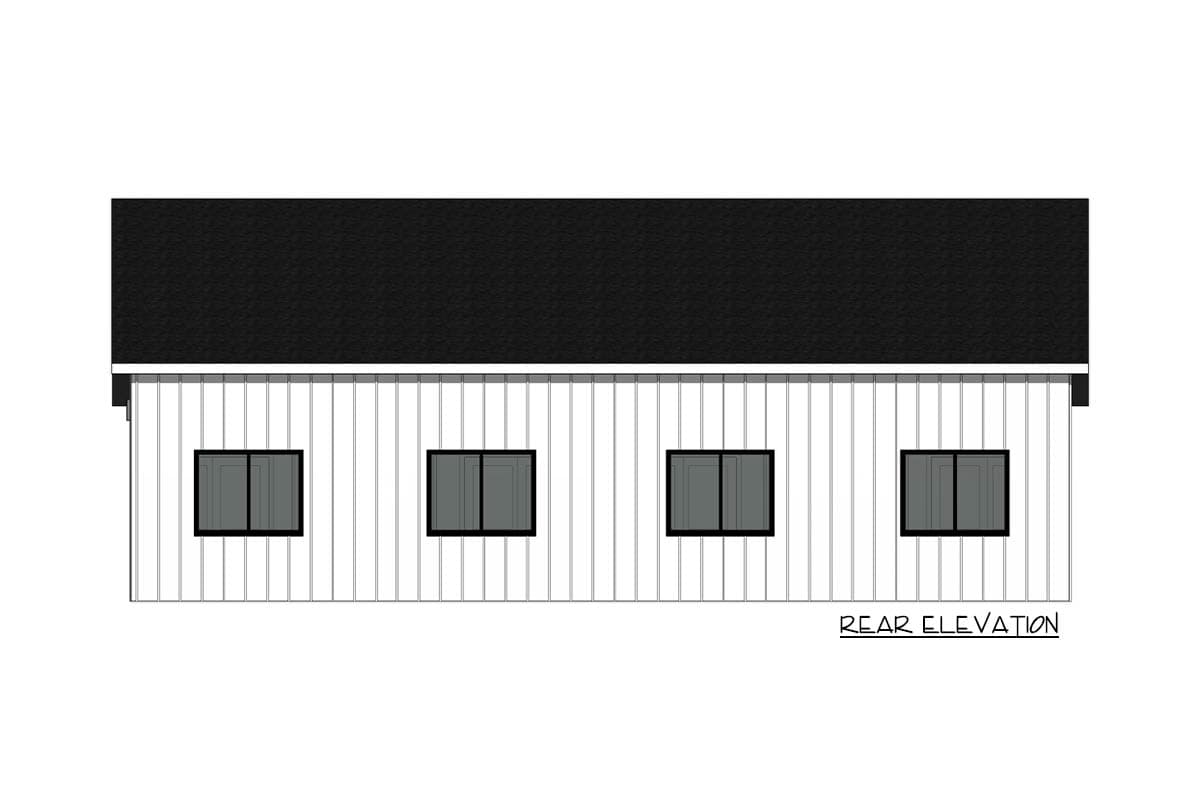

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,504 sq. ft.

1st Floor

1,504 sq. ft.

Porch, Front

280 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 0"

Depth

41' 6"

Max Ridge Height

18' 7"

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Front Porch

Flat

9' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Ranch

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,504 sq. ft.

1st Floor

1,504 sq. ft.

Porch, Front

280 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 0"

Depth

41' 6"

Max Ridge Height

18' 7"

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Front Porch

Flat

9' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Ranch

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
