Plan 67830MG
2-Bed Ranch Style House Plan with Great Room - 1242 Sq Ft
Heated S.F.
1,242
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 67830MG

Main Level
slide image 0

Plan 67830MG

1-800-854-7852

1-262-521-4596

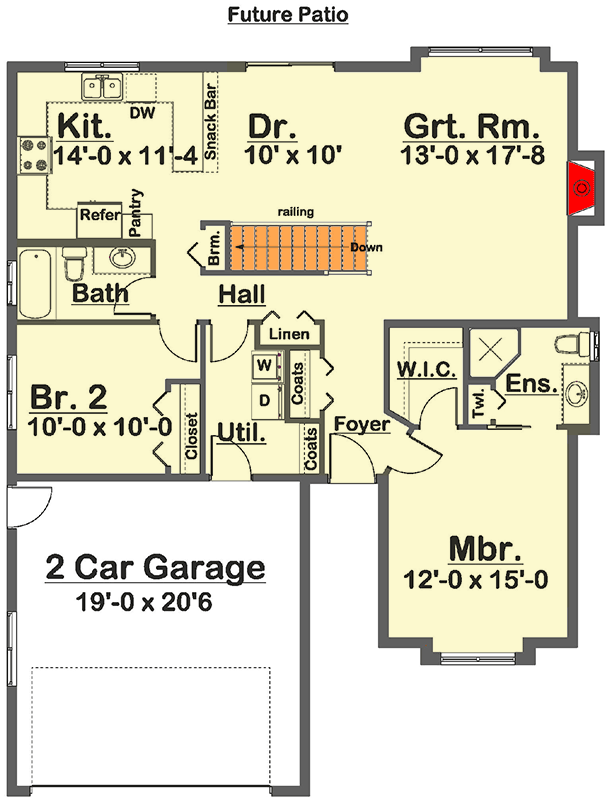

Main Level
floor plan image Main Level
Plan Details

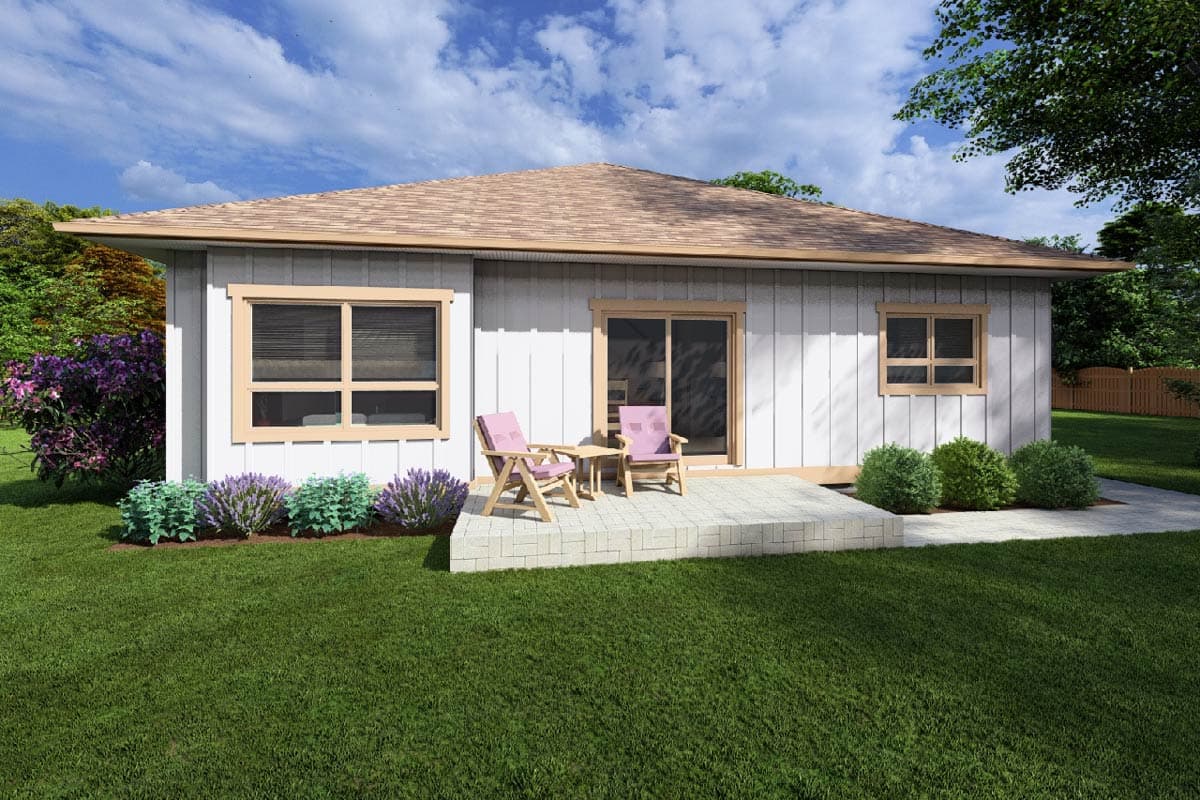

  • This one-story rancher gives you 1,242 square feet of heated living space with the living areas placed across the back to make the most of your views. The home gives you 2 beds, 2 baths and has a 2-car 420 square foot garage.
  • A convenient main floor utility room also serves as a handy entry from the garage directly into the house.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

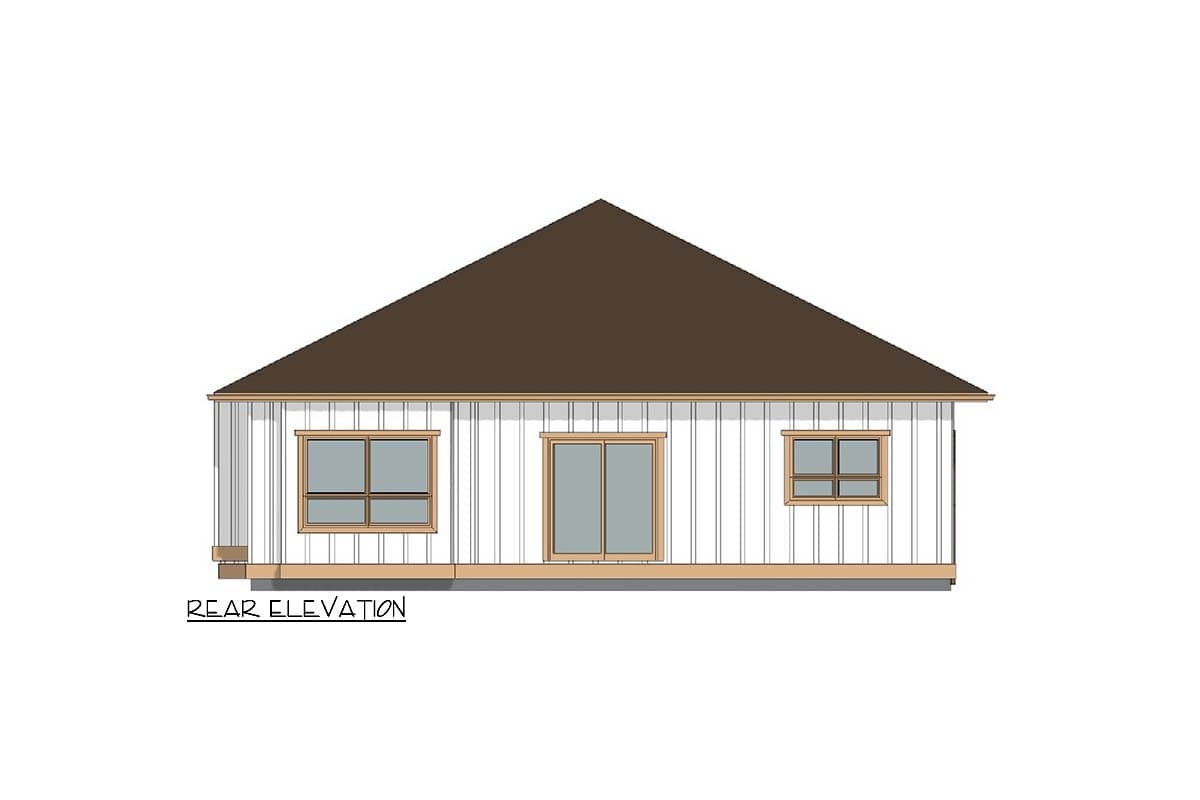

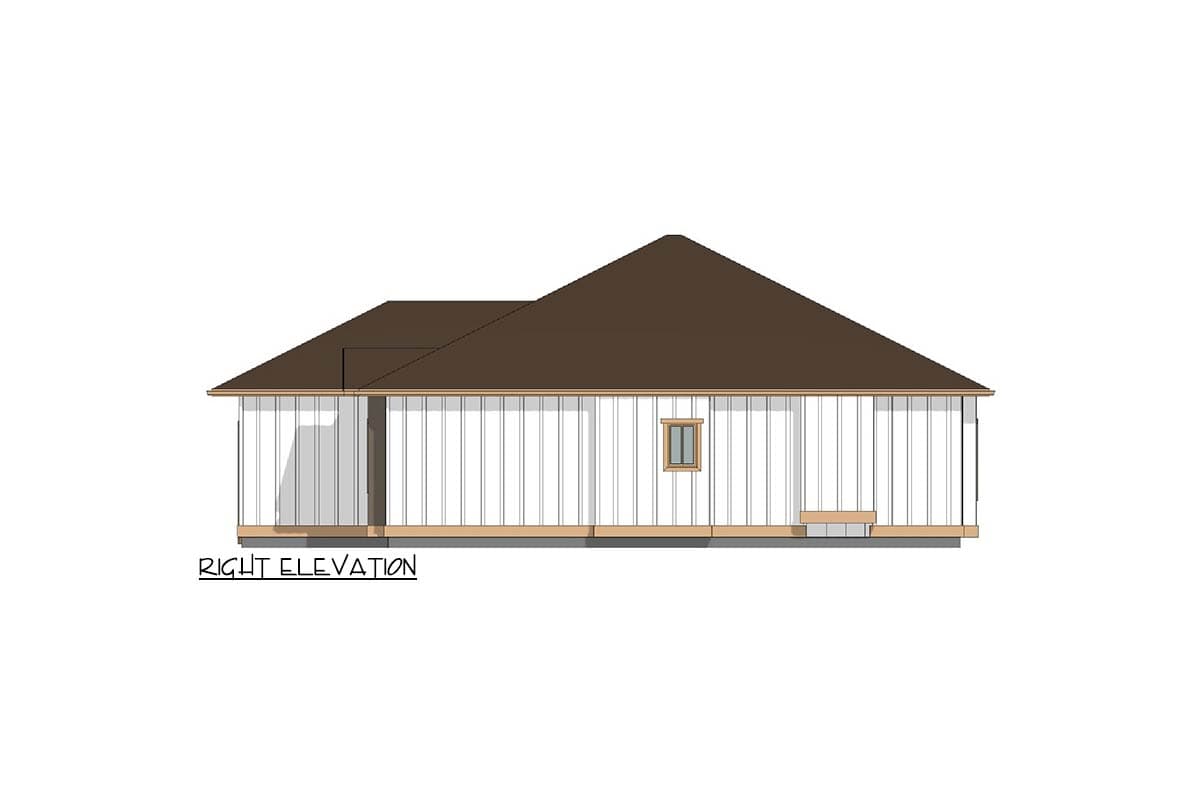

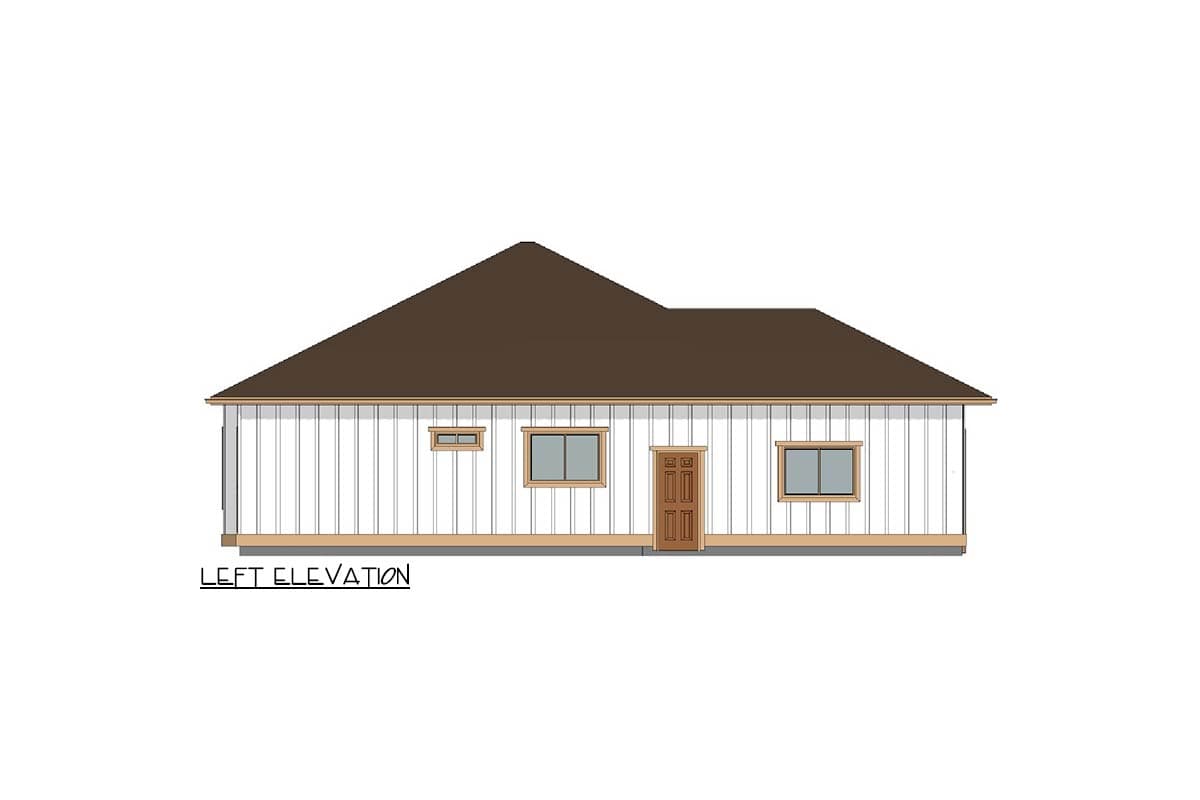

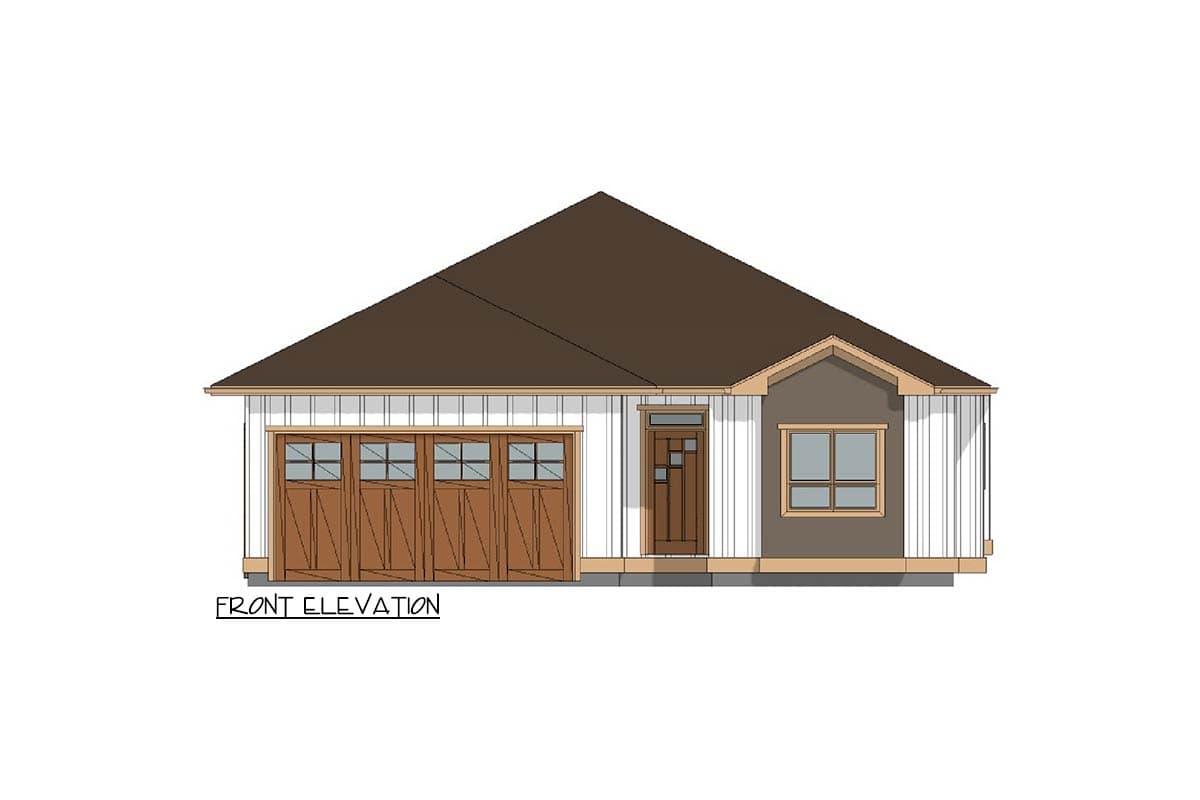

  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,242 sq. ft.

1st Floor

1,242 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

50' 0"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
