Plan 51891HZ
2-Bed Rustic Board and Batten Cottage - 1064 S Ft
Heated S.F.
1,064
Beds
2
Baths
2
Stories
1
Tour
Floor Plan

Plan 51891HZ

Main Level
slide image 0

Plan 51891HZ

1-800-854-7852

1-262-521-4596

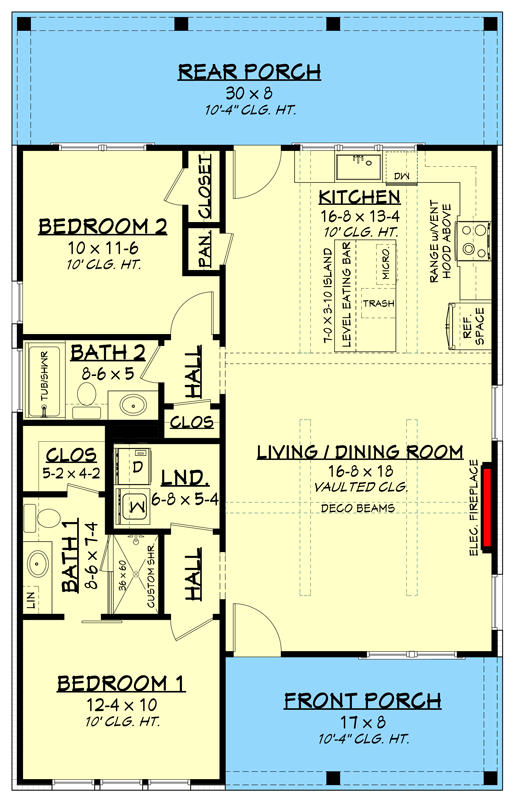

Main Level
floor plan image Main Level
Plan Details

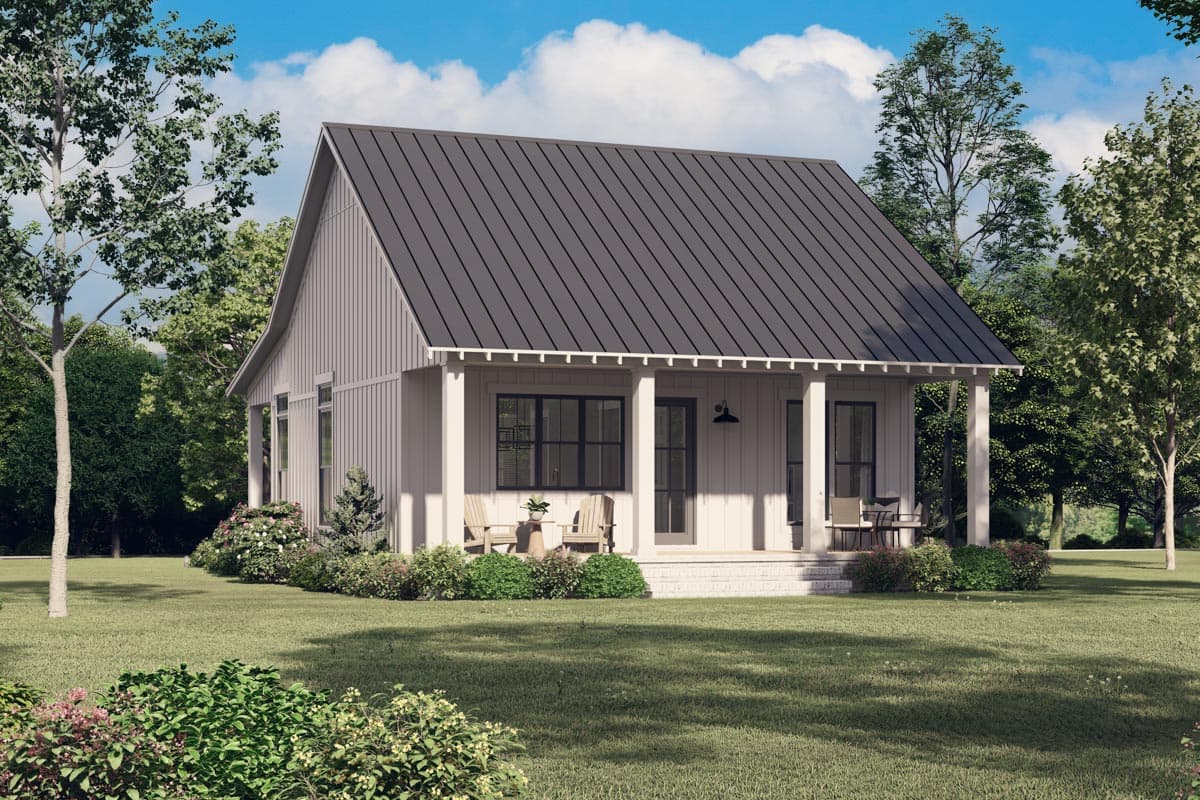

  • This charming 2-bed, 2-bath cottage home plan has board and batten siding and a metal roof. The dormer let's light into the attic which is accessible from pull-down stairs in the laundry room.

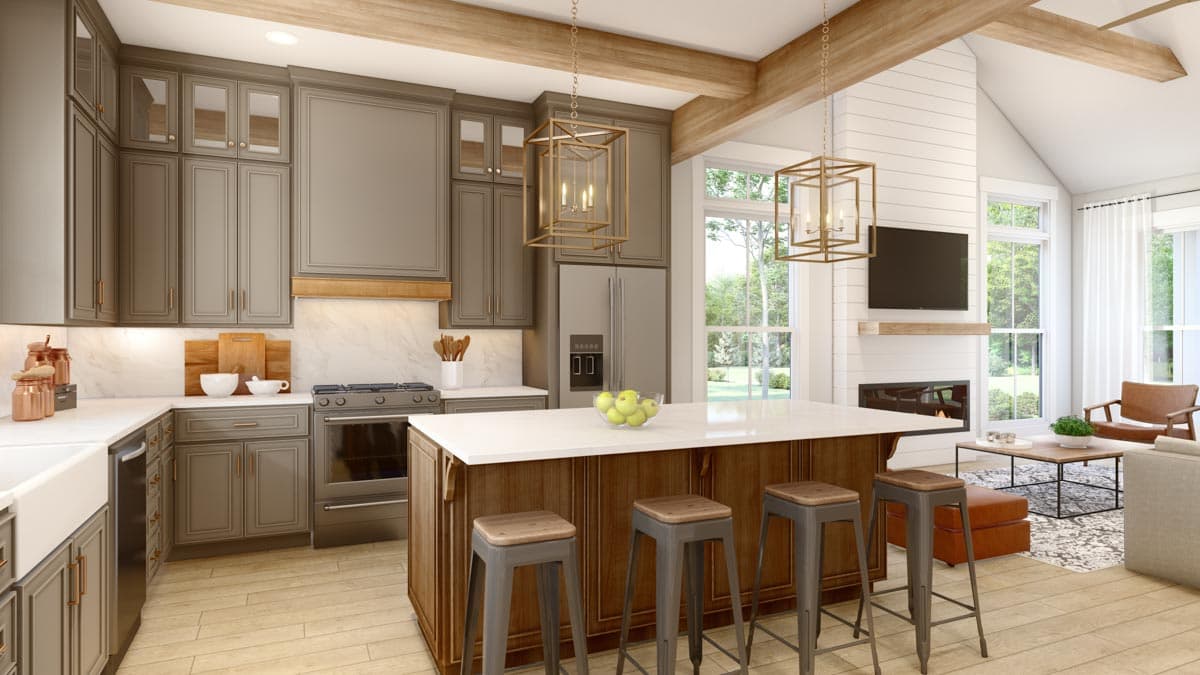

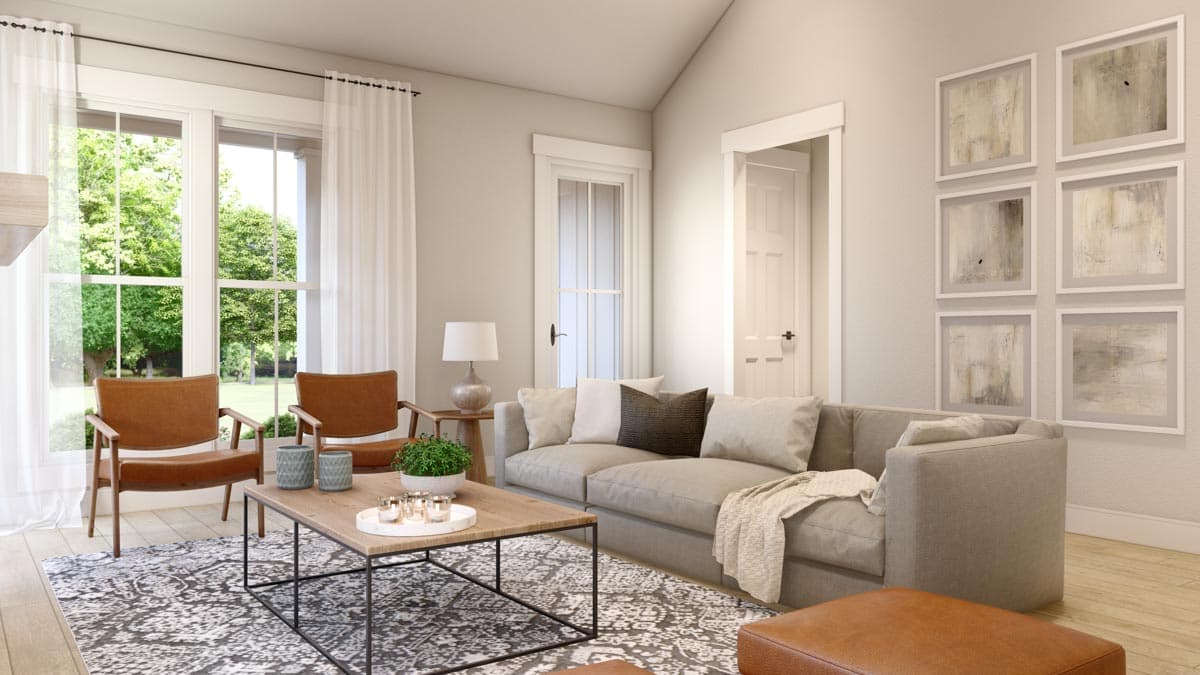

  • The living, dining, and kitchen are all open for easy entertaining and plenty of windows for natural light and to take in those amazing views.
  • Bedrooms line the left side of the home and a full-size laundry room is centrally located.
  • This design offers 10' ceilings with a vaulted ceiling in the living/dining space.
  • Related Plans: Get alternate versions with house plans 51903HZ (1,299 sq. ft.), 51847HZ (1,070 sq. ft.), 51835HZ (1,257 sq. ft.), 51886HZ (960 square feet) and 51939HZ (1,000 square feet). Get a larger version with a garage with house plan 51798HZ (1,094 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation Plan and Details
  • Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

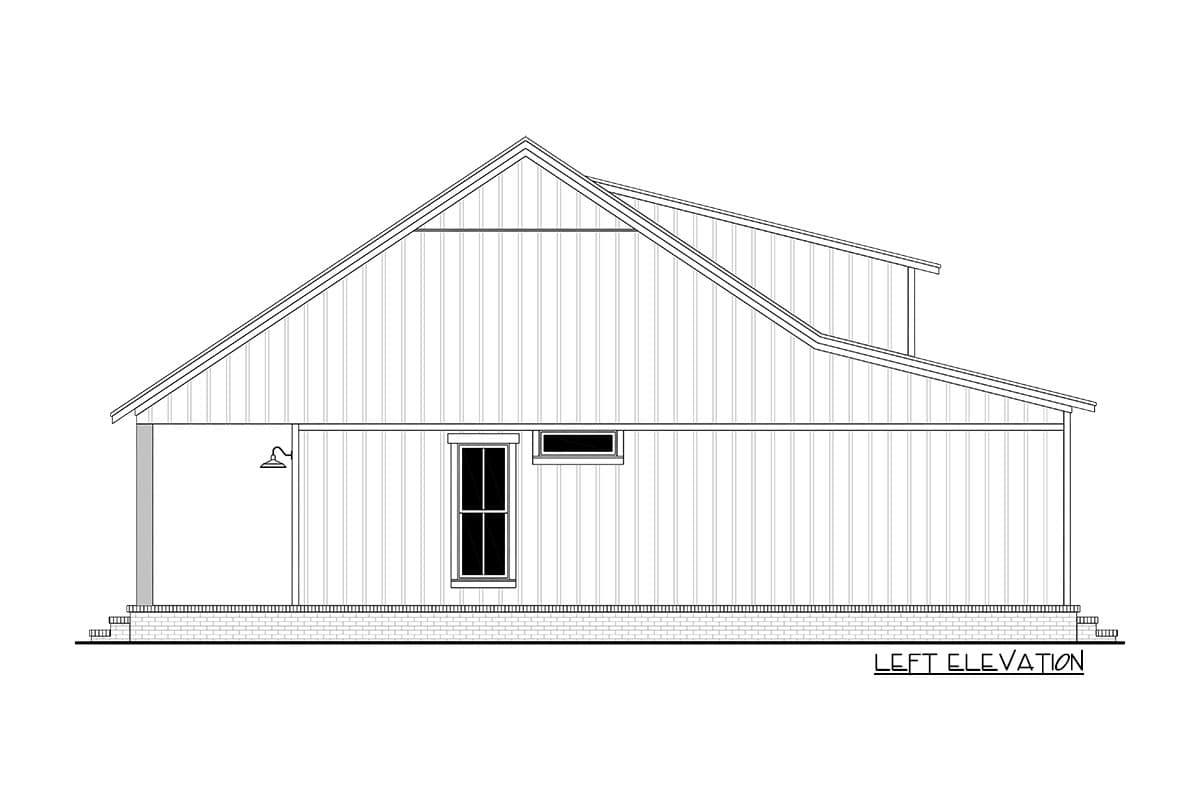

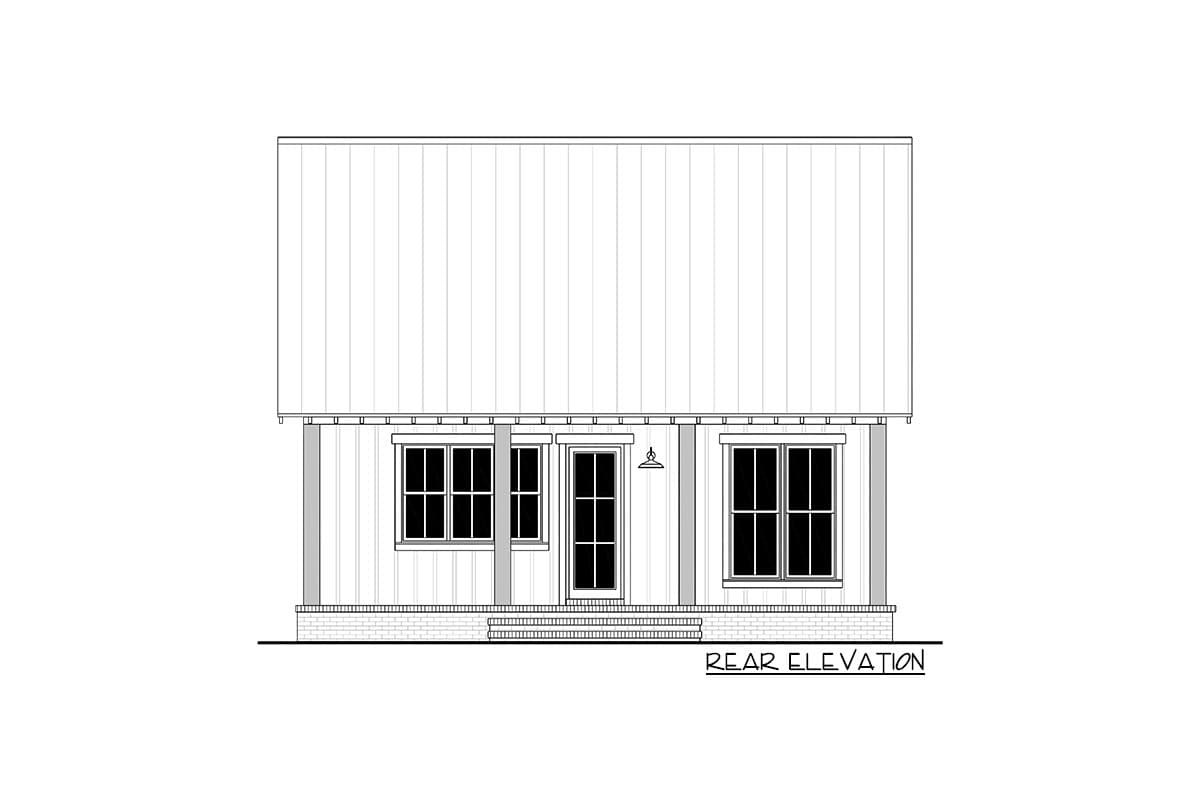

  • Exterior views with additional notes and details
  • Cross Section & kitchen cabinet views
  • Roof plan and span charts with additional details
  • Code Information
  • PCode Information
  • Code Information
  • Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,064 sq. ft.

1st Floor

1,064 sq. ft.

Porch, Front

136 sq. ft.

Porch, Rear

240 sq. ft.

Porch, Combined

376 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

48' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
