Plan 51978HZ
2-Bed Rustic Board and Batten Cottage with 2-Car Garage - 1094 Sq Ft
Heated S.F.
1,094
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 51978HZ

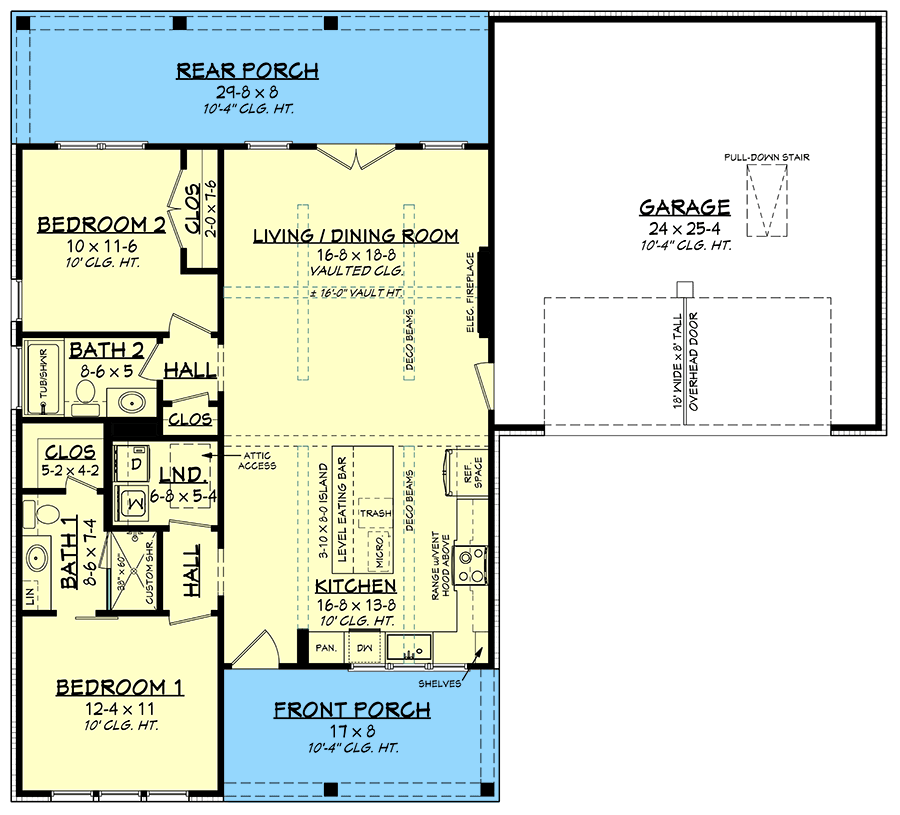

Main Level
slide image 0

Plan 51978HZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This country cottage house plan features two bedrooms, two full baths, a laundry room, and a two-car garage.
  • The open living, dining, and kitchen areas are designed for easy entertaining and include plenty of windows to maximize natural light and enjoy the views.
  • The design includes 10' ceilings and a vaulted ceiling in the living and dining areas.
  • Related Plans: Get 1 bedroom version with house plan 51866HZ (732 sq. ft.) or 51874HZ (1,070 sq. ft.). Remove the garage with house plan 51891HZ (1,064 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

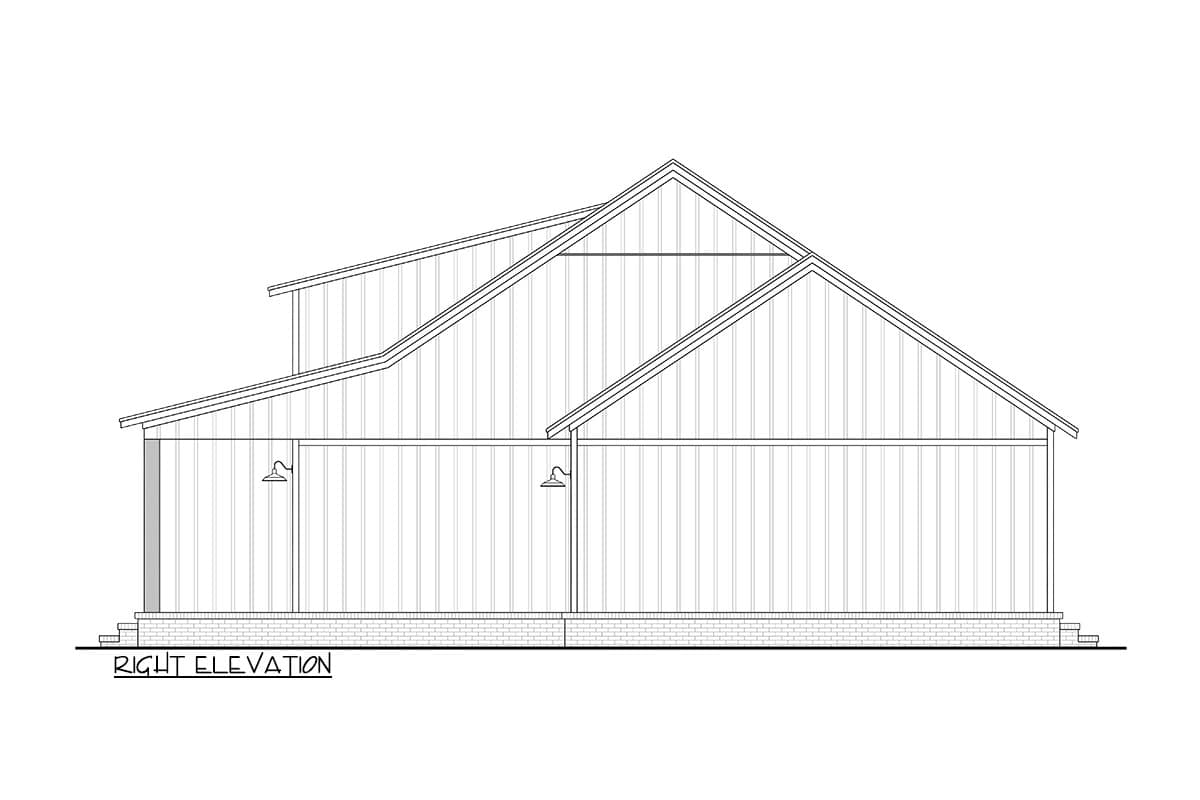

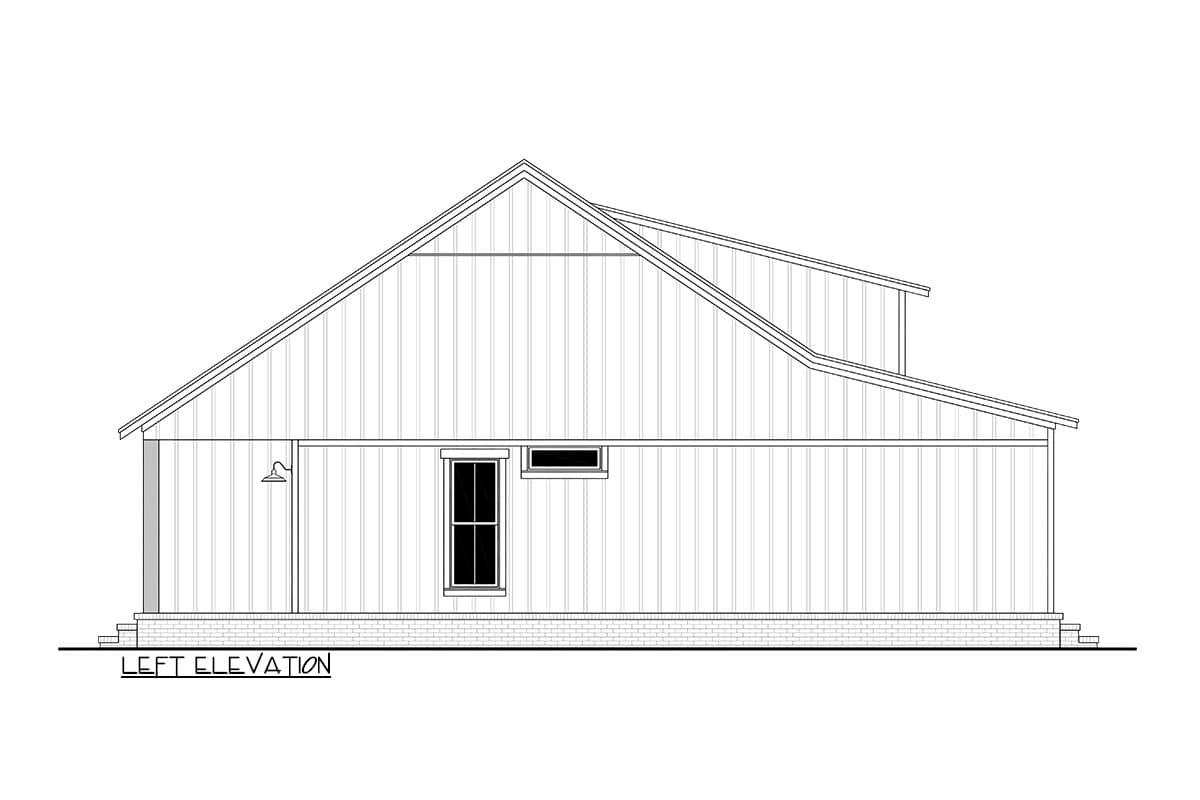

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,094 sq. ft.

1st Floor

1,094 sq. ft.

Porch, Front

136 sq. ft.

Porch, Rear

237 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

49' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

635 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor
