Plan 506029BRY
2-Bed Single-Story Duplex House Plan with Open Concept Living - 1357 Sq Ft Per Unit
Heated S.F.
2,714
Units
2
Width
Depth
Floor Plan

Plan 506029BRY

Main Level
slide image 0

Plan 506029BRY

1-800-854-7852

1-262-521-4596

Main Level

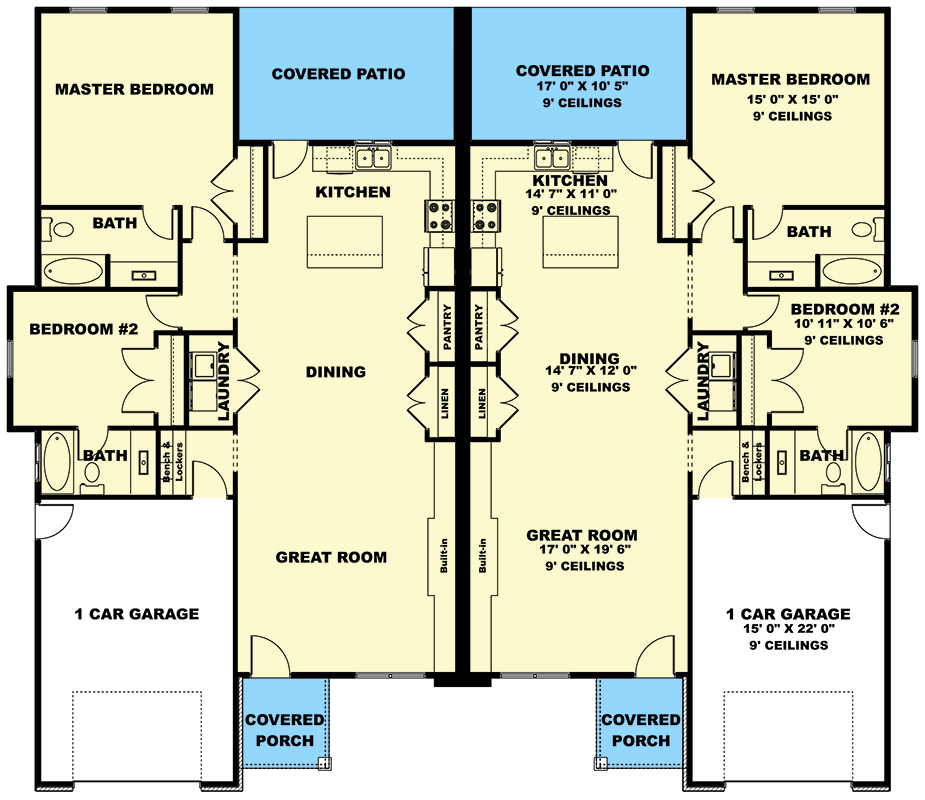

floor plan image Main Level
Plan Details
  • This duplex house plan gives you 2 units each with 1,357 square feet of heated living space, 4 beds, 2 baths and a 363 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,357Sq. Ft.
1357 Sq. Ft.
1st Floor
1Full Bath
1Vehicle
Attached
363 Sq. Ft.
35' 4"width
60' 5"depth
Unit B
1,357Sq. Ft.
1357 Sq. Ft.
1st Floor
1Beds
1Full Bath
1Vehicle
Attached
363 Sq. Ft.
35' 4"width
60' 5"depth
What's Included
  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,714 sq. ft.

1st Floor

2,714 sq. ft.

Porch, Front

112 sq. ft.

Covered Patio

369 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 7"

Depth

60' 5"

Max Ridge Height

18' 5"

Garage

Type

Attached

Area

726 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,714 sq. ft.

1st Floor

2,714 sq. ft.

Porch, Front

112 sq. ft.

Covered Patio

369 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 7"

Depth

60' 5"

Max Ridge Height

18' 5"

Garage

Type

Attached

Area

726 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
