Plan 521024TTL

Exclusive

2-Bed Southern Cottage with Rear-Access Garage and 1851 Sq Ft of Living Space

Heated S.F.

1,851

Beds

3

Baths

2

Stories

1

Cars

2

Floor Plan

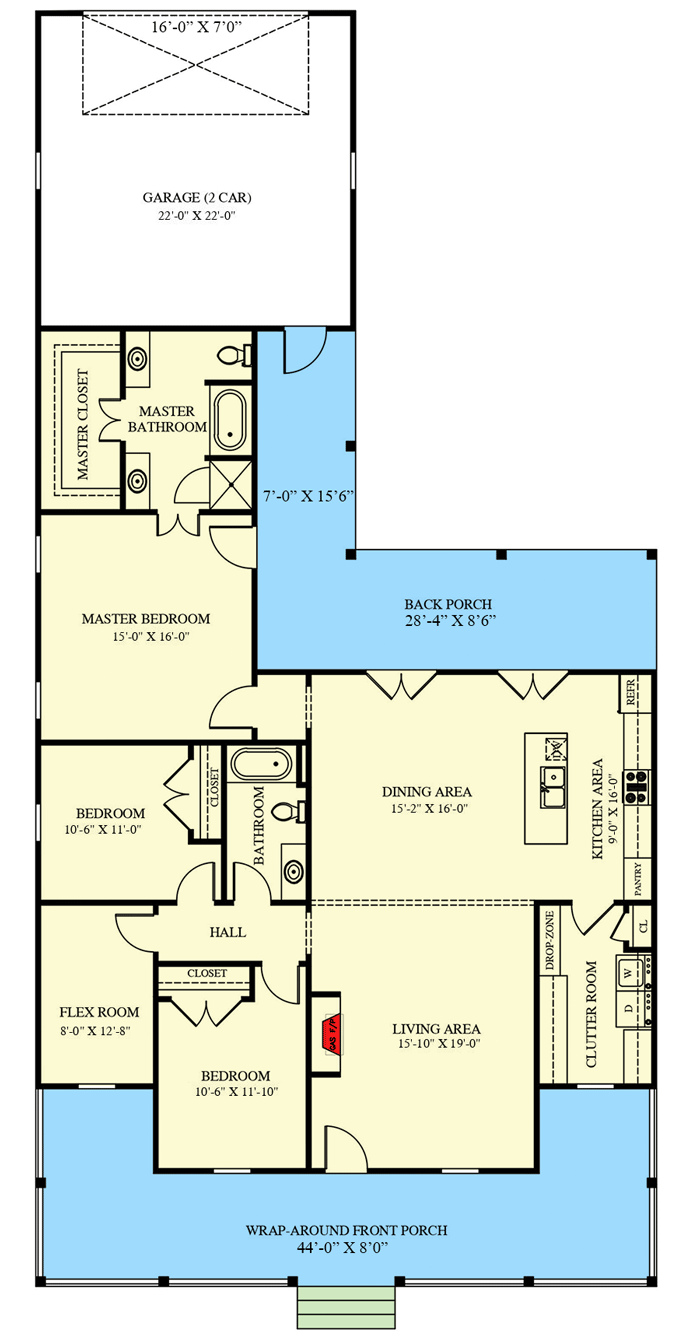

Main Level

floor plan image Main Level

Plan Details

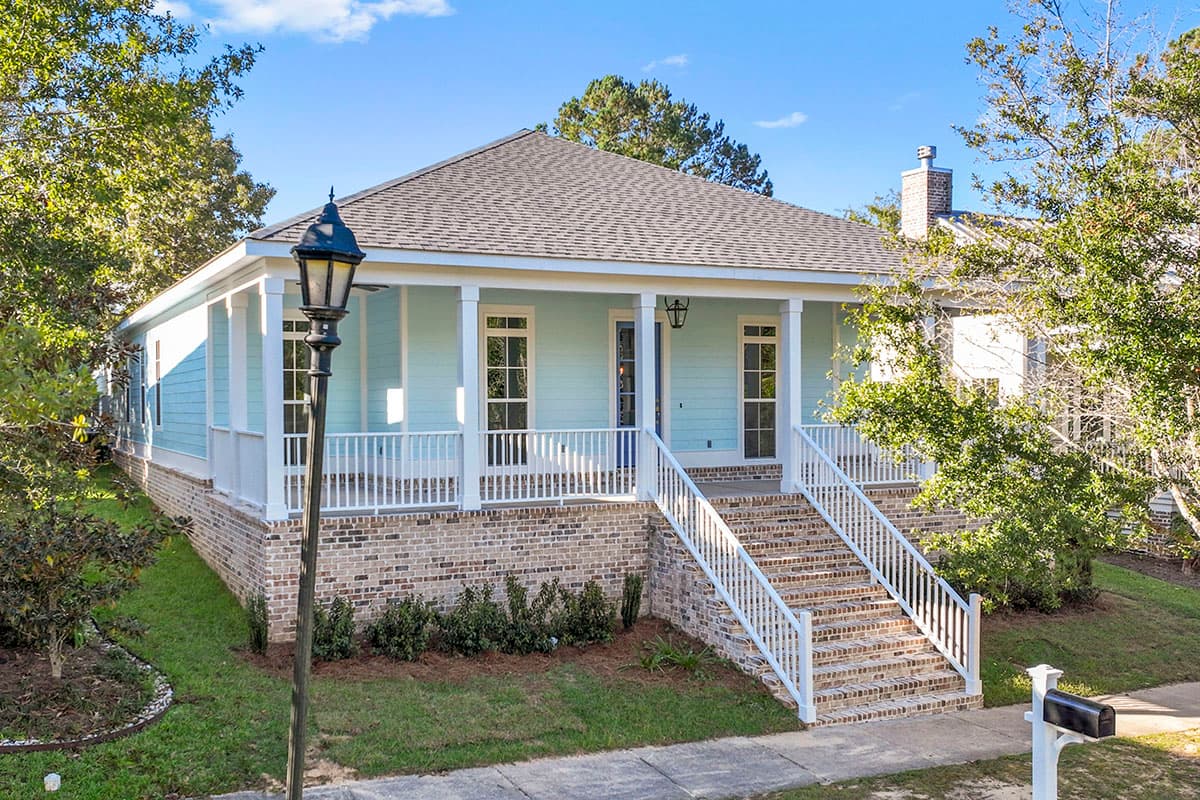

This 2-bed southern cottage-style house plan has over 800 square feet of porch space, complementing the 1,851 square feet of heated and cooled living space inside.

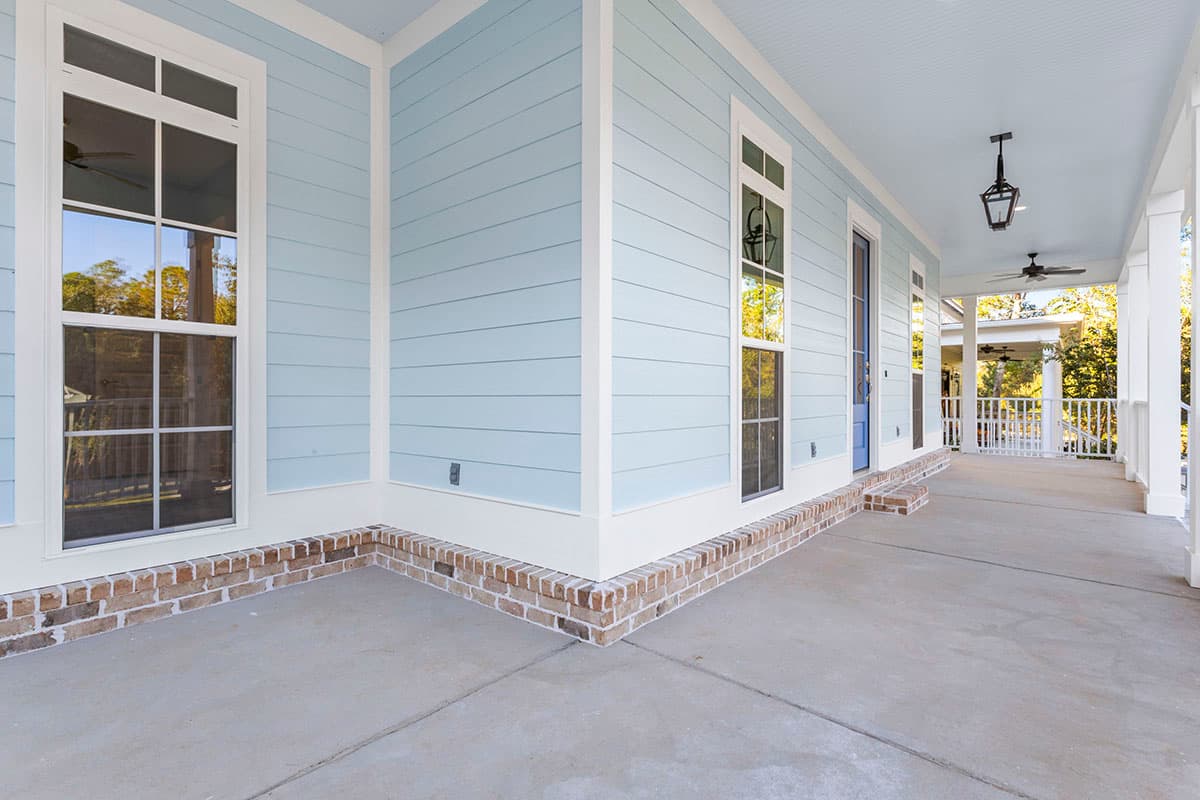

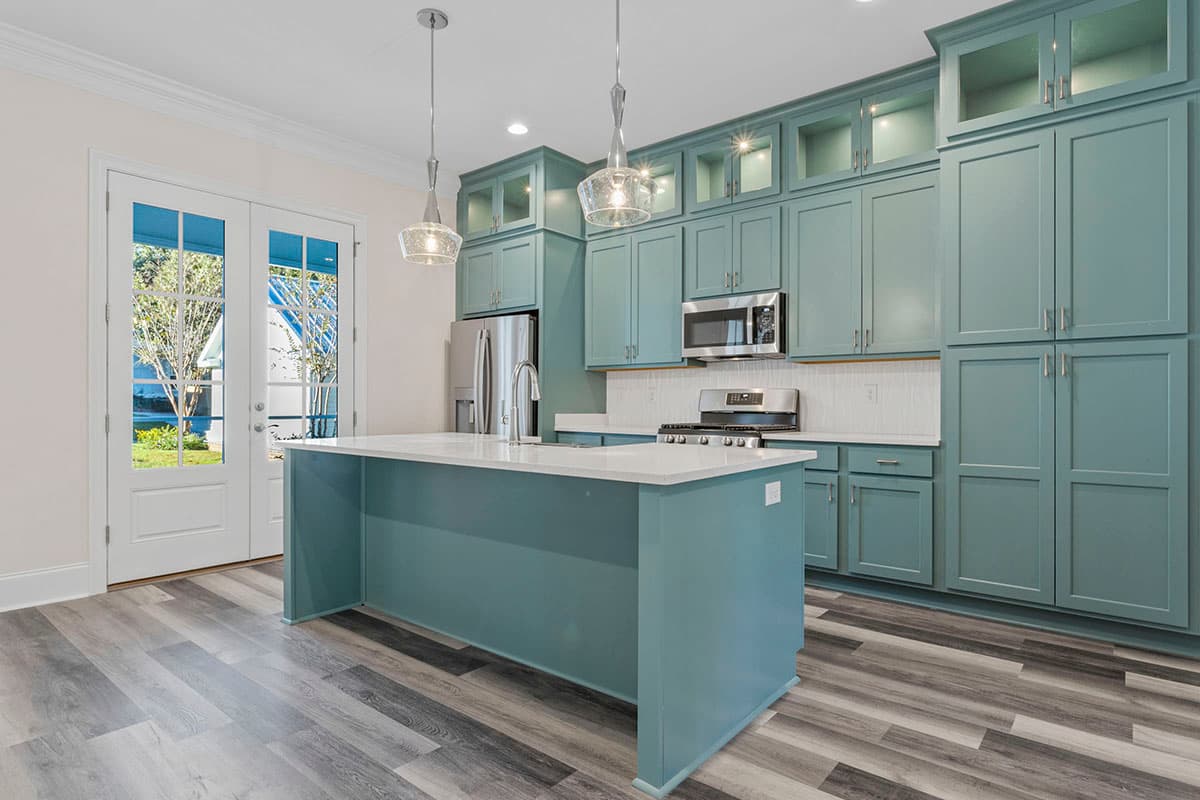

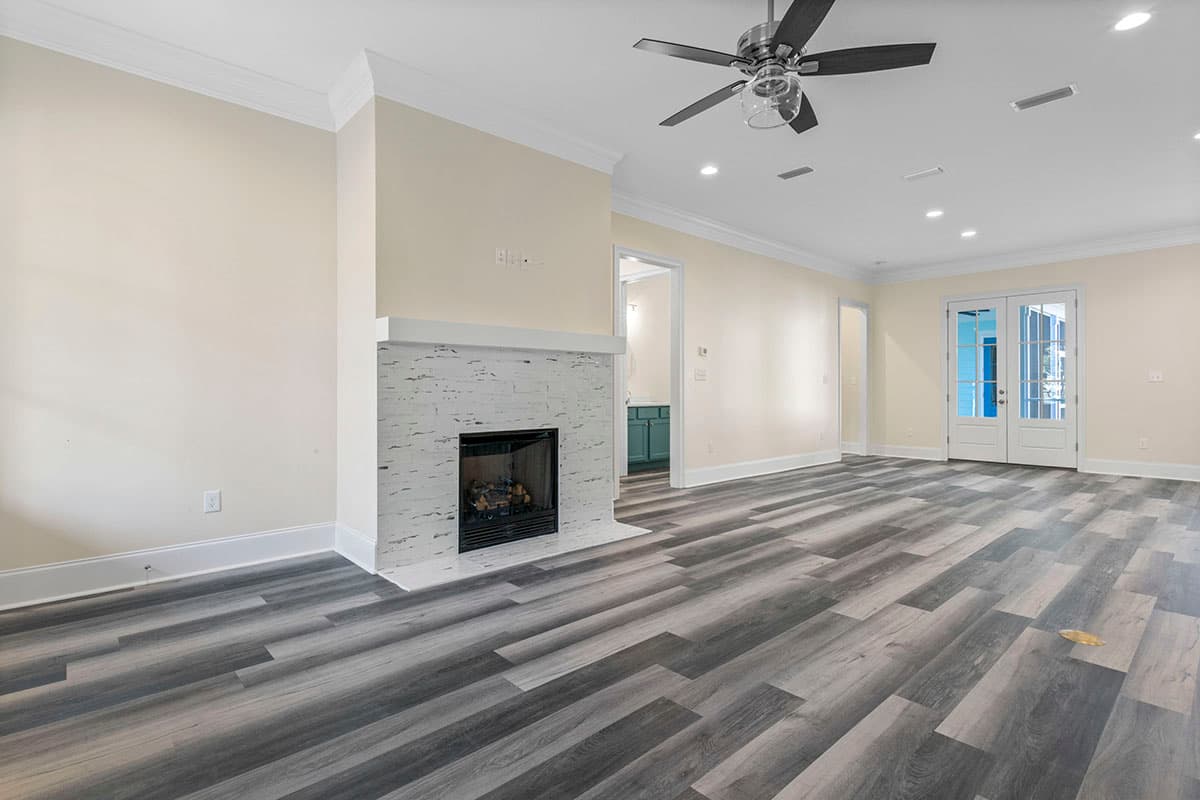

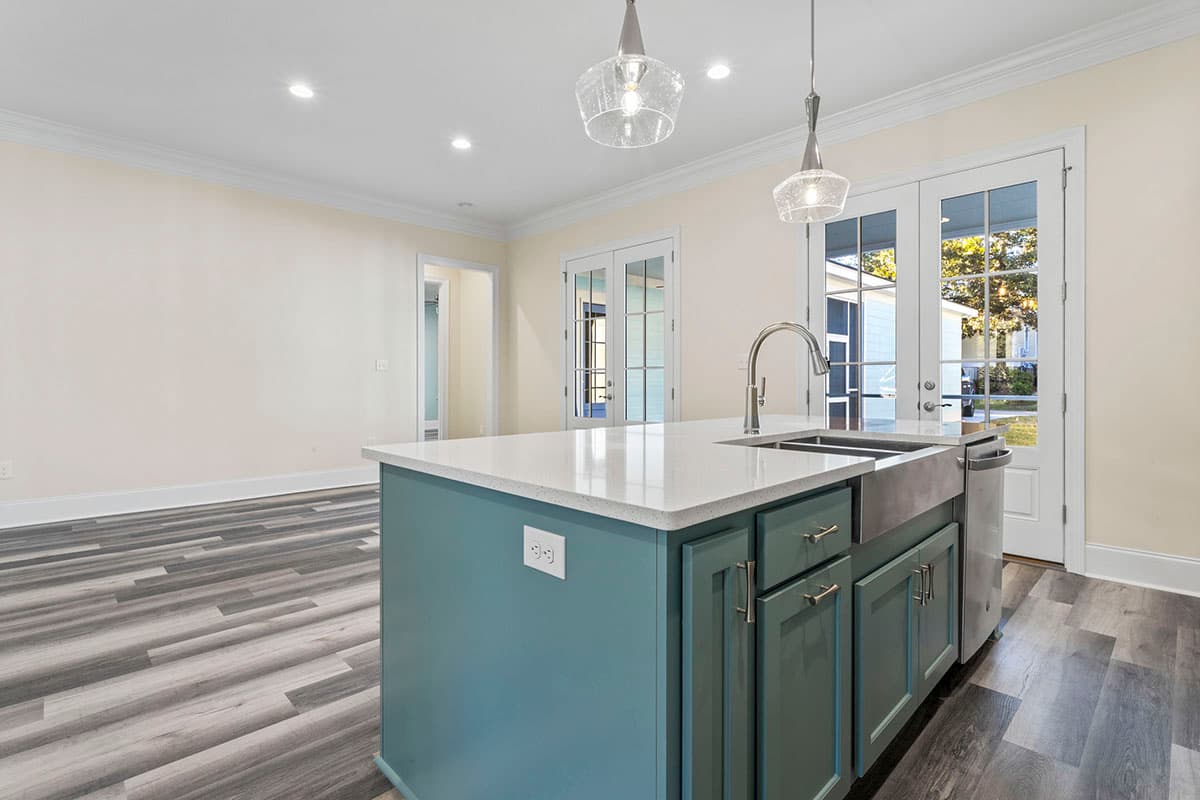

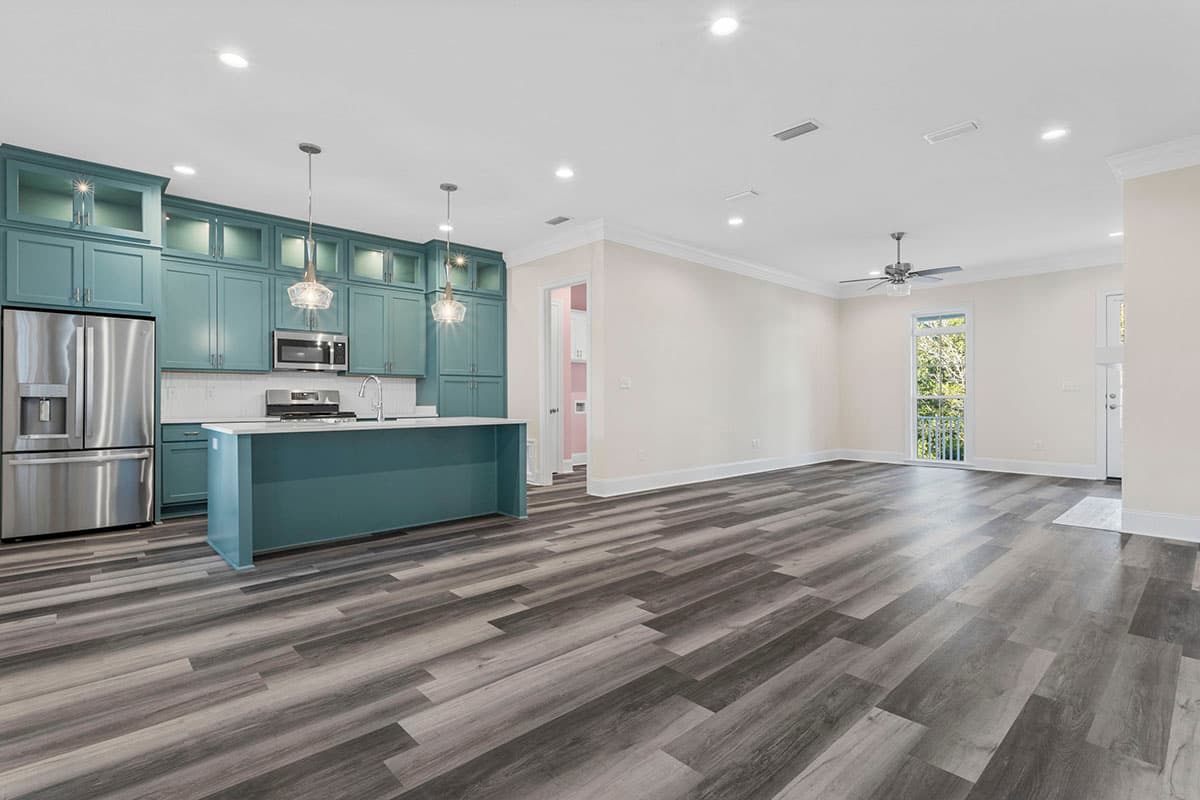

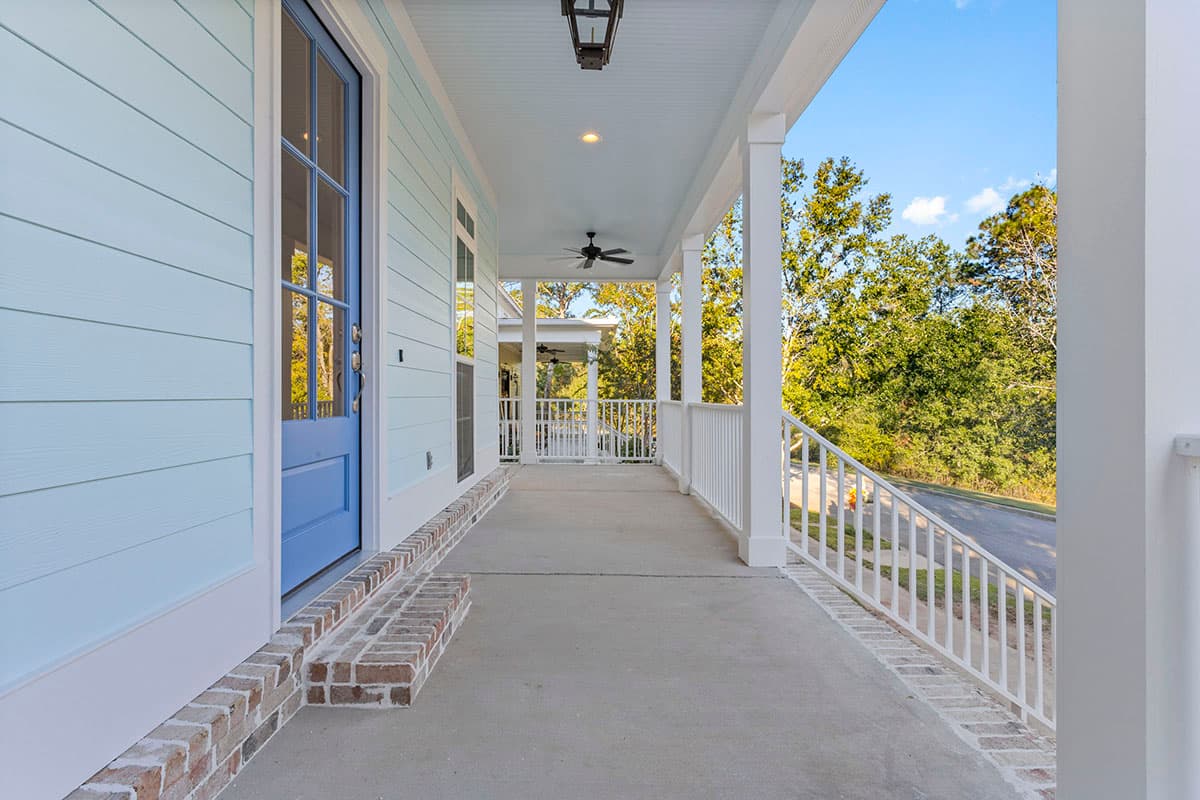

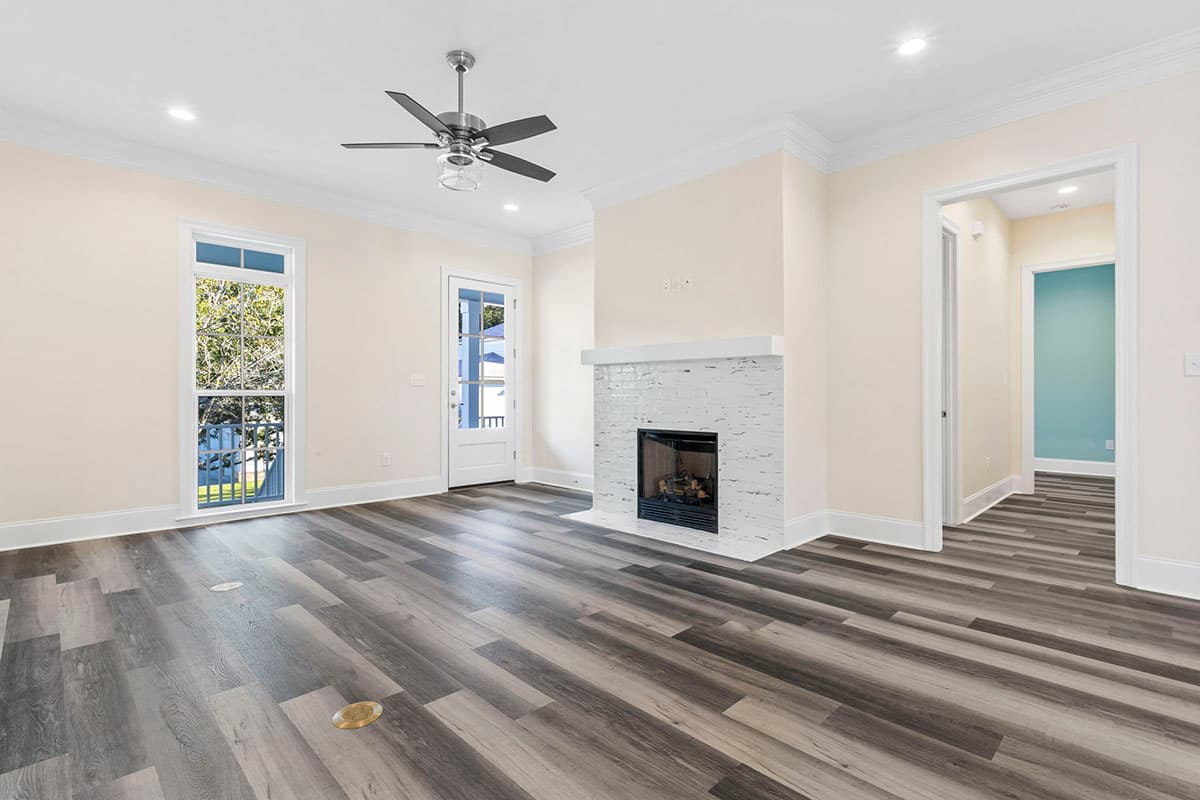

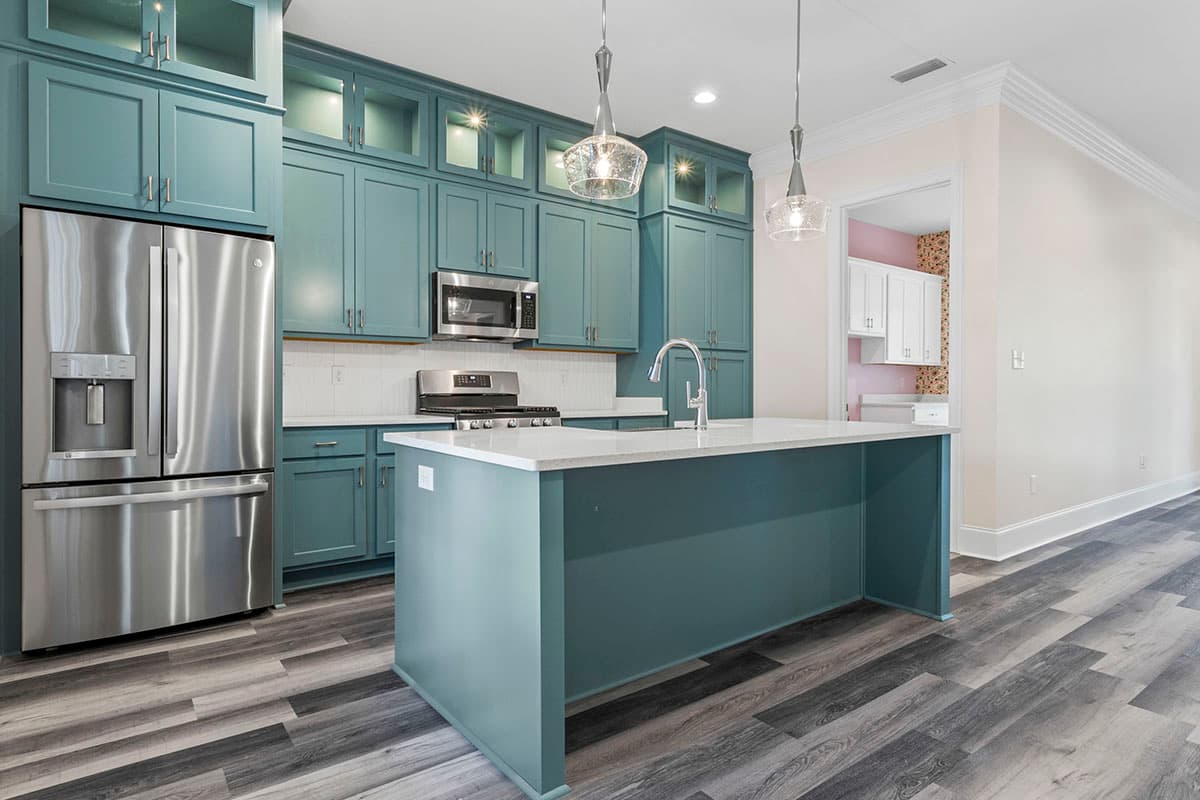

An 8'-deep front porch wraps around the front and gives you access to the living room with fireplace which is open to the dining area and kitchen.

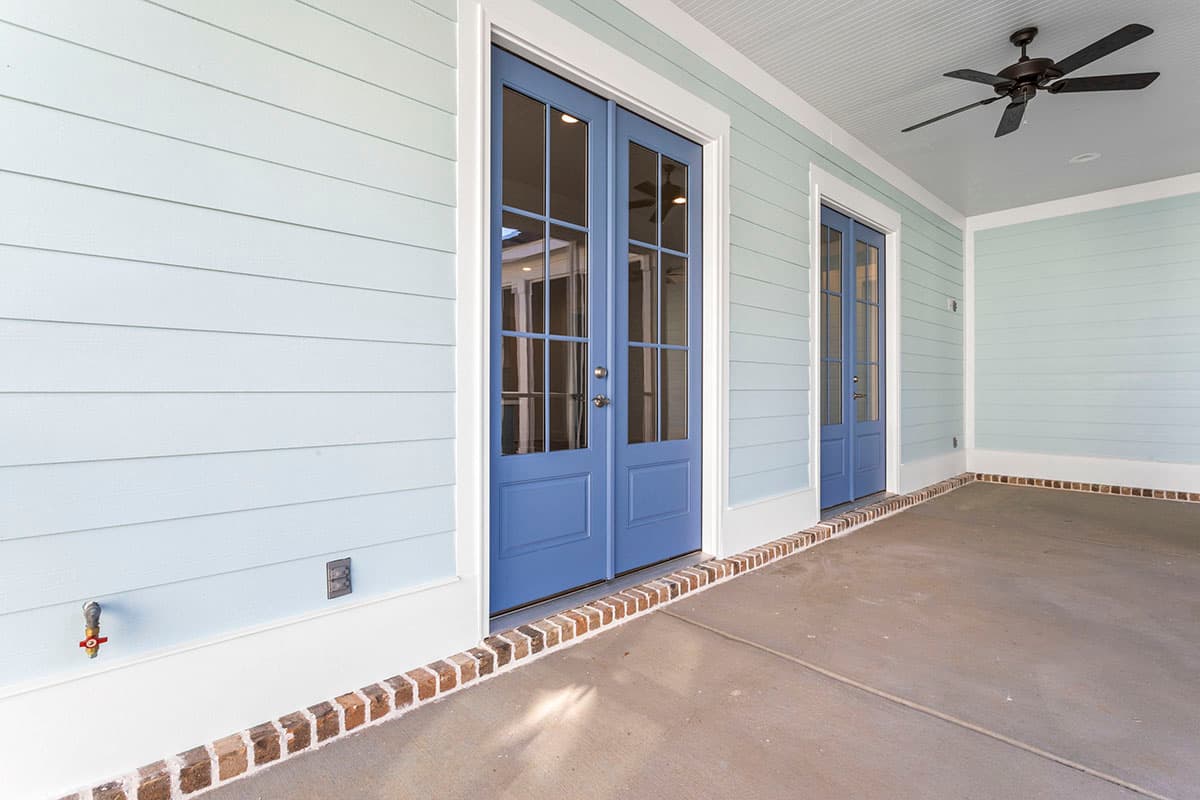

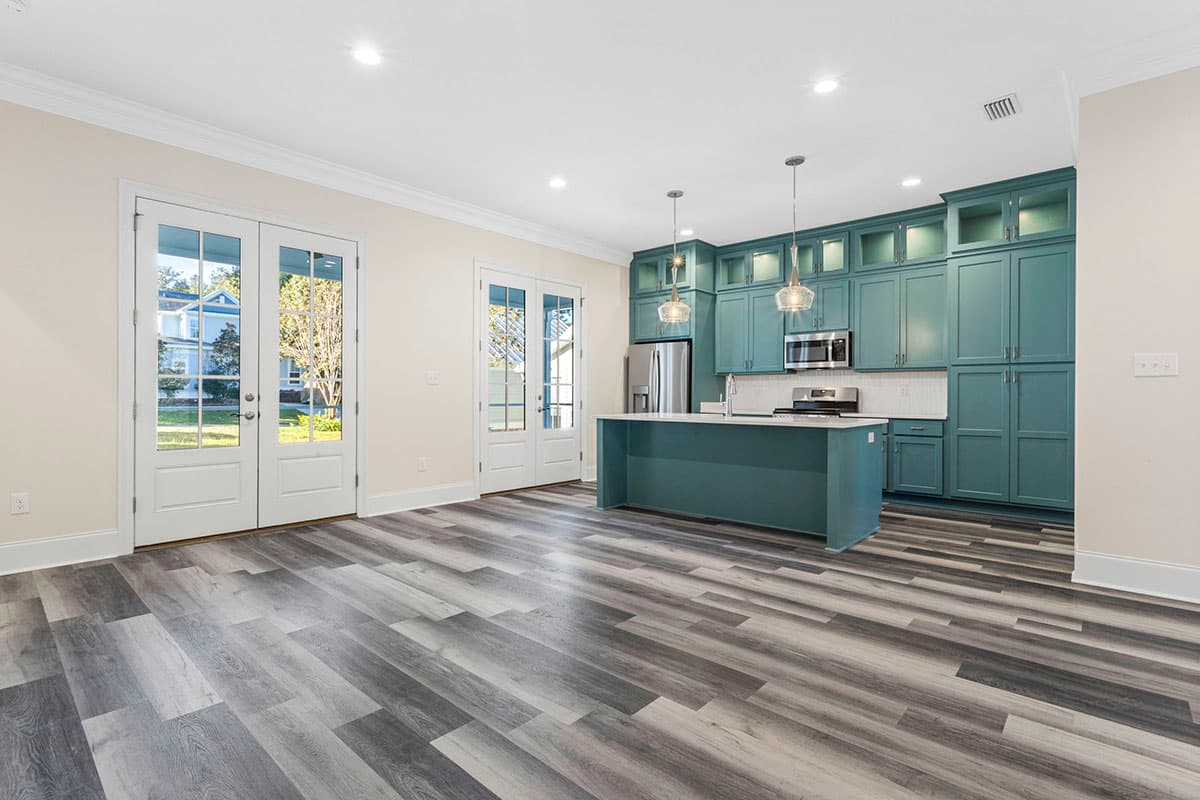

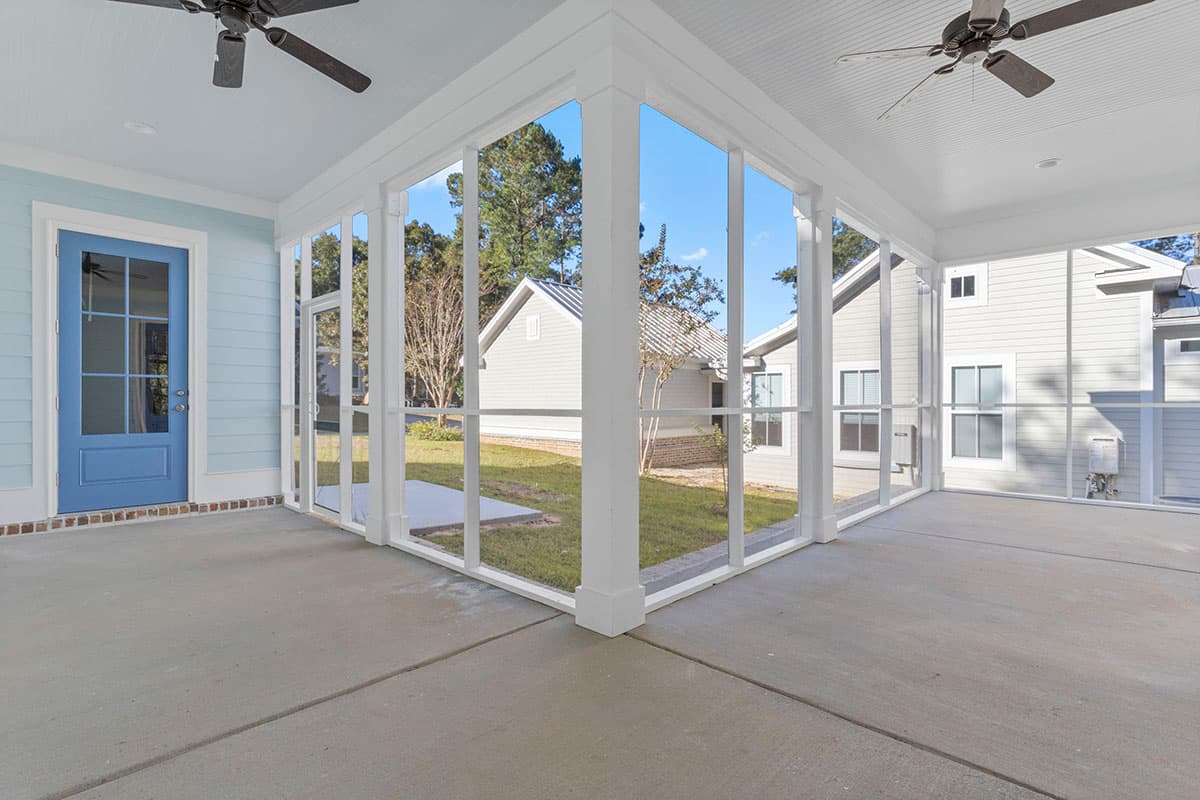

Two sets of French doors on the back wall take you to the back porch.

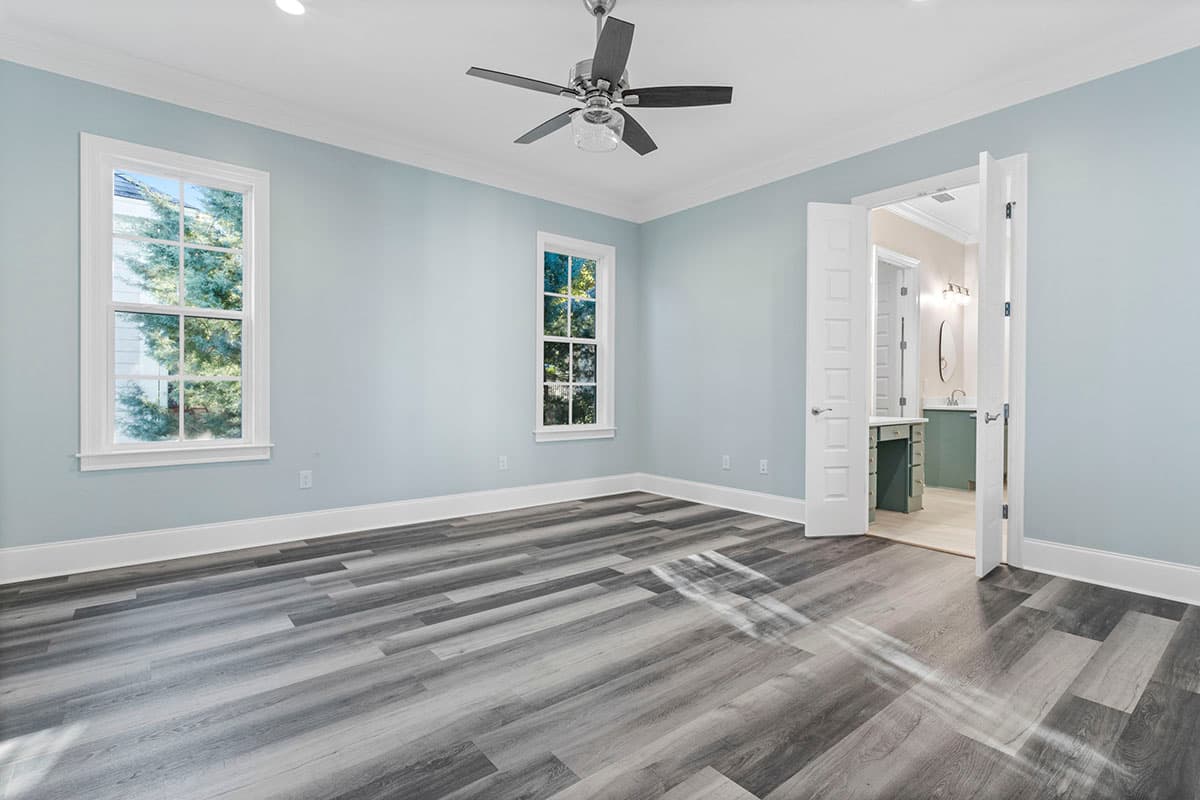

Bedrooms line the left side of the home, as does a flex room.

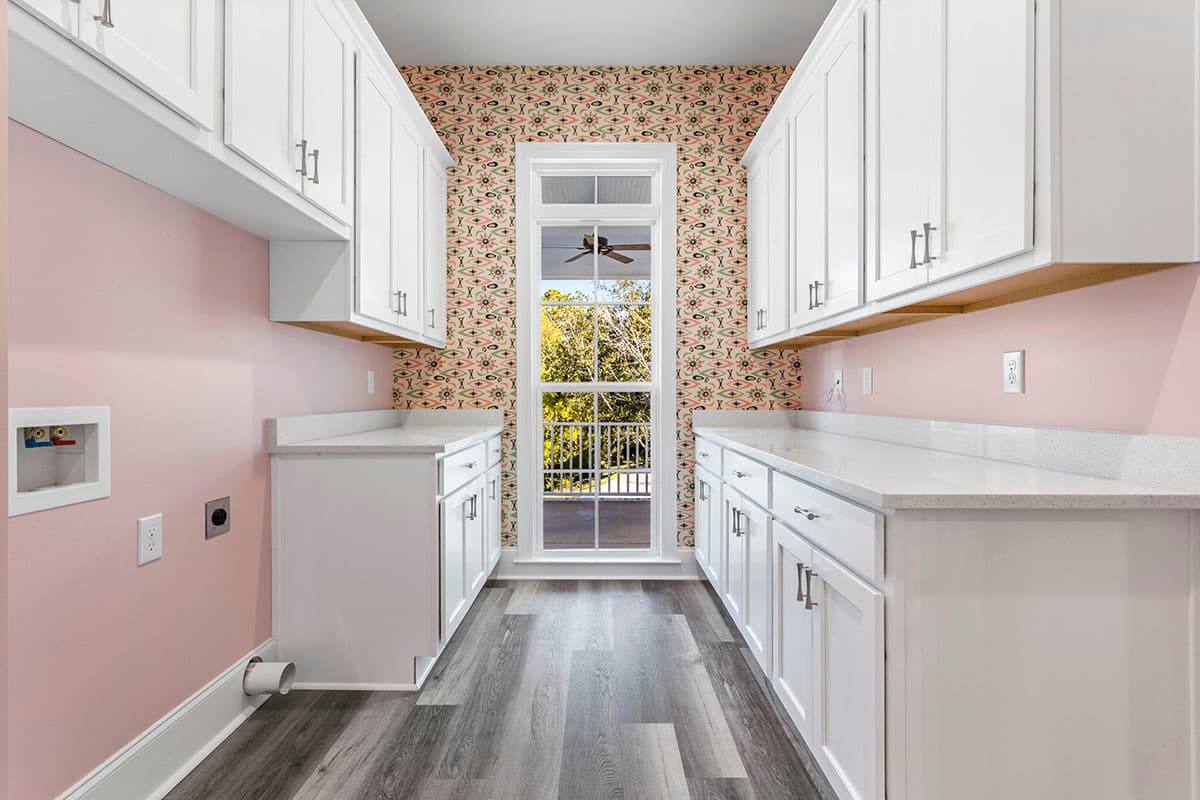

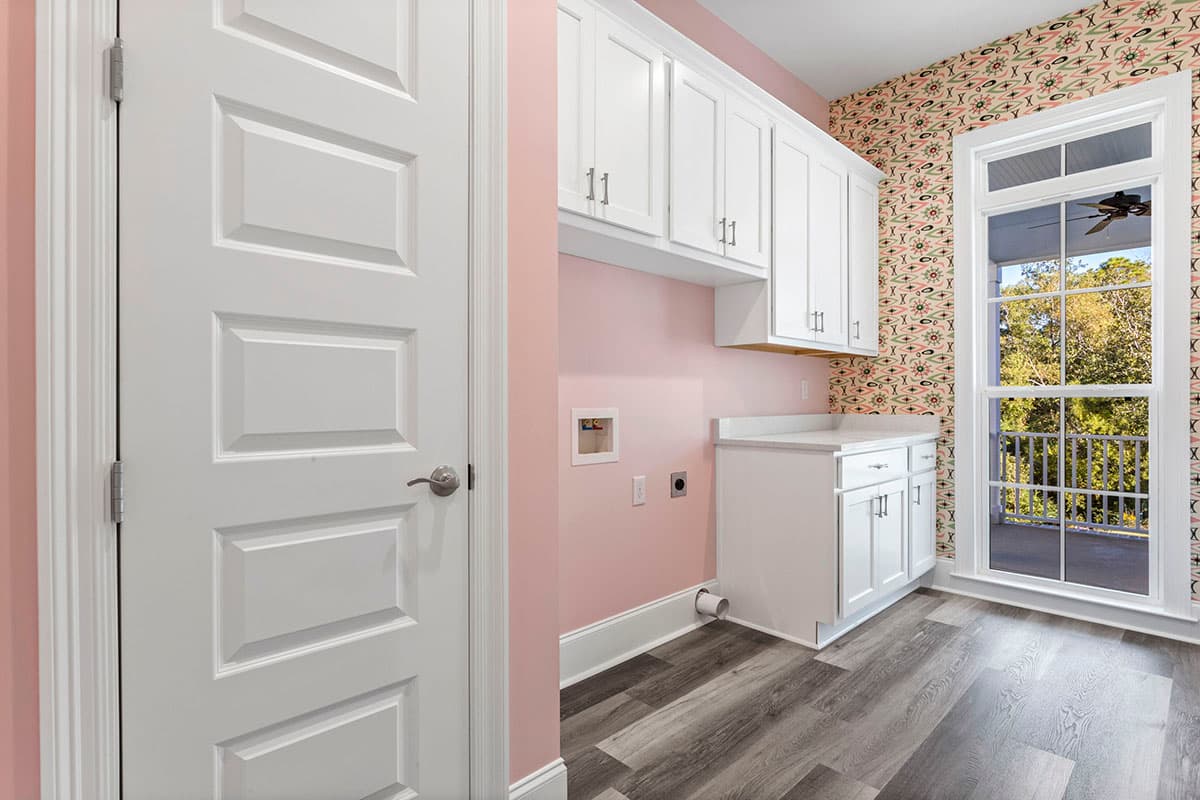

A clutter room located off the kitchen has laundry, a dropzone and storage.

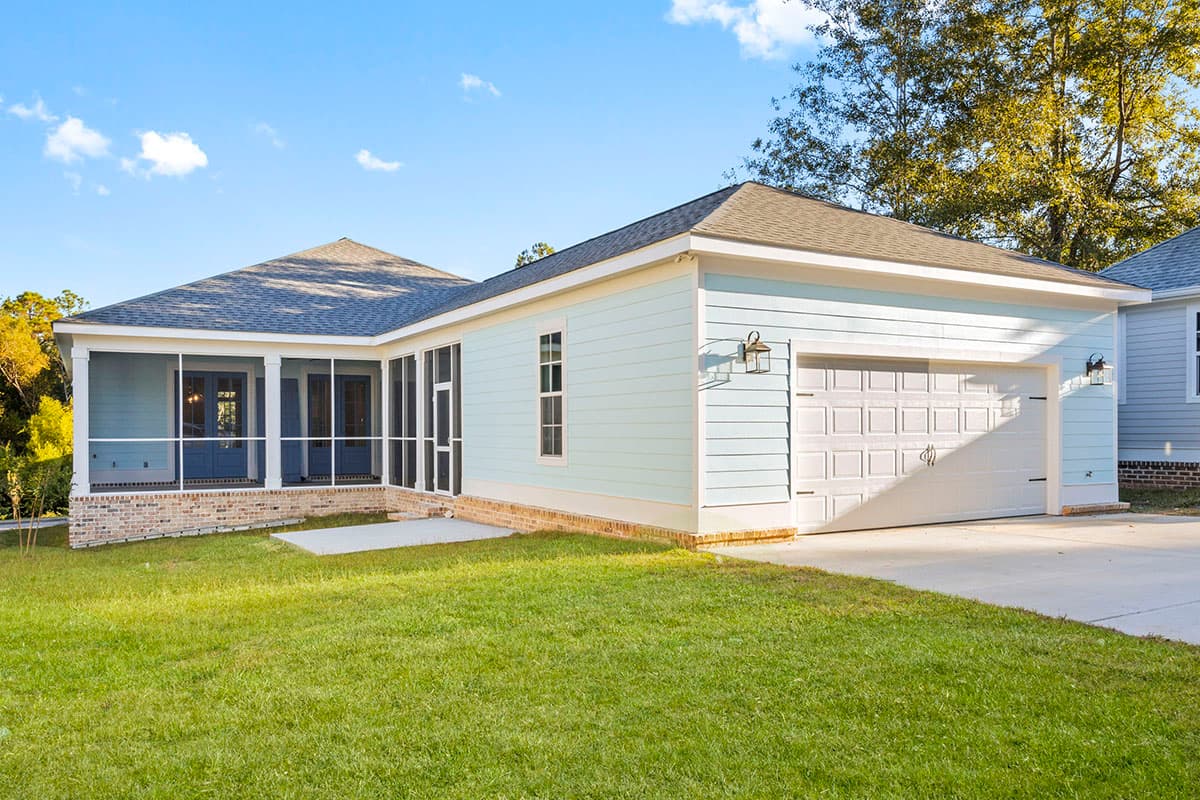

The garage has a single 16' wide and 7' tall overhead door.

What's Included

Cover sheet
Foundation plan
Floor plan

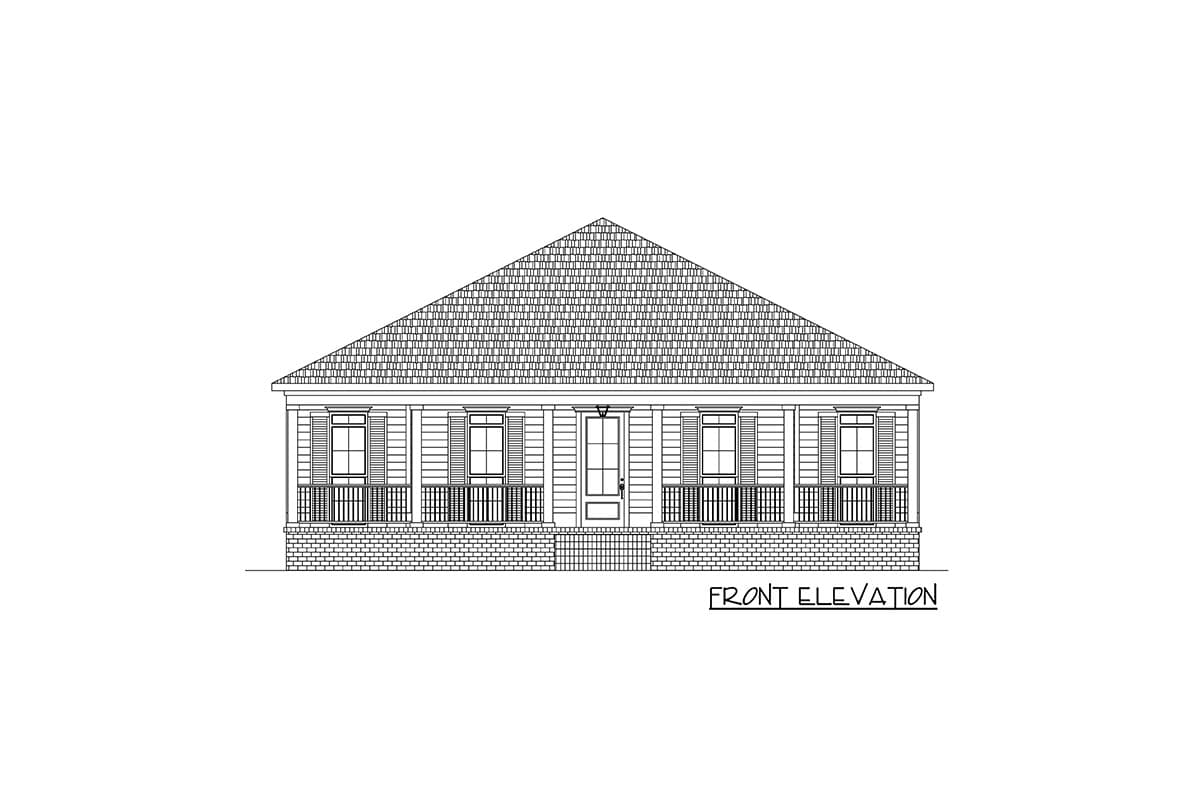

Front, side and rear elevations
Electrical plan
Details
Building cross section
Wall section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,851 sq. ft.

1st Floor

1,851 sq. ft.

Porch, Front

452 sq. ft.

Porch, Rear

349 sq. ft.

Porch, Combined

801 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 10"

Depth

91' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Southern Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
