Plan 51939HZ

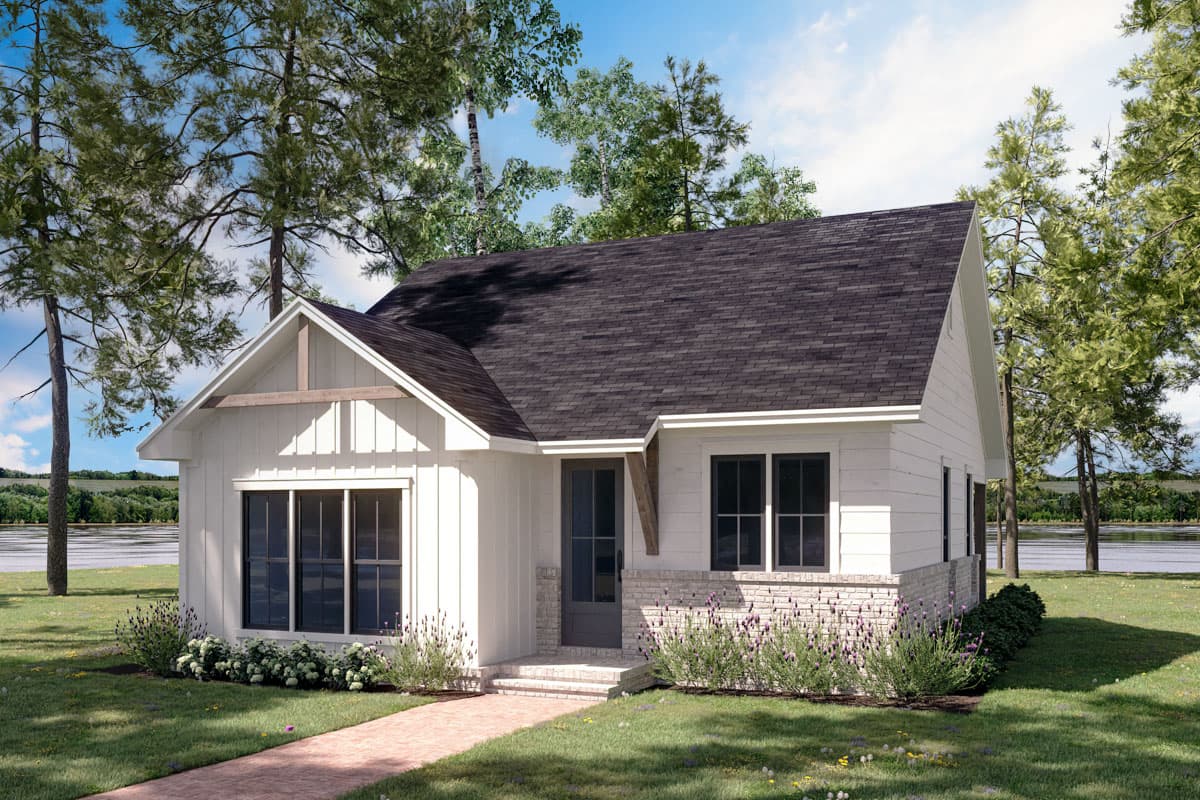

2-Bed Traditional Cottage with Front and Rear Porches - 1000 Sq Ft
Heated S.F.
1,000
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 51939HZ

Main Level
slide image 0

Plan 51939HZ

1-800-854-7852

1-262-521-4596

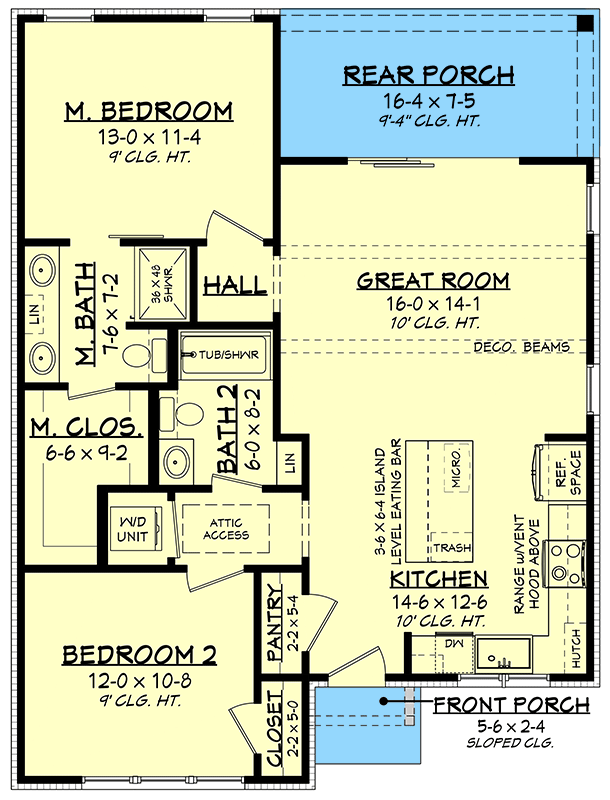

Main Level
floor plan image Main Level
Plan Details
  • This charming farmhouse plan offers an open living space featuring 10' ceilings for easy entertaining that flows to the rear porch.
  • Two bedrooms, two full baths, and an eat-in kitchen make efficient use of this small footprint, complete with a walk-in closet, pantry, and laundry space.
  • Related Plans: Get a smaller version with 51847HZ (960 square feet) and 51891HZ (981 square feet) and get a larger version with 51886HZ (1,064 square feet), 51920HZ (1,070 square feet) and 51926HZ (1,196 square feet).
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

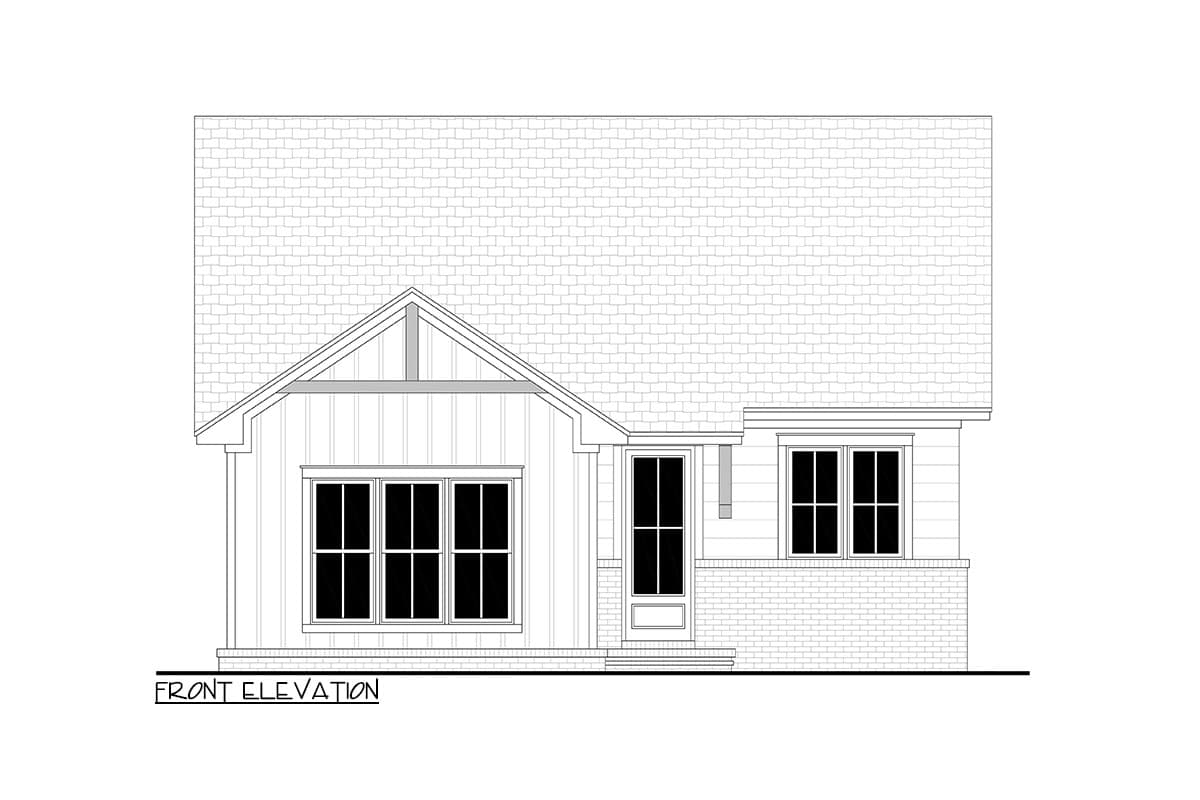

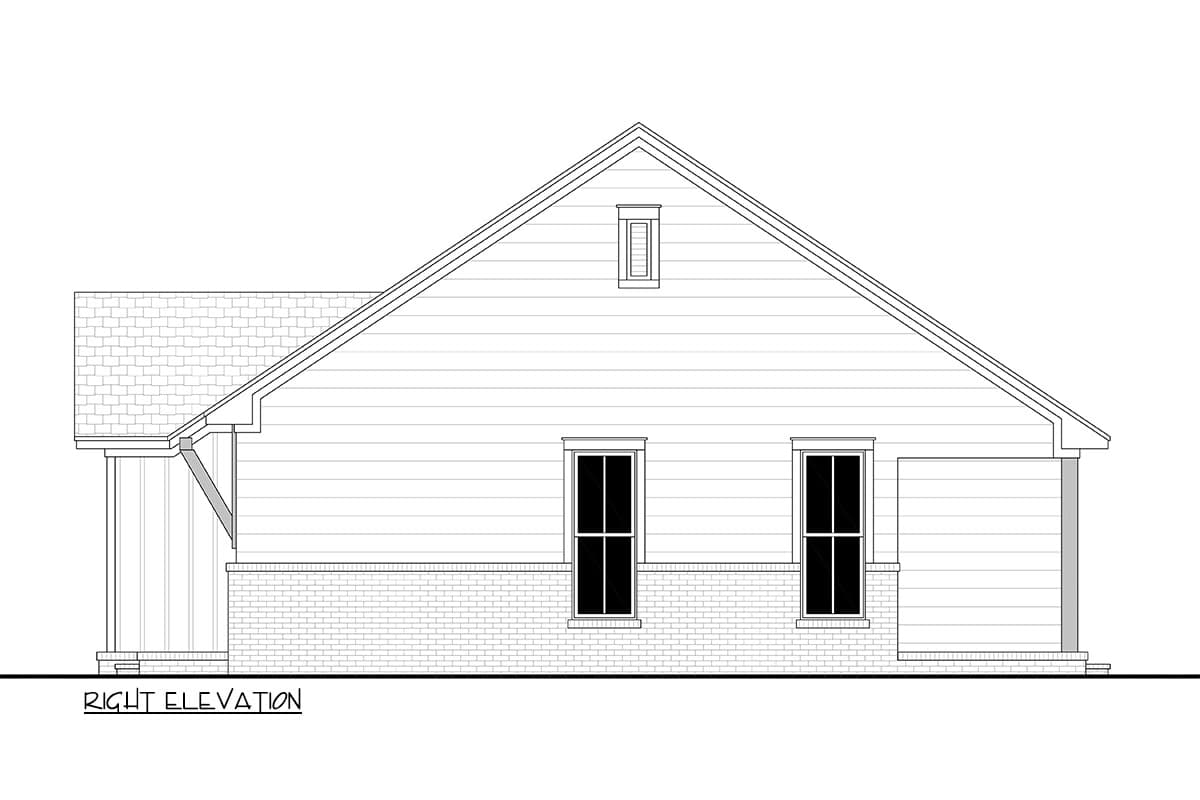

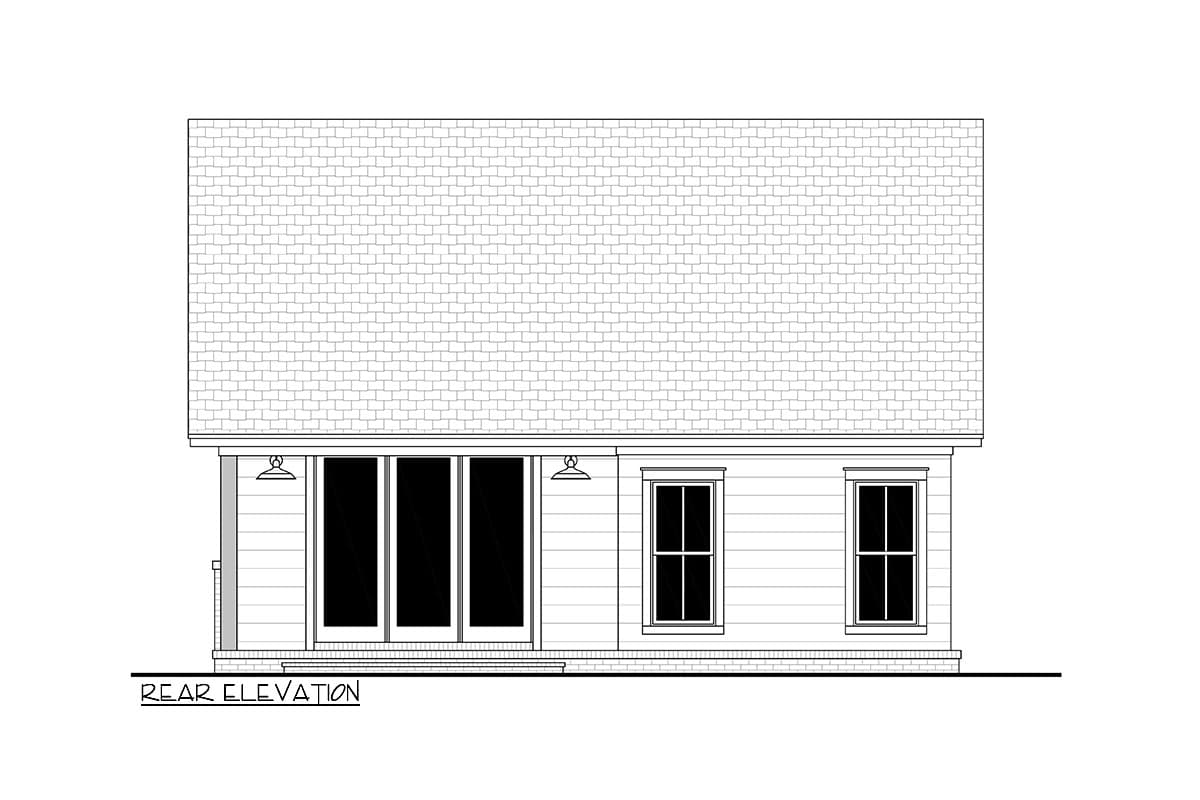

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,000 sq. ft.

1st Floor

1,000 sq. ft.

Porch, Front

13 sq. ft.

Porch, Rear

122 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

40' 0"

Max Ridge Height

22' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
