Plan 62503DJ
2-Bed Traditional House Plan with Formal Dining Room - 1267 Sq Ft
Heated S.F.
1,260
Beds
2
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 62503DJ

Main Level
slide image 0

Plan 62503DJ

1-800-854-7852

1-262-521-4596

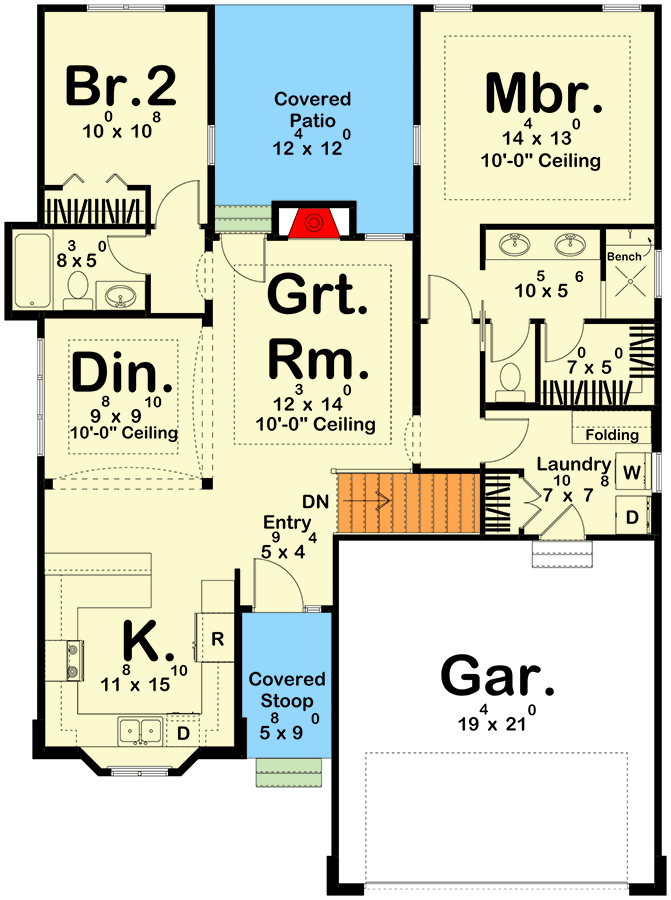

Main Level
floor plan image Main Level
Plan Details
  • This ranch-style home combines classic charm with modern durability, featuring a brick and lap siding exterior and a welcoming front stoop. The spacious covered patio at the back offers an ideal space for year-round outdoor relaxation or entertaining.
  • Inside, the Great Room is the heart of the home, highlighted by a tray ceiling that adds an airy and sophisticated touch. The adjacent semi-enclosed dining room and large open kitchen are designed for both functionality and style, providing ample counter space and modern amenities.
  • The layout includes two bedrooms and two bathrooms, ensuring comfort and privacy. The master bedroom serves as a private retreat, complete with an attached bathroom featuring a large shower and a walk-in closet.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

425 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

425 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
