Plan 360123DK

2-Bedroom Craftsman ADU House Plan with Six-Car Garage

Heated S.F.
1,494
Beds
2
Baths
2
Stories
2
Cars
6

Floor Plan

Plan 360123DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 360123DK

M-F 9am-5pm EST |

1-203-761-8500

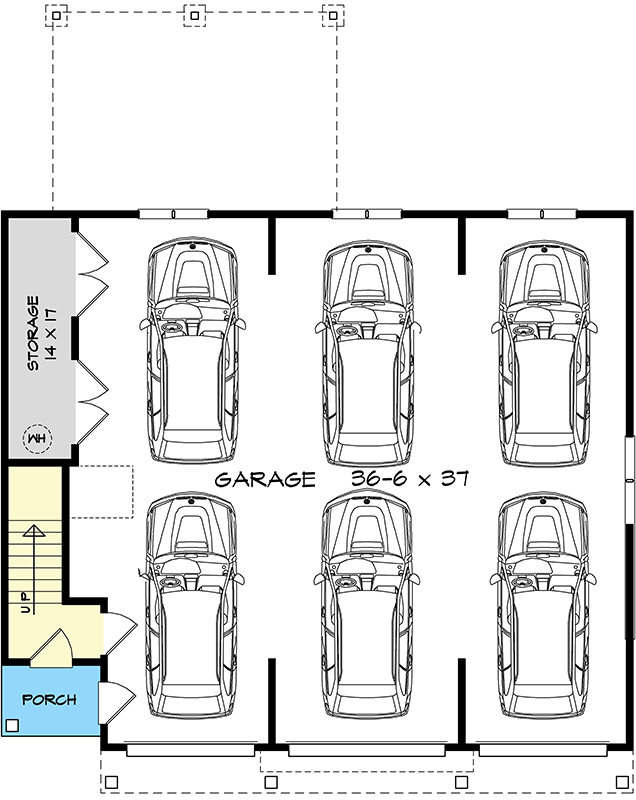

Main Level

Plan 360123DK: 2-Bedroom Craftsman ADU House Plan with Six-Car Garage - Floor Plan - Main Level - Carriage, Craftsman, Traditional

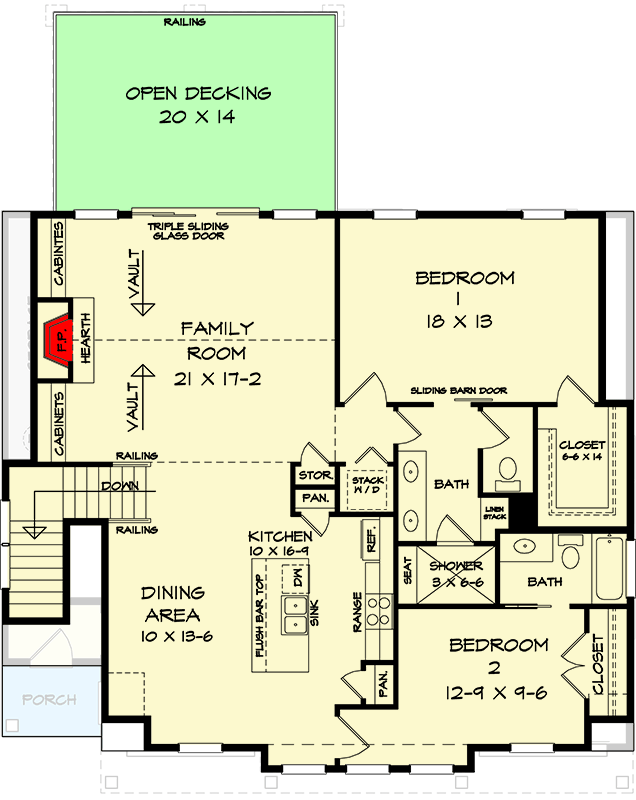

2nd Floor

Plan 360123DK: 2-Bedroom Craftsman ADU House Plan with Six-Car Garage - Floor Plan - 2nd Floor - Carriage, Craftsman, Traditional

Plan Details

  • This charming 1,494 sq. ft. Craftsman-style Accessory Dwelling Unit (ADU) House Plan offers 2 bedrooms, 2 full bathrooms, and an impressive 1,649 sq. ft. six-car detached garage.
  • A welcoming front porch leads to the ground-level entry, revealing the expansive six-car garage and a dedicated storage area, with a staircase ascending to the bright living quarters above.
  • Ascending to the second floor, you are greeted by an open-concept living space featuring a spacious dining area flowing seamlessly into a well-appointed kitchen with a convenient flush bar top, all overlooking a generous family room with a cozy hearth. Triple sliding glass doors invite natural light and extend the living space outdoors.
  • The second floor thoughtfully separates two comfortable bedrooms, each with its own full bathroom, ensuring privacy. The larger primary bedroom features a substantial walk-in closet, while a stacked washer/dryer unit is discreetly placed for convenience.
  • The substantial 1,649 sq. ft. detached garage on the first floor offers vast possibilities beyond parking six vehicles, providing ample space for a workshop, hobby area, or extensive storage for recreational gear.
  • Step through the triple sliding glass doors from the family room onto the generous 20' x 14' open decking, perfect for enjoying morning coffee or evening al fresco dining amidst the surrounding landscape.

What's Included

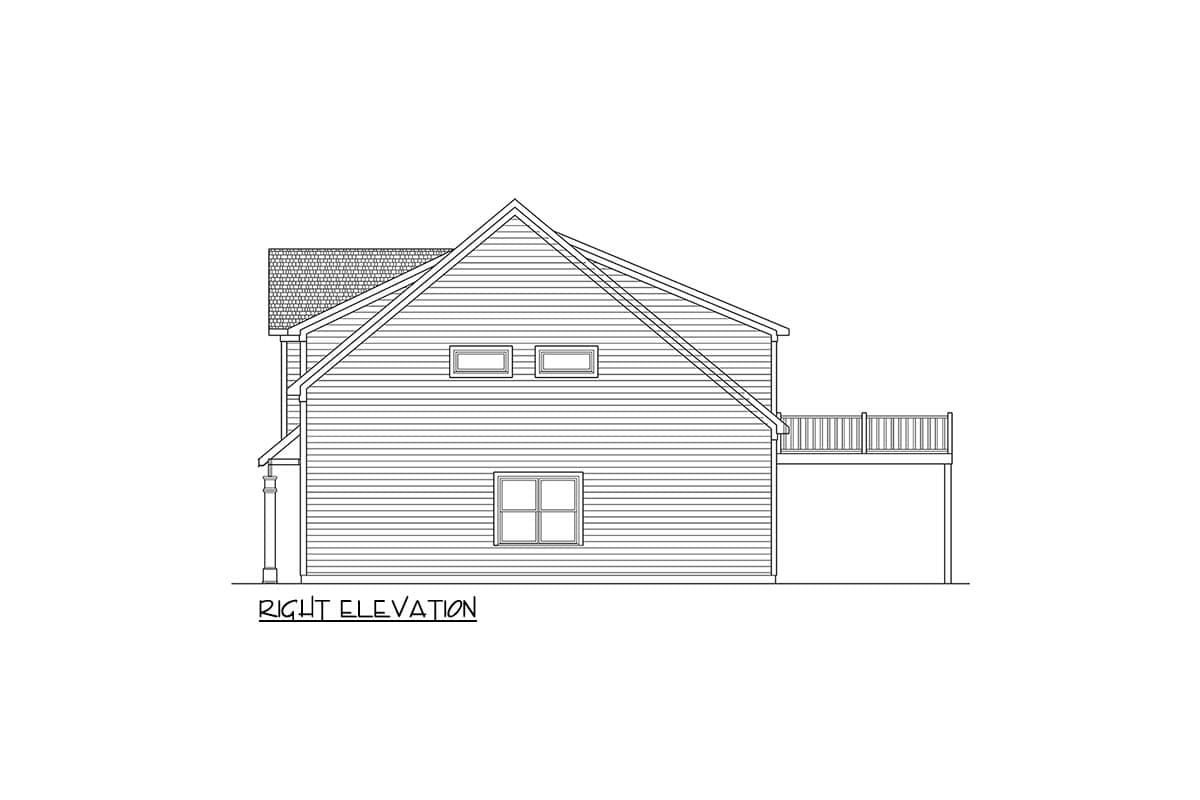

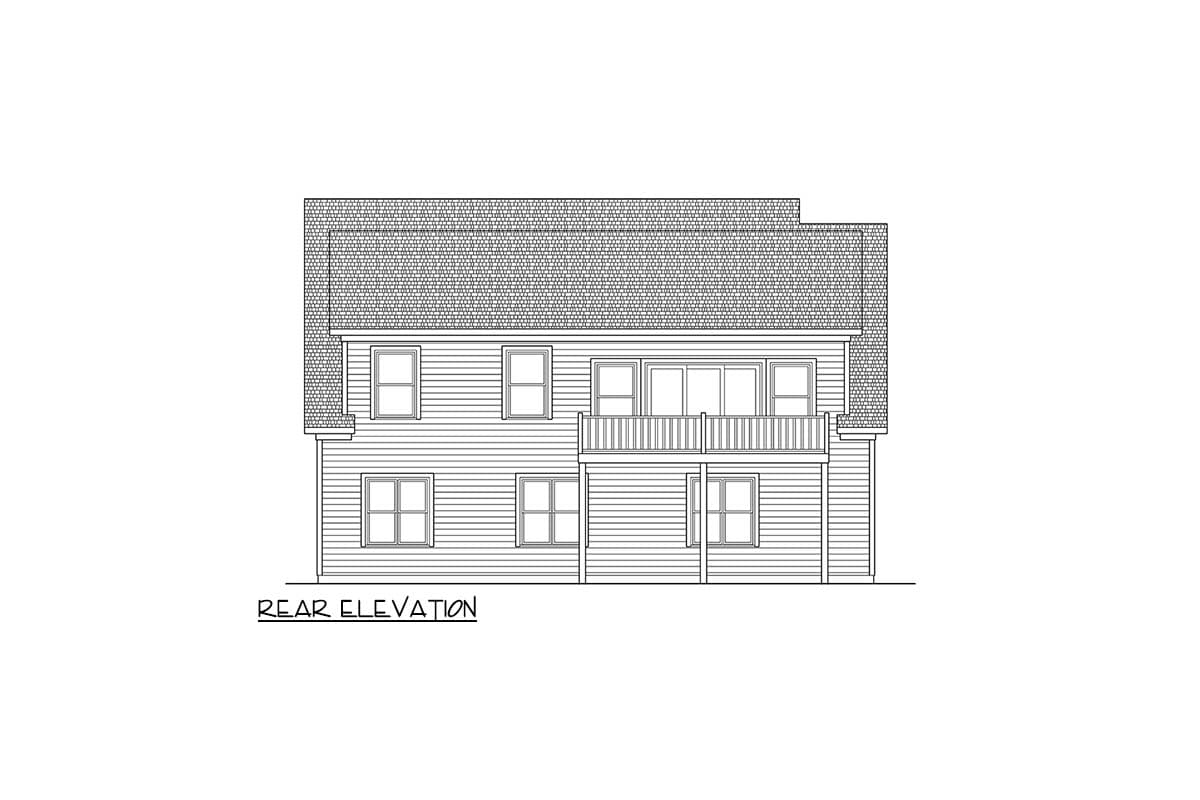

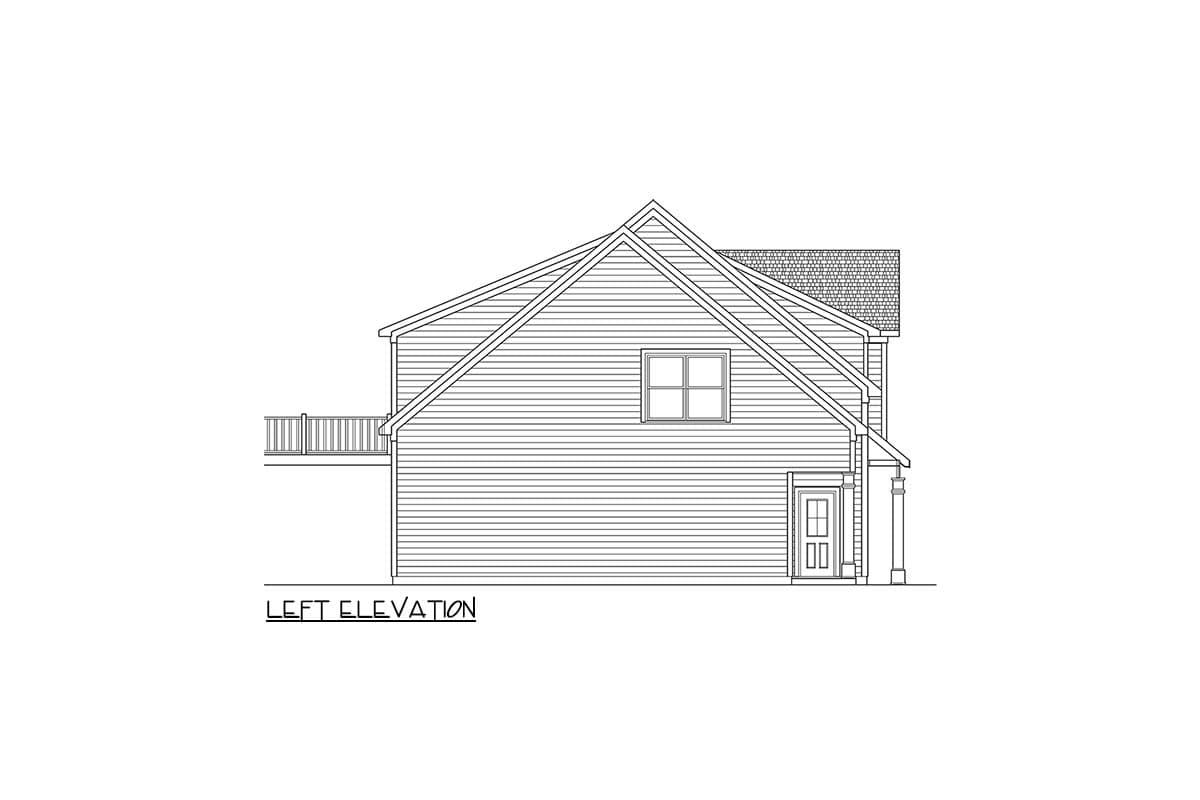

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,494 sq. ft.

2nd Floor

1,494 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 6"

Depth

38' 0"

Max Ridge Height

30' 4"

Garage

Type

Detached

Area

1649 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,494 sq. ft.

2nd Floor

1,494 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 6"

Depth

38' 0"

Max Ridge Height

30' 4"

Garage

Type

Detached

Area

1649 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
