Plan 40557DB
2-Bedroom House Plan Under 1100 Square Feet
Heated S.F.
1,091
Beds
2
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 40557DB

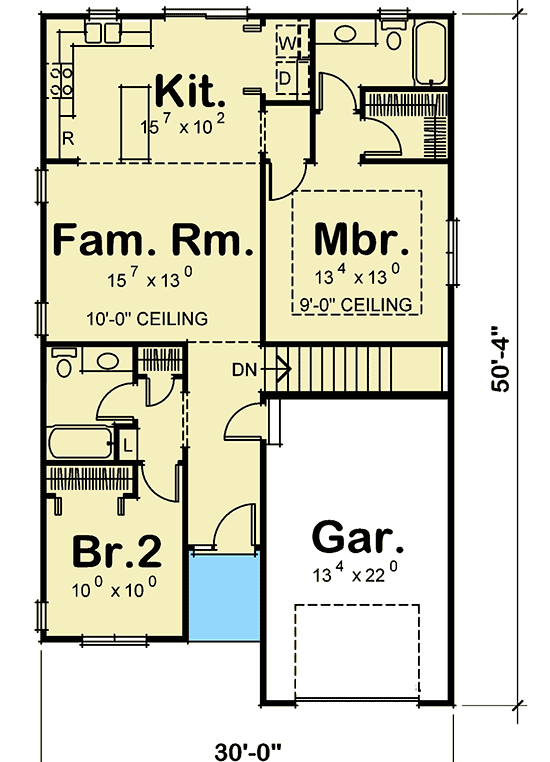

Main Level
slide image 0

Plan 40557DB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 2-bedroom house plan gives you 1,091 square feet of heated living and with its smaller size, helps control your costs on materials.
  • The unified kitchen, eating space and family room enhance family times together, while the split bedroom layout gives you privacy.
  • The entertaining area and Bed 2 get sunlight from two directions.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • General Notes

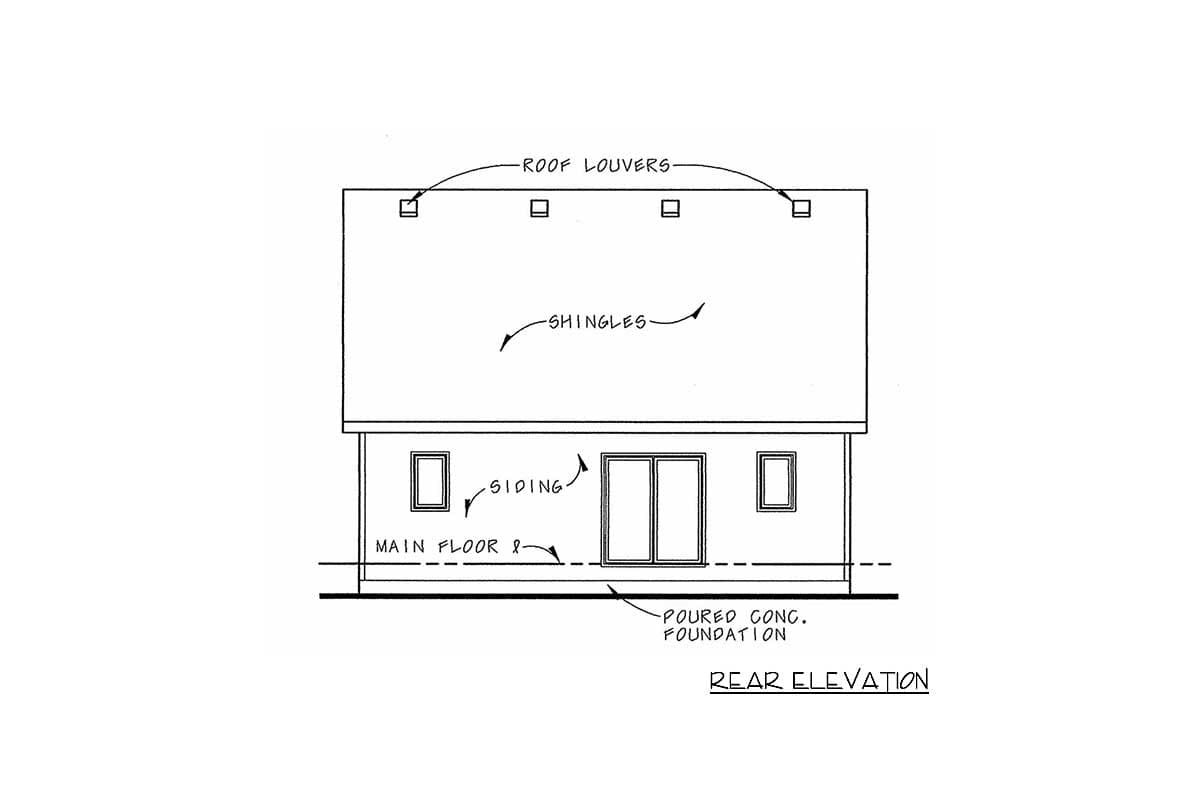

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,091 sq. ft.

1st Floor

1,091 sq. ft.

Loft

110 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

50' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

309 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,091 sq. ft.

1st Floor

1,091 sq. ft.

Loft

110 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

50' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

309 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor
