2-Bedroom Modern Ranch Home Plan with Open Deck
Heated S.F.
1,200
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 80977PM

Main Level
slide image 0

Plan 80977PM

1-800-854-7852

1-262-521-4596

Main Level

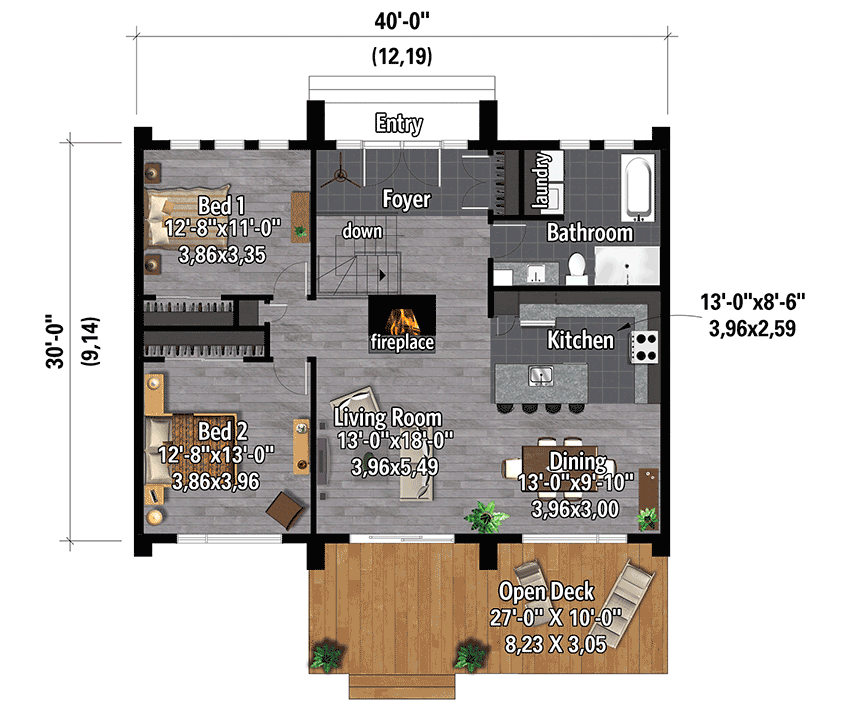

floor plan image Main Level
Plan Details
  • Accentuated exterior lines and a ribbed metal roof add to the modern vibe of this 1,200 square foot, ranch home plan.
  • Past the double doors, a coat closet greets you in the foyer. The neighboring 4-fixture bath includes a separate tub and shower and a laundry closet.
  • Enjoy the centrally-located fireplace throughout the open living spaces, or slip through the sliding doors onto an open deck for sunshine and fresh air.
  • Easily maneuver around this kitchen, which features an island with seating for four and L-shaped cabinets and counters.
  • The bedrooms are similar in size; one offers forward-facing views, and the other rearward views.
What's Included
Please note this plan is designed to the National Building Code of Canada.

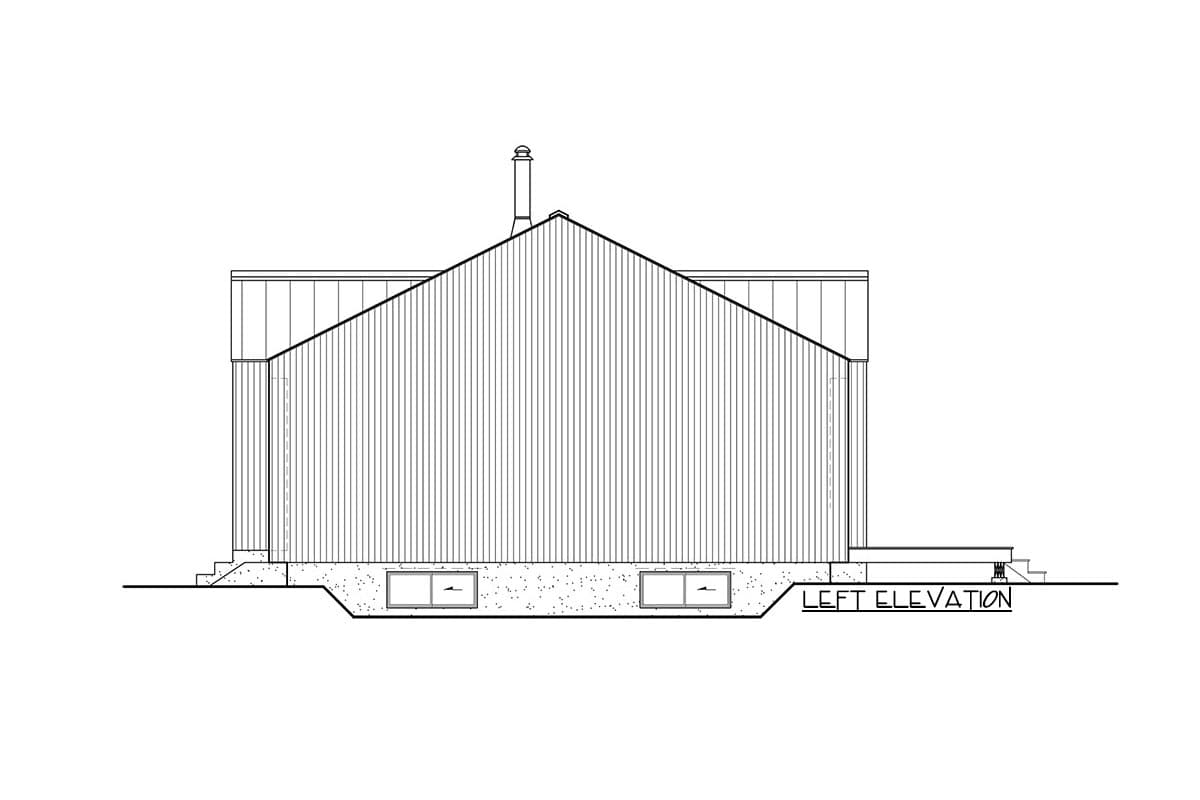

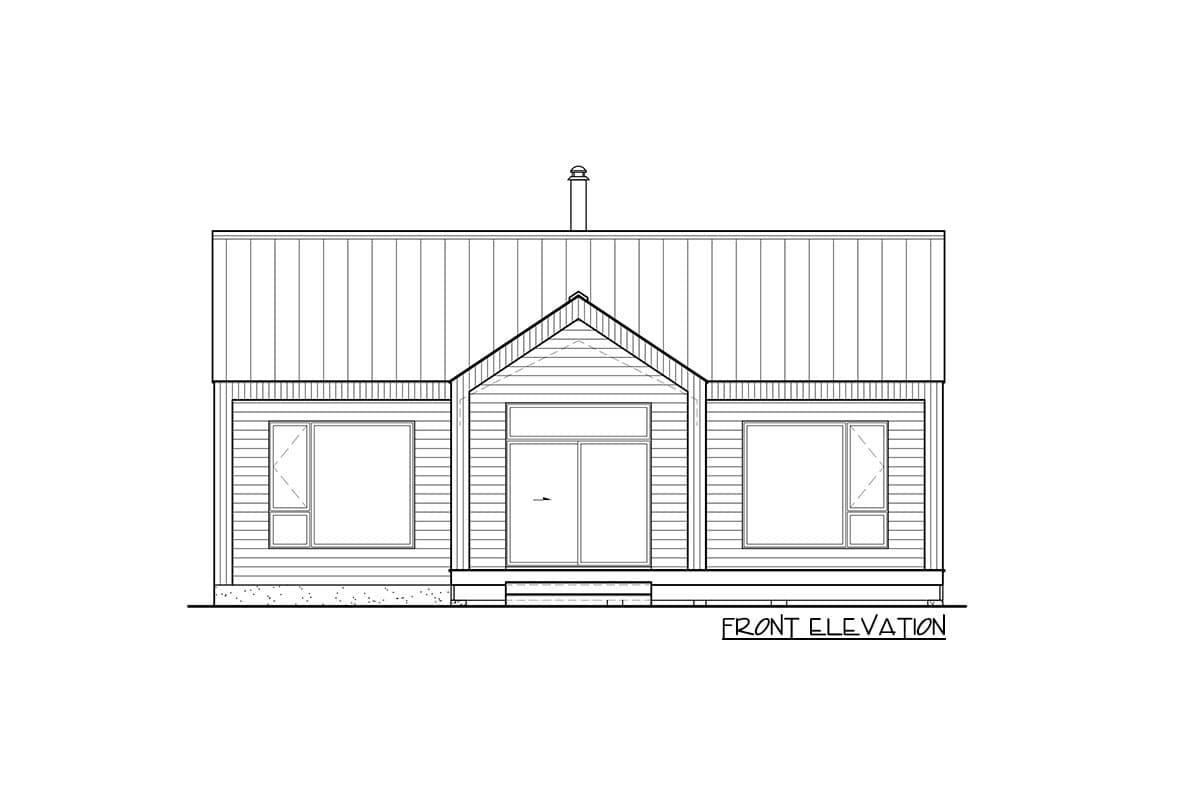

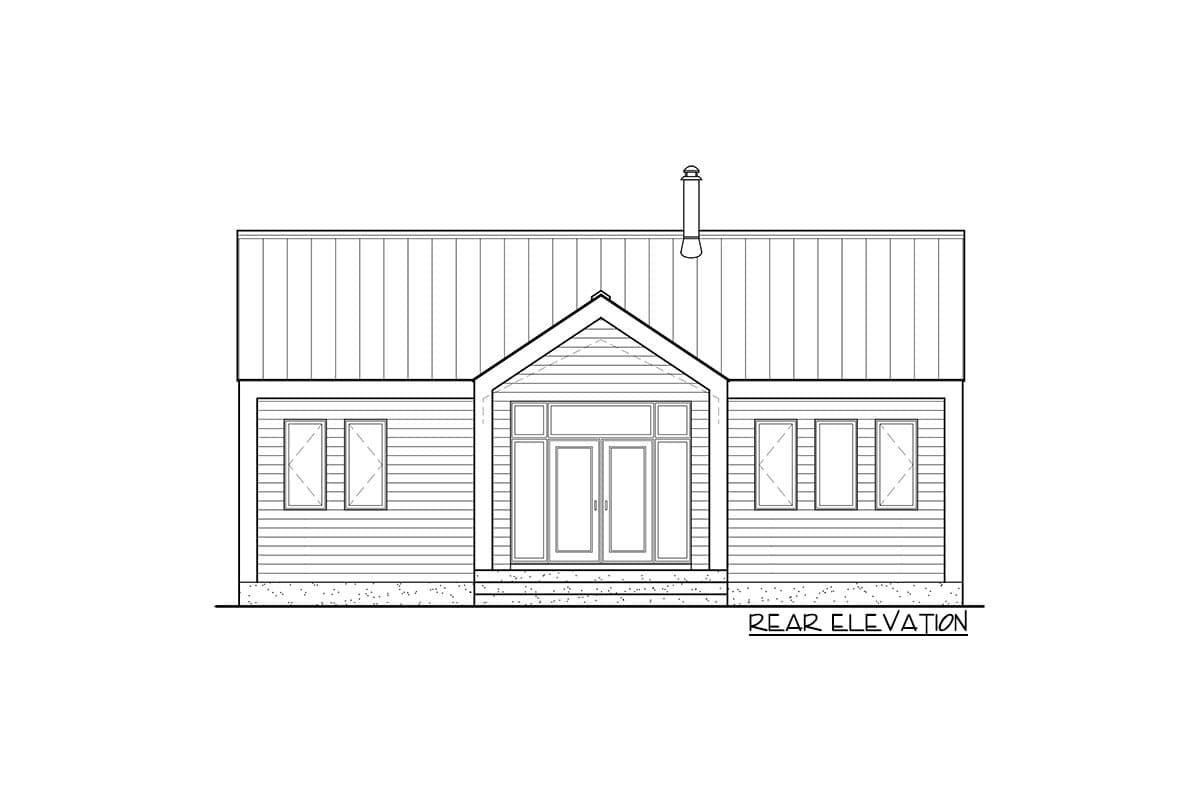

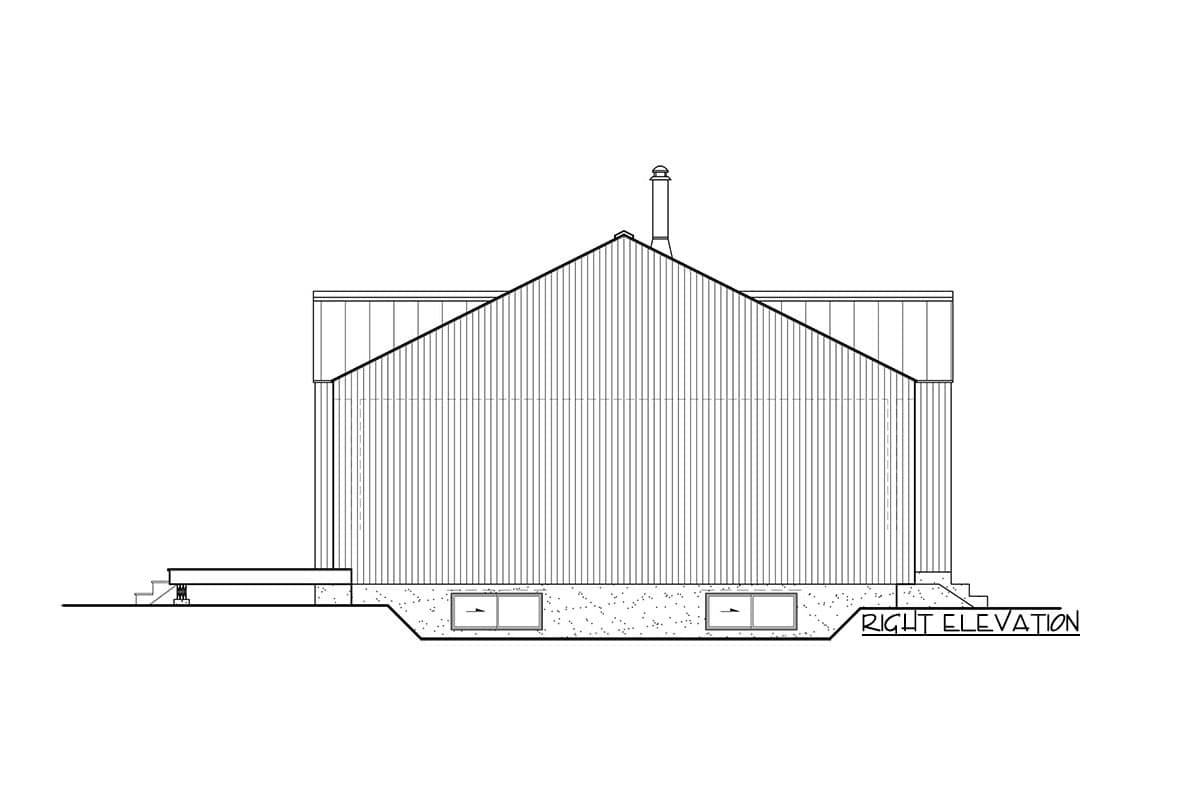

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,200 sq. ft.

1st Floor

1,200 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

30' 0"

Max Ridge Height

22' 3"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Ranch

Scandinavian

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,200 sq. ft.

1st Floor

1,200 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

30' 0"

Max Ridge Height

22' 3"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Ranch

Scandinavian

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
