Plan 270099AF
2-Bedroom Transitional House Plan with Vaulted Open Living Space - 1077 Sq Ft
Heated S.F.
1,077
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 270099AF

Main Level
slide image 0

Plan 270099AF

1-800-854-7852

1-262-521-4596

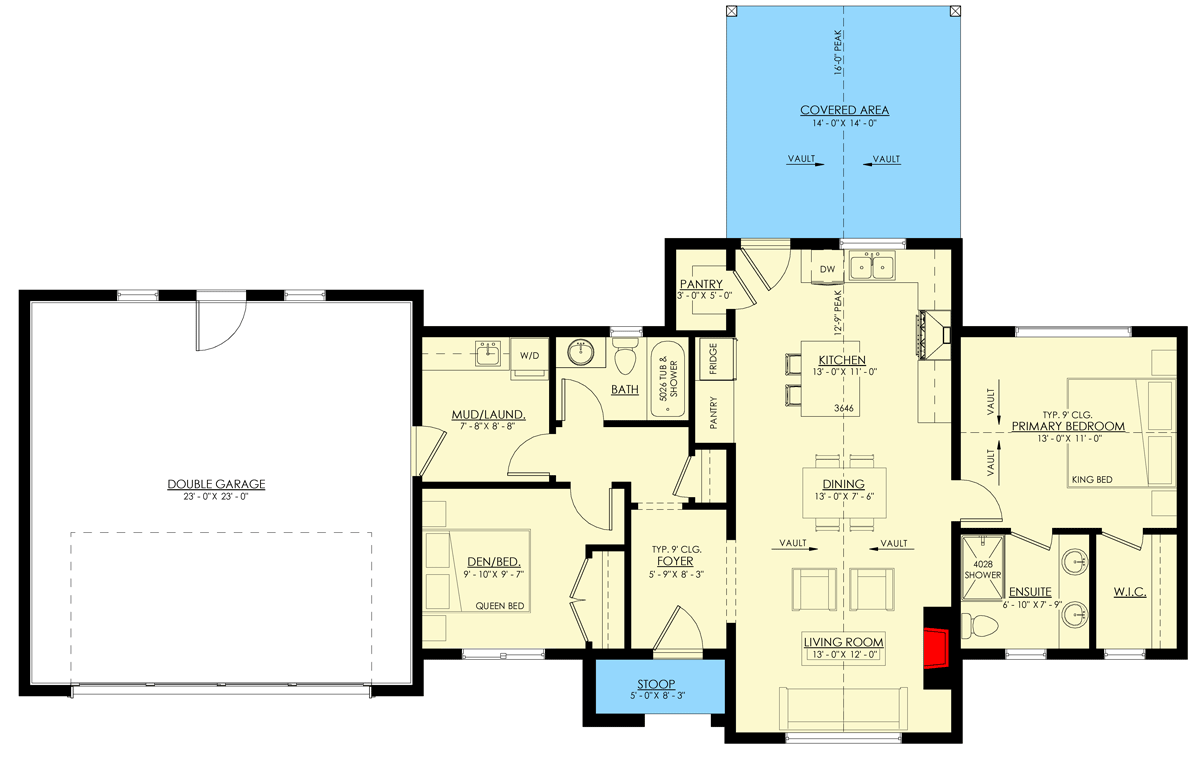

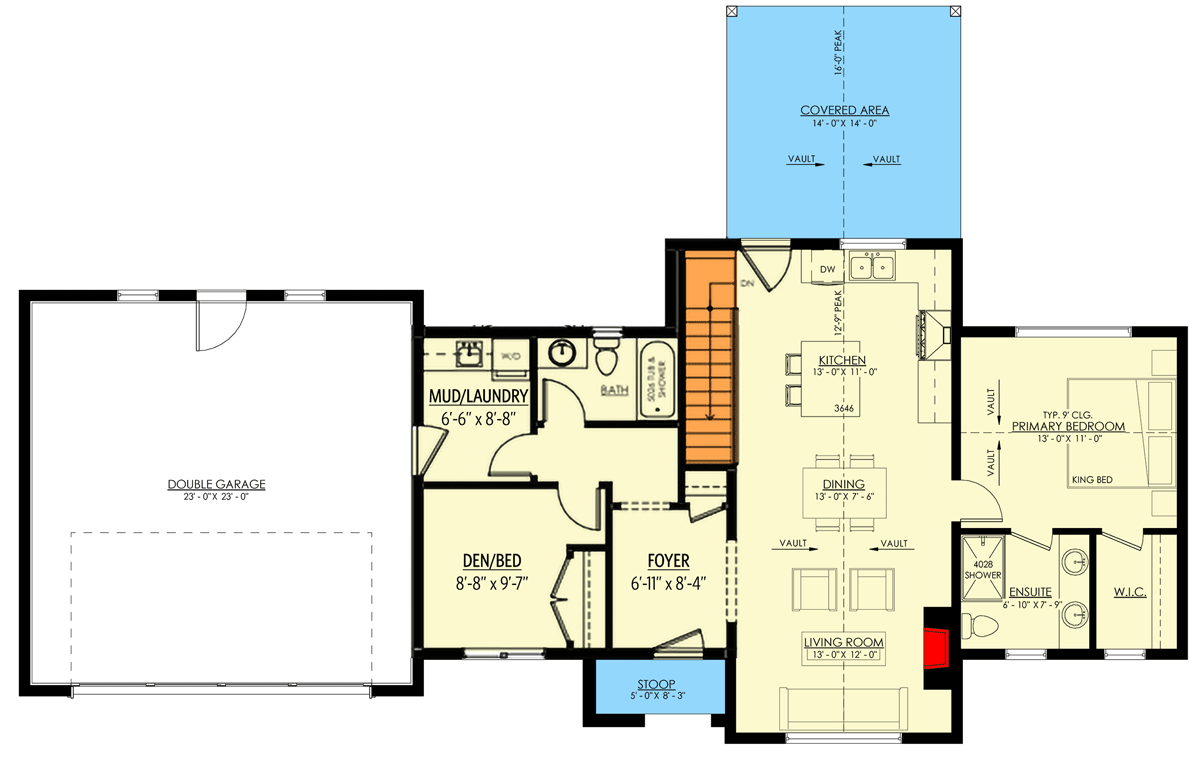

Main Level
floor plan image Main Level
Plan Details
  • This 2 bed, 2 bath transitional house plan gives you 1,077 square feet of heated living and 2 car front load garage (567 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site.  Learn more about modifications.
  • Related Plan: Remove the garage with plan 270061AF (967 sq. ft).
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

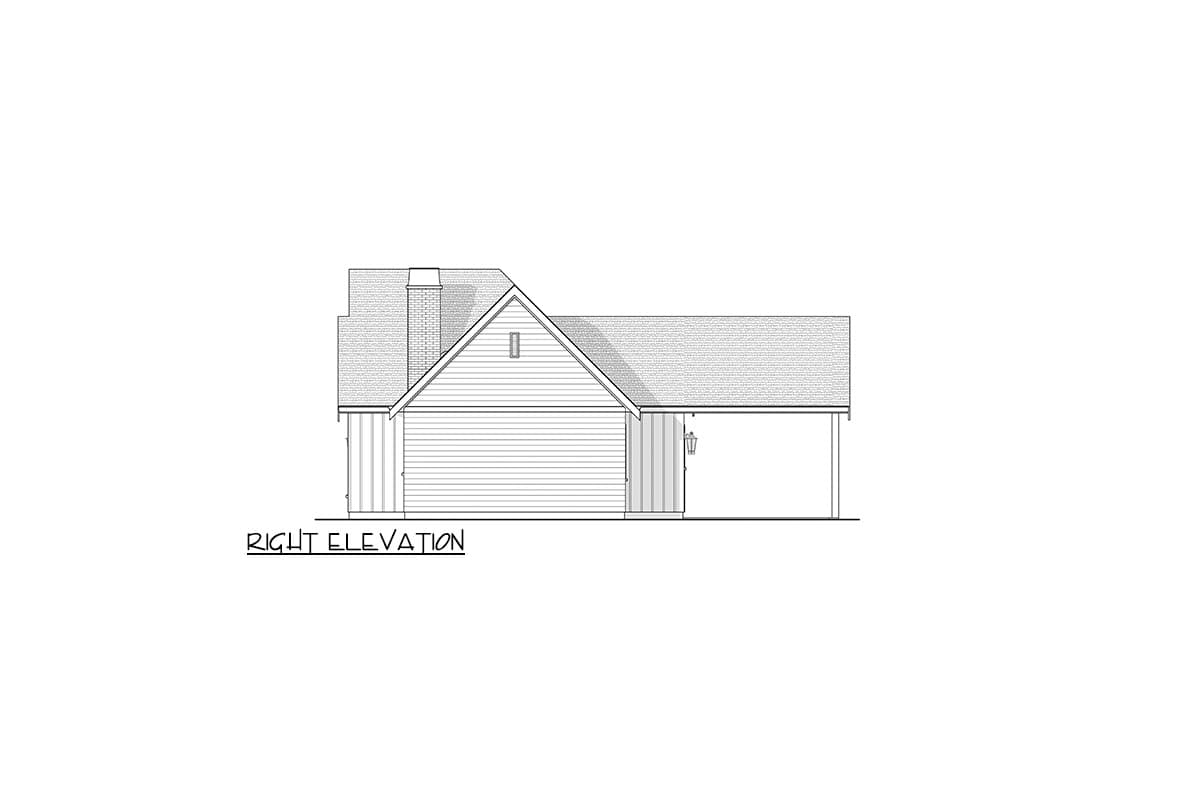

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,077 sq. ft.

1st Floor

1,077 sq. ft.

Porch, Front

34 sq. ft.

Deck

196 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 9"

Depth

44' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

567 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

9' 0''

Kitchen

Vaulted

9' 0''

Dining Room

Vaulted

9' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Ranch

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,077 sq. ft.

1st Floor

1,077 sq. ft.

Porch, Front

34 sq. ft.

Deck

196 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 9"

Depth

44' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

567 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

9' 0''

Kitchen

Vaulted

9' 0''

Dining Room

Vaulted

9' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Ranch

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans
