Plan 680360VR

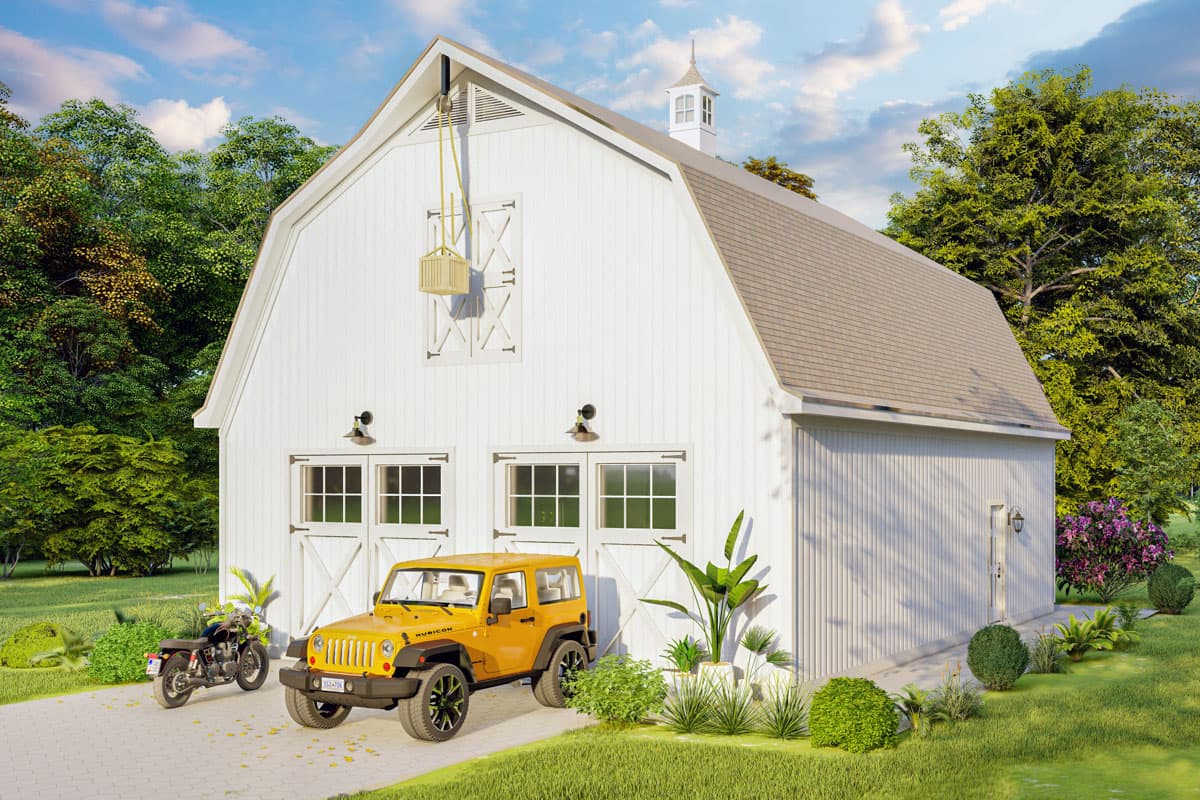

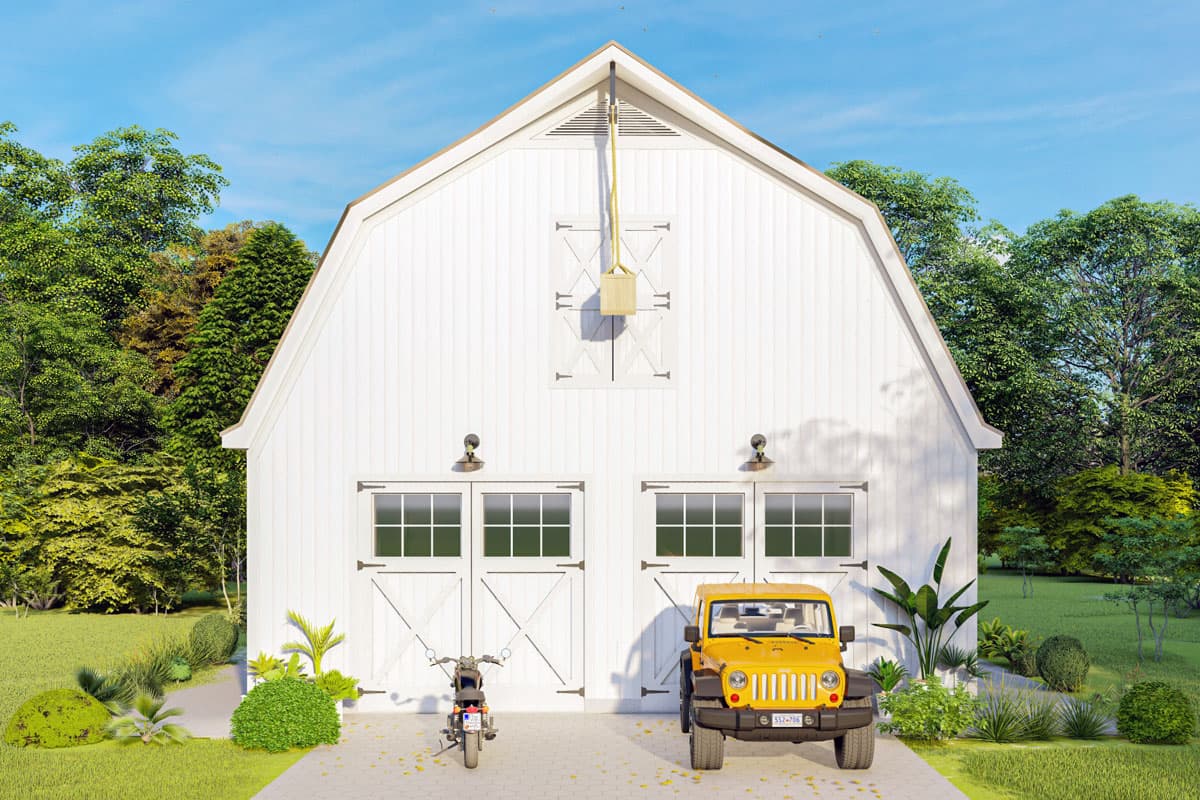

2-Car Barn-Style Garage with Loft and Workshop - 1243 Sq Ft
Heated S.F.
1,243
Beds
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 680360VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680360VR

1-800-854-7852

1-262-521-4596

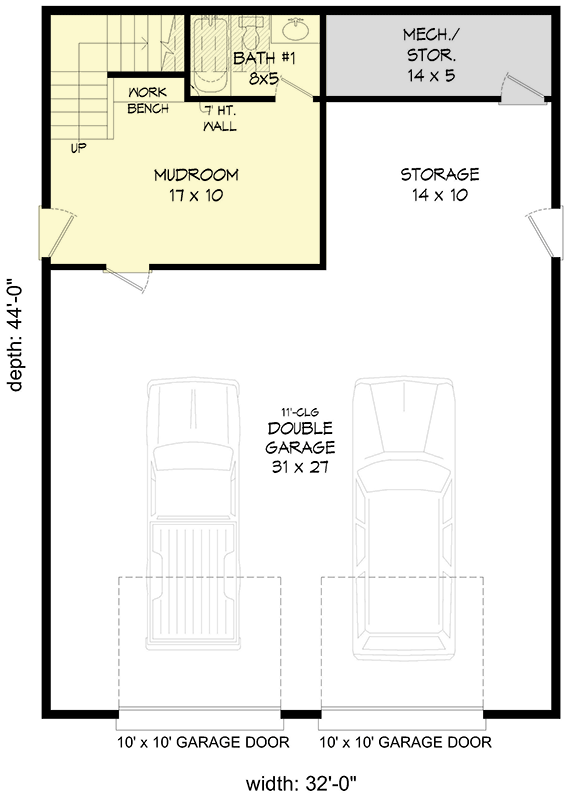

Main Level
floor plan image Main Level

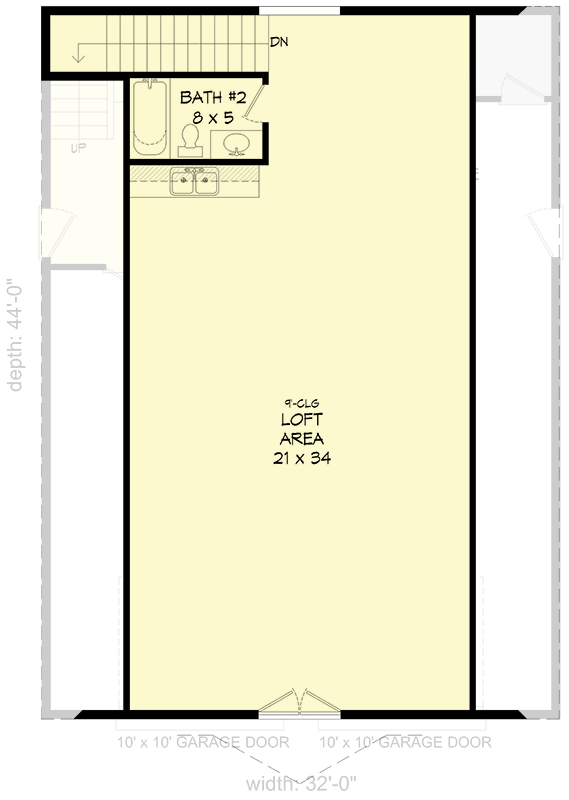

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This barn-style garage plan gives you a loft and 2 bath plan with 1,243 square feet of heated living and 2-car front garage (1,122 sq. ft.).
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

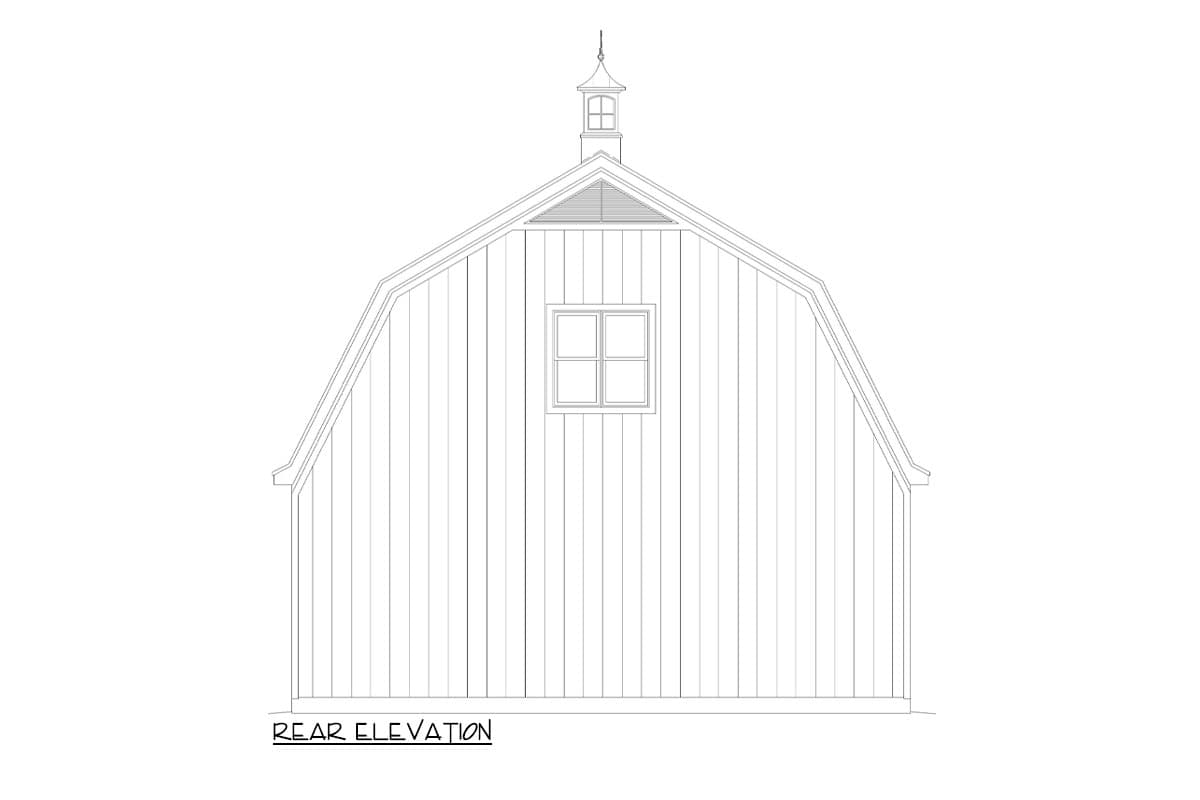

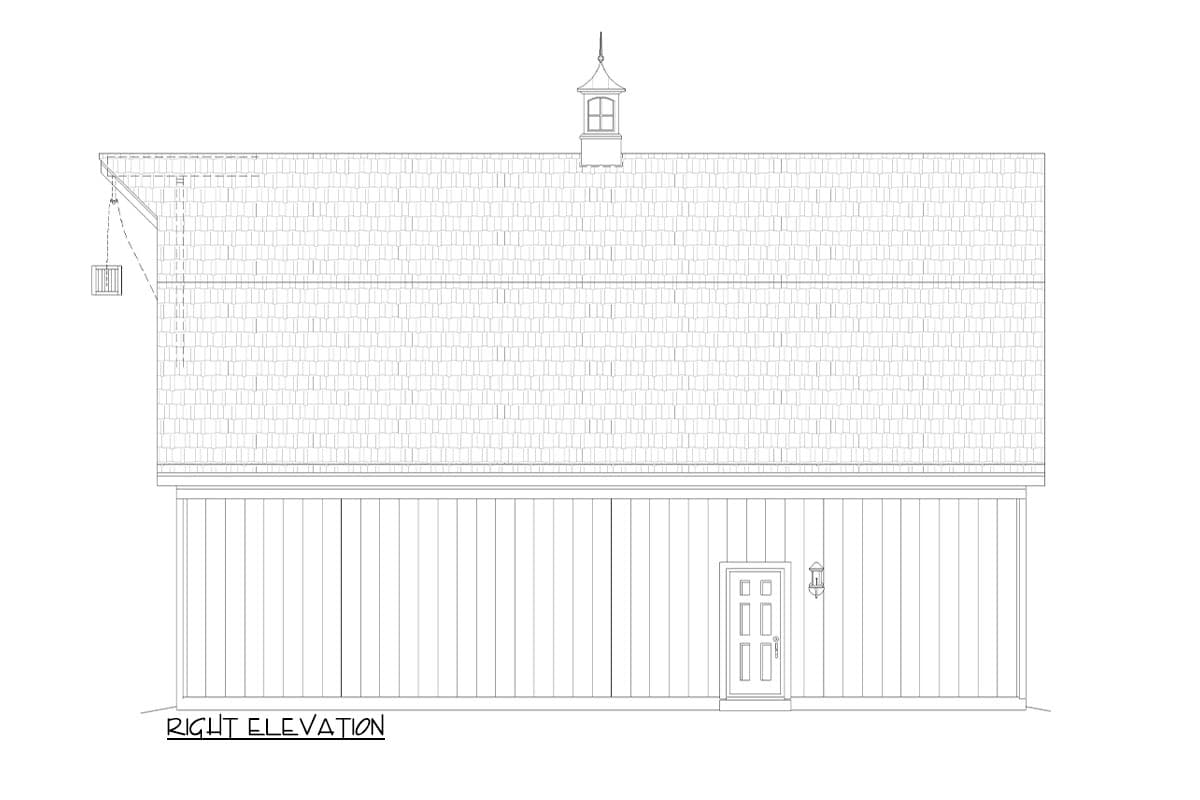

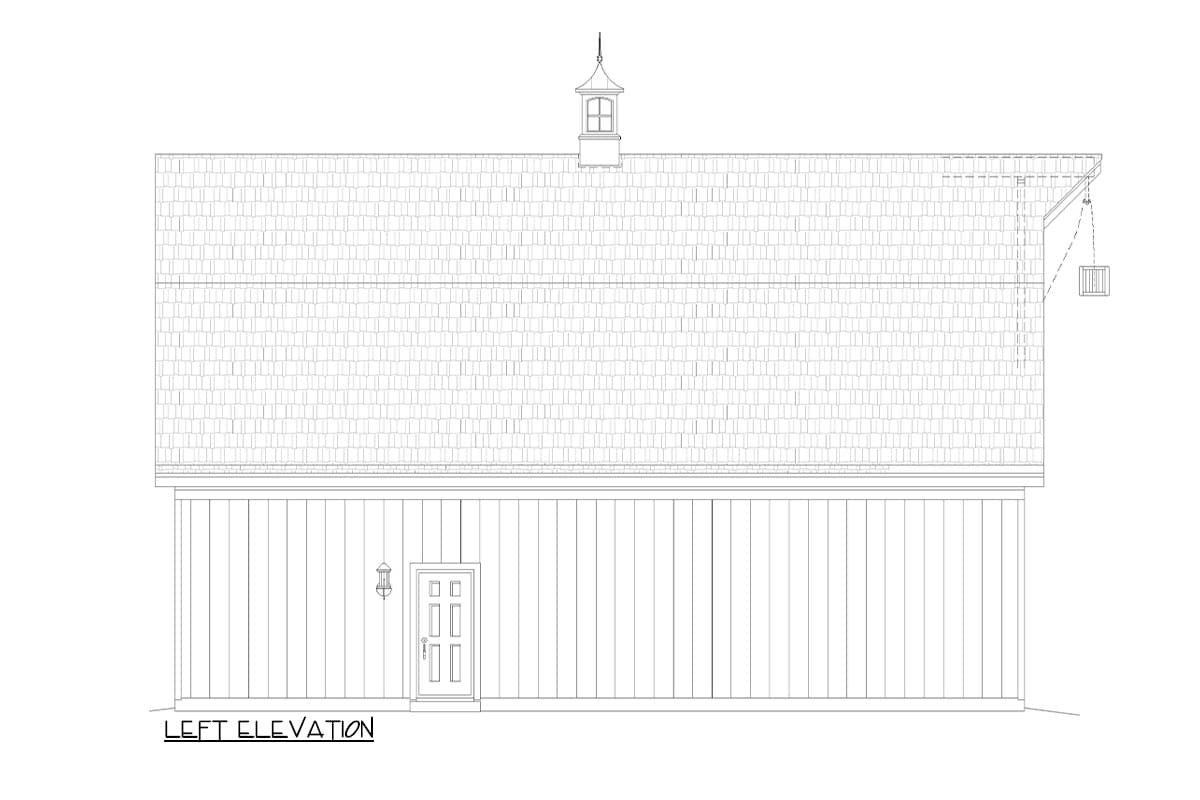

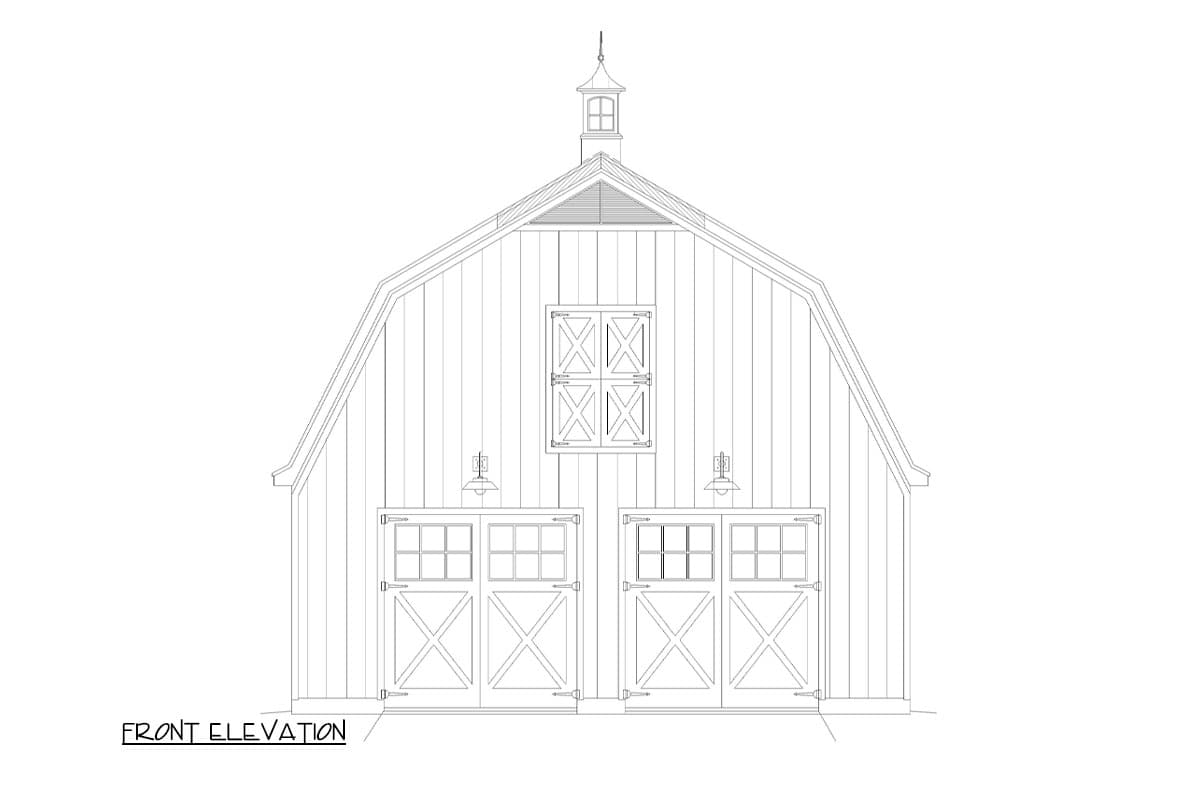

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,243 sq. ft.

1st Floor

286 sq. ft.

2nd Floor

957 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

44' 0"

Max Ridge Height

28' 3"

Garage

Type

Detached

Area

1122 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 24

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Loft

Mudroom

Workshop

Square Footage Breakdown

Total Heated Area

1,243 sq. ft.

1st Floor

286 sq. ft.

2nd Floor

957 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

44' 0"

Max Ridge Height

28' 3"

Garage

Type

Detached

Area

1122 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 24

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Loft

Mudroom

Workshop
