Plan 506008BRY
2-Car Contemporary Detached Garage with RV Bay - 1455 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
2- 4
Floor Plan

Plan 506008BRY

Main Level
slide image 0

Plan 506008BRY

1-800-854-7852

1-262-521-4596

Main Level

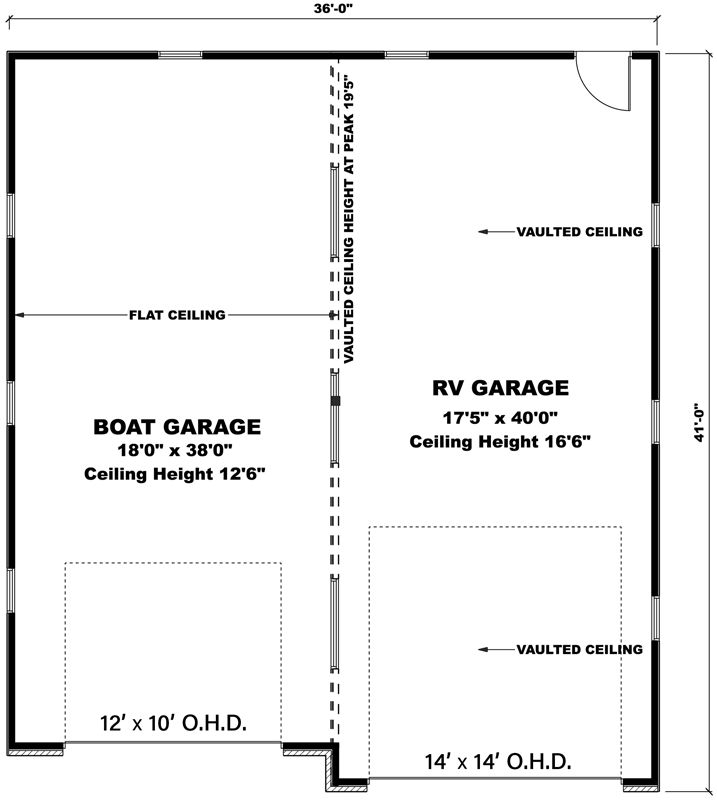

floor plan image Main Level
Plan Details
  • This contemporary detached garage plan features an oversized 2-bay design. One bay includes an RV-friendly 14' by 14' overhead door, while the second bay has a 12' by 12' door. IN between both bays the ceiling vaults to a 19'5" ceiling, providing 1,455 square feet of unfinished space inside.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

41' 0"

Max Ridge Height

20' 4"

Garage

Type

Detached, RV Garage

Area

1455 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Front

Ceiling Heights

Boat Bay

12' 6''

RV Bay

16' 6''

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary
