Plan 680383VR
2 Car Detached Garage with 2 Bedrooms Above - 623 Sq Ft
Heated S.F.
623
Beds
3 - 4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 680383VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680383VR

1-800-854-7852

1-262-521-4596

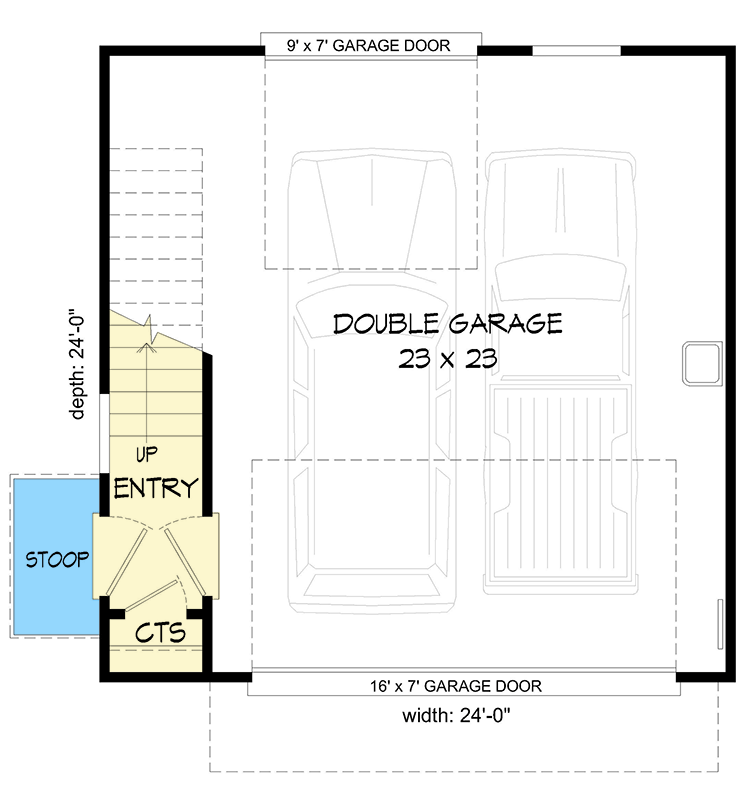

Main Level
floor plan image Main Level

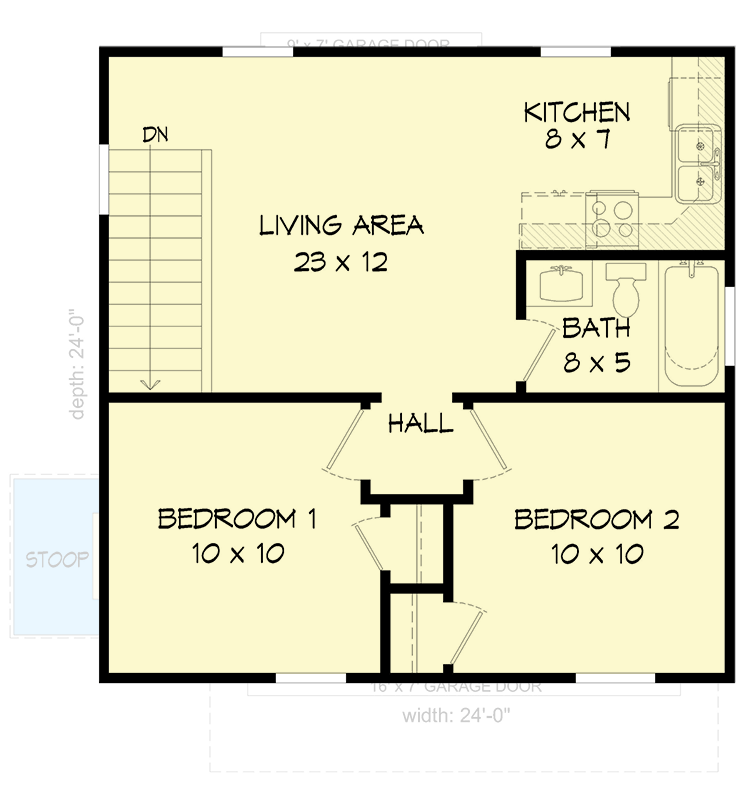

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-car detached garage plan gives you 529 square feet of garage and storage space on the ground level and 576 square feet of heated space above with two bedrooms, a bathroom and an open living area with L-shaped kitchen..
  • The front has a 16' by 7' overhead door and in back, a 9' by 7' overhead door gives you drive-through ability on the left side.
  • Use the upstairs as a rental apartment, a guest house or a home office.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Remove the kitchen with garage plan 68698VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

623 sq. ft.

1st Floor

47 sq. ft.

2nd Floor

576 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 10"

Depth

86' 4"

Max Ridge Height

22' 8"

Garage

Type

Carport

Area

529 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Mountain

Rustic

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Flex Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wrap Around Porch

Plan Collections
