Plan 135123GRA
2-Car Garage with a Loft and Powder Bath
Heated S.F.
310
Beds
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 135123GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135123GRA

1-800-854-7852

1-262-521-4596

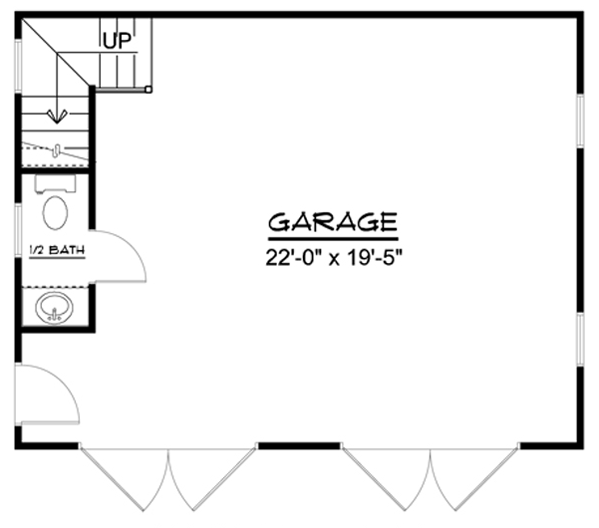

Main Level
floor plan image Main Level

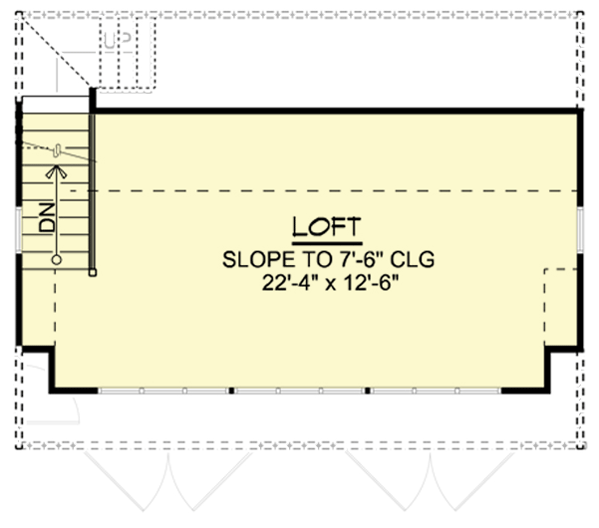

2nd Floor
floor plan image 2nd Floor
Plan Details

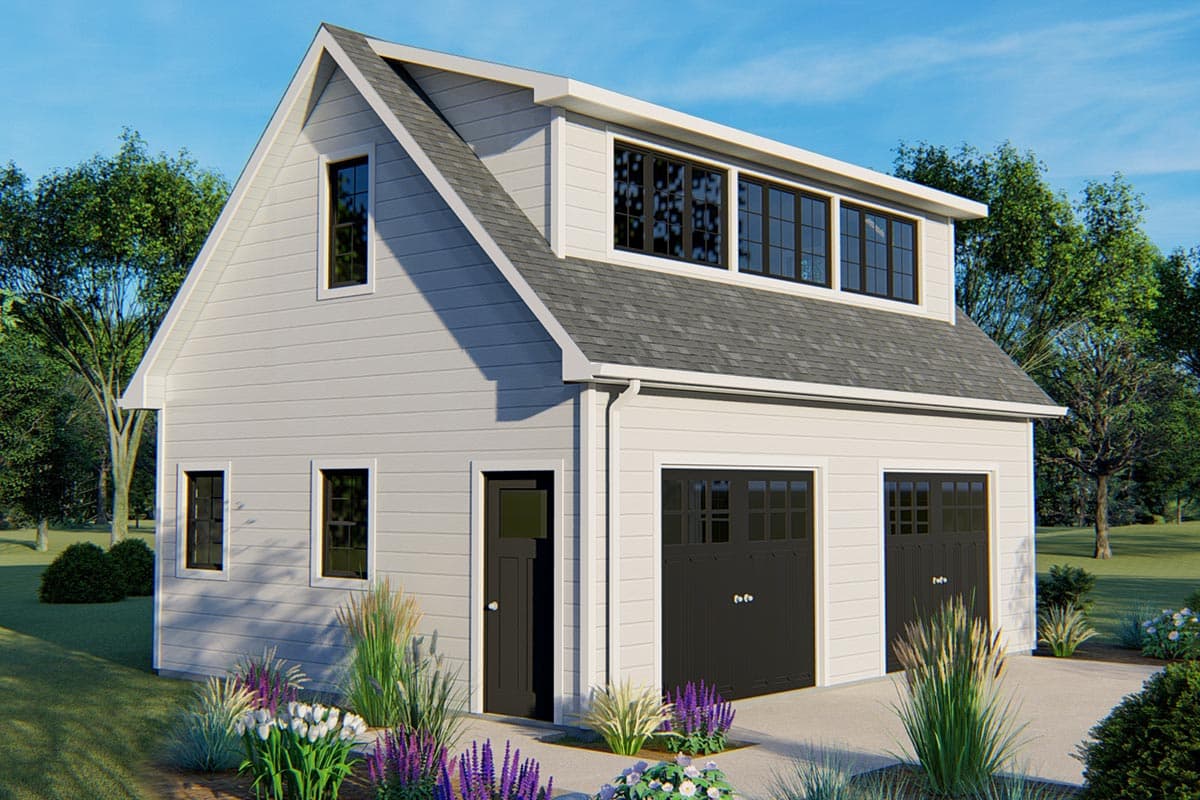

  • The simple and fresh exterior of this 2-car garage makes it the perfect addition to any home or neighborhood.
  • The garage doors mimic french doors on this 22' by 19'5" garage, complete with a half bath on the main level.
  • Windows along the side elevations allow natural light to permeate the interior.
  • Upstairs, a well-lit loft provides flexible space for the homeowner.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

310 sq. ft.

2nd Floor

310 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

26' 0"

Depth

20' 0"

Max Ridge Height

20' 8"

Garage

Type

Detached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

7' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Special Features

Loft
