Plan 72766DA
2 Car or 4 Car Tandem Garage Plan with Workshop - 1257 Sq Ft Garage and 753 Sq Ft Shop
Heated S.F.
753
Beds
1
Baths
1
Stories
1
Cars
2- 4
Floor Plan

Plan 72766DA

Main Level
slide image 0

Plan 72766DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This shingle-style garage design can house 2 cars or 4 if stacked two deep.
  • Each garage door is 12' wide and 10' tall.
  • On the right side of the garage is a generous workshop and craft room.
  • Off the hall to the craft room is a full bathroom.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

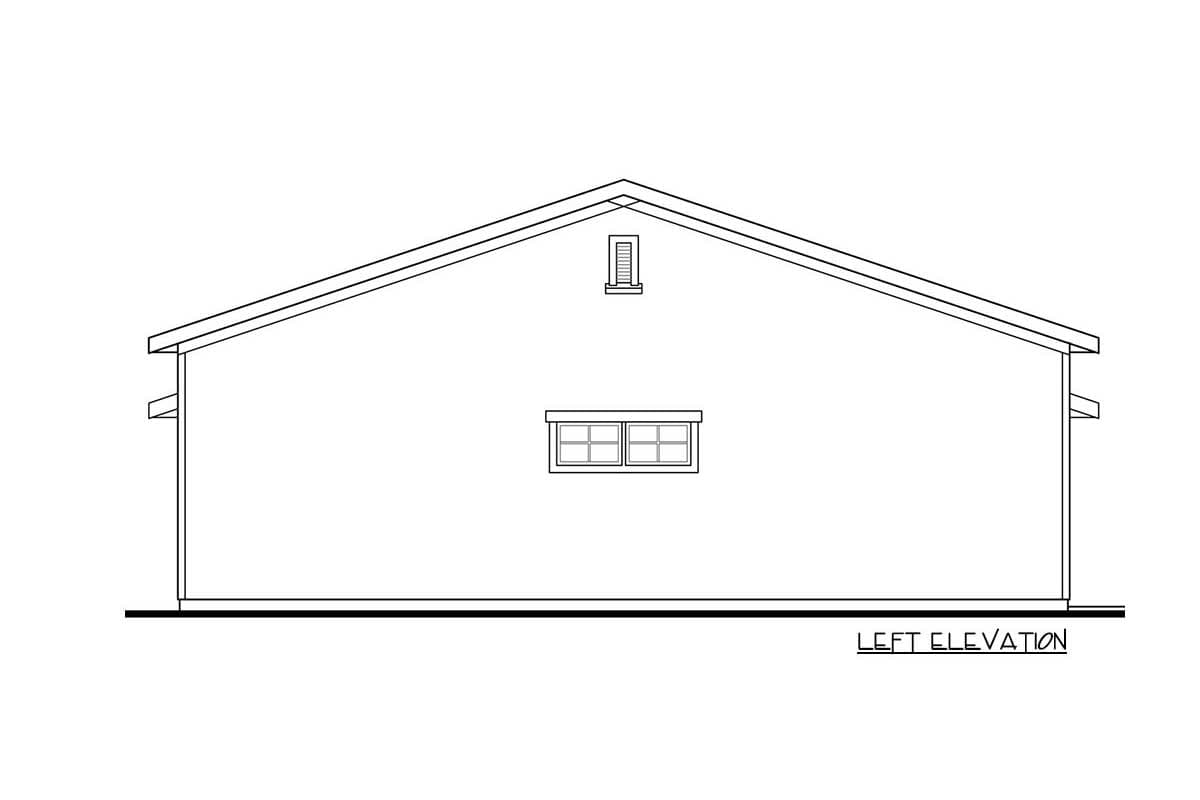

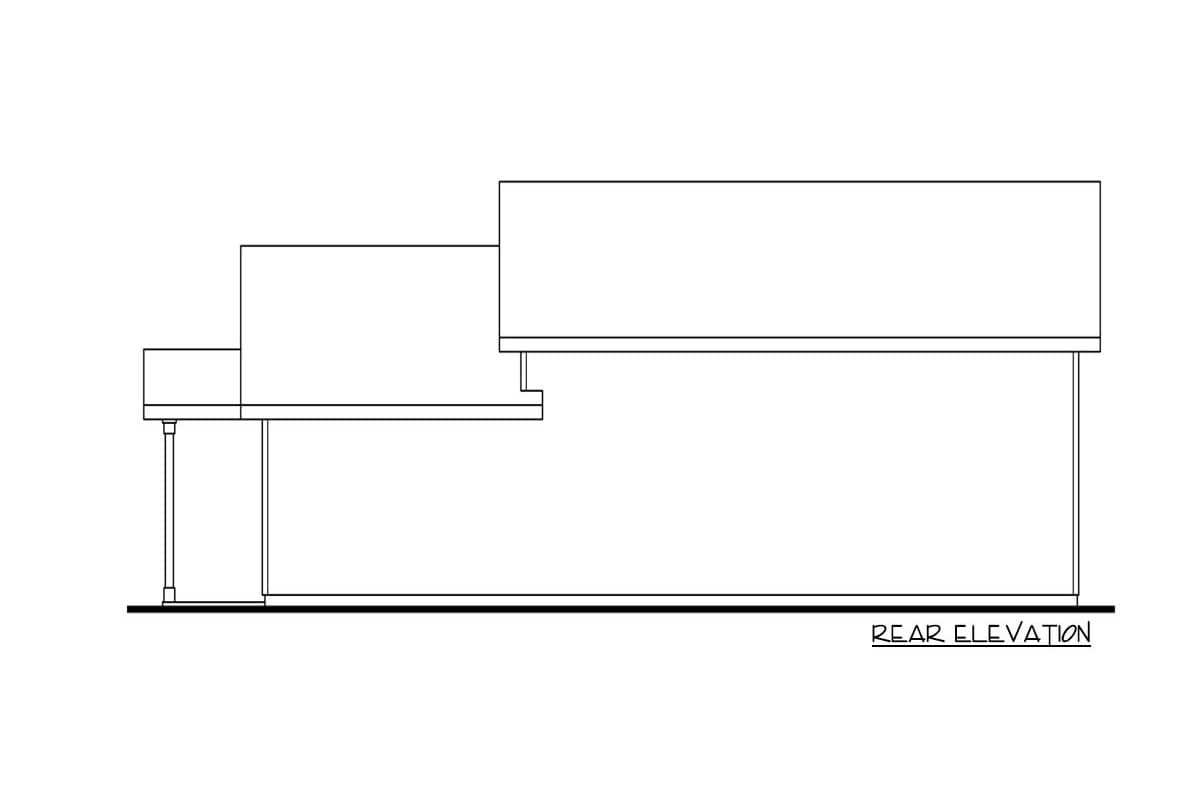

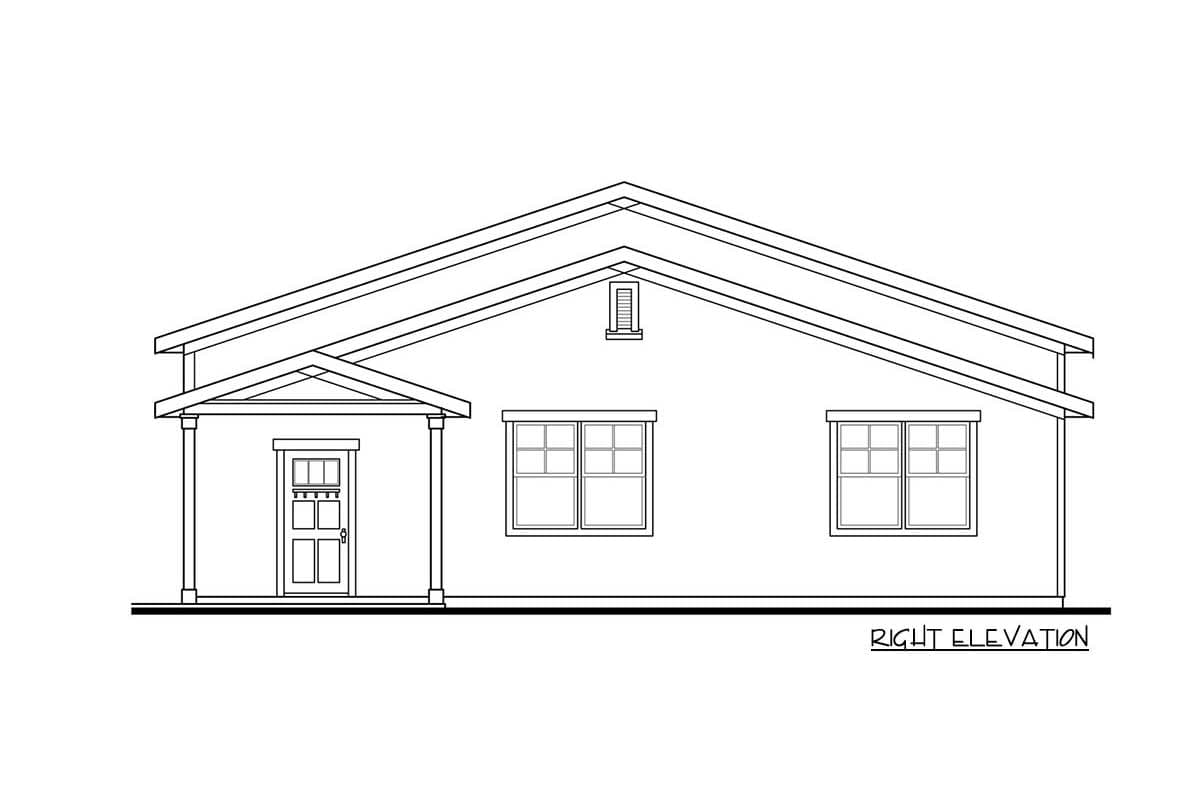

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

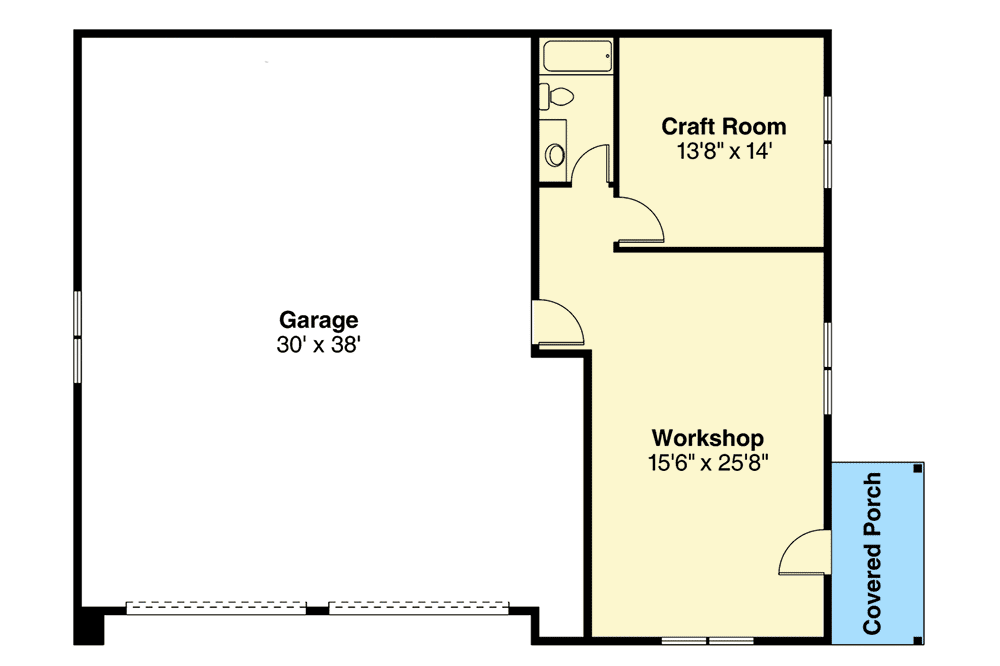

  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

753 sq. ft.

1st Floor

753 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 6"

Depth

41' 0"

Max Ridge Height

20' 0"

Garage

Type

Detached

Area

1257 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Architectural Style

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

753 sq. ft.

1st Floor

753 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 6"

Depth

41' 0"

Max Ridge Height

20' 0"

Garage

Type

Detached

Area

1257 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Architectural Style

Traditional

Special Features

Workshop
