Plan 373006TMB

Exclusive

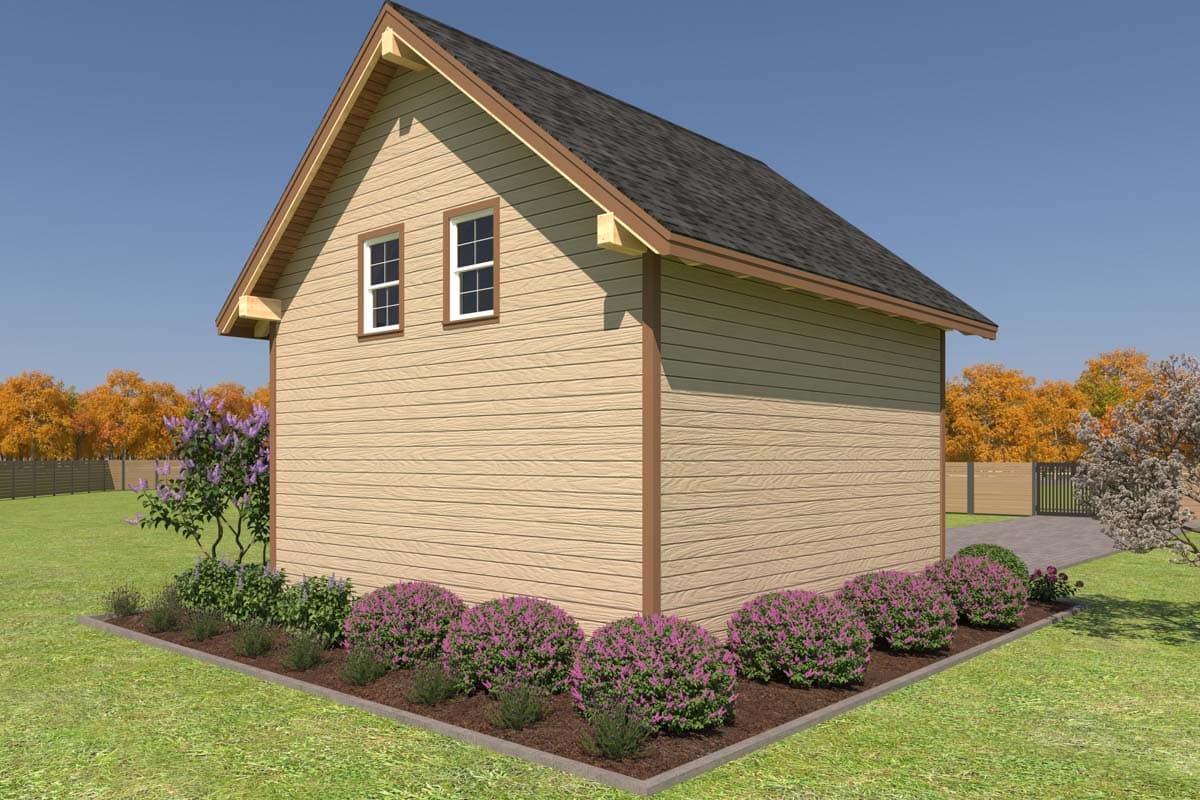

2-Car Timber-Framed Garage Barn with Full Loft Above - 988 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 373006TMB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 373006TMB

1-800-854-7852

1-262-521-4596

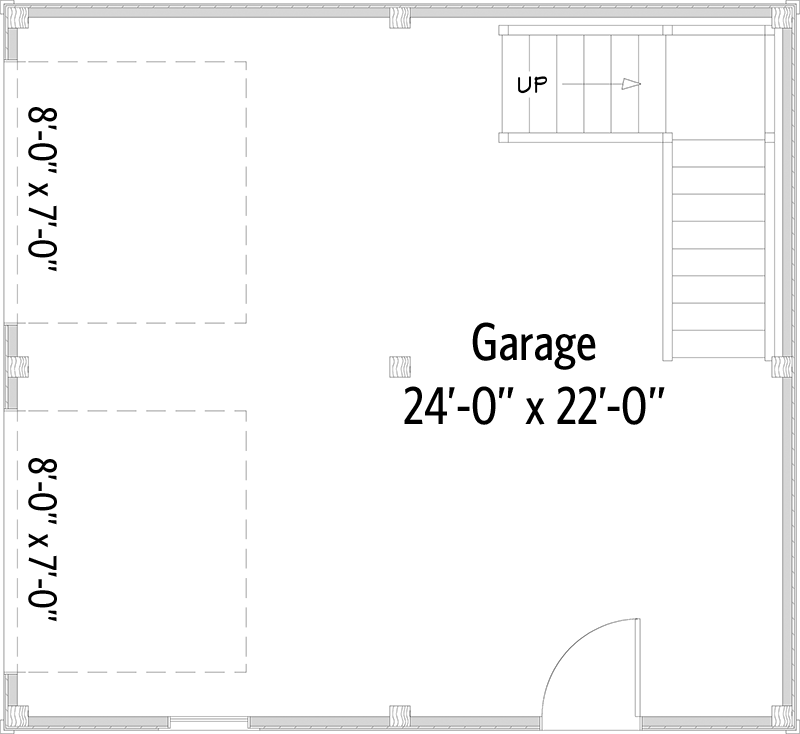

Main Level
floor plan image Main Level

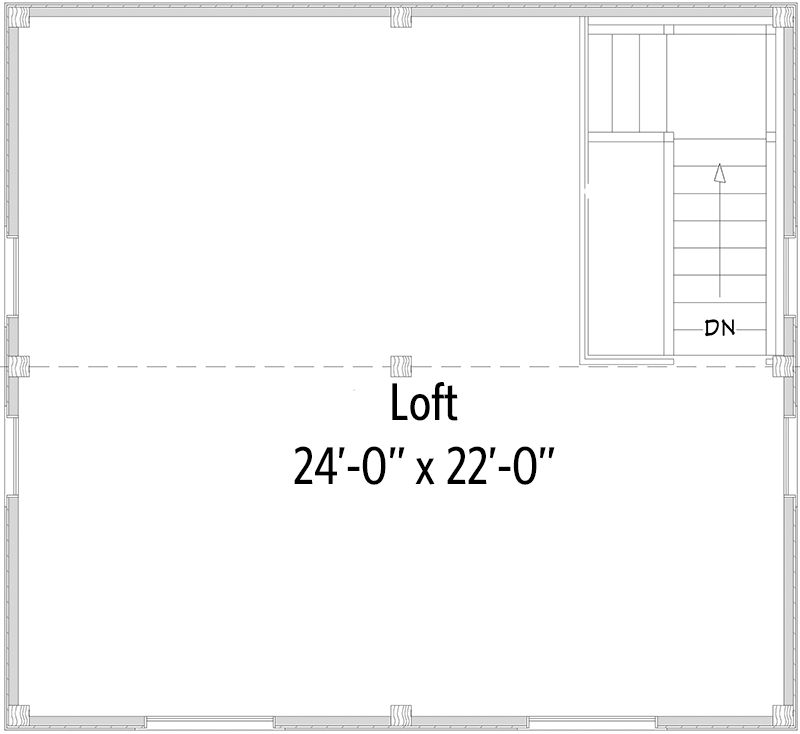

2nd Floor
floor plan image 2nd Floor
Plan Details

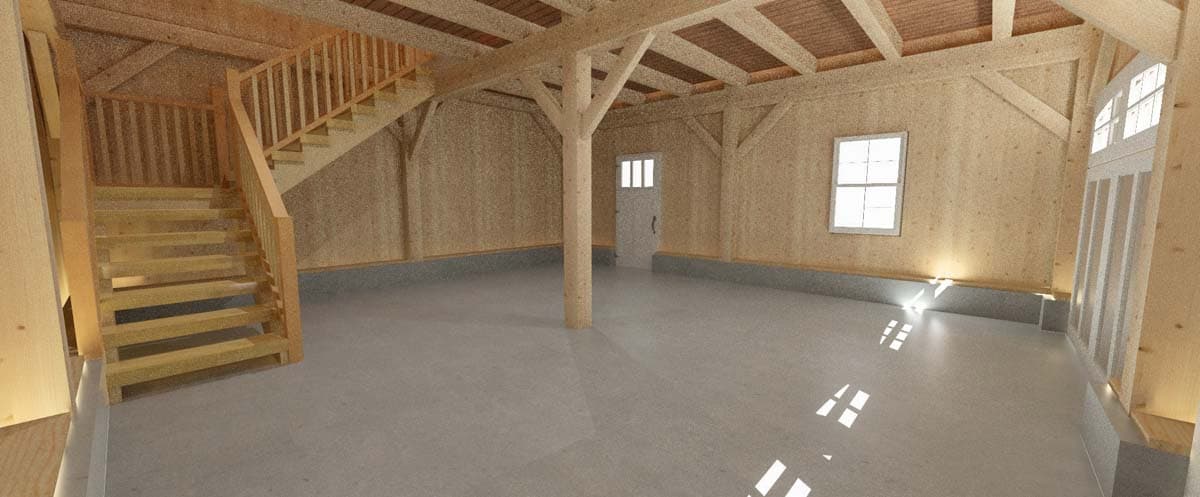

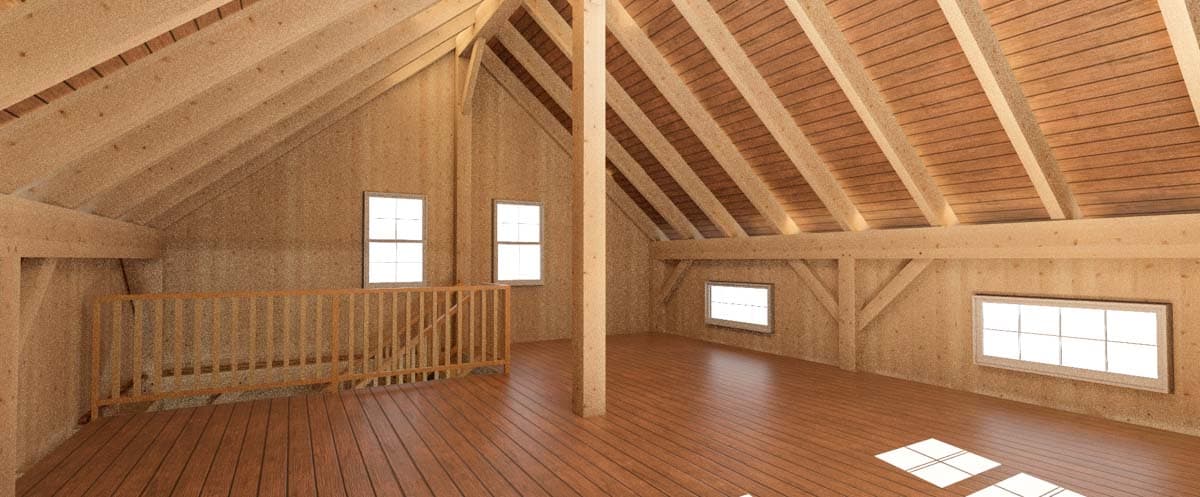

  • Step into the realm of timeless charm with our 22' x 24' timber-framed, post and beam garage barn and workshop with a large 528 square foot main level with two 8' x 7' overhead garage doors, and a full 2nd story loft offing a vaulted ceiling and 460 square feet of workshop space or storage.
  • This plan is designed for true timber post and beam framing and specify for the use of 8x8 posts, 8x12 plate beams, 8x12 girders, 6x8 joists, 4x6 knee braces, 8x12 ridge plates, and 4x8 and 4x10 rafters.
  • These are comprehensive plans that go beyond standard blueprints by including detailed shop drawings. The shop drawings provide precise measurements for cutting the timbers, empowering you or your contractor to accurately cut and assemble the timber frame using the provided plans. This level of detail ensures a smooth and efficient building process.
  • Information found within the plan includes foundation layout, first and second-floor plans that seamlessly combine functionality with aesthetic appeal, architectural elevations showcasing door and window schedules with precision, and a revealing cross-section detail that unveils the essence of the design. Additionally included are a detailed timber/fastener/connector list, wall layouts, beam configurations, rafter placements, and fastening details, including all single beam drawings.
  • We can modify any house plan you see on our site. Learn more about modifications here.
  • Related Plan: Get the barn version that replaces the overhead garage doors with a single sliding barn door with plan 373003TMB

What's Included
  • Cover Sheet
  • Foundation Layout
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Elevations
  • Cross Section Detail
  • Electrical Plan
  • Roof Plan
  • Framing Overview
  • General Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

460 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

22' 0"

Depth

24' 0"

Garage

Type

Detached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

14'

Roof Details

Primary Pitch

10 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Rustic

Traditional

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

460 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

22' 0"

Depth

24' 0"

Garage

Type

Detached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

14'

Roof Details

Primary Pitch

10 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Rustic

Traditional

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame
