Plan 680386VR
2-Story Barndominium Style House Plan with Vaulted Interior - 2159 Sq Ft
Heated S.F.
2,159
Beds
3
Baths
3.5
Stories
2
Floor Plan

Plan 680386VR

Main Level
slide image 0
2nd Floor
slide image 1
2nd Floor - Version B (included)
slide image 2
2nd Floor - Version C (included)
slide image 3
2nd Floor - Version D (included)
slide image 4

Plan 680386VR

1-800-854-7852

1-262-521-4596

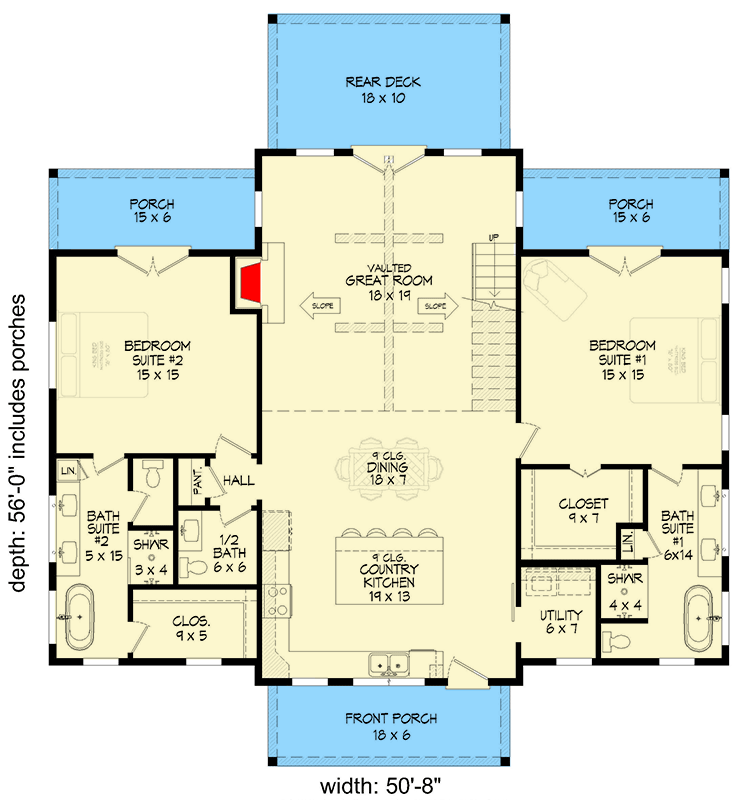

Main Level
floor plan image Main Level

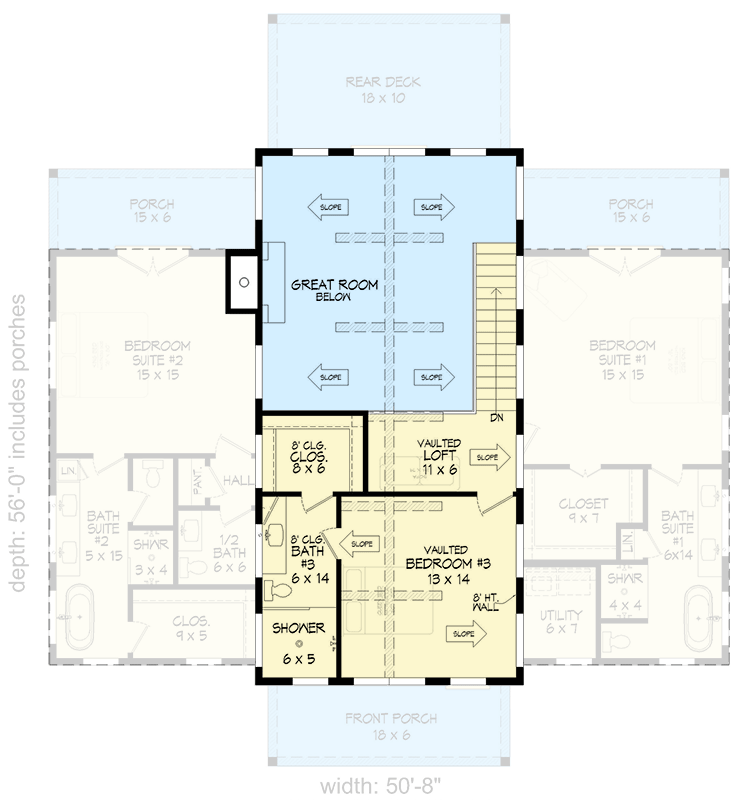

2nd Floor
floor plan image 2nd Floor

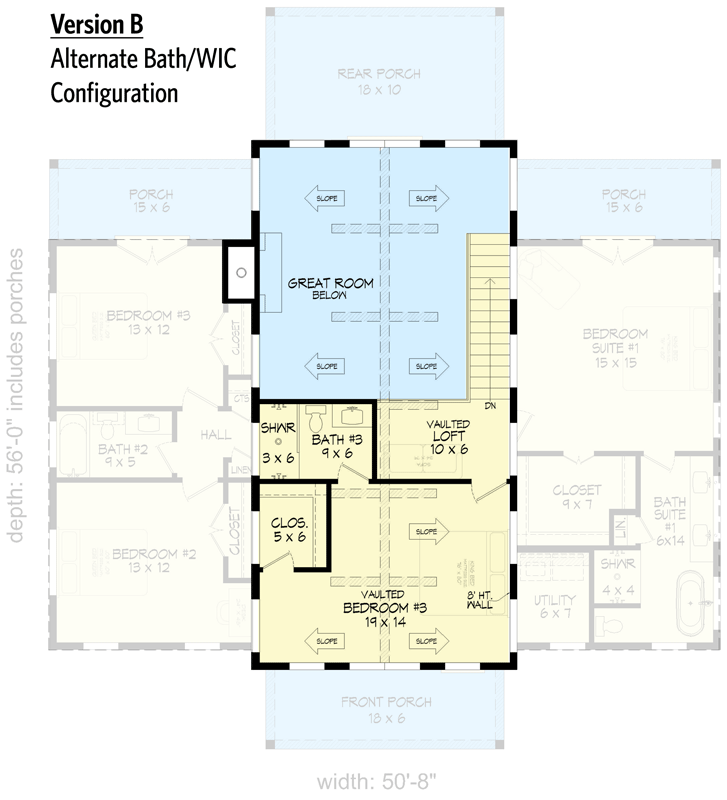

2nd Floor - Version B (included)
floor plan image 2nd Floor - Version B (included)

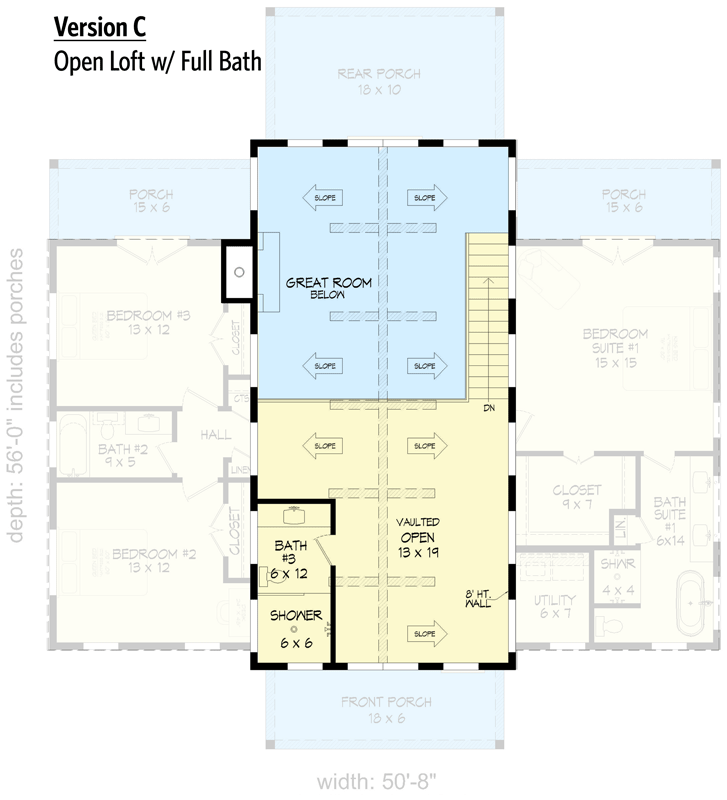

2nd Floor - Version C (included)
floor plan image 2nd Floor - Version C (included)

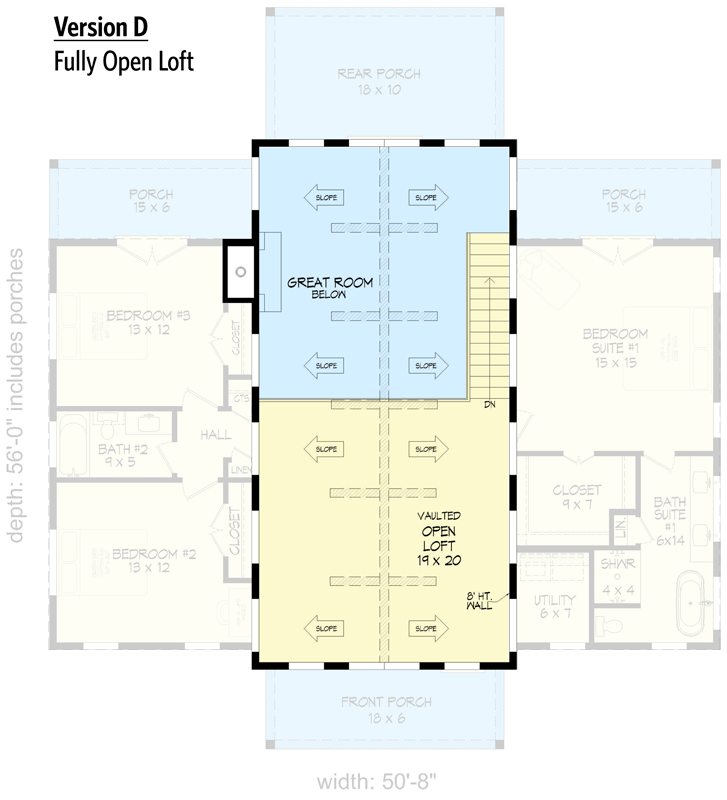

2nd Floor - Version D (included)
floor plan image 2nd Floor - Version D (included)
Plan Details
  • This 2-story Barndominium style house plan (the house plan is designed with conventional 2x6 framing), gives you 3 beds, 3.5 baths and 2,159 square feet of heated living space.
  • The center of the home is vaulted and beamed with bedrooms to either side. The third bedroom and bath - plus a loft - are on the second floor.
  • Outdoor spaces line the back with both bedrooms enjoying outdoor access to their own private porches (15' by 6') and the vaulted great room opening to a 18' by 10' covered rear porch.
  • In front, a double sink is centered beneath a window and an island has seating for four.
  • The vaulted second floor is highly flexible, this plan has 4 different versions included with the plans for no additional charge. Version B offers an alternate bathroom and walk-in-closet configuration. Version C eliminates the bedroom and walk-in-closet, offering an open loft space with a full bath. Version D eliminates the full bath, further simplifying the 2nd floor layout into a large open loft space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Add a garage with plan 680398VR (1,952 sq. ft.). Get a 4 bedroom version with house plan 680389VR (2,175 sq. ft.). Eliminate the upstairs with house plans 680387VR (3 beds; 1,761 sq. ft.) and 680388VR (2 beds, 1,750 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

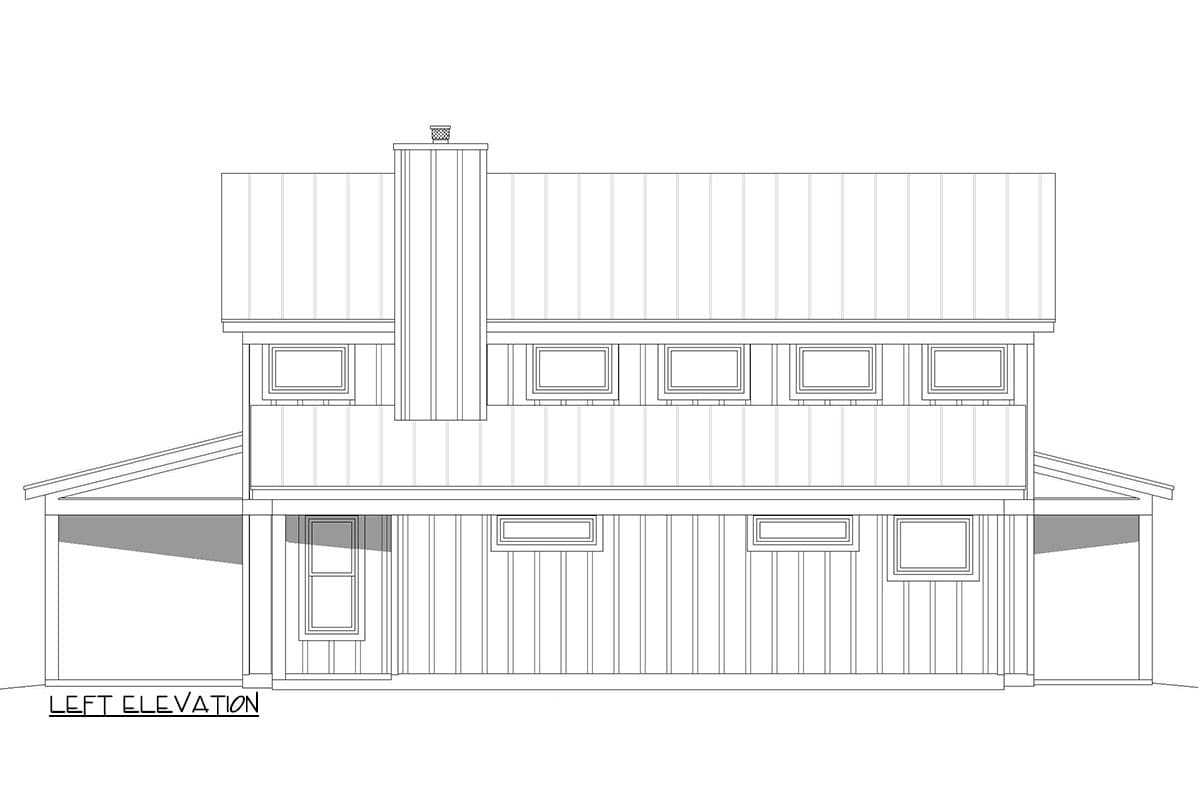

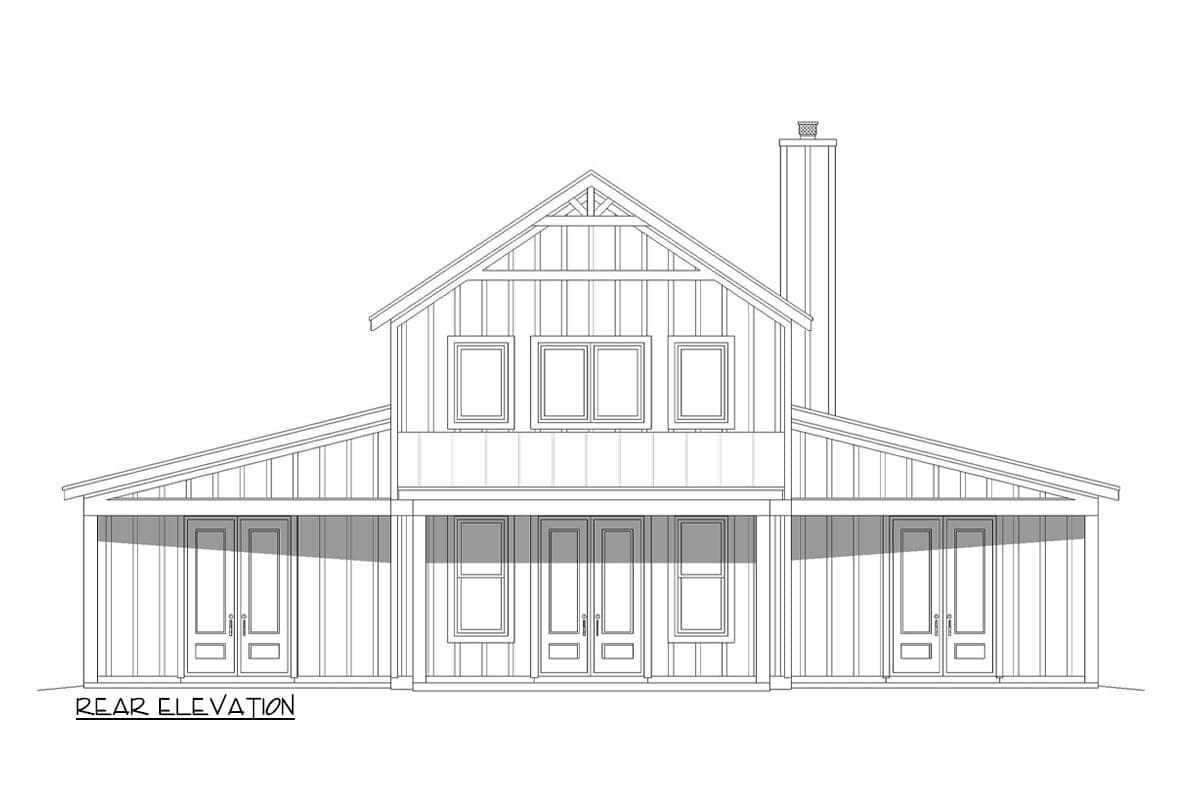

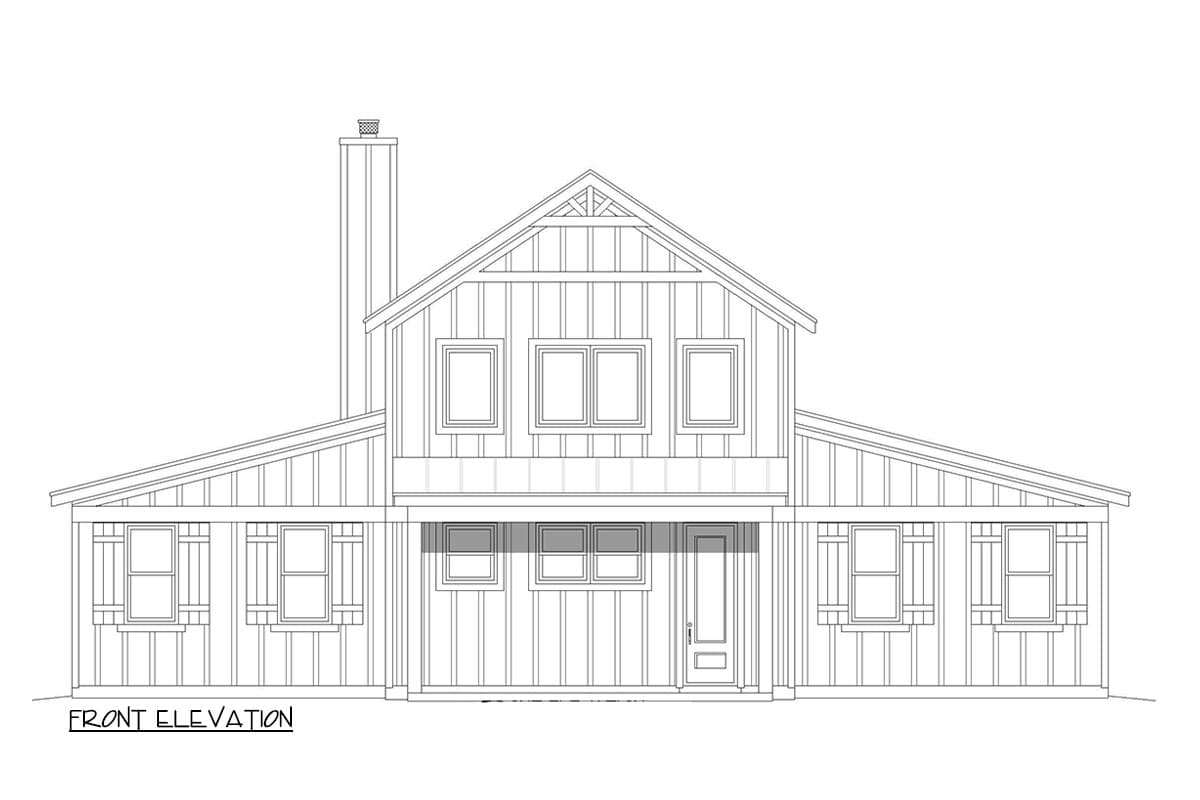

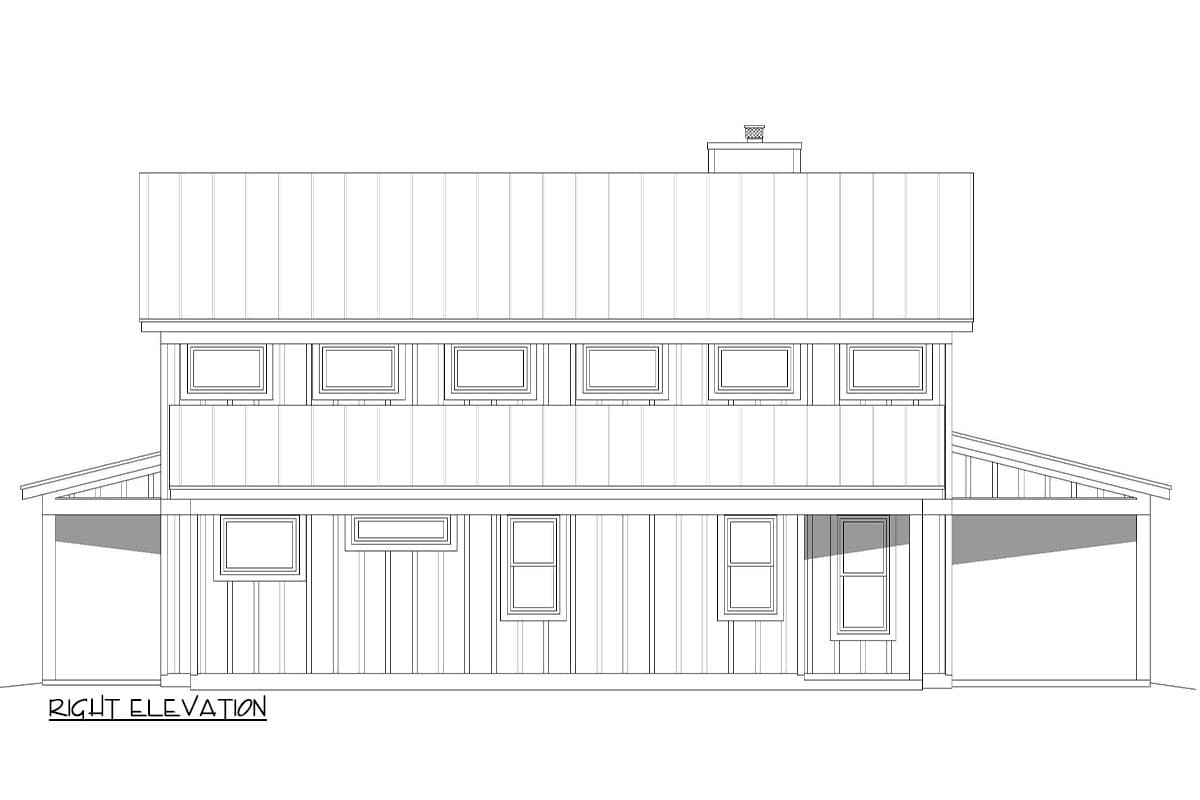

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,159 sq. ft.

1st Floor

1,750 sq. ft.

2nd Floor

409 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 8"

Depth

56' 0"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Barndominium

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,159 sq. ft.

1st Floor

1,750 sq. ft.

2nd Floor

409 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 8"

Depth

56' 0"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Barndominium

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
