Plan 135086GRA
2-Story Barndominium with Loft and Home Office - 3033 Sq Ft
Heated S.F.
3,033
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 135086GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135086GRA

1-800-854-7852

1-262-521-4596

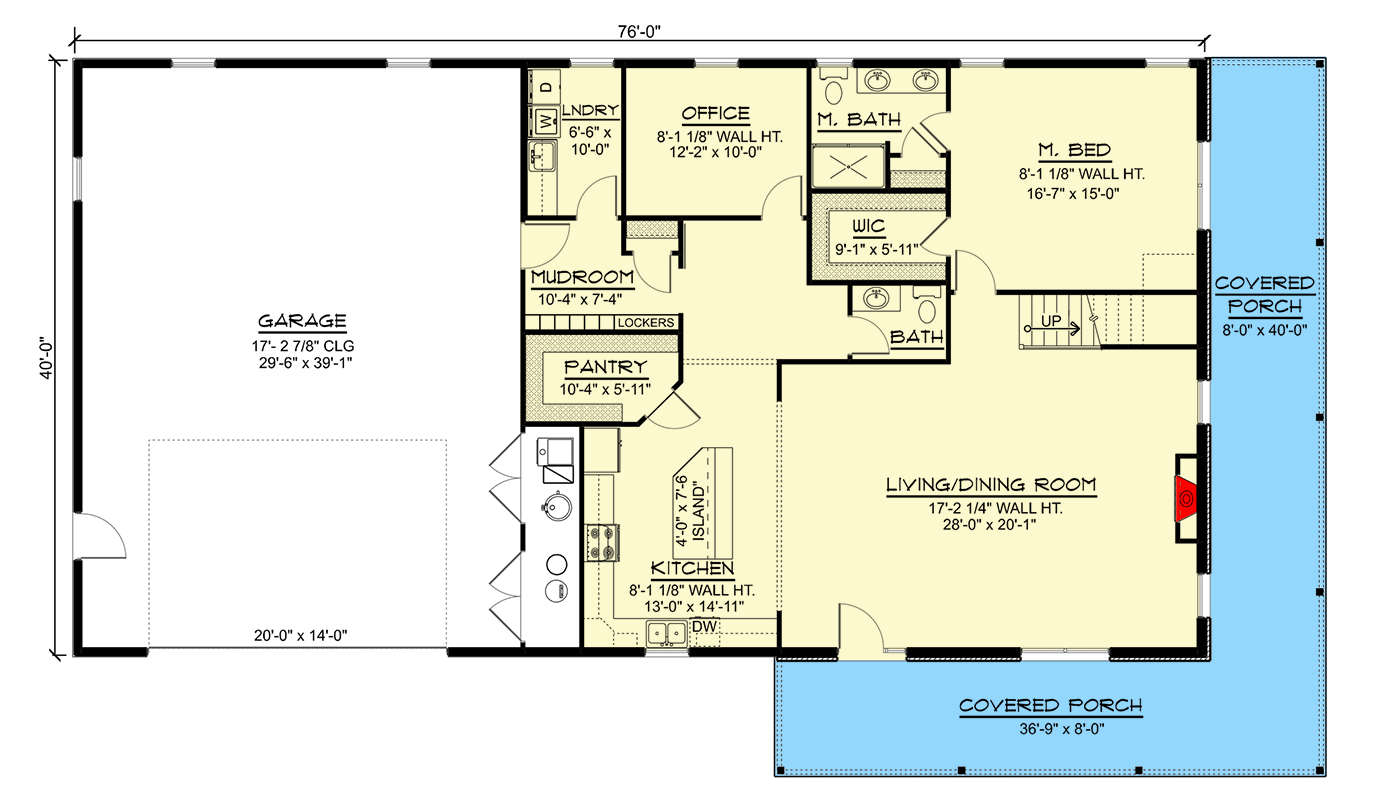

Main Level
floor plan image Main Level

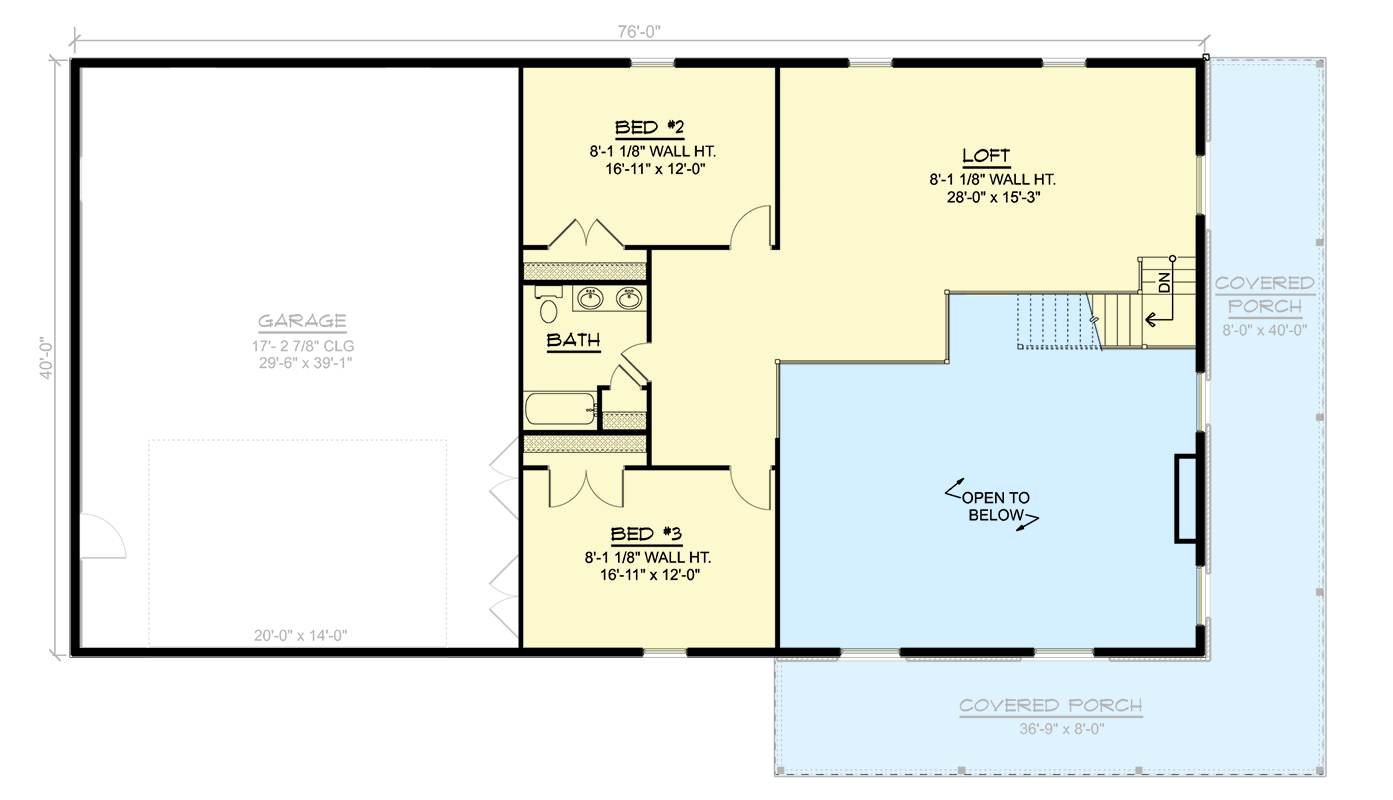

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A classic gable roof tops this 2-story Barndominium designed with 2x6 exterior walls and an 8'-deep porch wraps around the front and right side of the home giving you great fresh air spaces to enjoy.
  • Step inside to find tall ceilings above the living / dining rooms that provide a peek into the second-level loft.
  • The open kitchen hosts an island with an eating bar, as well as a large walk-in pantry. The adjacent mudroom leads to the oversized garage and includes built-in lockers that serve as a drop zone.
  • The master bedroom opens to the covered porch, and a home office is the perfect, quiet spot for the work-at-home resident.
  • Upstairs, two bedrooms share a 4-fixture bathroom and a versatile loft that overlooks the living space below.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Get an alternate version with house plan 135264GRA (2,393 sq. ft.).
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

1st Floor

1,840 sq. ft.

2nd Floor

1,193 sq. ft.

Porch, Front

612 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

48' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached, RV Garage

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

1st Floor

1,840 sq. ft.

2nd Floor

1,193 sq. ft.

Porch, Front

612 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

48' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached, RV Garage

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
