Plan 444423GDN
2-Story Bungalow with Oversized Outdoor Living Space - 2286 Sq Ft
Heated S.F.
2,286
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 444423GDN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 444423GDN

1-800-854-7852

1-262-521-4596

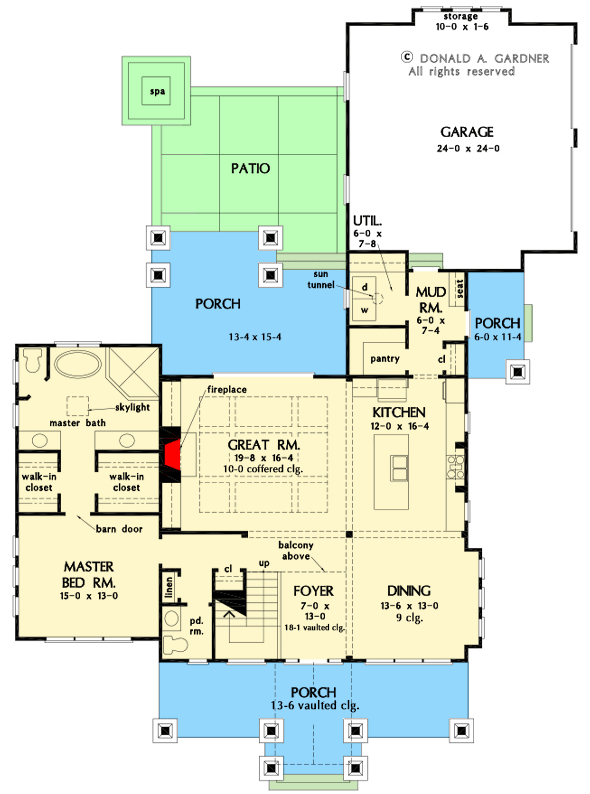

Main Level
floor plan image Main Level

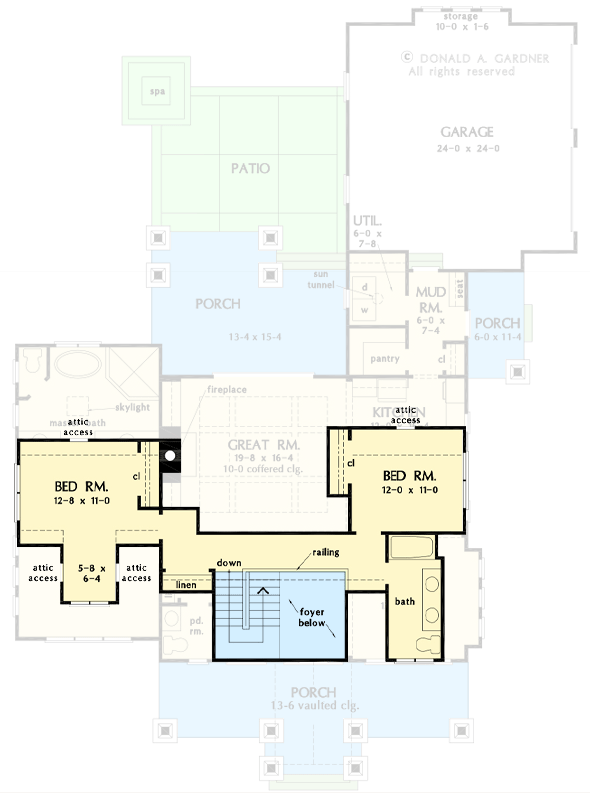

2nd Floor
floor plan image 2nd Floor
Plan Details

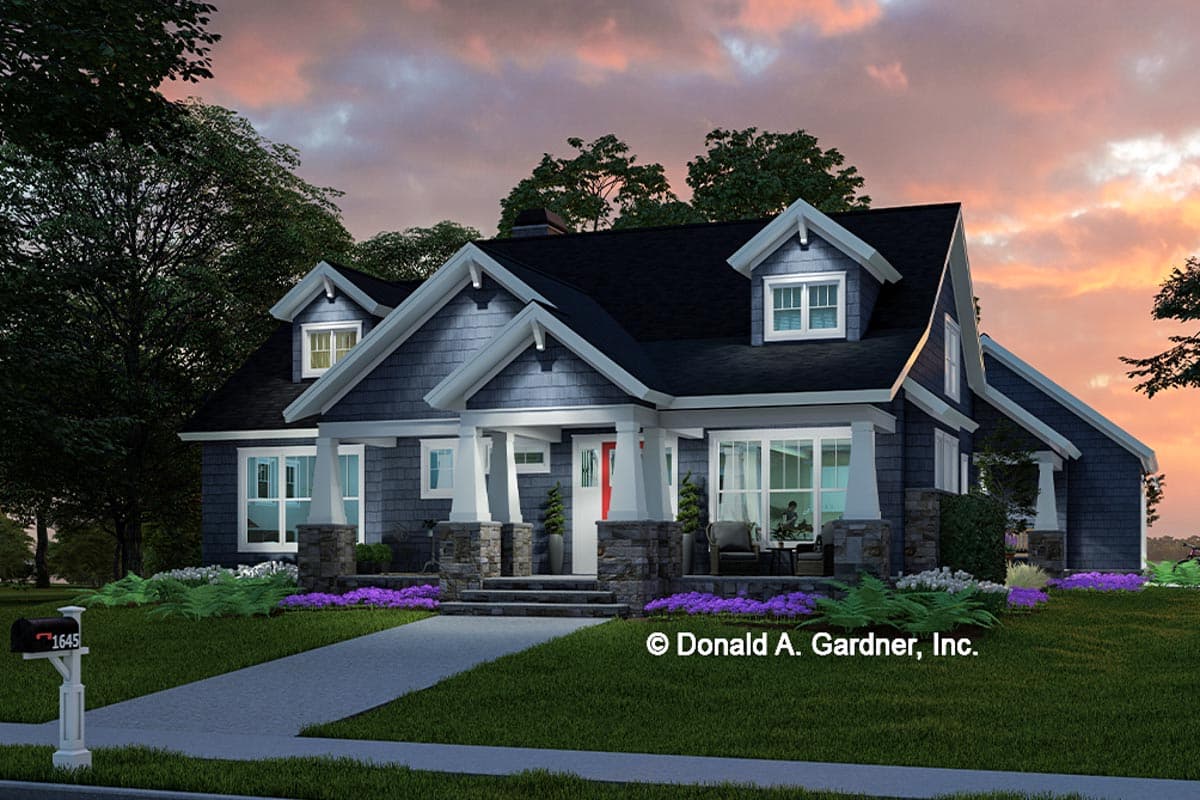

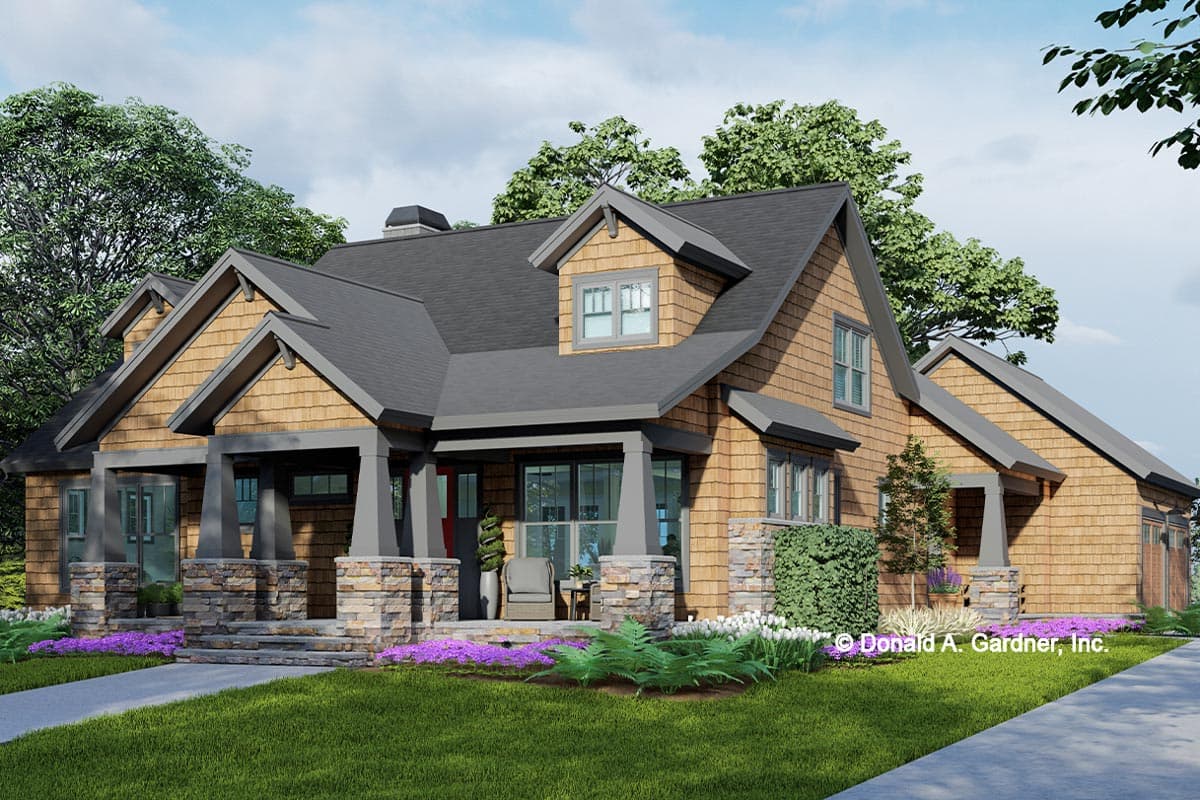

  • This rustic bungalow features cedar shakes and stone on the façade, with front and rear porches for outdoor living.

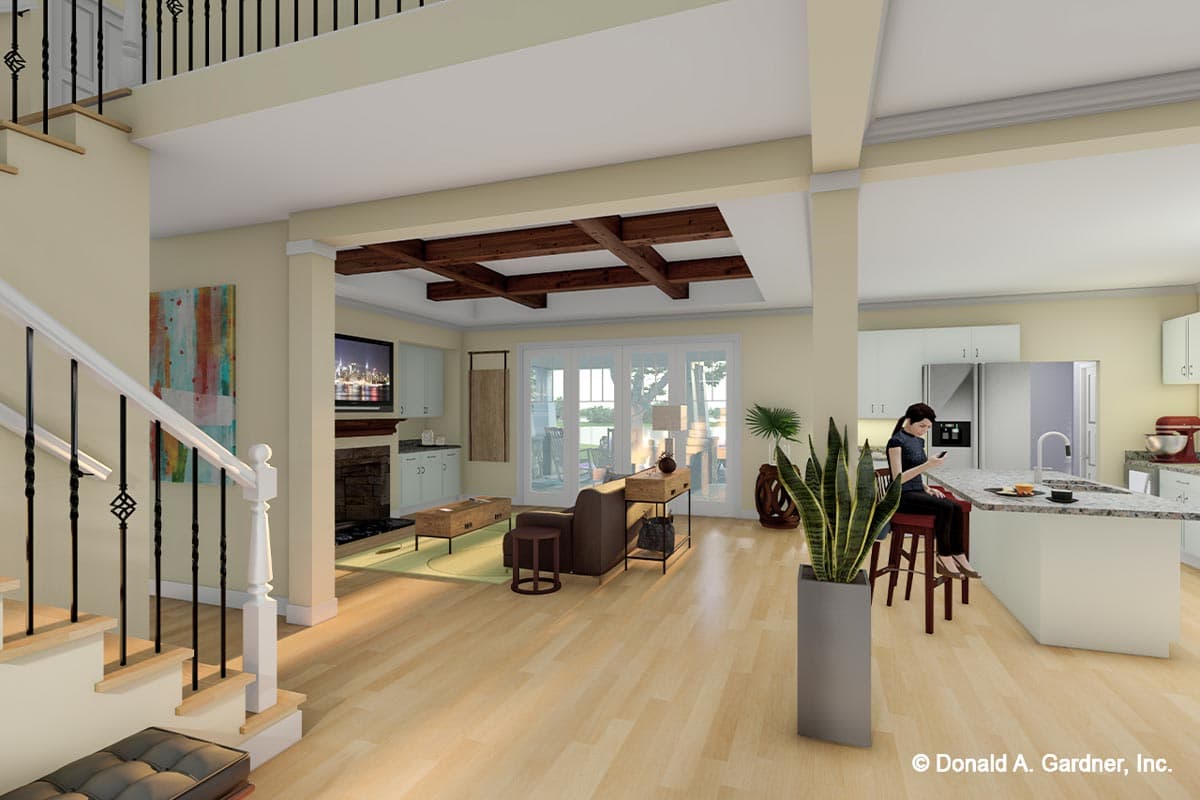

  • Interior highlights include foyer with 18' ceiling, a fireplace and coffered ceiling in the great room, an island and pantry in the kitchen, a dining room with a bay window, and a rear garage with a mudroom entry.
  • The master suite boasts dual walk-in closets and separate vanities in the master bathroom, while two bedrooms and a full bathroom are upstairs for children or guests.

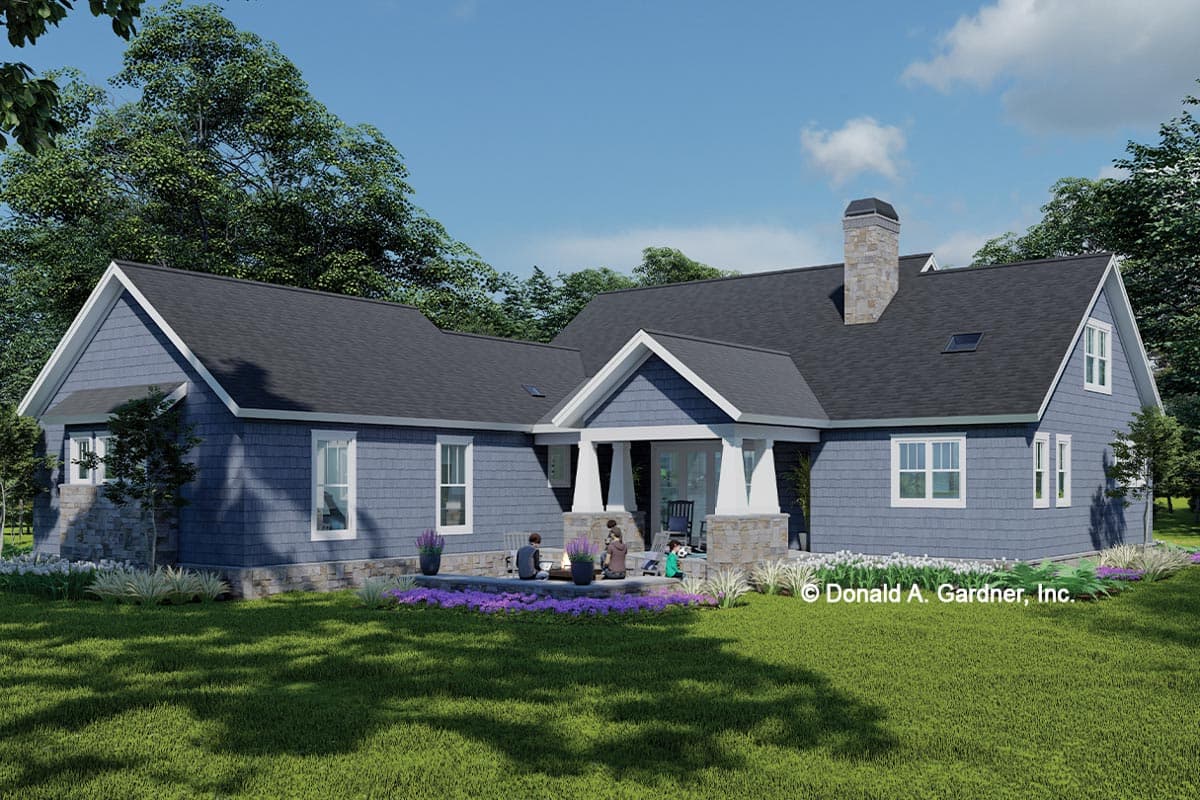

  • The front porch (10'4" by 12') has a 13'6" vaulted ceiling and the rear porch (13-'4" by 15'-4") has a 9' flat ceiling.
  • Delivery Delay Notes:
  • Please allow 8-10 weeks for delivery if it includes the basement OR a slab foundation option.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,286 sq. ft.

1st Floor

1,675 sq. ft.

2nd Floor

611 sq. ft.

Porch, Front

310 sq. ft.

Porch, Rear

288 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

82' 2"

Max Ridge Height

24' 11"

Garage

Type

Attached

Area

645 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Bungalow

Country

Craftsman

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
