2-Story Coastal Contemporary House Plan with Study and Main-Floor Owner's Suite - 2803 Sq Ft - 65635BS

Plan 65635BS

2-Story Coastal Contemporary House Plan with Study and Main-Floor Owner's Suite - 2803 Sq Ft

Heated S.F.

2,803

Beds

Baths

3.5

Stories

Cars

Floor Plan

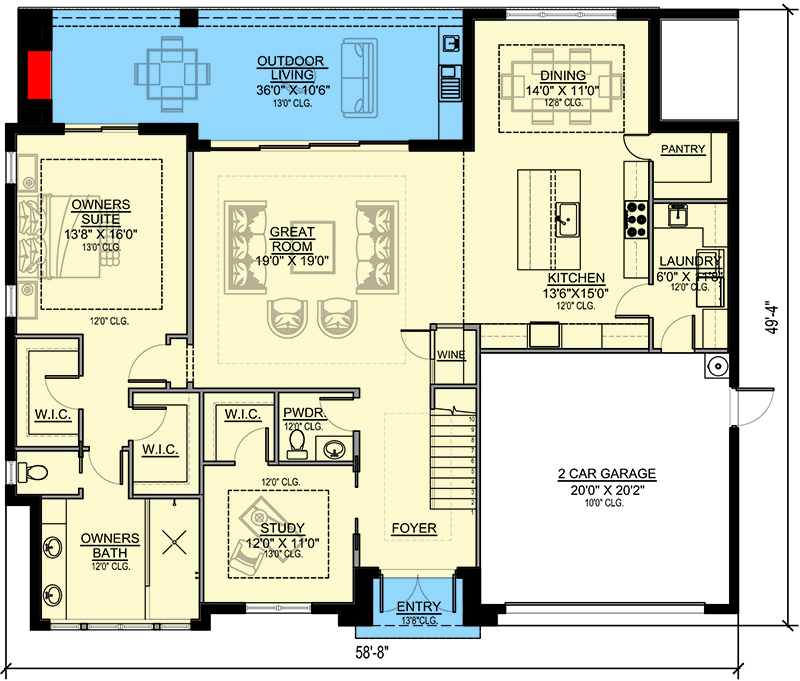

Main Level

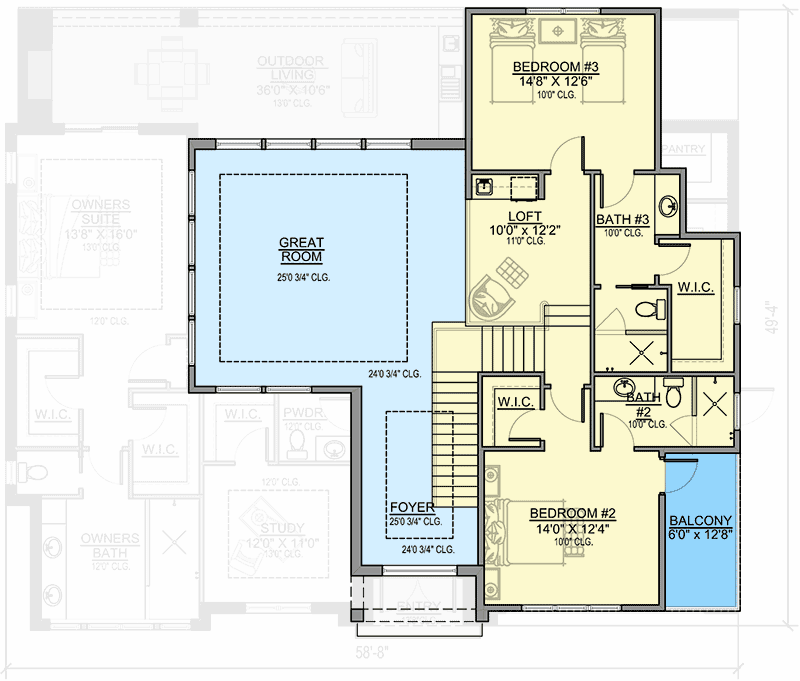

2nd Floor

Plan Details

A metal, low-pitched roof caps this two-story coastal contemporary house plan, which features rooms with comfortable scale and an indoor outdoor vibe.
Tall ceilings rest above the foyer and great room, while the adjoining kitchen presents sleek cabinetry, a walk-in pantry, and a wine room; perfect for entertaining.
The owner's suite is conveniently located on the main level, and includes access to the back porch, two walk-in closets, and a 4-fixture bathroom with an oversized tile shower.
A loft at the top of the stairs offers a wet bar, and separates bedrooms 2 and 3. Each bedroom includes a full bath and walk-in closet, and a private balcony off the forward-facing bedroom is a nice bonus.
Enter from the double garage to find a mud / laundry room, complete with a utility sink.
Related Plan: Get an alternate version with house plan 65639BS.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
