Plan 680345VR

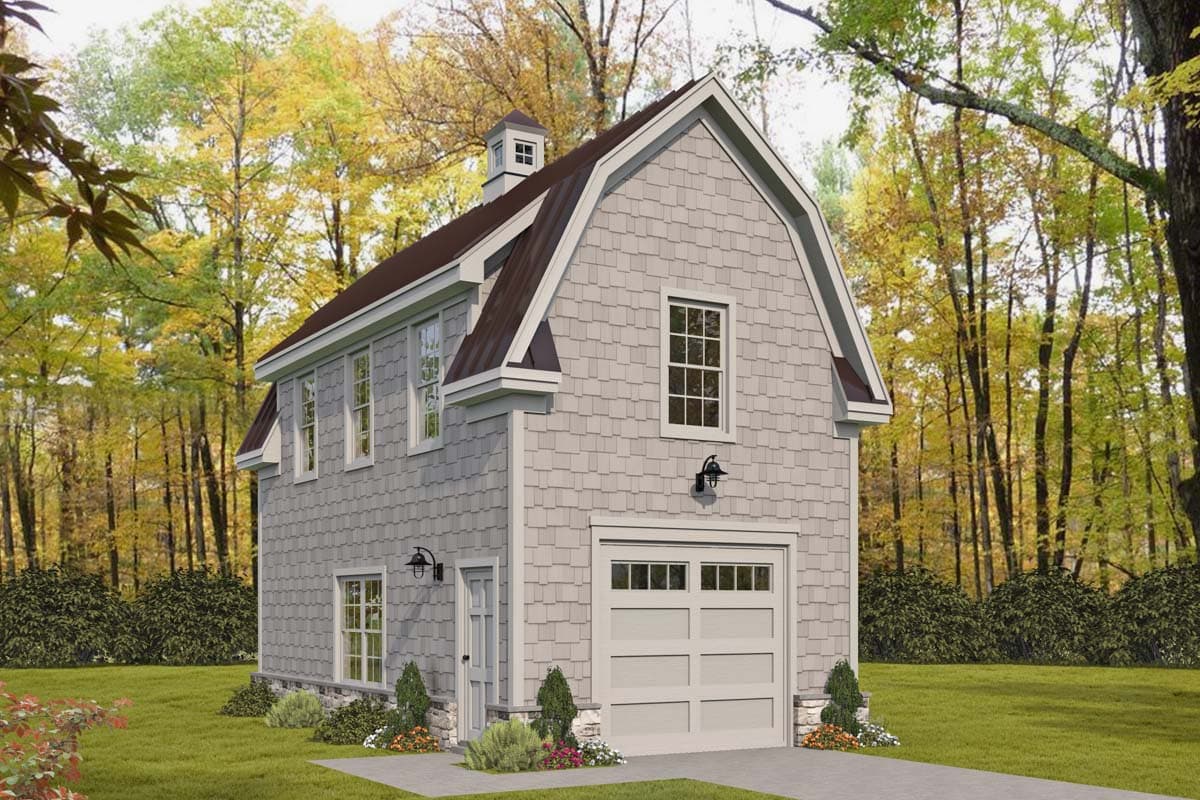

2-Story Farmhouse Style Garage Plan with Storage Room Above - 496 Sq Ft
Heated S.F.
0
Beds
Baths
1
Stories
2
Cars
1
Floor Plan

Plan 680345VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680345VR

1-800-854-7852

1-262-521-4596

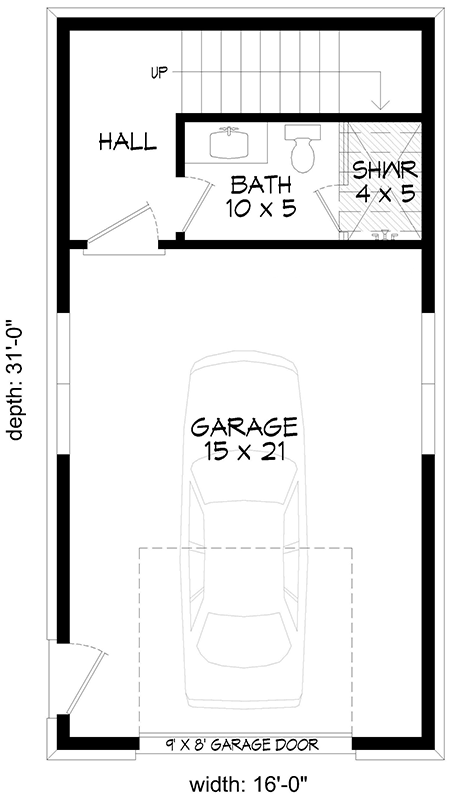

Main Level
floor plan image Main Level

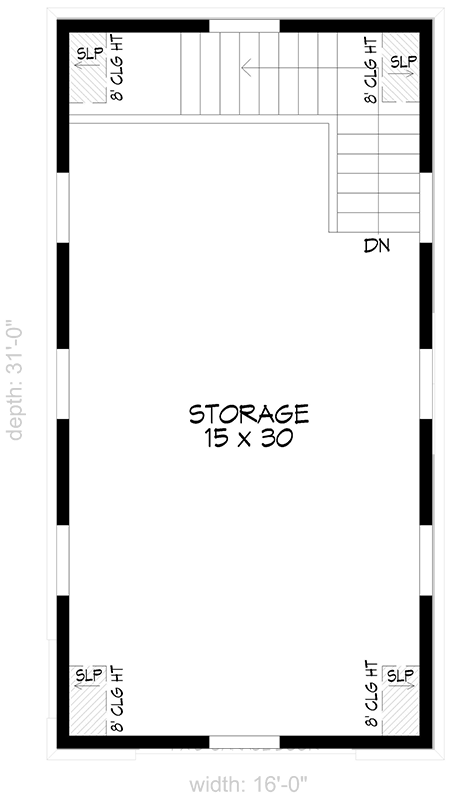

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This farmhouse garage plan gives you 496 square feet of parking space and a full bath with stairs leading to 496 square feet of convertible storage space above.
  • Architectural Designs' primary focus is to make the process of finding and pre-drawn house plans more convenient for those interested in constructing them.
  • Our website offers a vast collection of garage plans (and homes) encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate garage plan with 680339VR
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

496 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 0"

Depth

31' 0"

Max Ridge Height

29' 6"

Garage

Type

Detached

Area

496 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

24 on 12

Architectural Style

Country

Farmhouse

Special Features

Bonus Room

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

496 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 0"

Depth

31' 0"

Max Ridge Height

29' 6"

Garage

Type

Detached

Area

496 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

24 on 12

Architectural Style

Country

Farmhouse

Special Features

Bonus Room
