Plan 333006JHB

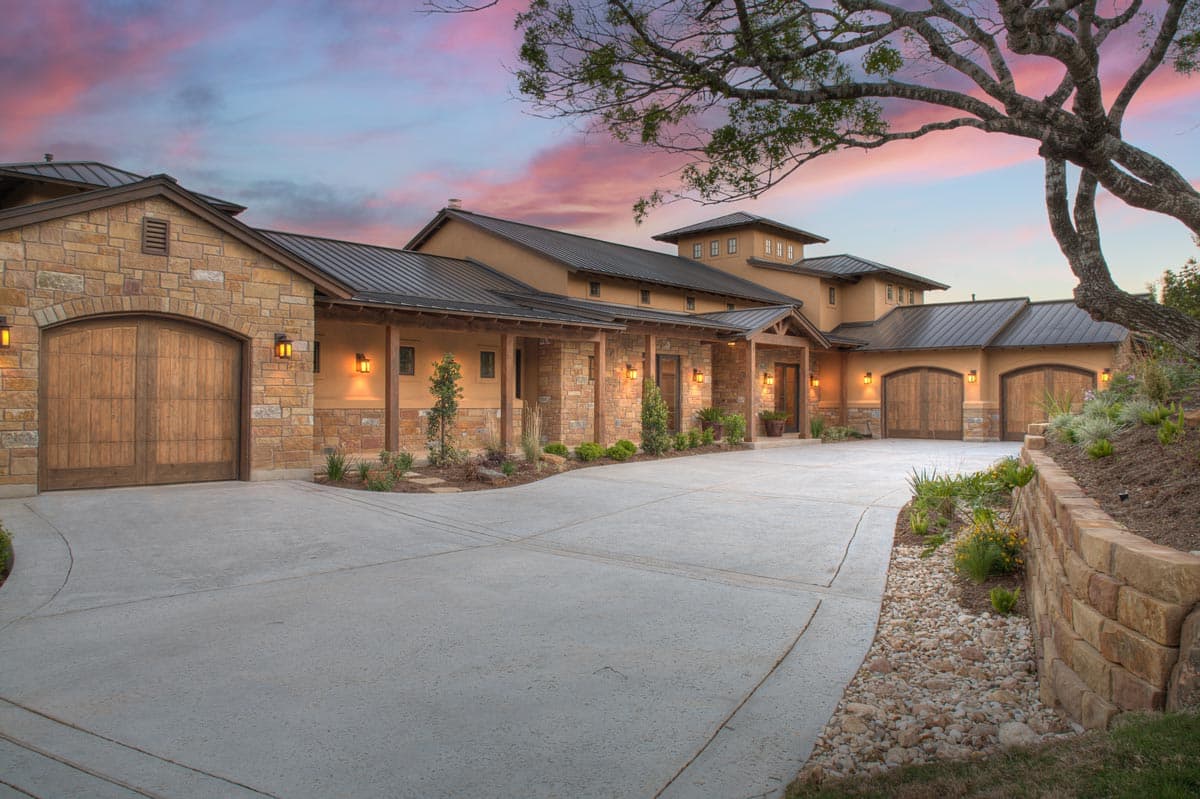

2-Story Hill Country Home Plan with Large Covered Porches
Heated S.F.
4,185
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 333006JHB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 333006JHB

1-800-854-7852

1-262-521-4596

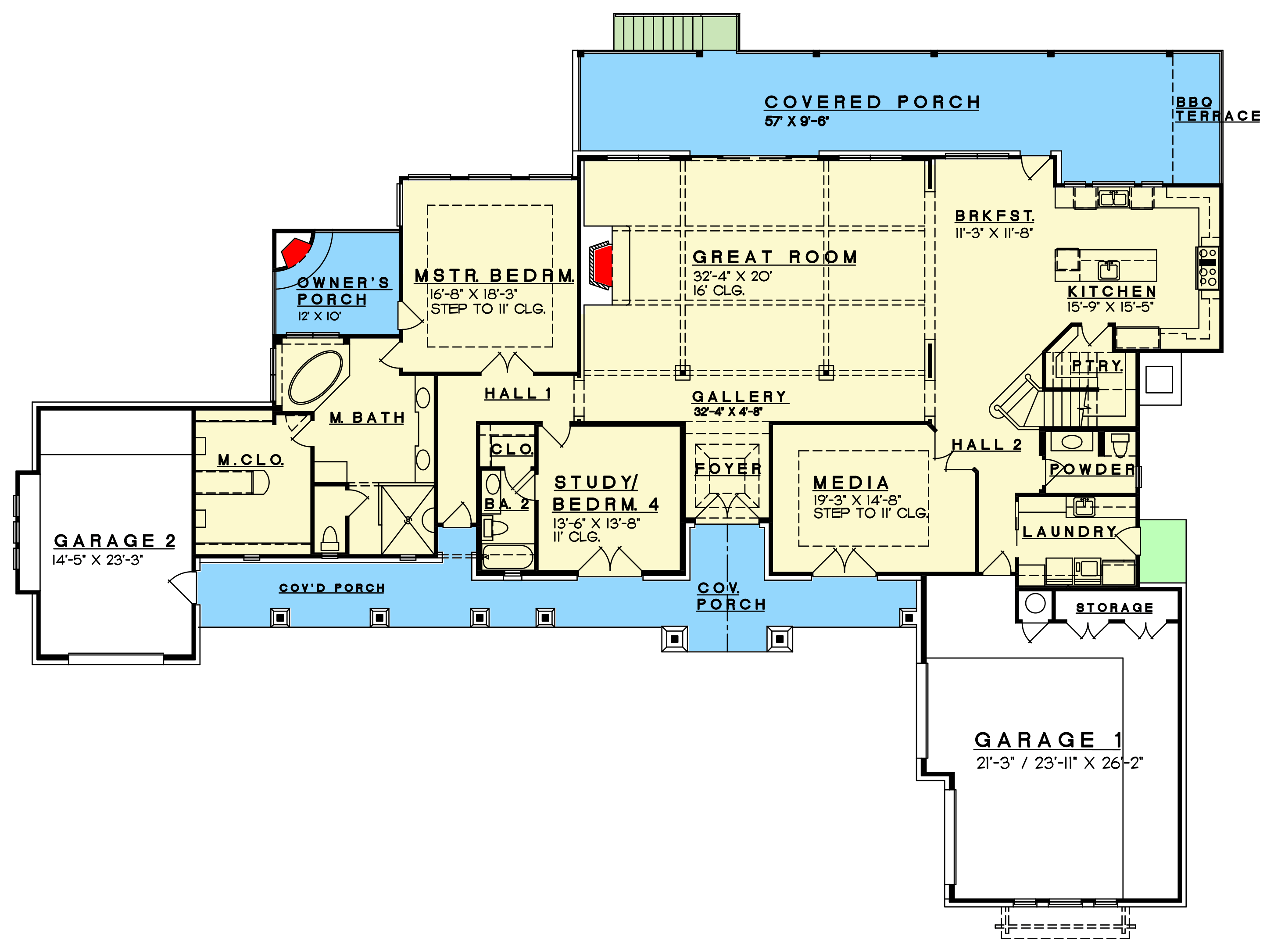

Main Level
floor plan image Main Level

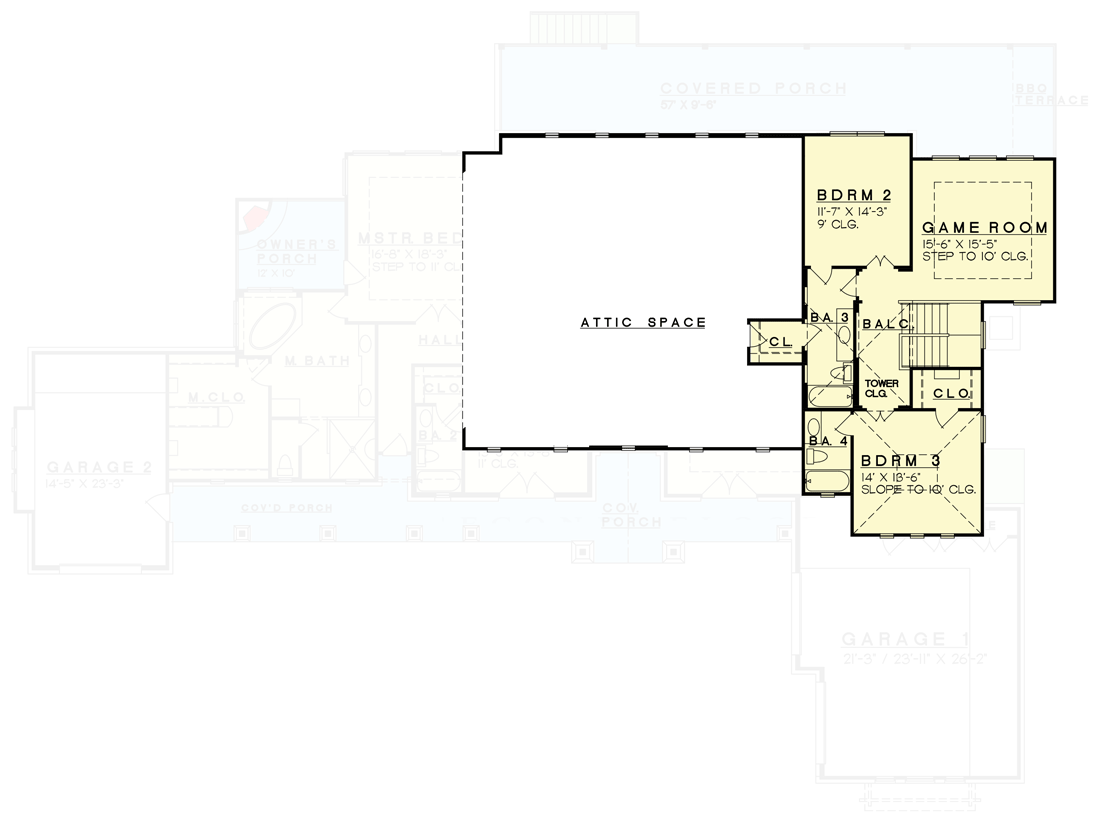

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two-story, Hill Country home was designed to capture views to the rear with expansive porches, both front and back.
  • The open great room works with the way families actually live and a quiet media room allows people to escape when needed.

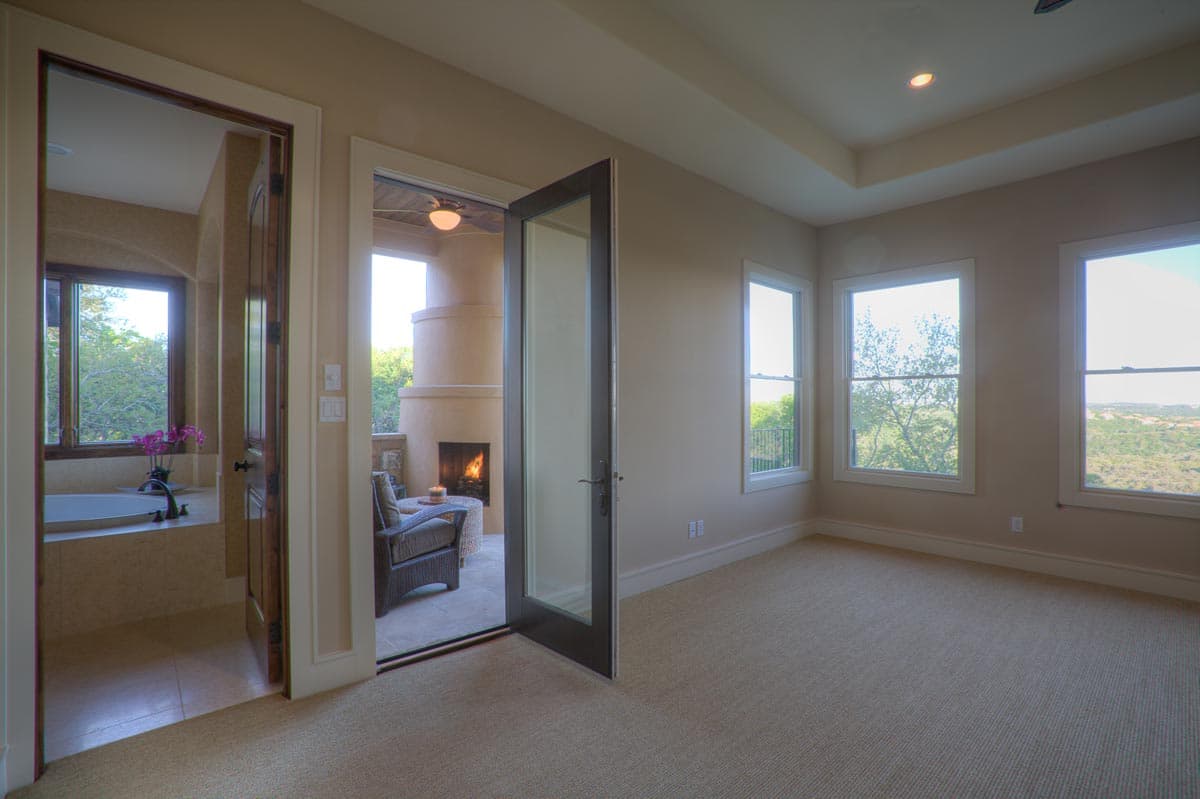

  • The whimsical master retreat porch invites you to a cozy space that still enjoys the views and the neighboring study provides exterior access.
  • Good separation for secondary bedrooms, including a tower to capture light for the upstairs hallway and stair case, could also be used as a guest suite for a visiting family or adult children.
  • The split garage allows for a workshop or a pampered car to be away from the clutter of the everyday garage.
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)

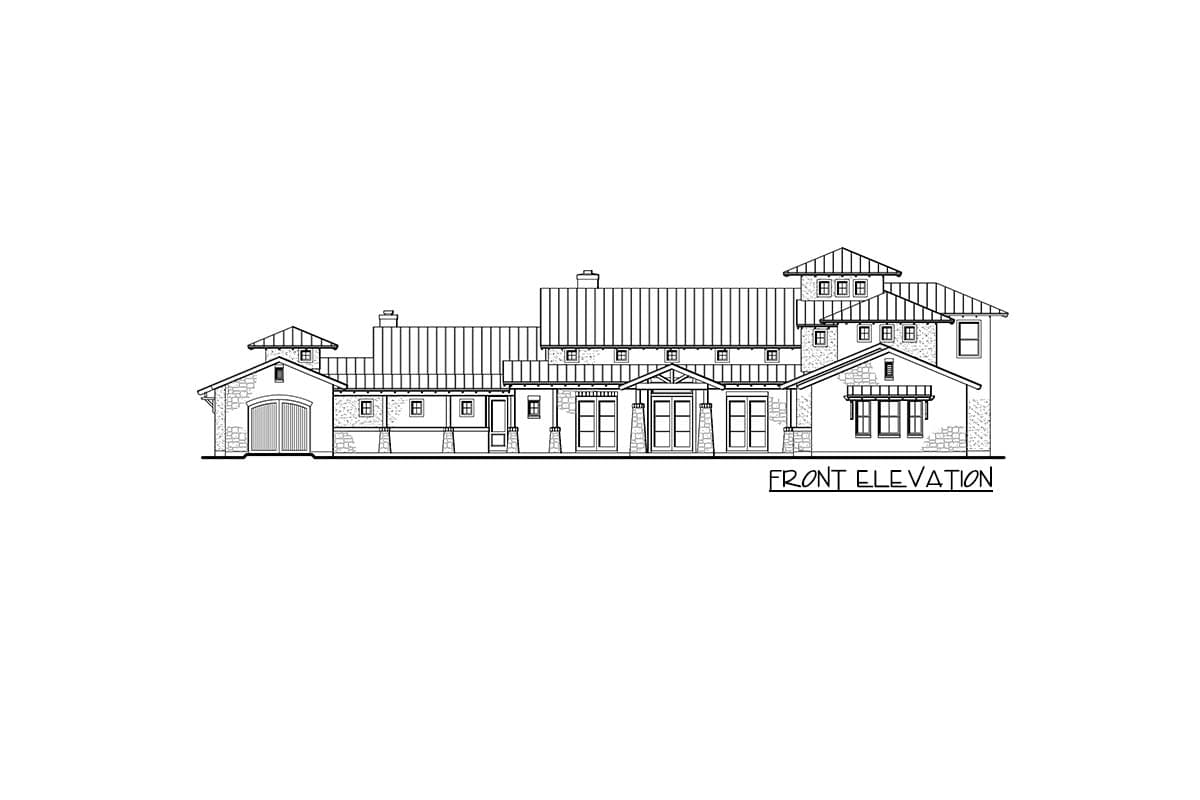

  • Front view
  • Right view
  • Left view

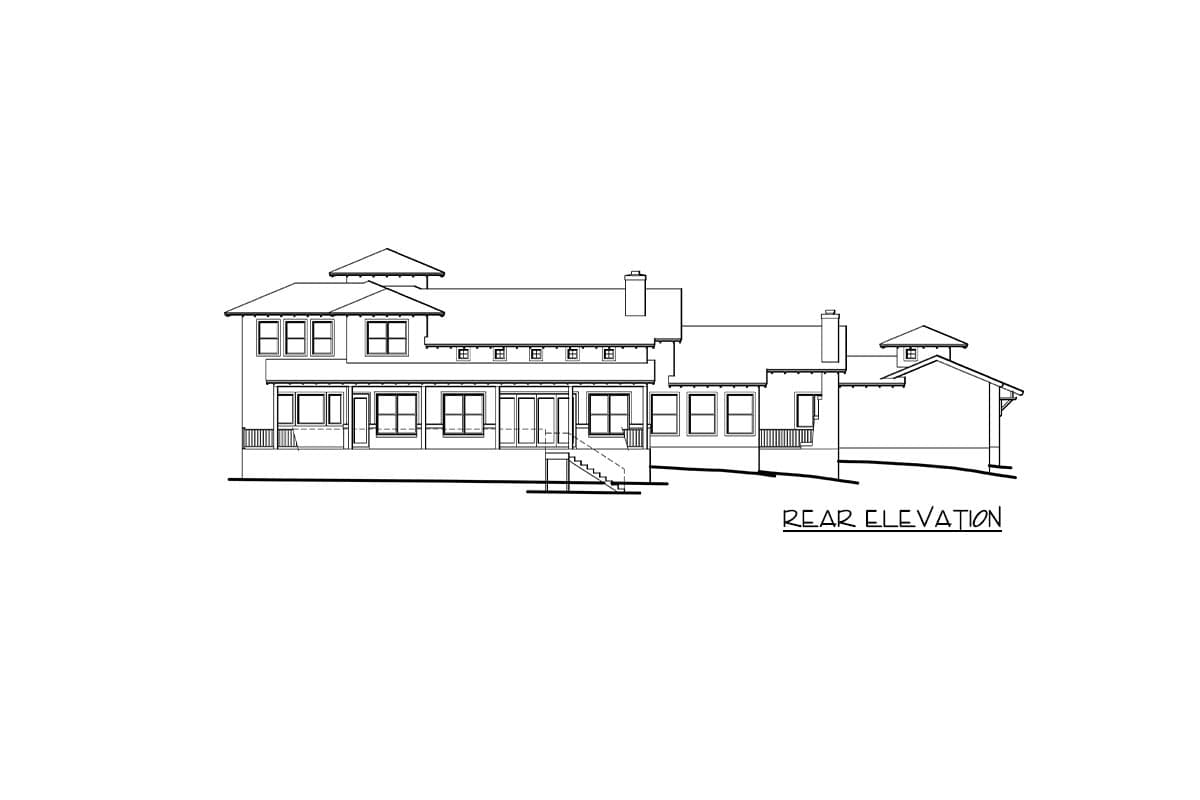

  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,185 sq. ft.

1st Floor

3,249 sq. ft.

2nd Floor

936 sq. ft.

Porch, Front

422 sq. ft.

Porch, Rear

697 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

115' 0"

Depth

81' 4"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1159 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 1/2 on 12

Framing Type

Stick

Architectural Style

European

Hill Country

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Workshop

Plan Collections

Luxury

Photo Gallery

Premium Collection
