Plan 871018JEN
2-Story House Plan for Wine Collectors
Heated S.F.
3,608
Beds
3
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 871018JEN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 871018JEN

1-800-854-7852

1-262-521-4596

Main Level

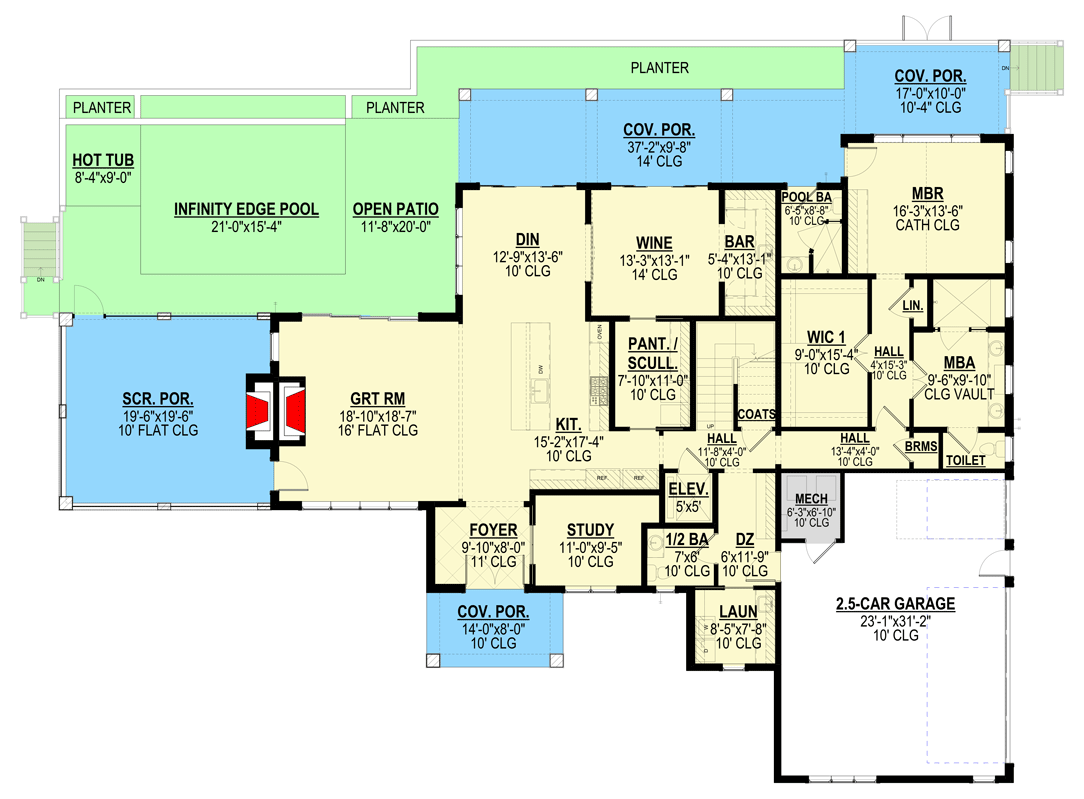

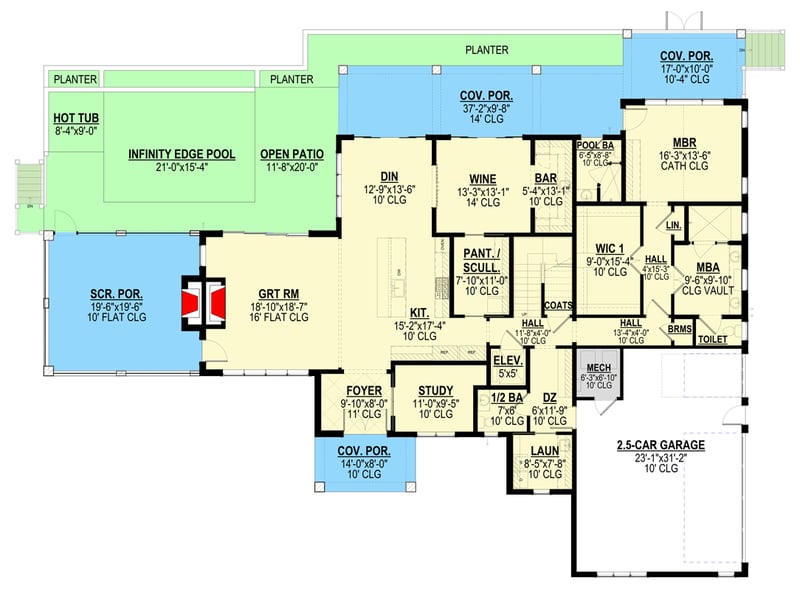

floor plan image Main Level
2nd Floor

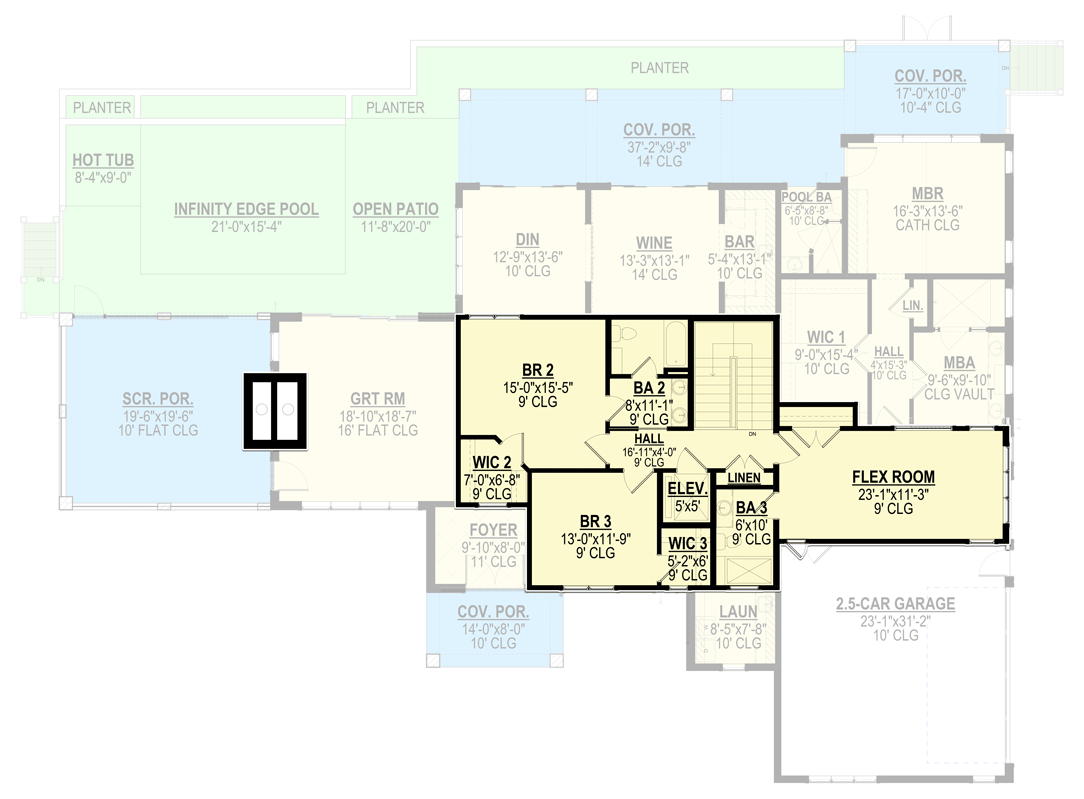

floor plan image 2nd Floor
Plan Details
  • With a central kitchen and wine room, this exclusive 2-story house plan will delight your inner chef / sommelier. Stunning views and luxury outdoor living spaces make this the perfect home for entertaining.
  • Step inside to find a foyer that leads to an open kitchen, great room, and dining room. The kitchen boasts a circular flow around a large island with separate pantry/scullery for a fully stocked and organized food prep area.
  • The 13'3” by 13’1” wine room, with tall 14’ ceilings, allows you to display a lifetime wine collection, while sampling wine at the attached bar.
  • Experience year-round enjoyment on the screened porch, complete with a cozy fireplace. Additional outdoor living spaces include an open patio around the resort-like infinity pool with a hot tub, covered outdoor dining area, and a covered porch with private entry from the master bedroom.
  • Additional unique bonuses include a pool bathroom accessible from patio, an elevator for ease of living, extra flex room upstairs, and drop zone area from garage entry.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.
What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan

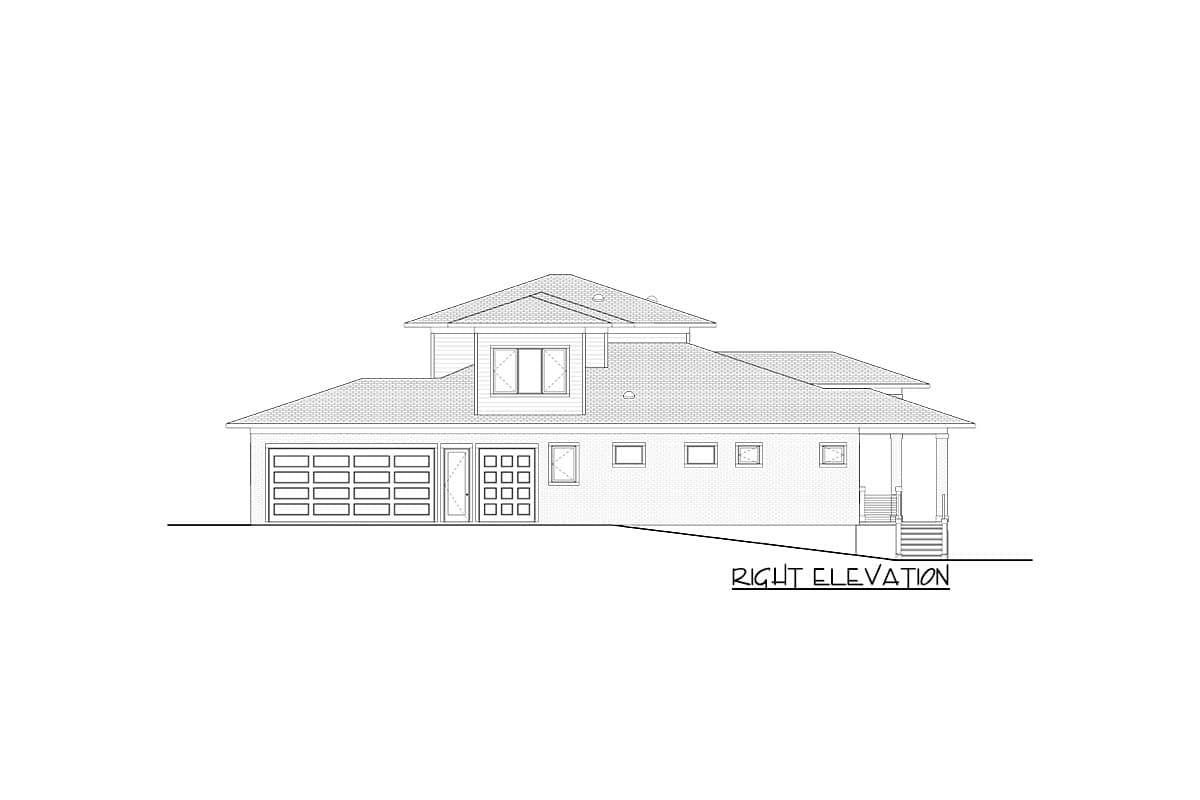

  • Elevations (all four sides)
  • Sections

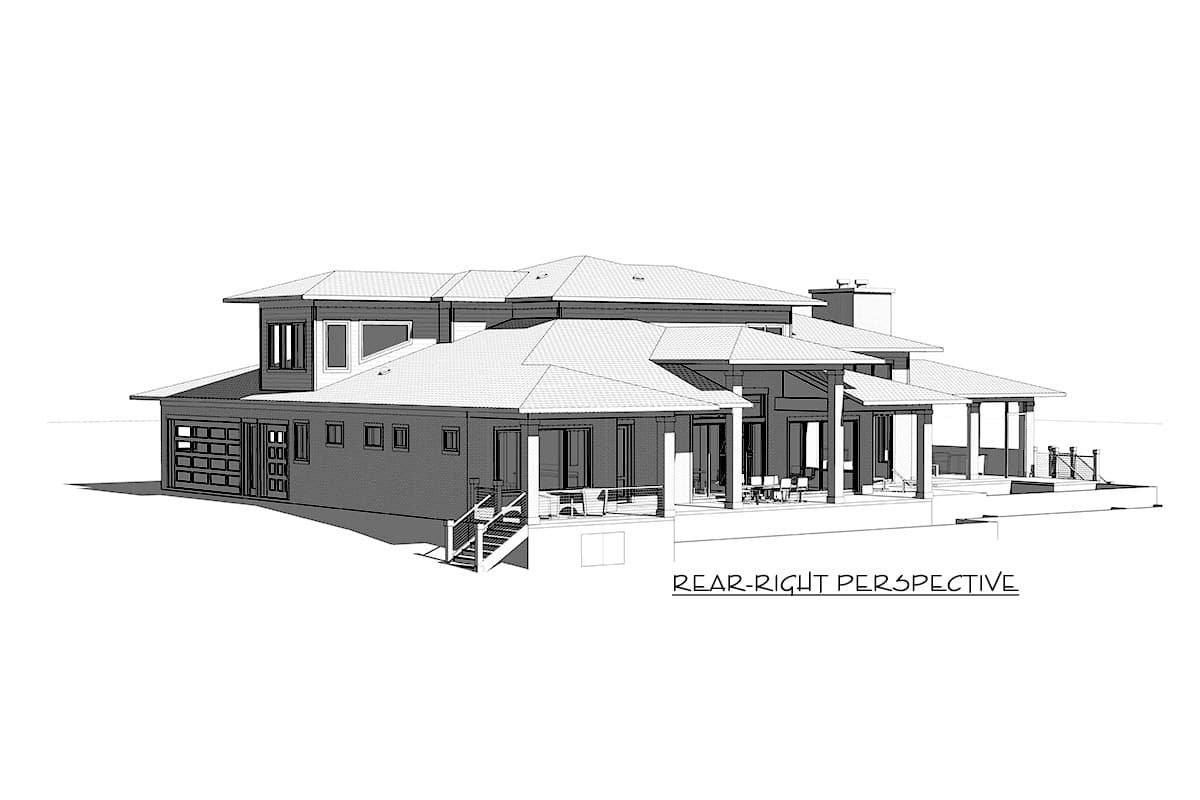

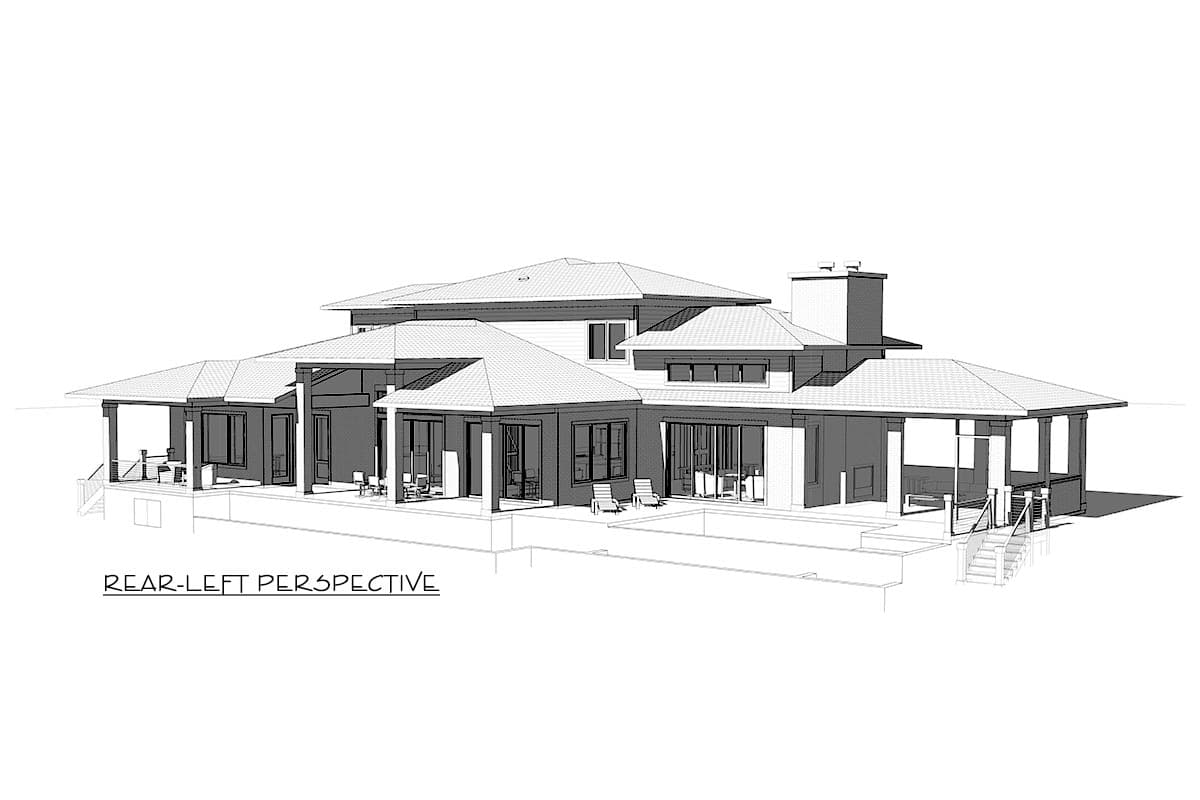

  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
