Plan 710085BTZ
2-Story House Plan with Built-In Work Spaces
Heated S.F.
3,193
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 710085BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710085BTZ

1-800-854-7852

1-262-521-4596

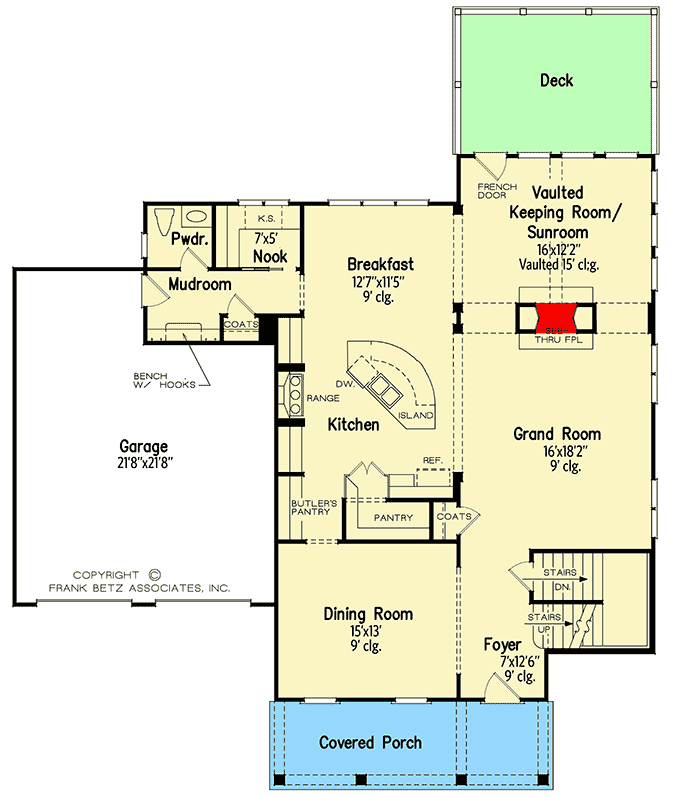

Main Level
floor plan image Main Level

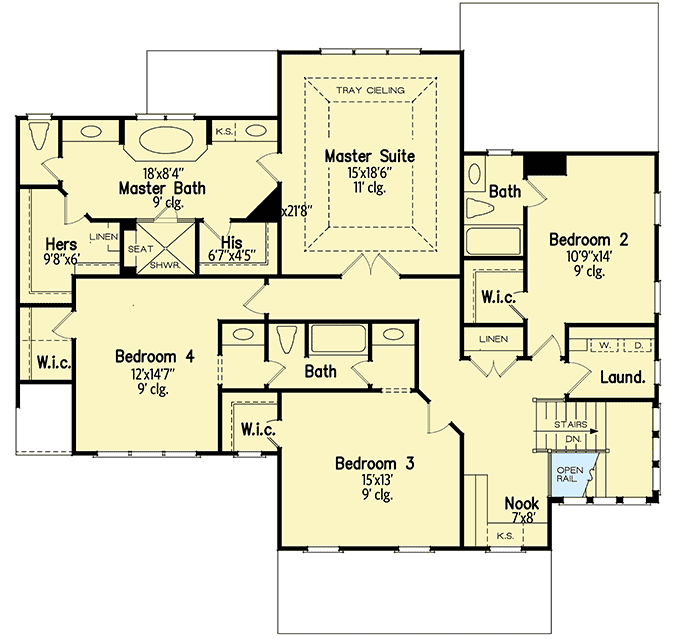

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Gorgeous details add to the appeal of this 2-story home plan. A see-through fireplace separates the grand room from the vaulted keeping room, where light streams in from two walls of windows.
  • The impressive kitchen offers a large snack bar island, a walk-in pantry, and a butler's pantry that passes through to the dining room. Organize the home with the desk nook by the mudroom and powder room that form a functional buffer between the garage and living spaces.
  • Upstairs, find utter relaxation in the huge master bathroom with a garden bath and his and her walk-in closets. All four bedrooms access the handy laundry room and additional work nook up here.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,193 sq. ft.

1st Floor

1,507 sq. ft.

2nd Floor

1,686 sq. ft.

Basement Unfinished

1,507 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 0"

Depth

53' 2"

Max Ridge Height

31' 9"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Jack & Jill Bath

Keeping Room

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,193 sq. ft.

1st Floor

1,507 sq. ft.

2nd Floor

1,686 sq. ft.

Basement Unfinished

1,507 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 0"

Depth

53' 2"

Max Ridge Height

31' 9"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Jack & Jill Bath

Keeping Room

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

Photo Gallery
