Plan 86394HH
2-Story Lake House Plan with 5 Bedrooms and 2-Story Central Core
Heated S.F.
3,850
Beds
5
Baths
5
Stories
2
Cars
2
Floor Plan

Plan 86394HH

Main Level
slide image 0

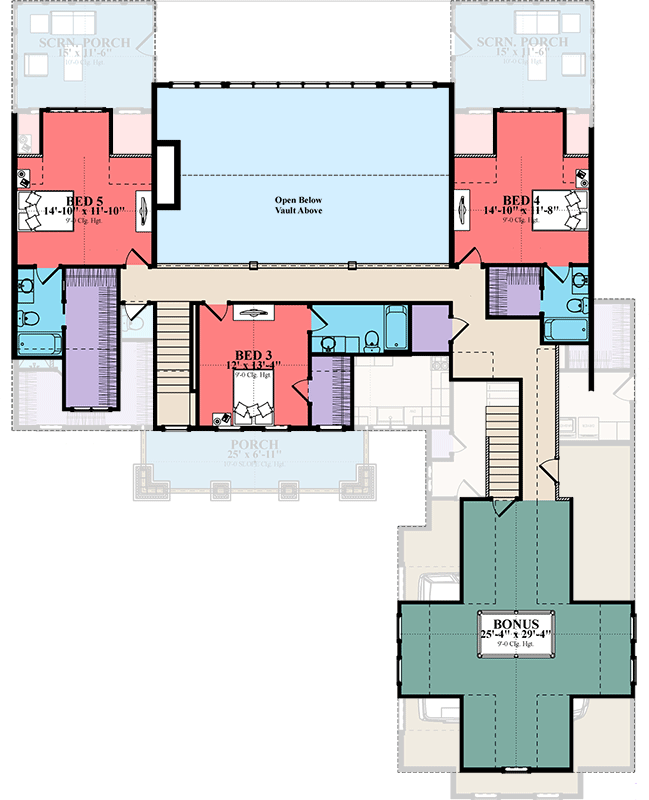

2nd Floor
slide image 1

Plan 86394HH

1-800-854-7852

1-262-521-4596

Main Level

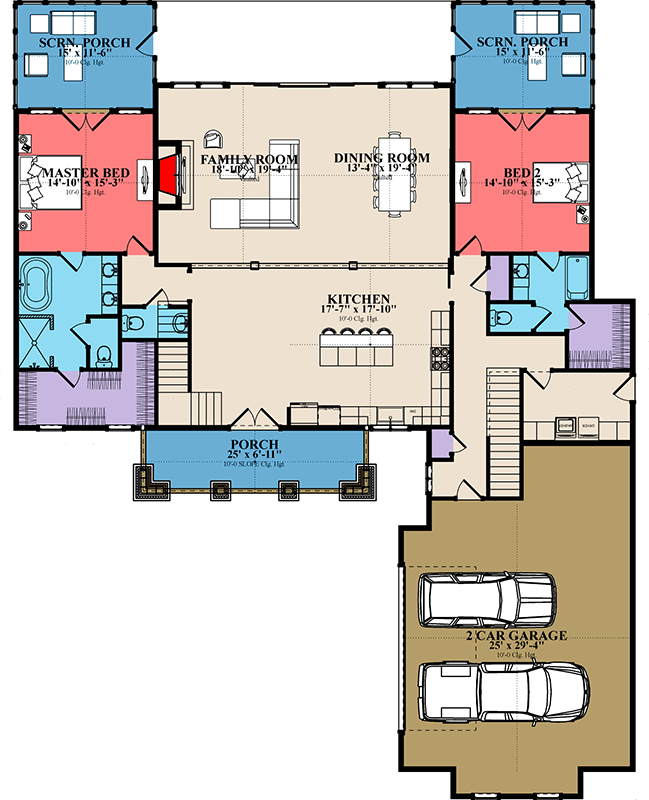

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Enjoy life by the lake in this 5-bed house plan with screen porches on either side of the open deck in back. Inside, the home gives you 4,734 square feet of heated living with a 2-story center core that merges the kitchen with the family and dining rooms.
  • The idyllic kitchen is home to an island with seating for four at the eating bar, and plenty of workspace for meal prep.
  • Two bedrooms sit on either side of the main level, each with a private screened porch, bathroom, and walk-in closet.
  • Upstairs, the hallway overlooks the living space below and leads to three bedroom suites.
  • A 517 square foot bonus space above the 2-car garage lends a flexible space for all to enjoy.
  • Related Plan: Angle the garage with house plan 86379HH.
