Plan 666248RAF
2-Story Modern House Plan with Open Concept Upstairs - 3262 Sq Ft
Heated S.F.
3,262
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 666248RAF

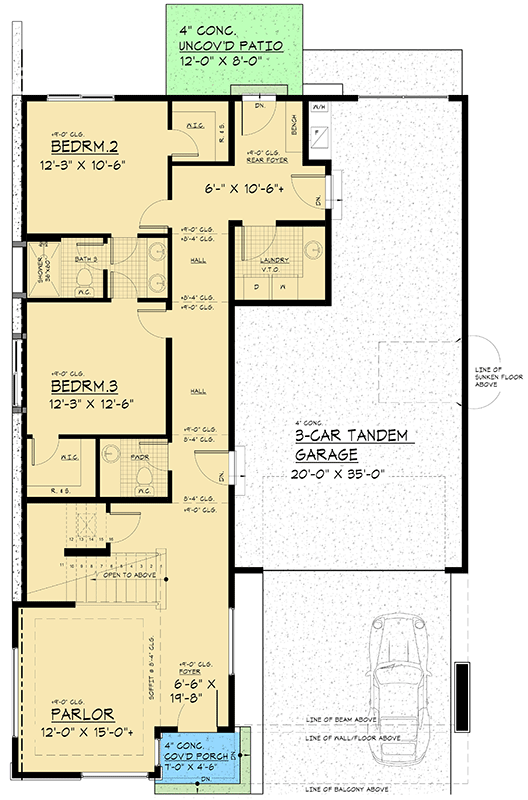

Main Level
slide image 0

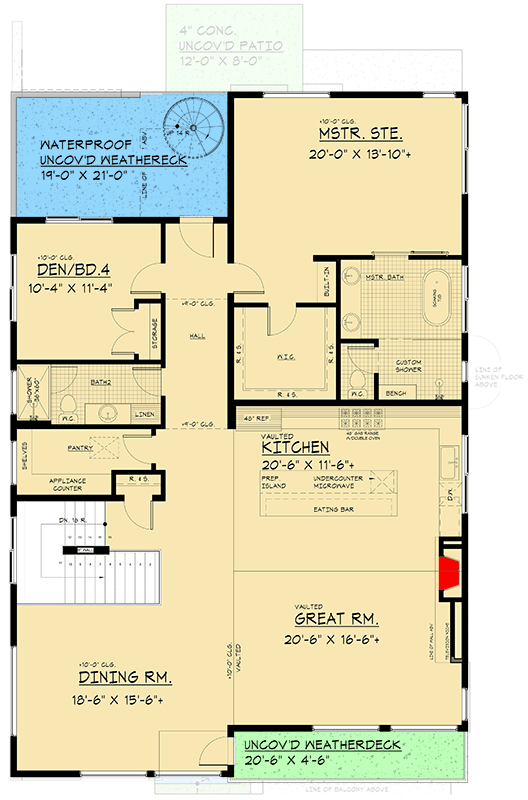

2nd Floor
slide image 1

Plan 666248RAF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story modern house plan gives you 3 beds (plus a flex room that could be a fourth bed or a den/home office), 3.5 baths and 3262 square feet of heated living.
  • The second floor is where the entertaining takes place, with an open concept layout giving you a great room and kitchen under a vaulted ceiling and open to the dining room.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,262 sq. ft.

1st Floor

1,249 sq. ft.

2nd Floor

2,013 sq. ft.

Porch, Front

32 sq. ft.

Deck

302 sq. ft.

Covered Patio

96 sq. ft.

Rooftop Deck

588 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

60' 0"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

715 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Butler Walk-in Pantry

Den

Flex Room

Laundry - Main Level

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Two Story Great Room
