Plan 77658FB

Exclusive

2-Story Mountain Craftsman House Plan with Movie and Game Room - 8704 Sq Ft

Heated S.F.

8,704

Beds

5

Baths

5.5

Stories

2

Cars

3

Floor Plan

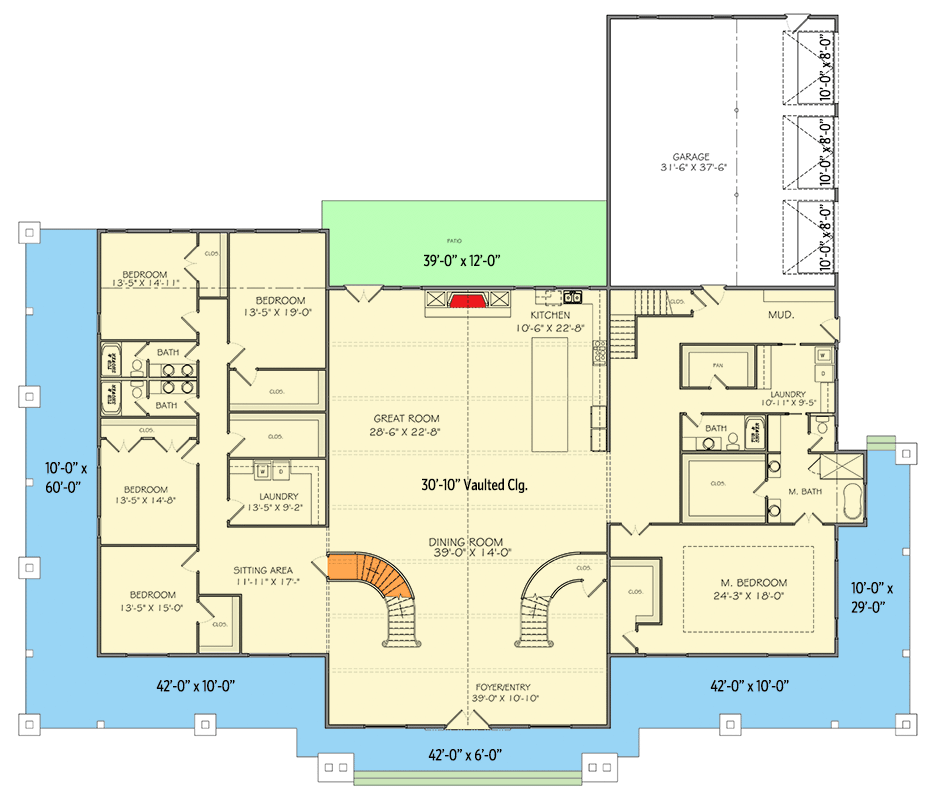

Main Level

floor plan image Main Level

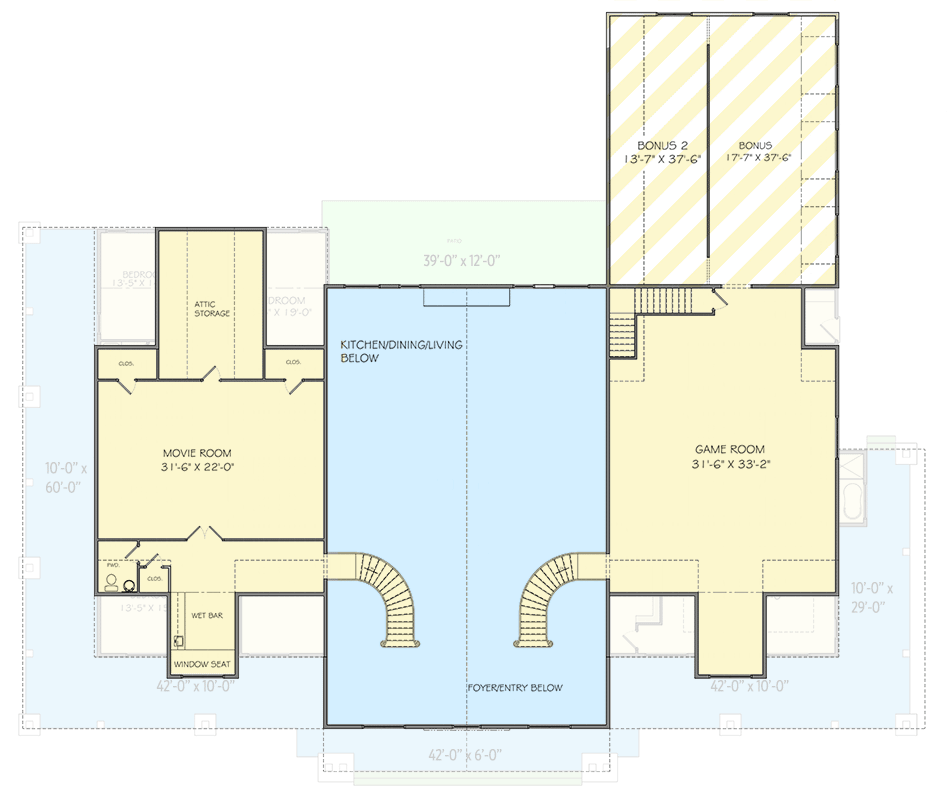

2nd Floor

floor plan image 2nd Floor

Plan Details

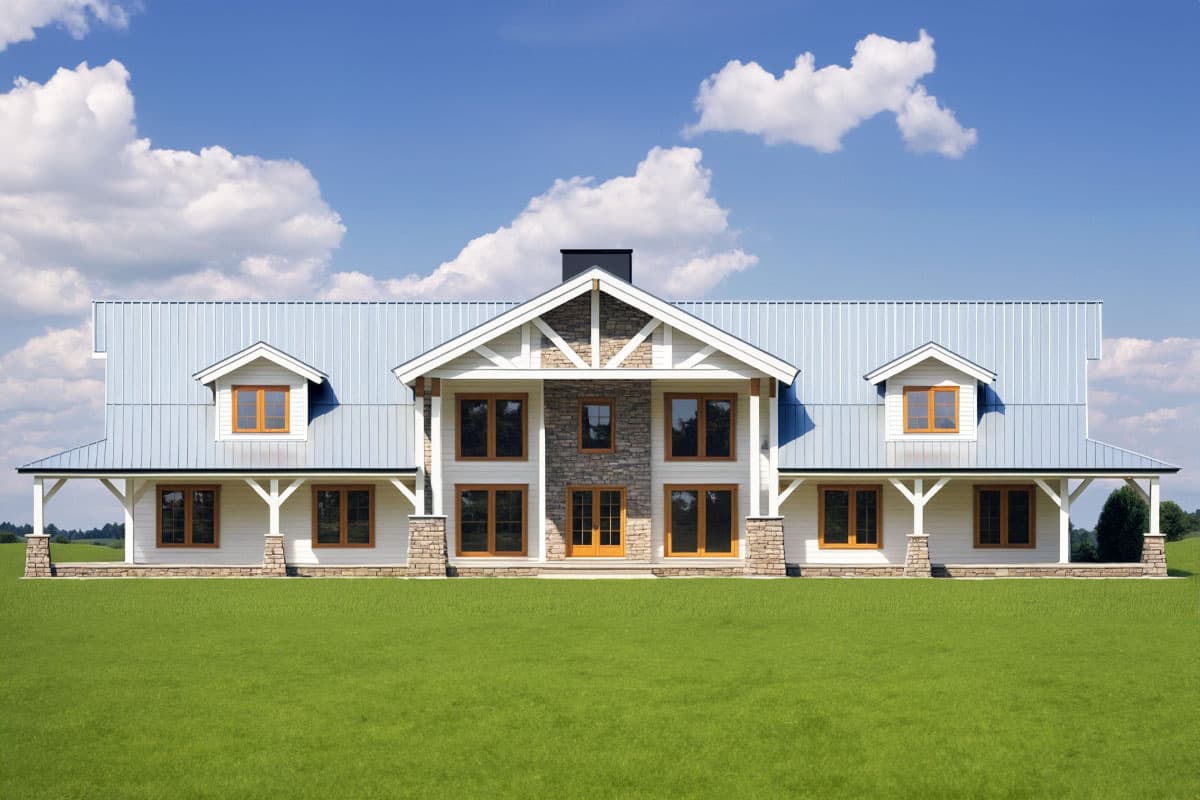

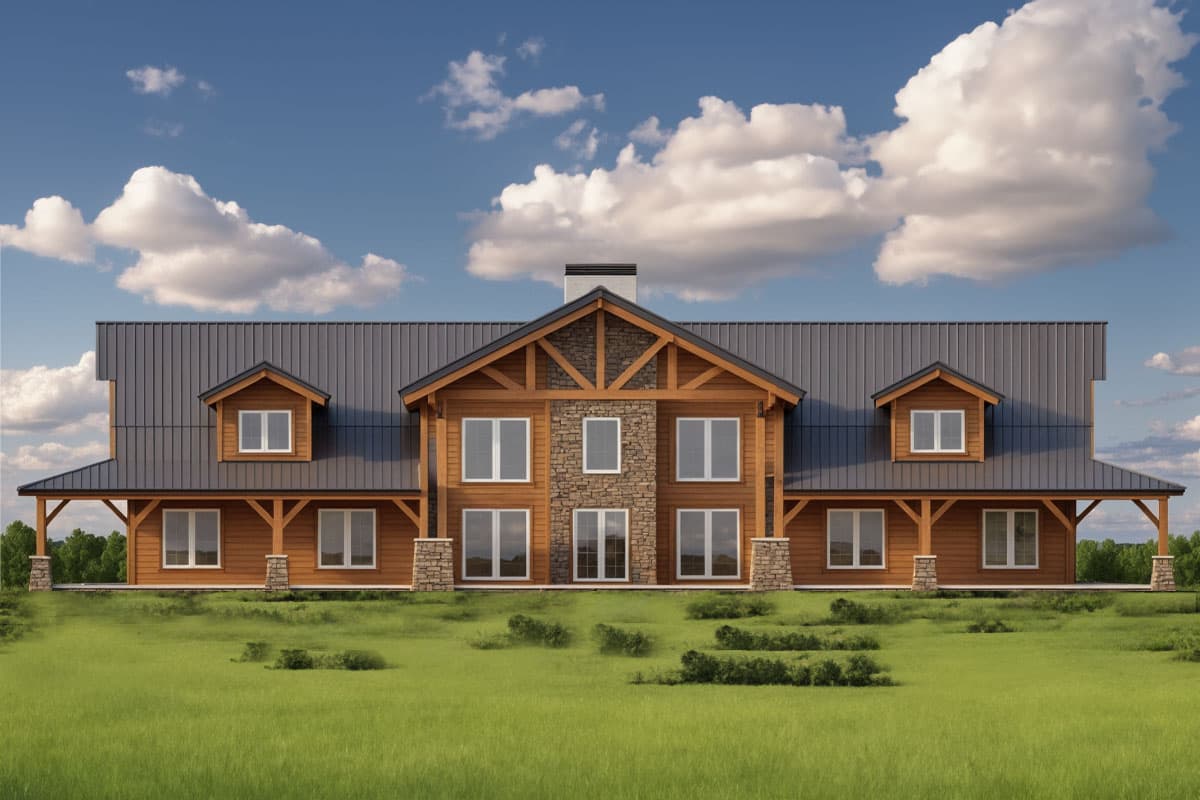

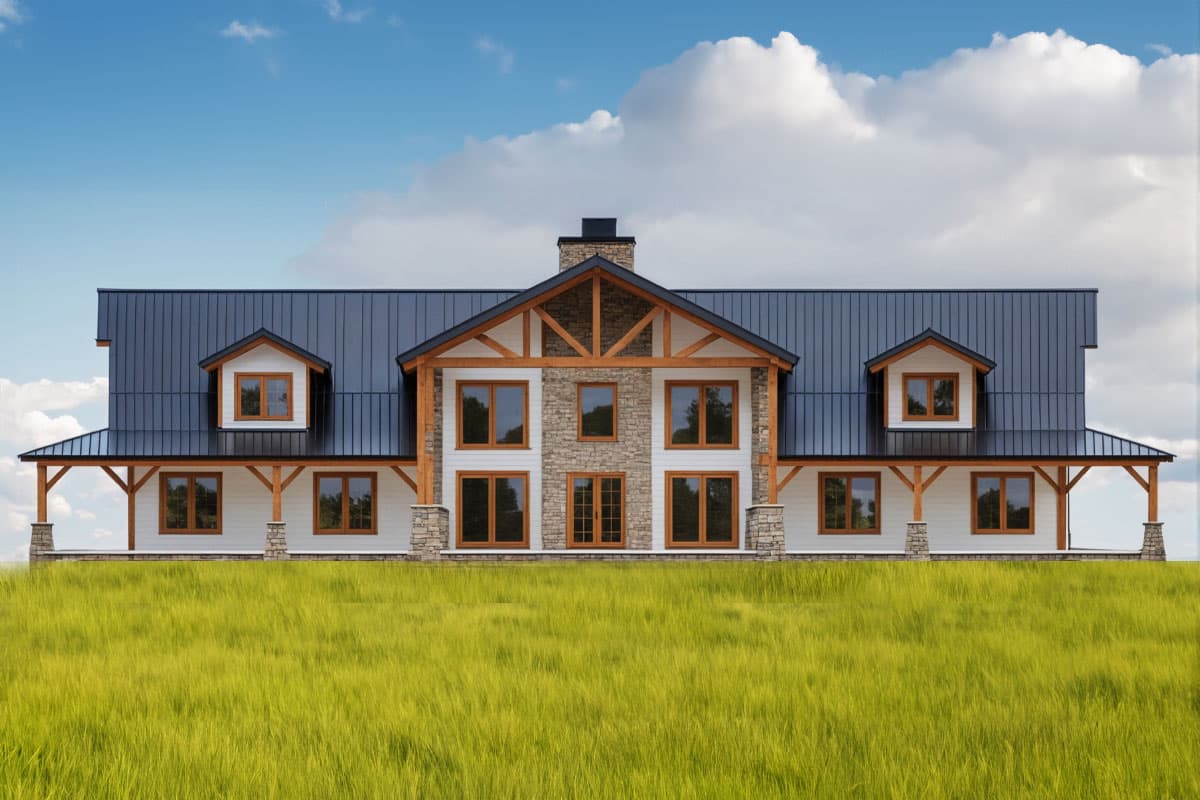

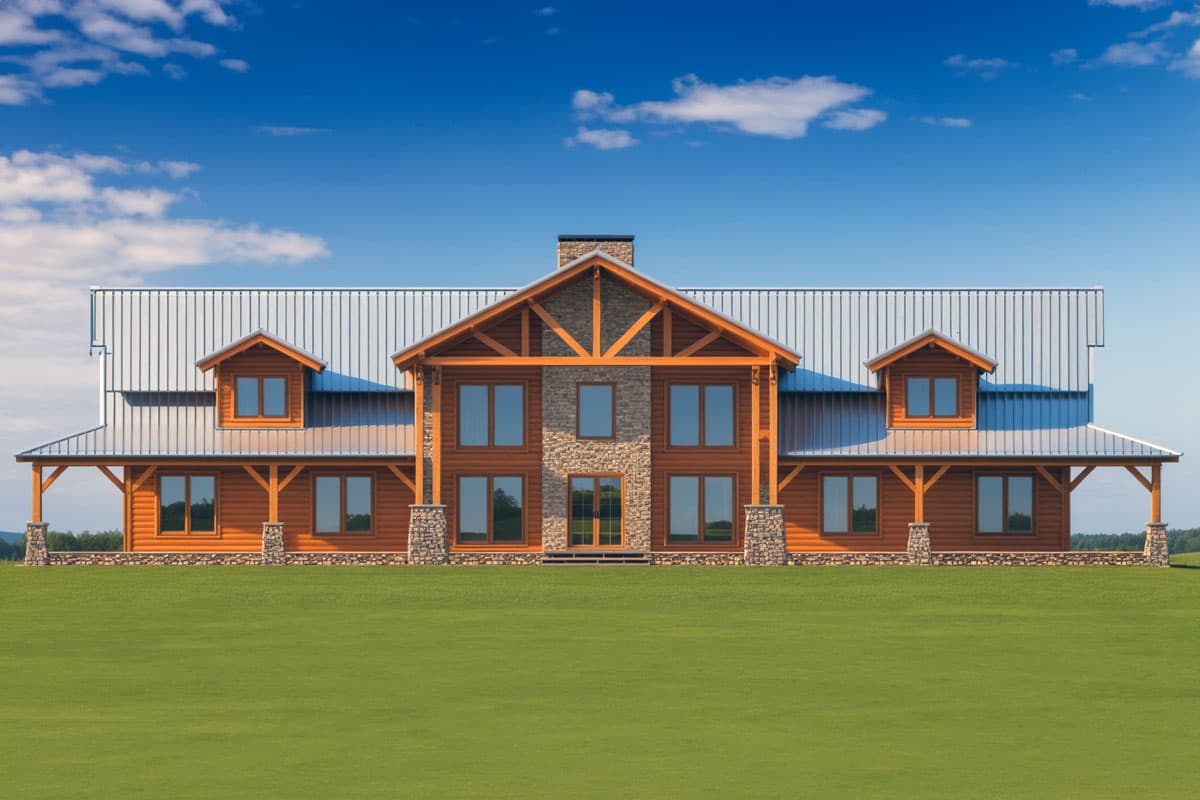

This charming home features a wrap-around porch that leads into a foyer with dual staircases. The dining room, great room, and kitchen are located in a spacious area with a 30'-10" vaulted ceiling.
On the right side of the home, you’ll find the master suite with dual closets and an ensuite with access to the laundry room.
The left side houses four bedrooms, three and a half bathrooms, and a second laundry room.
Upstairs, enjoy a movie room with a wet bar, a large game room, and additional bonus space.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover page
Foundation plan
Floor Plan

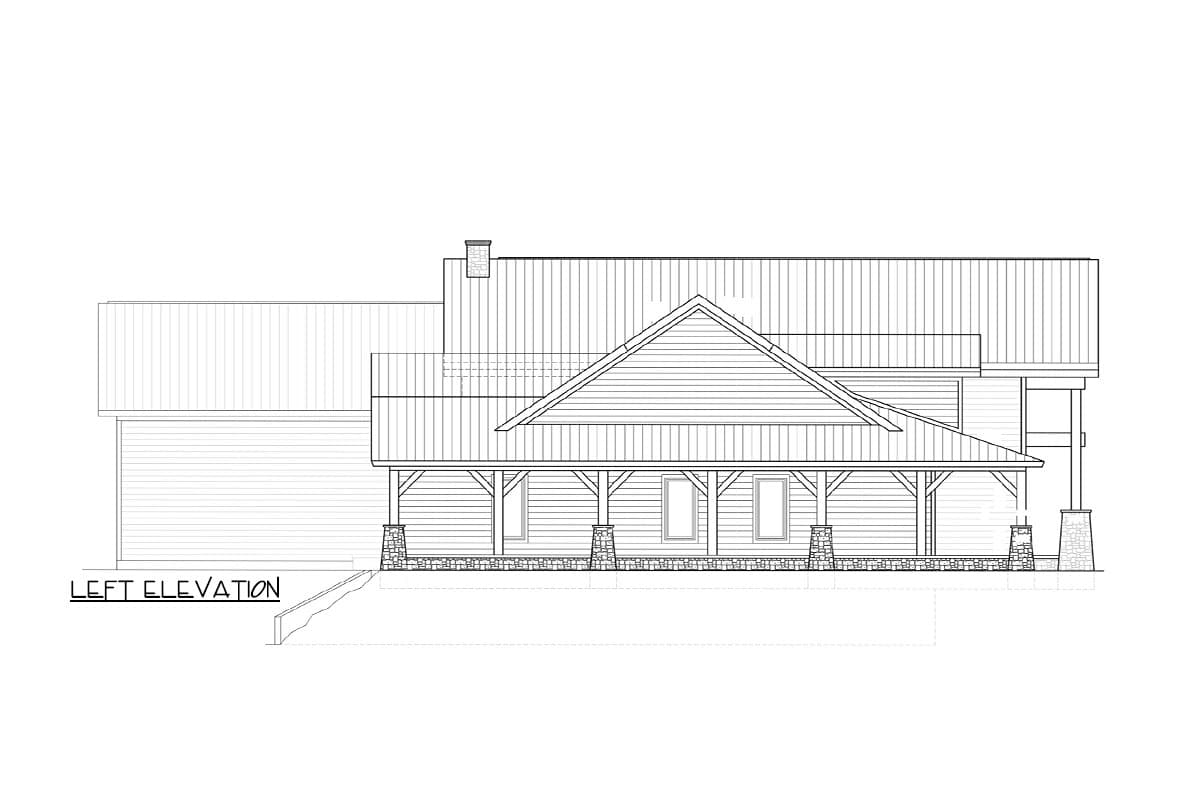

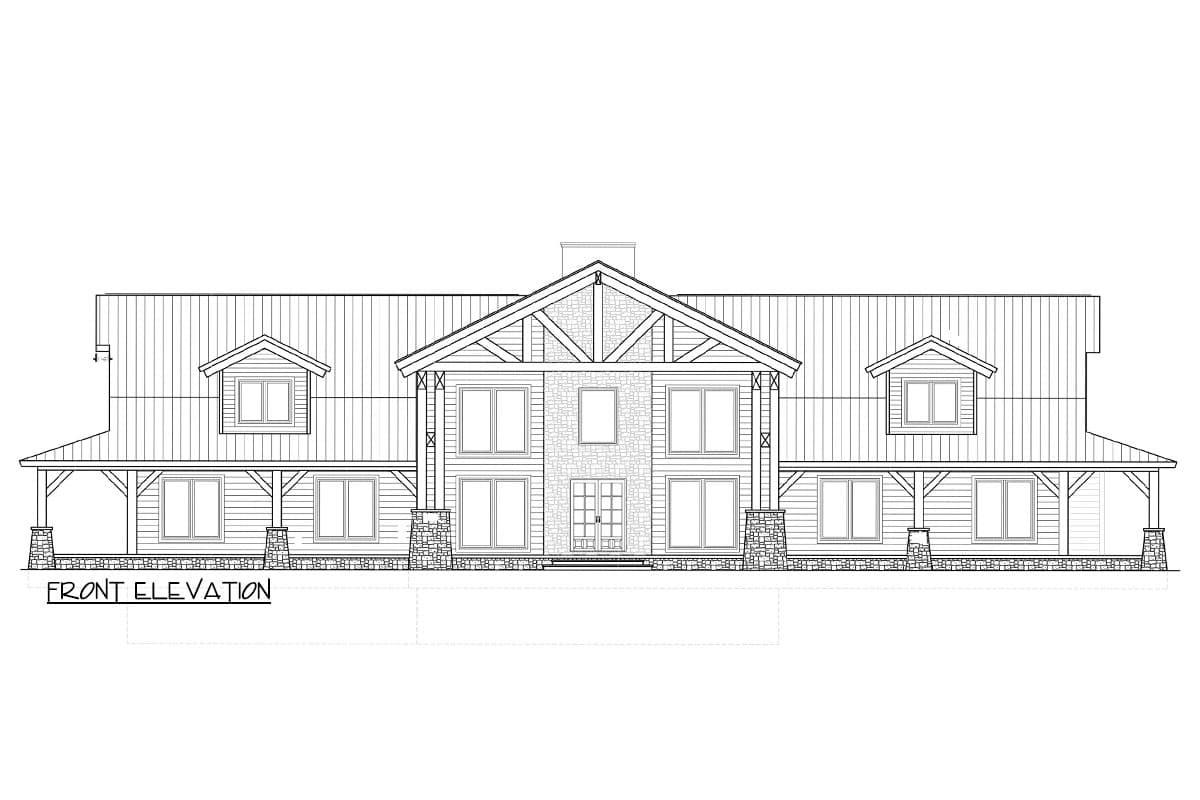

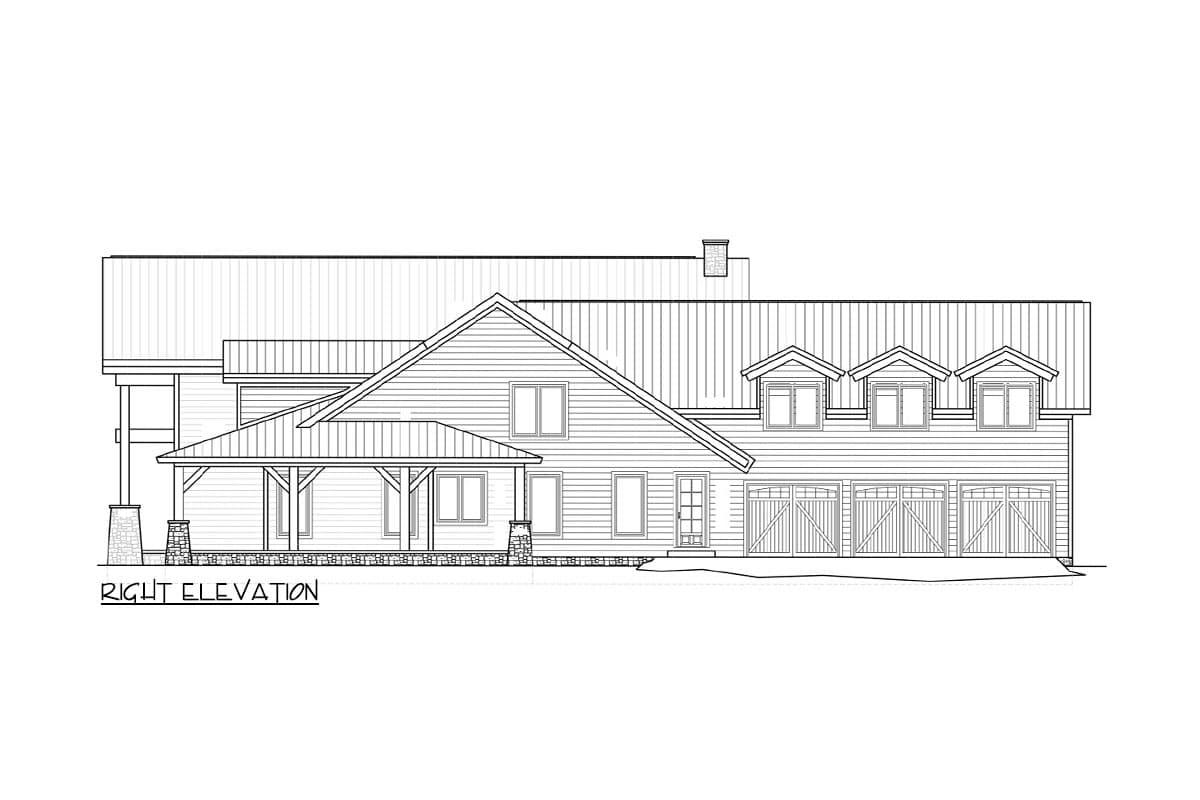

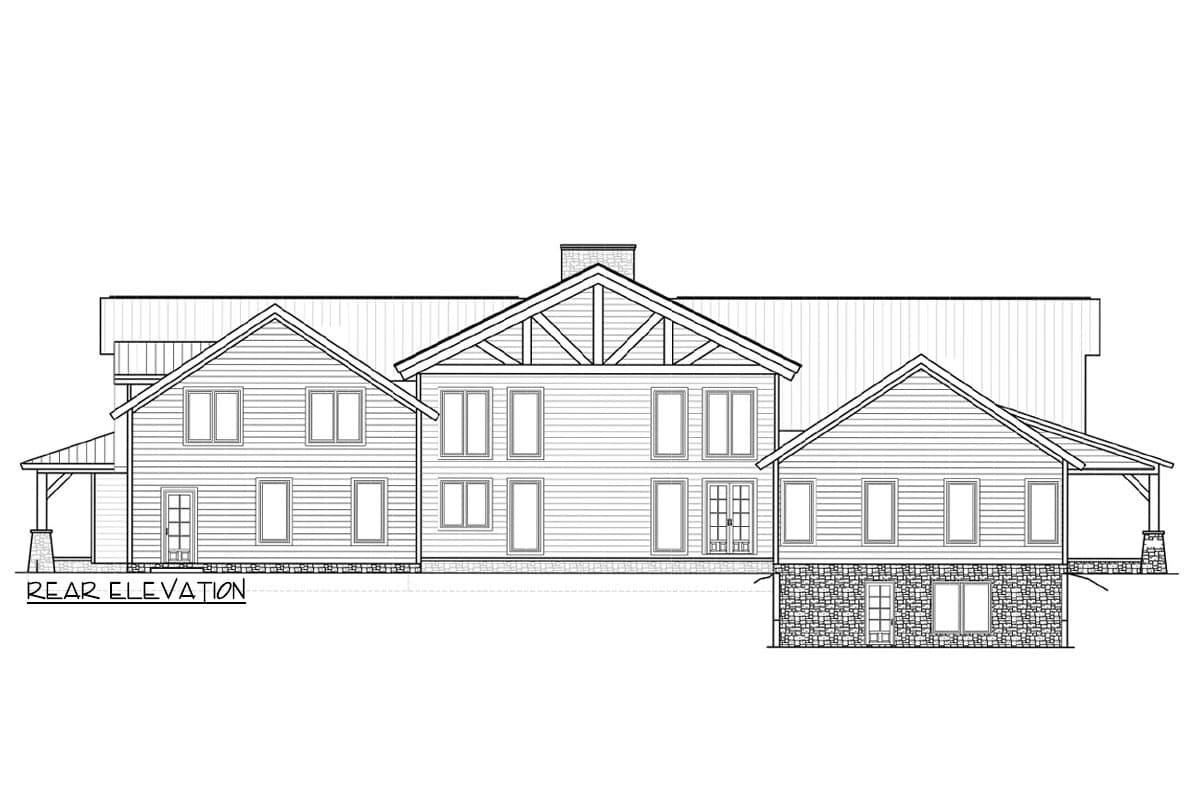

Elevations
Section View
Construction details
Electrical Layout
Roof Plan (if needed)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

8,704 sq. ft.

1st Floor

6,111 sq. ft.

2nd Floor

2,593 sq. ft.

Basement Unfinished

4,215 sq. ft.

Bonus

1,237 sq. ft.

Porch, Combined

1,925 sq. ft.

Storage

328 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

126' 0"

Depth

107' 6"

Max Ridge Height

34' 2"

Garage

Type

Attached

Area

1235 sq. ft.

Count

3 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Multiple Stairs

Two Story Great Room

Wrap Around Porch

Plan Collections
