Plan 801159PM
2-Story Northwest Contemporary House Plan with 3-Car Garage - 3316 Sq Ft
Heated S.F.
3,316
Beds
4
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 801159PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 801159PM

1-800-854-7852

1-262-521-4596

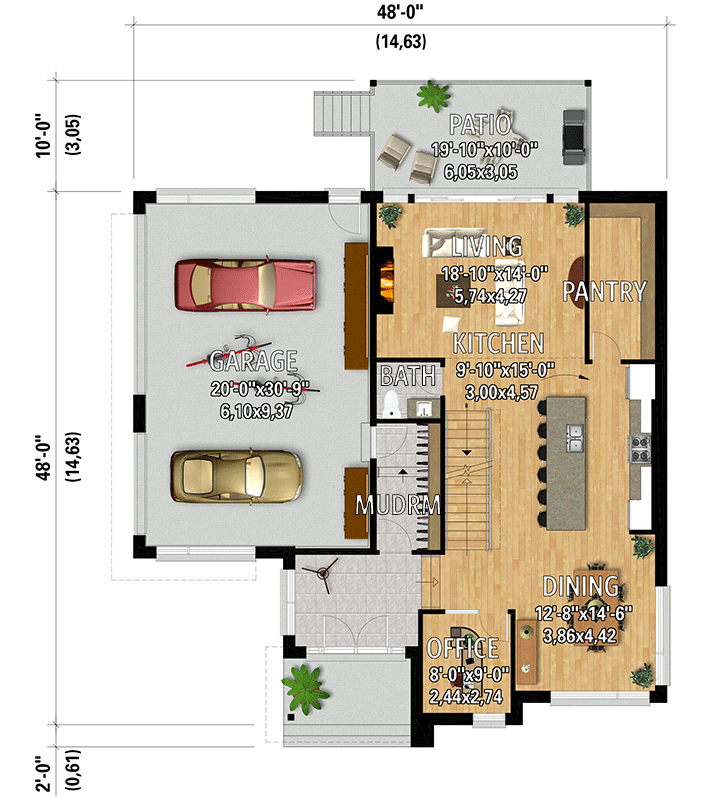

Main Level
floor plan image Main Level

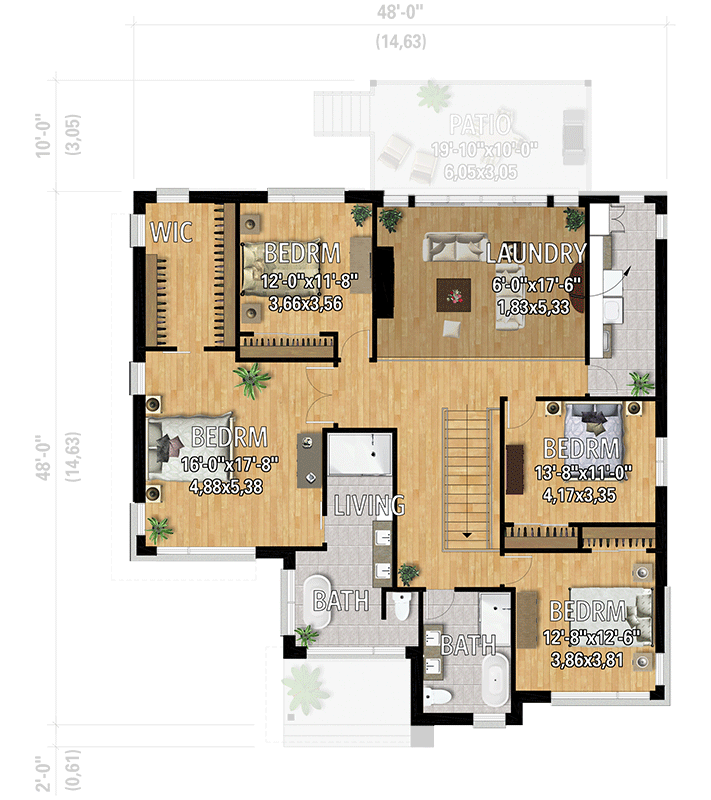

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story Northwest Contemporary house plan gives you 4 beds, 2.5 baths and 3,316 square feet of heated living and a 3-car 697 square foot garage.
  • The ground floor is all open-concept. The kitchen has a six-person island and a large walk-in pantry and a 2-story living room. A pocket office is just off the entry.
  • All 4 bedrooms are upstairs including the master bedroom with a walk-in closet and a private bathroom. There is also a laundry room with cabinets and a counter.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

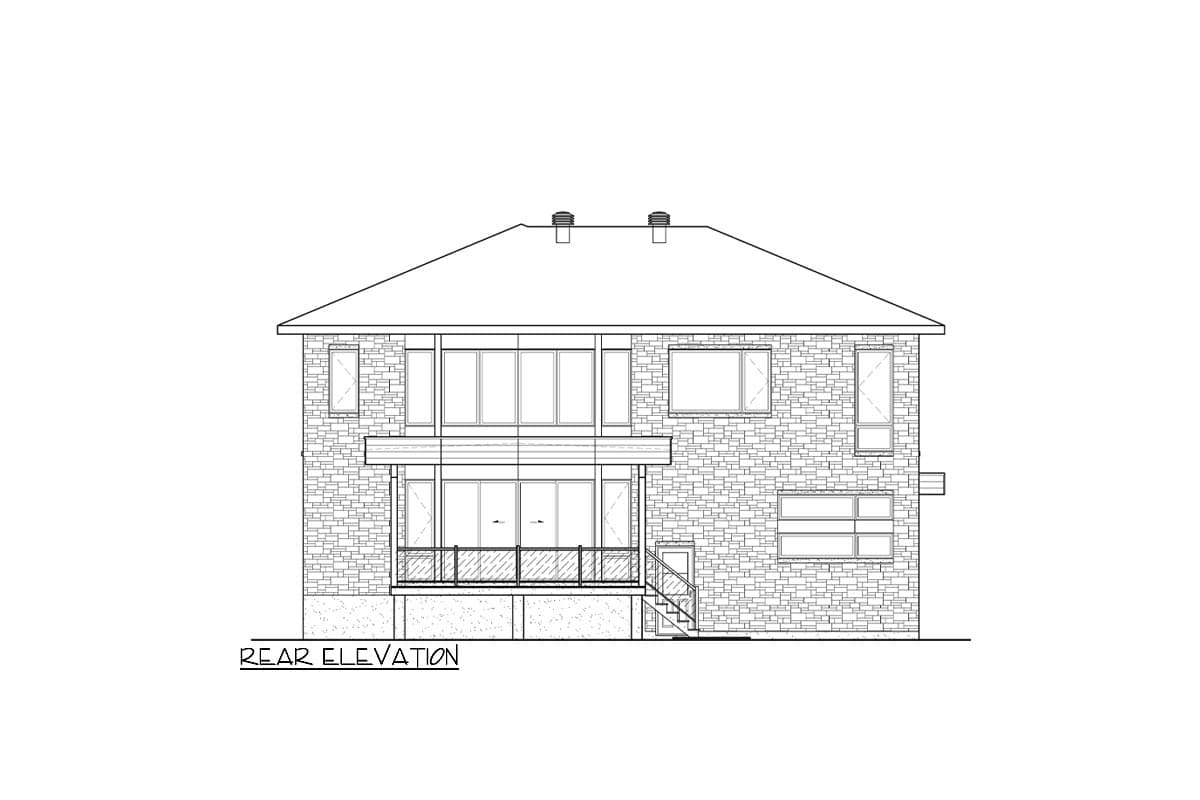

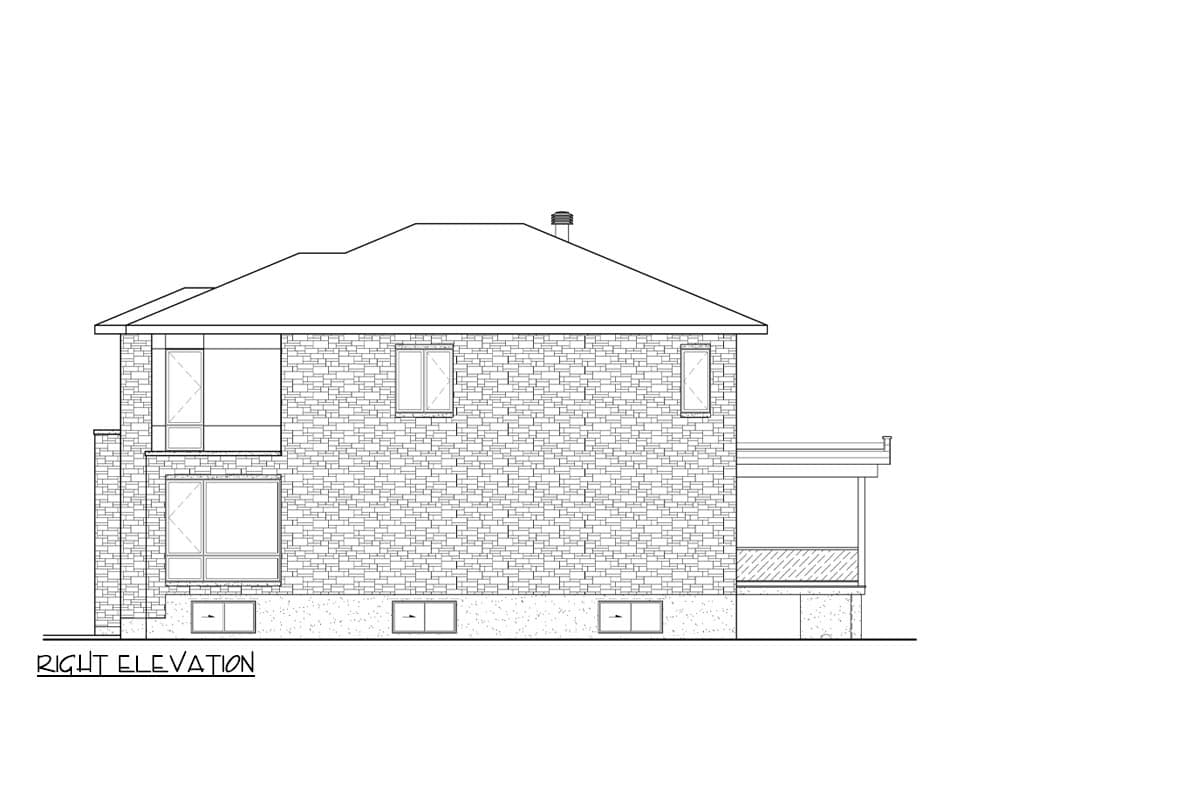

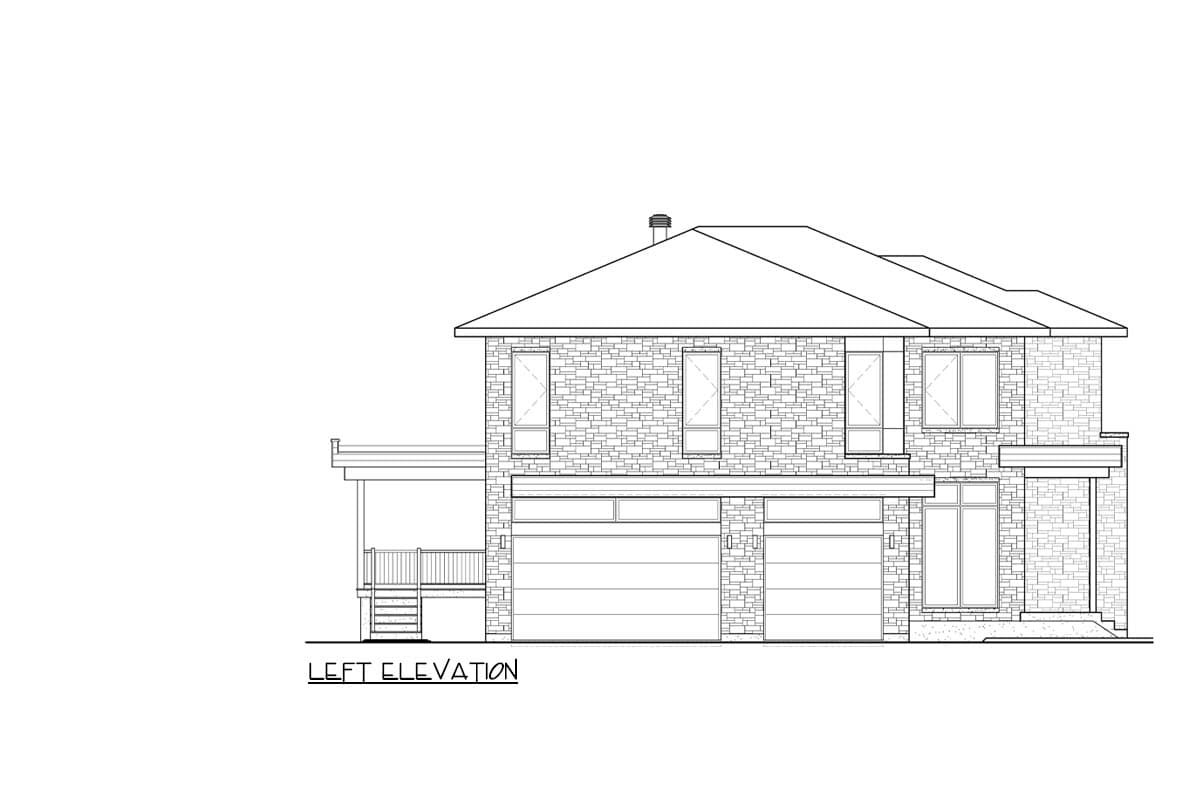

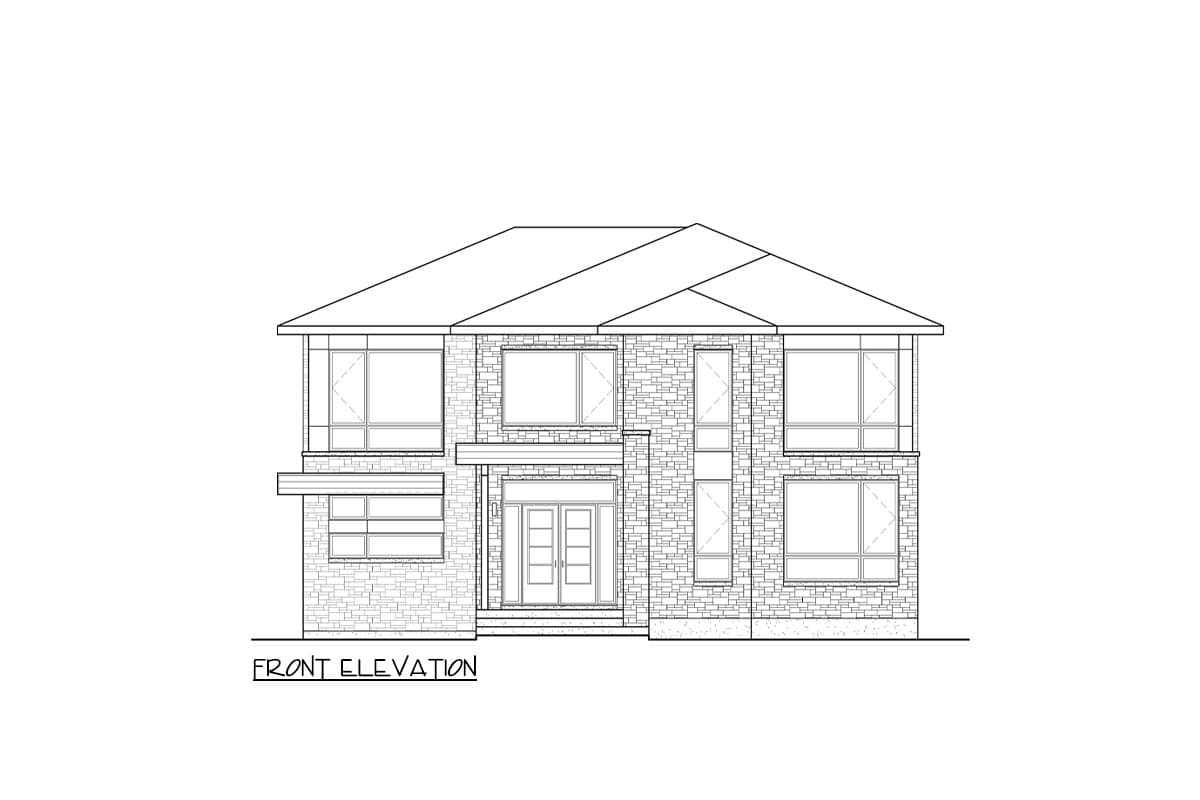

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,316 sq. ft.

1st Floor

1,309 sq. ft.

2nd Floor

2,007 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

32' 7"

Garage

Type

Attached

Area

697 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Contemporary

Northwest

Special Features

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,316 sq. ft.

1st Floor

1,309 sq. ft.

2nd Floor

2,007 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

32' 7"

Garage

Type

Attached

Area

697 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Contemporary

Northwest

Special Features

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans
