Plan 260020RVC
2-Story Transitional Craftsman Plan with 3rd-Floor Unfinished Attic
Heated S.F.
3,520
Beds
4 - 5
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 260020RVC

Main Level
slide image 0
2nd Floor
slide image 1
Attic
slide image 2

Plan 260020RVC

1-800-854-7852

1-262-521-4596

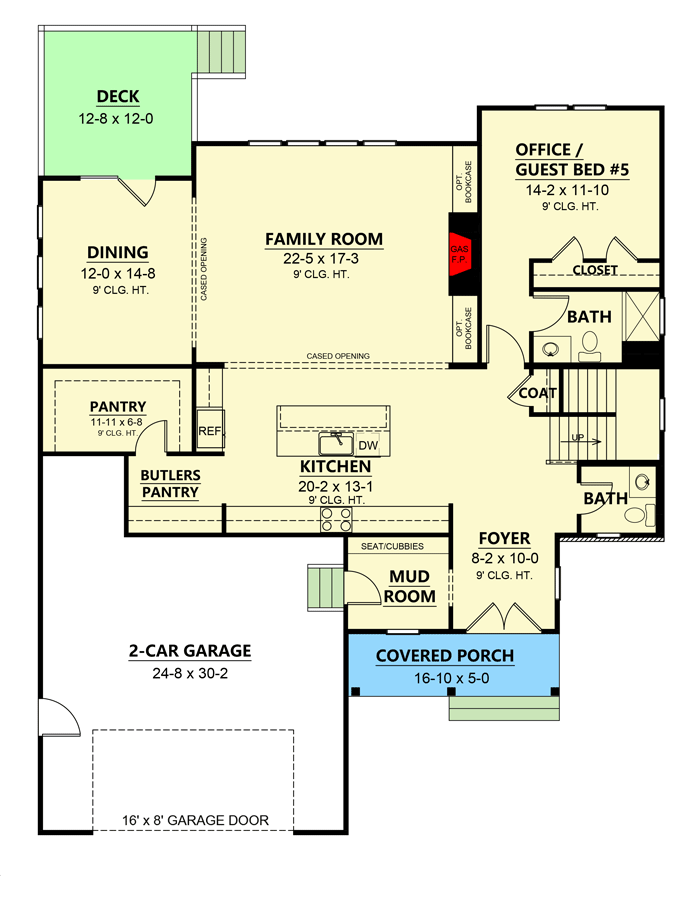

Main Level
floor plan image Main Level

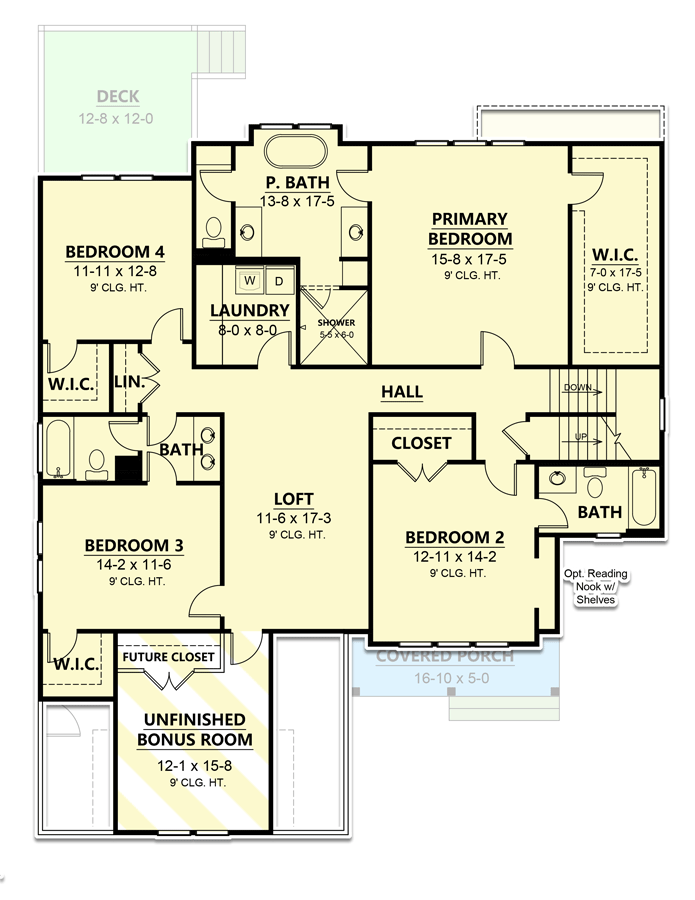

2nd Floor
floor plan image 2nd Floor

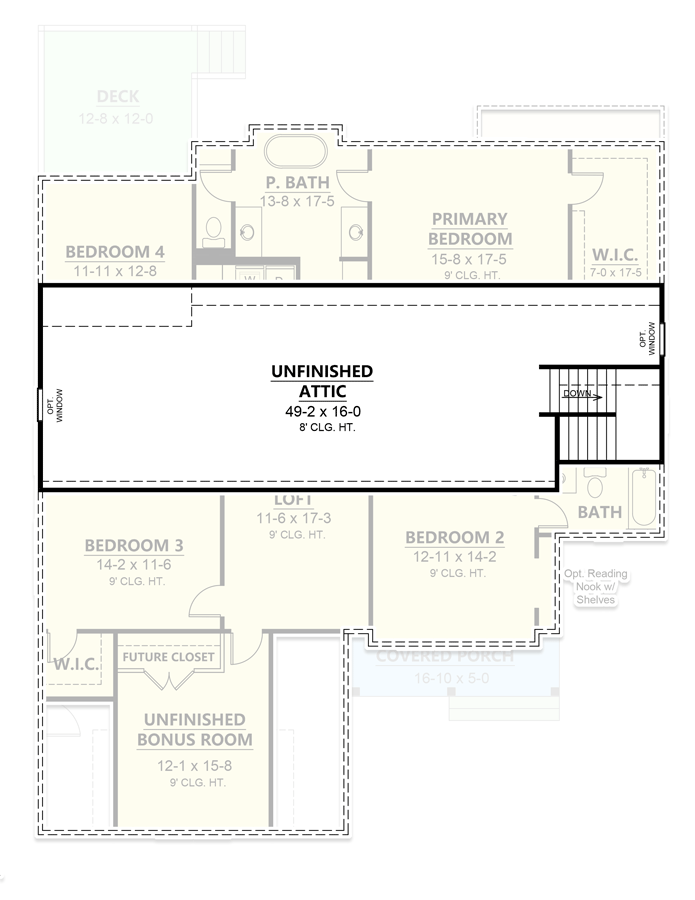

Attic
floor plan image Attic
Plan Details
  • Steeply-pitched gables add to the stunning curb appeal offered by this two-story Transitional Craftsman home plan, which delivers 5 bedrooms, 4.5 baths, and an unfinished attic on the third floor.
  • The mudroom is framed by the double garage and formal foyer, creating a single storage spot for shoes and outdoor gear. Around the corner, discover an open kitchen and family room with a cased opening leading to the dining room.
  • The kitchen flows into a butler's pantry for additional prep space, while another walk-in pantry maximizes storage for oversized appliances.
  • The home office on the main level can double as a guest bedroom with its closet and full bathroom.
  • Four bedrooms and a laundry room are located upstairs, including the primary bedroom that is filled with natural lighting and features a walk-in closet and 5-fixture bathroom. A 201 sq ft bonus room above the garage lends flexibility to the second level.
What's Included
  • Title sheet with general notes
  • Elevations
  • Foundation plan
  • Detailed floor plans
  • Roof framing plan
  • Cross sections & details
  • Interior trim details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,520 sq. ft.

1st Floor

1,630 sq. ft.

2nd Floor

1,890 sq. ft.

3rd Floor

805 sq. ft.

Bonus

201 sq. ft.

Porch, Front

84 sq. ft.

Deck

151 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 10"

Depth

58' 0"

Max Ridge Height

38' 4"

Garage

Type

Attached

Area

627 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

16 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Traditional

Transitional

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Plan Collections

Home Office
