Plan 350047GH
2250 Square Foot Mountain or Lake House Plan with Drive-Under Garage
Heated S.F.
2,250
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 350047GH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 350047GH

1-800-854-7852

1-262-521-4596

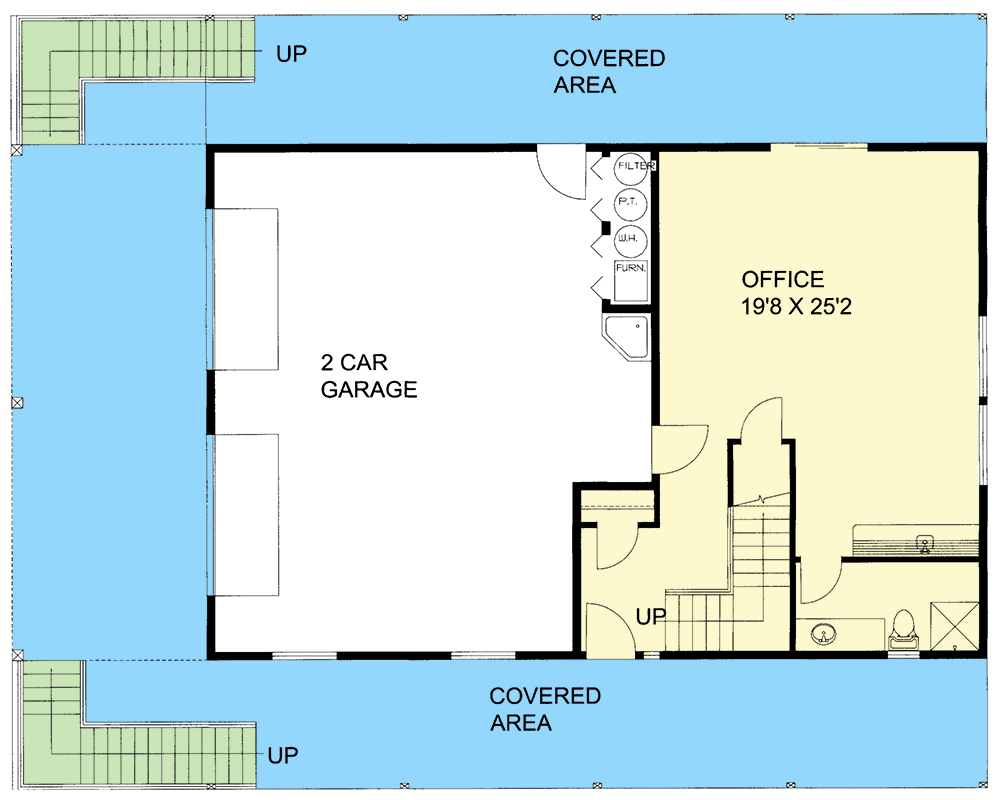

Main Level
floor plan image Main Level

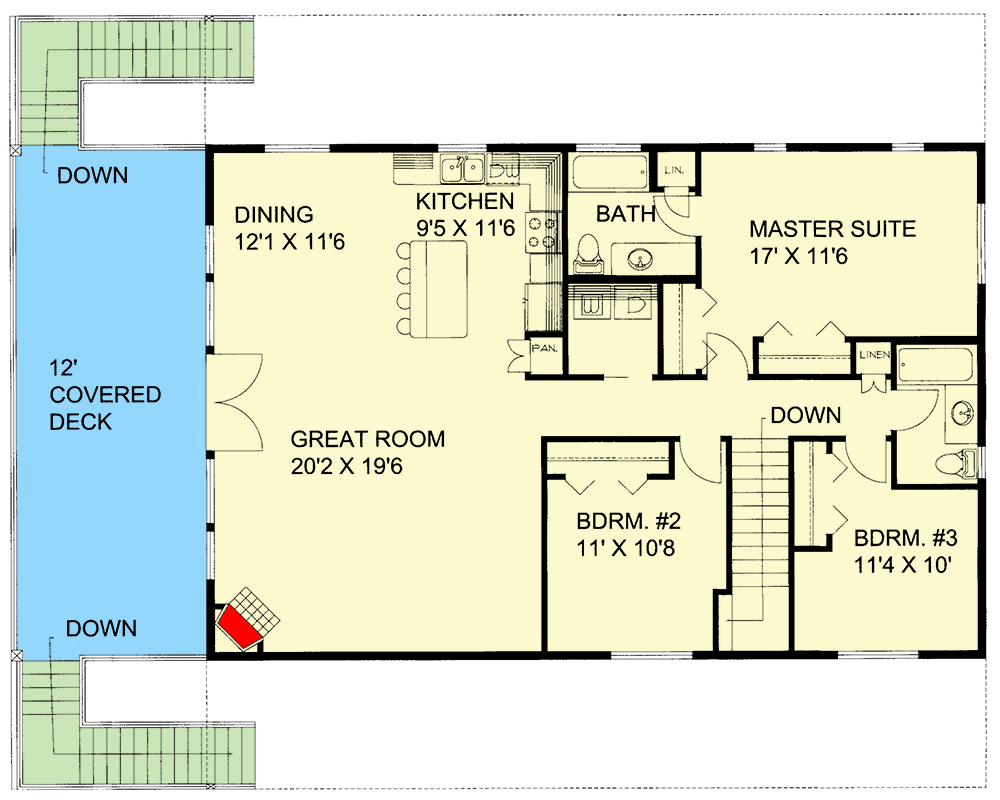

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With room for 2 cars plus a home office with full bath on the ground floor, this mountain or lake house plan packs a lot into its rectangular space.
  • On the second floor main living level, the great room, dining area and kitchen are all open to each other, creating a spacious feeling. Double doors lead out to the 12' covered deck.
  • All three bedrooms are located in the back with the master suite having its own private bath and two closets and Beds 2 and 3 share a hall bath.
  • Related Plan: Get a smaller version with house plan 35245GH (1,901 sq. ft.).
What's Included

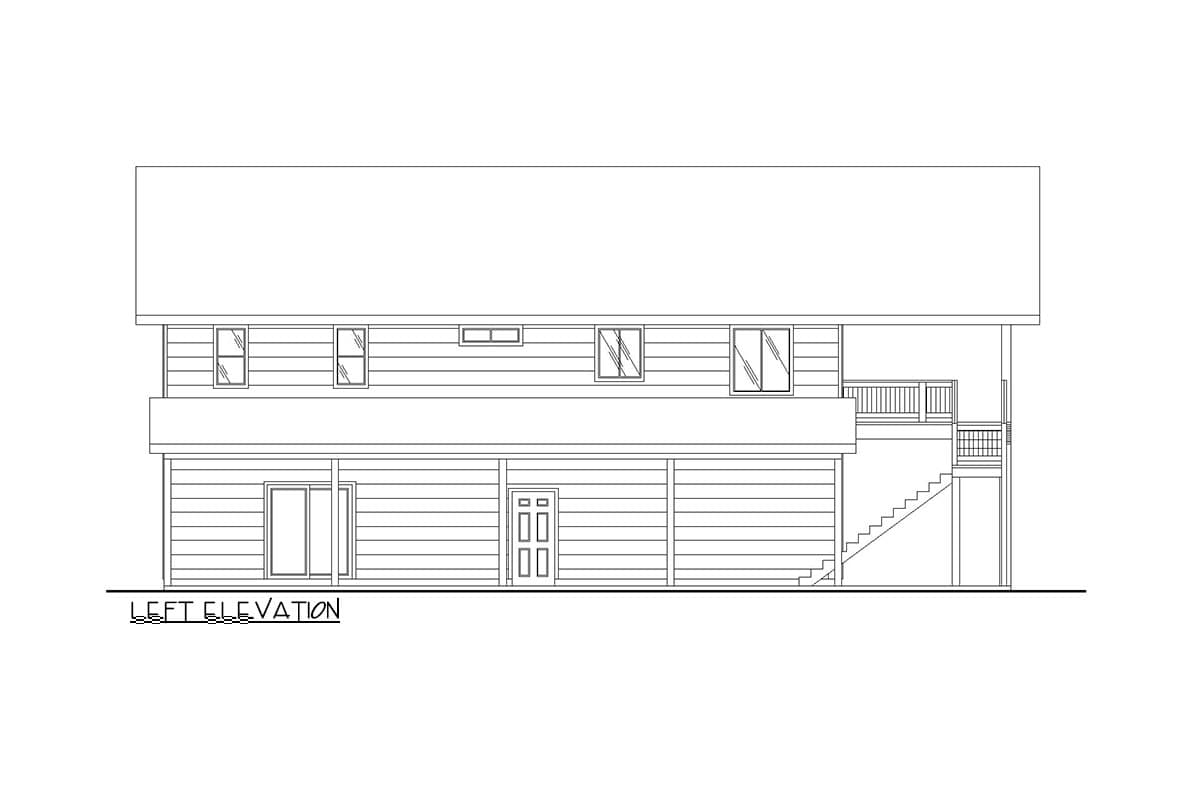

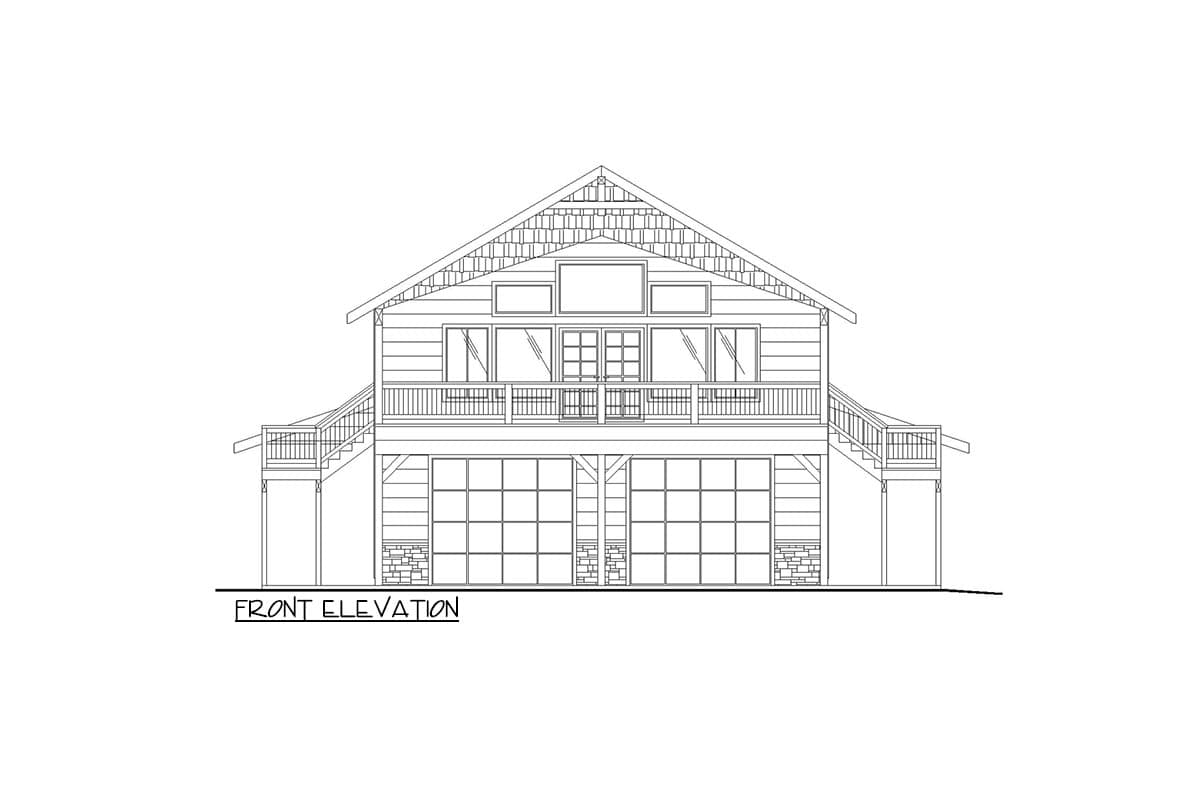

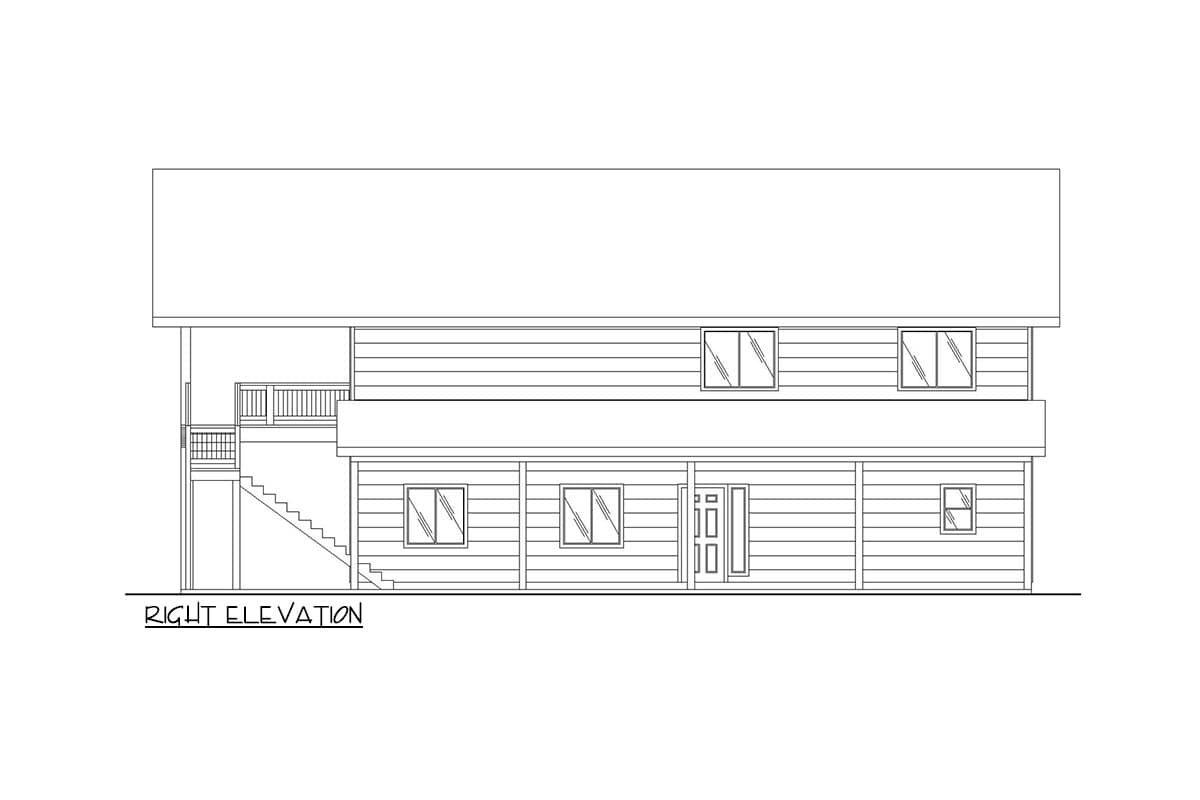

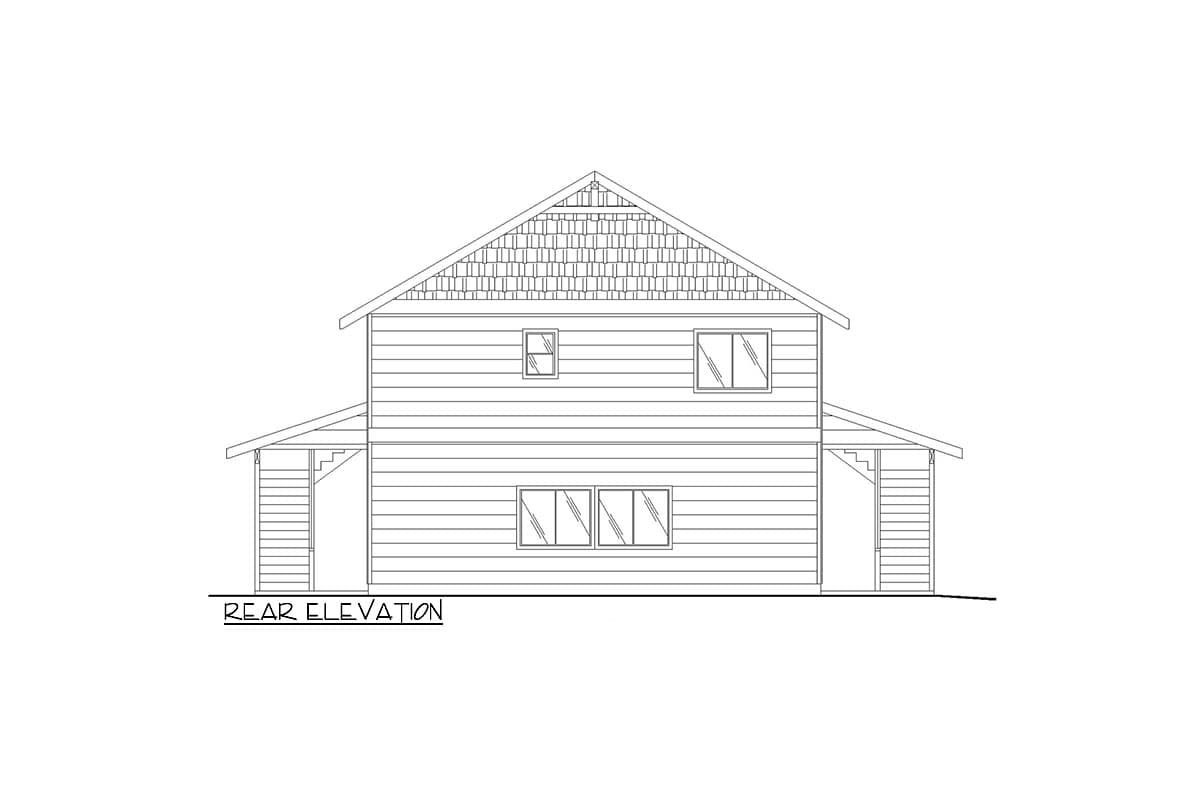

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

Lower Level

714 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

48' 0"

Max Ridge Height

30' 1"

Garage

Type

Attached, Drive Under

Area

821 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Lake House

Mountain

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Wet Bar

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

Lower Level

714 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

48' 0"

Max Ridge Height

30' 1"

Garage

Type

Attached, Drive Under

Area

821 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Lake House

Mountain

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Wet Bar

Plan Collections

Lake House Plans
