Plan 35574GH
2500 Square Foot 4-Bed House Plan with 3-Car Split Garage
Heated S.F.
2,530
Beds
4
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 35574GH

Main Level
slide image 0

Plan 35574GH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 2,530 square foot one-story house plan gives you 4 beds, 2.5 baths and a 3-car split garage with 1,200 square feet of parking.

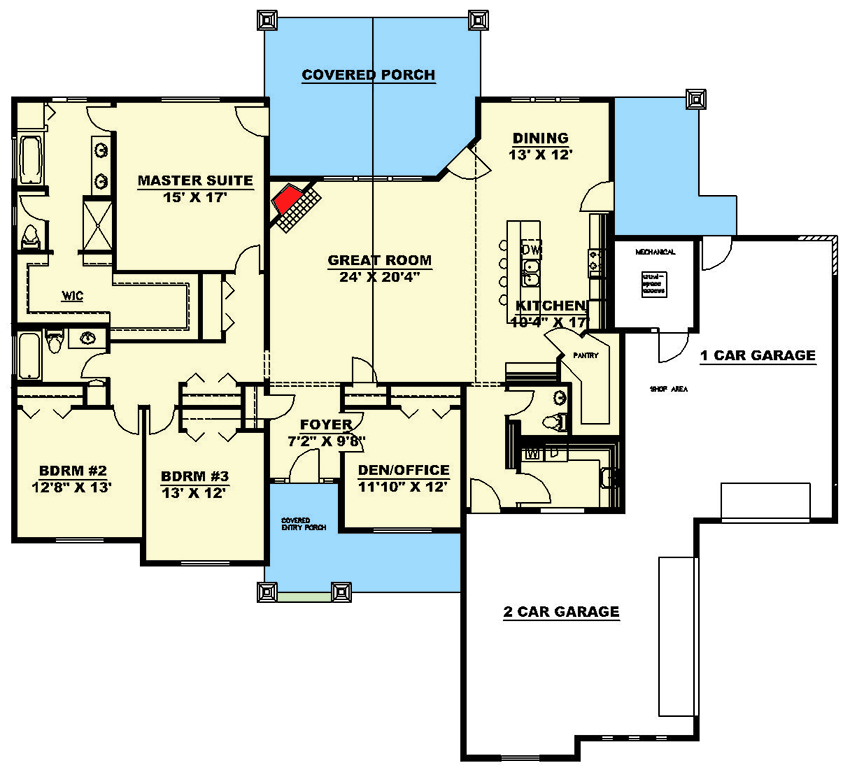

  • A vaulted great room with corner fireplace is the centerpiece of the home and can be seen from the foyer as well as the kitchen and dining room. Windows look out across the vaulted porch and a door gets you to the outside.
  • A private home office sits behind a pair of French doors in the foyer and makes a great place for your work-from-home life.
  • Bedrooms are clustered on the left. The master suite enjoys access to the porch in back.
What's Included

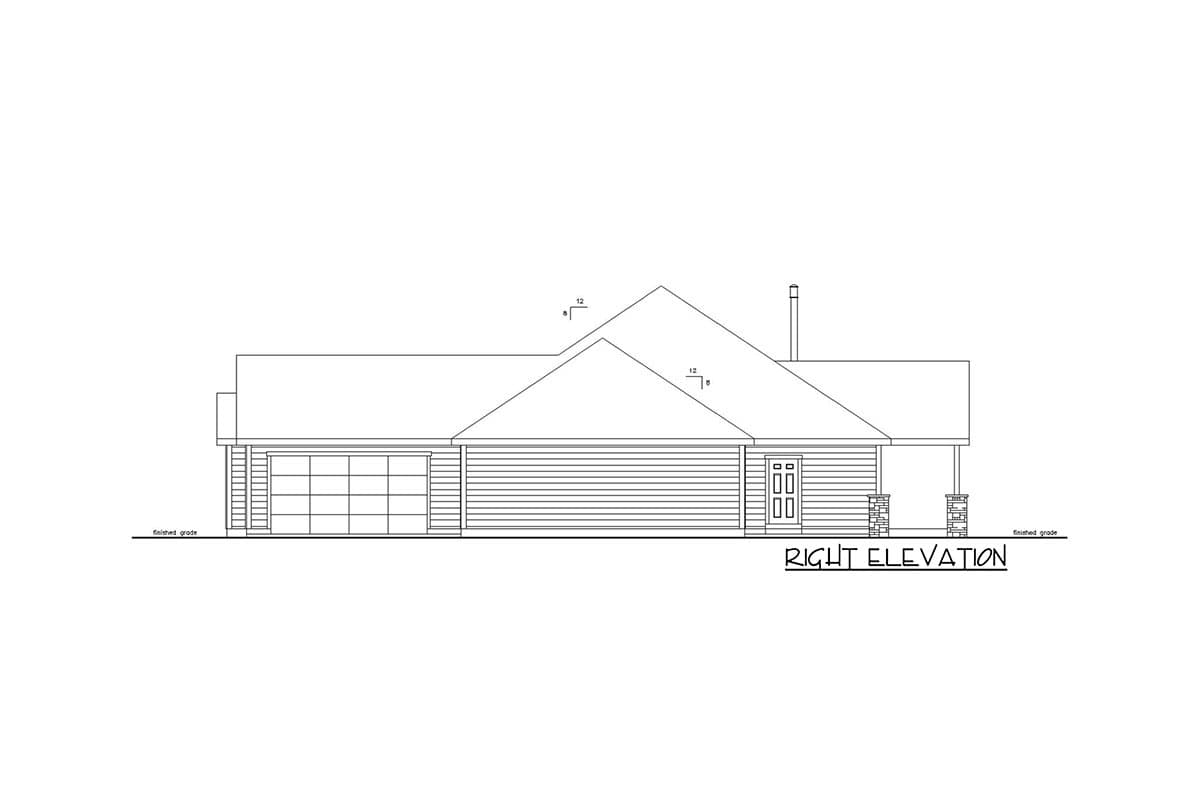

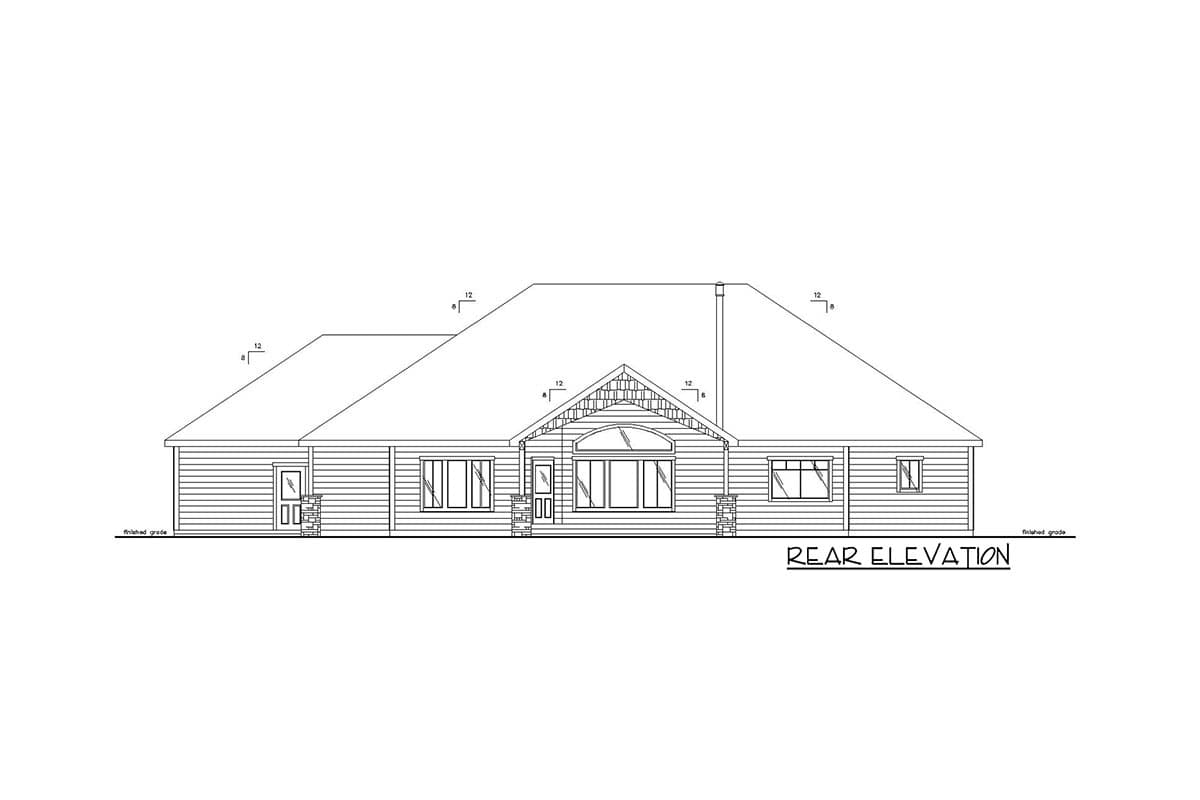

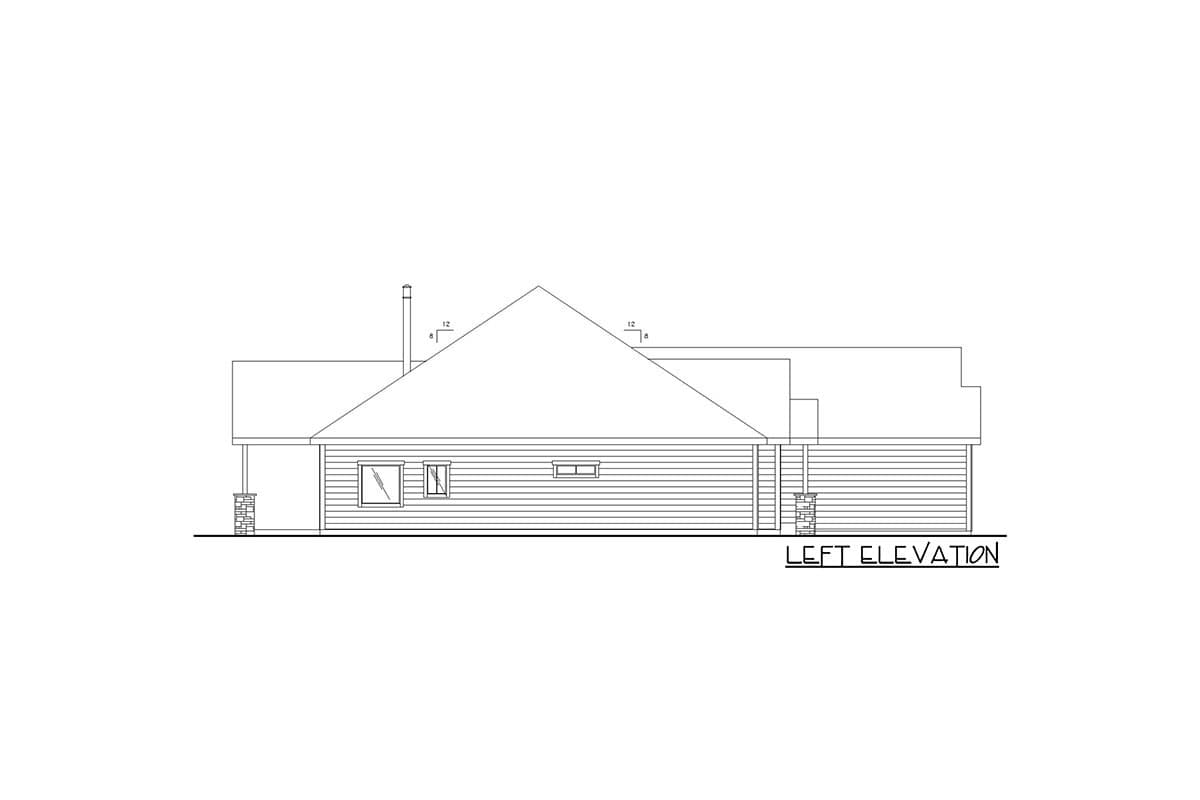

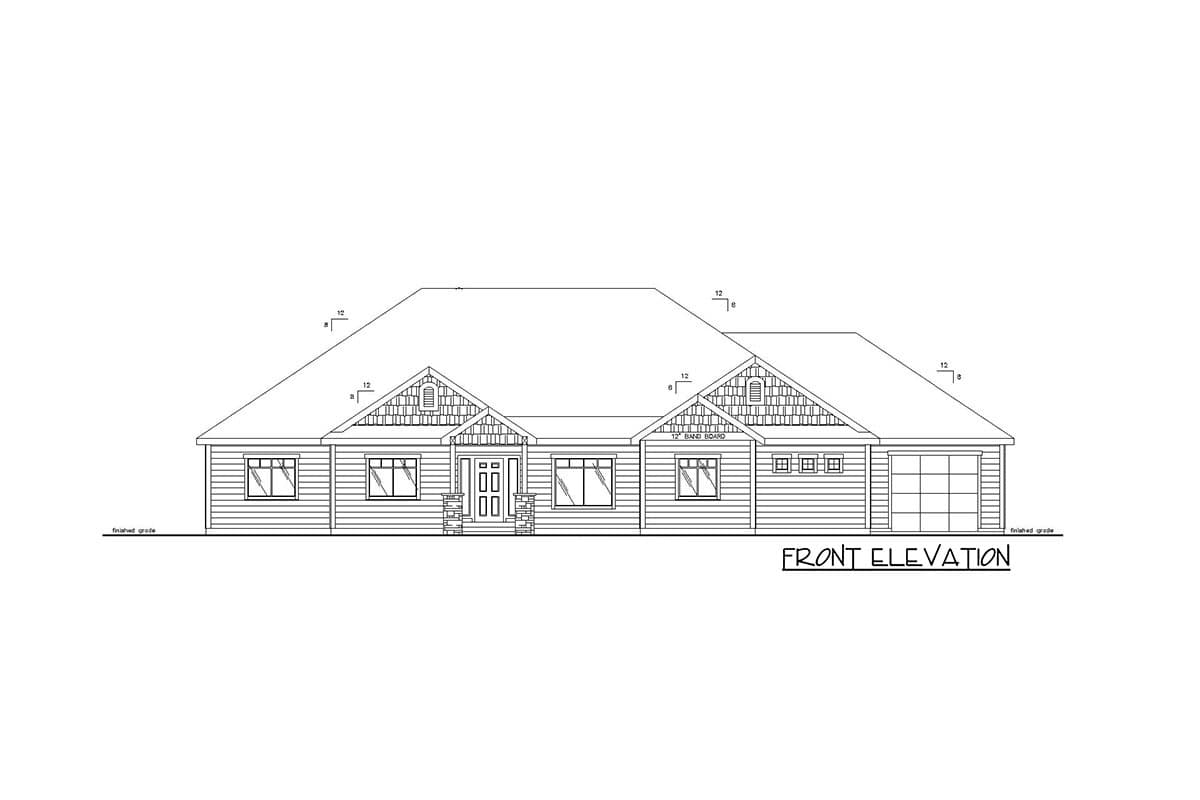

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,530 sq. ft.

1st Floor

2,530 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 4"

Depth

75' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

1200 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8' 1"

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,530 sq. ft.

1st Floor

2,530 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 4"

Depth

75' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

1200 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8' 1"

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
