Name: Plan 623253DJ: 2500 Square Foot Modern Cottage with Hidden Library
SKU: 623253DJ
Price: 1280.0 USD
Availability: InStock

Plan 623253DJ

2500 Square Foot Modern Cottage with Hidden Library

Heated S.F.

2,554

Beds

3 - 5

Baths

2.5 - 3.5

Stories

Cars

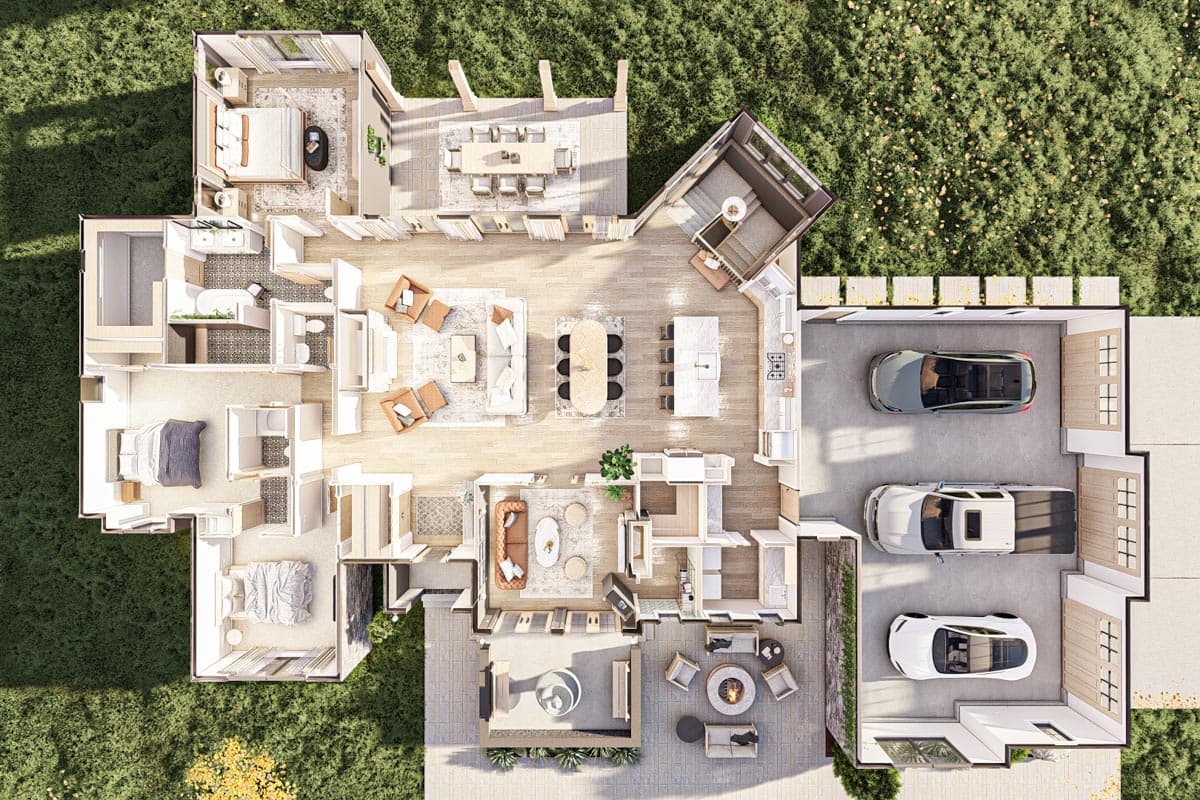

Floor Plan

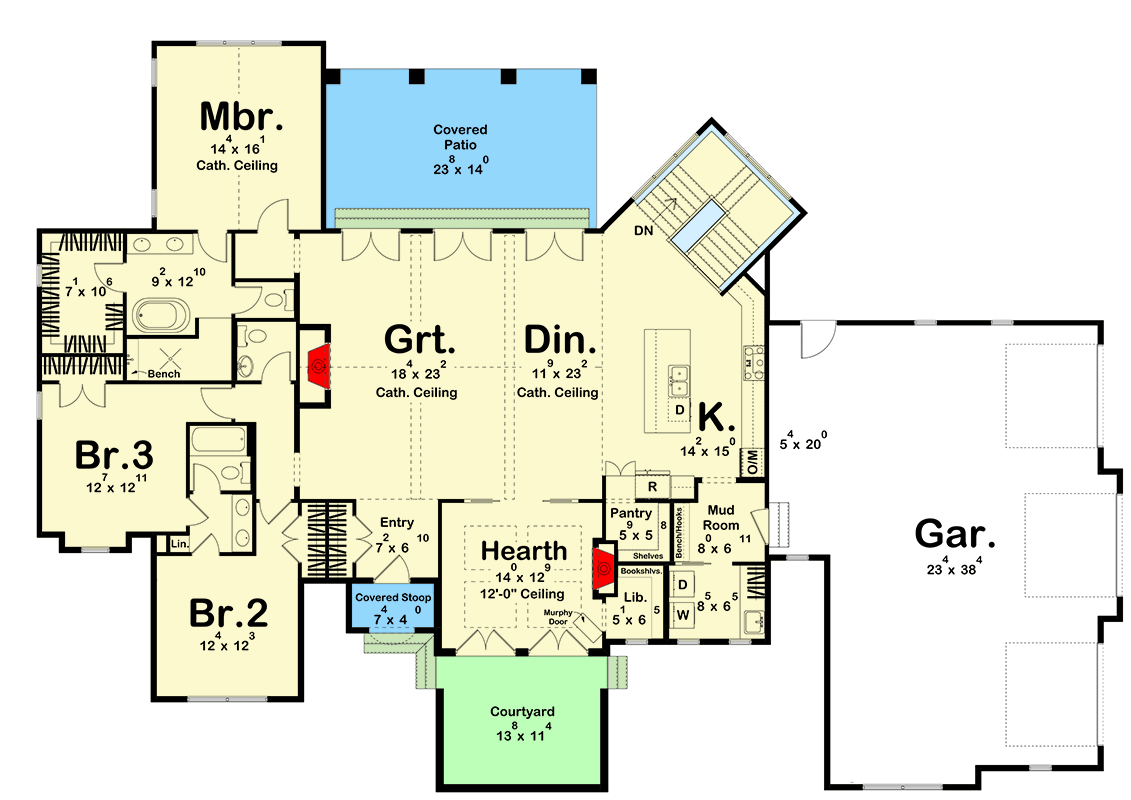

Main Level

Optional Lower Level

Plan Details

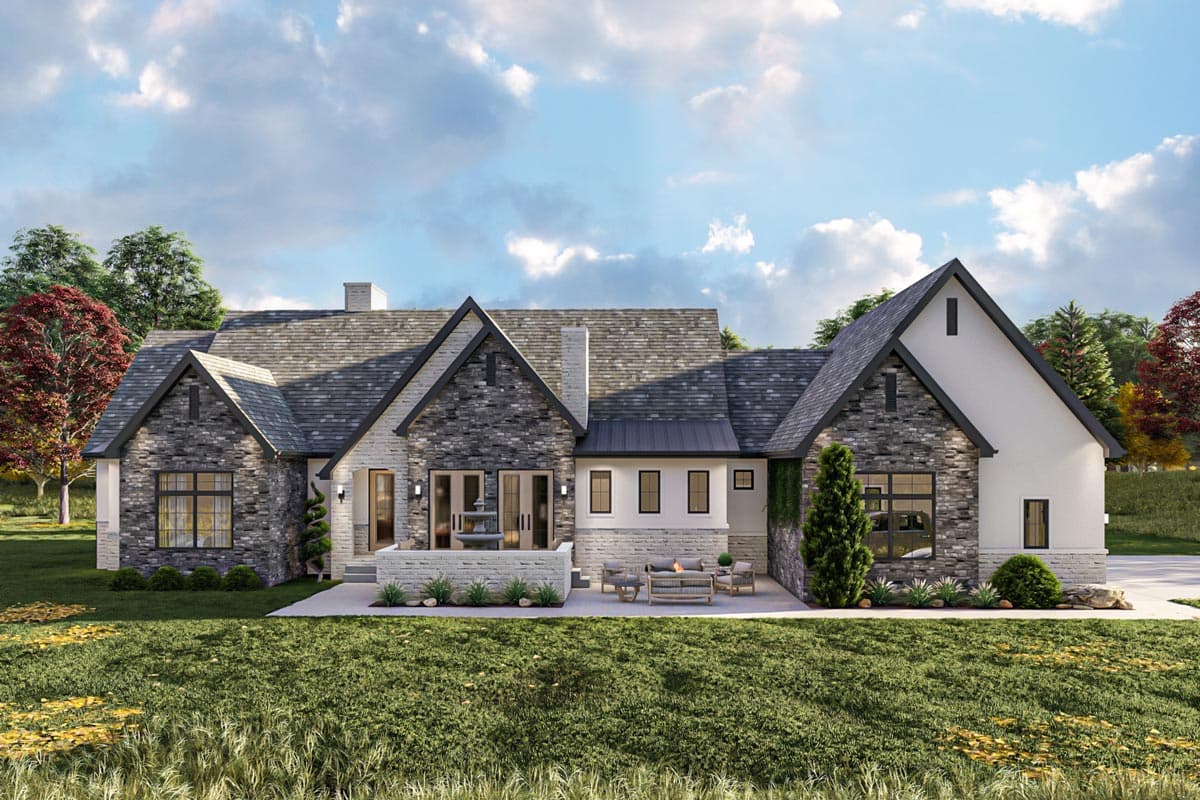

This modern cottage house plan gives you 3 beds, 2.5 baths and 2,554 square feet of heated living space wrapped in an attractive mixed material exterior.

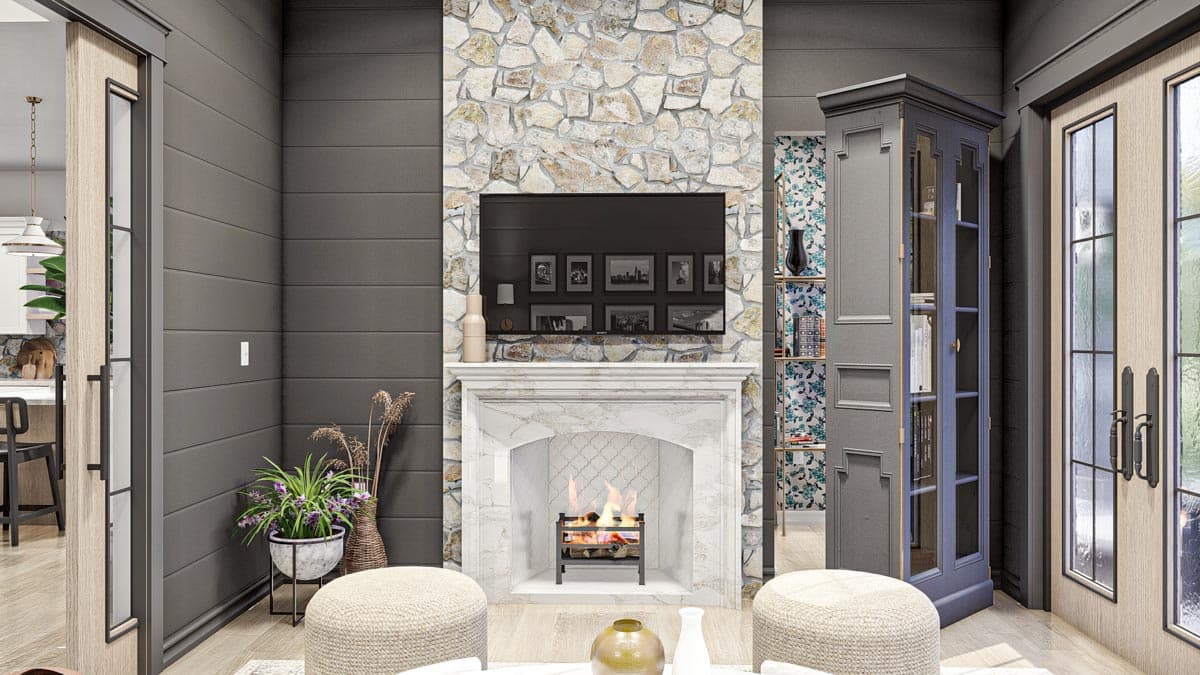

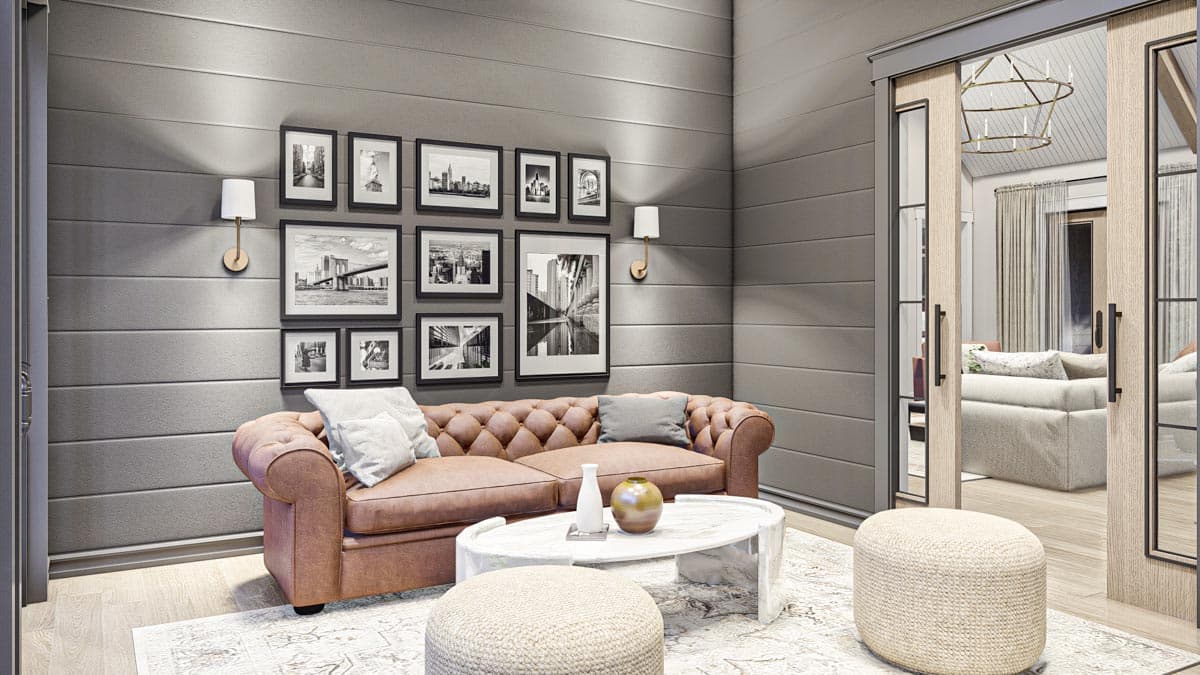

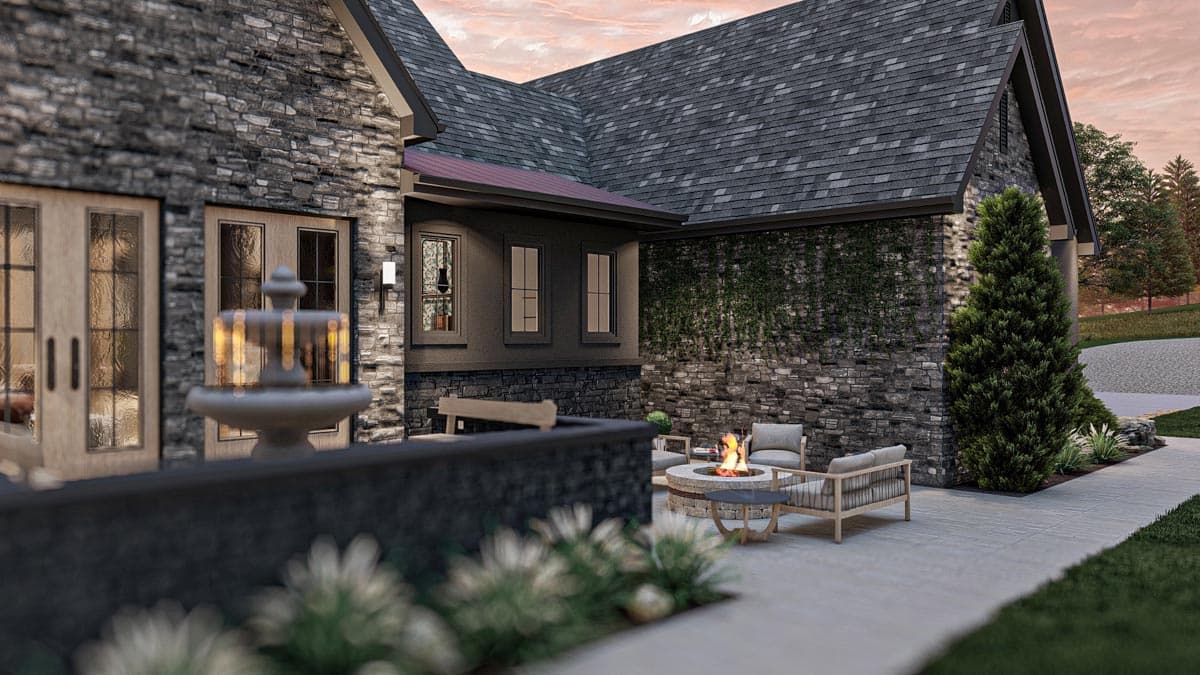

A courtyard greets you and opens to the hearth room with a small library hidden behind a bookcase

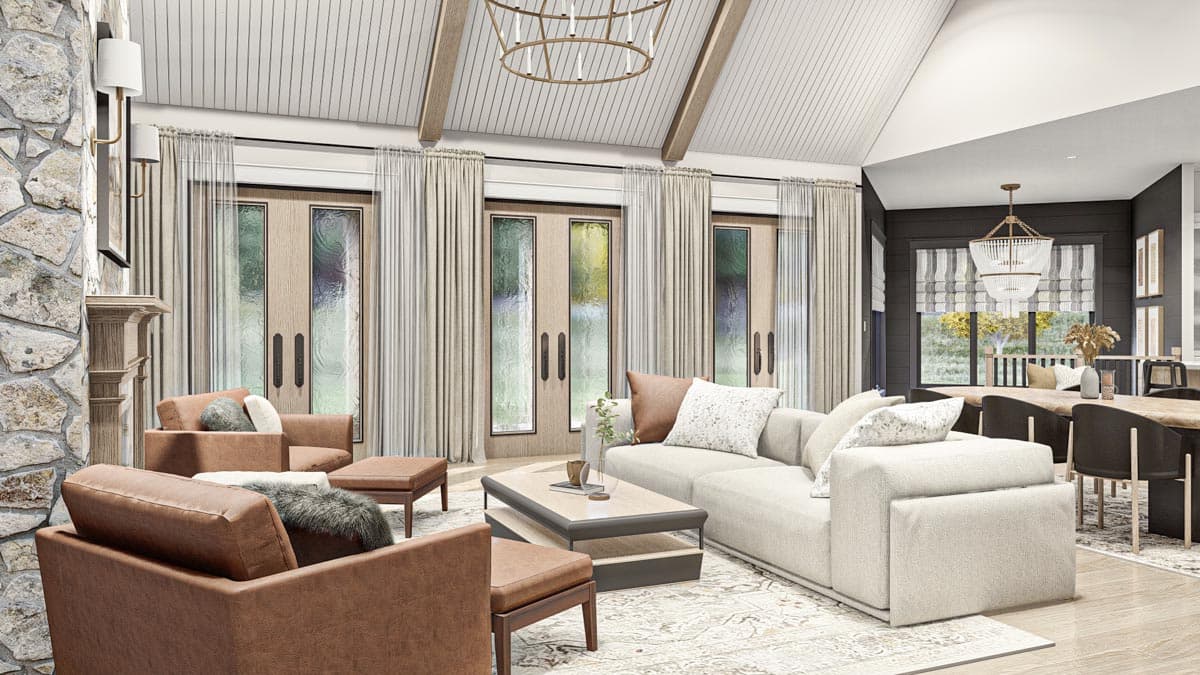

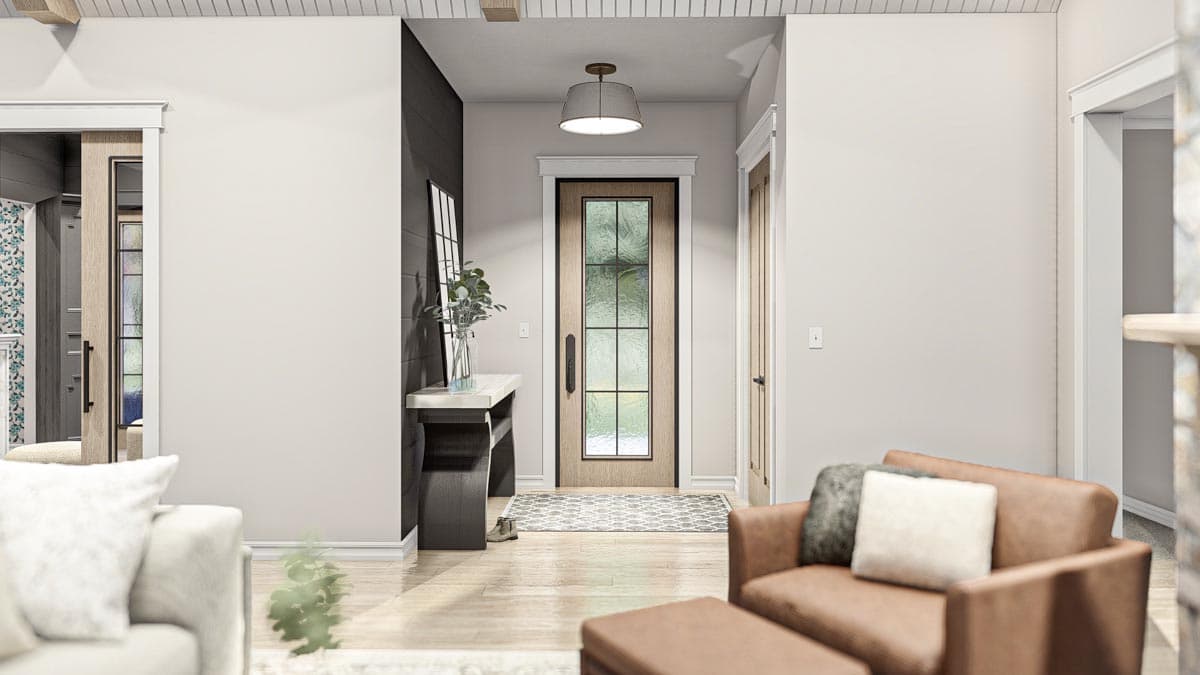

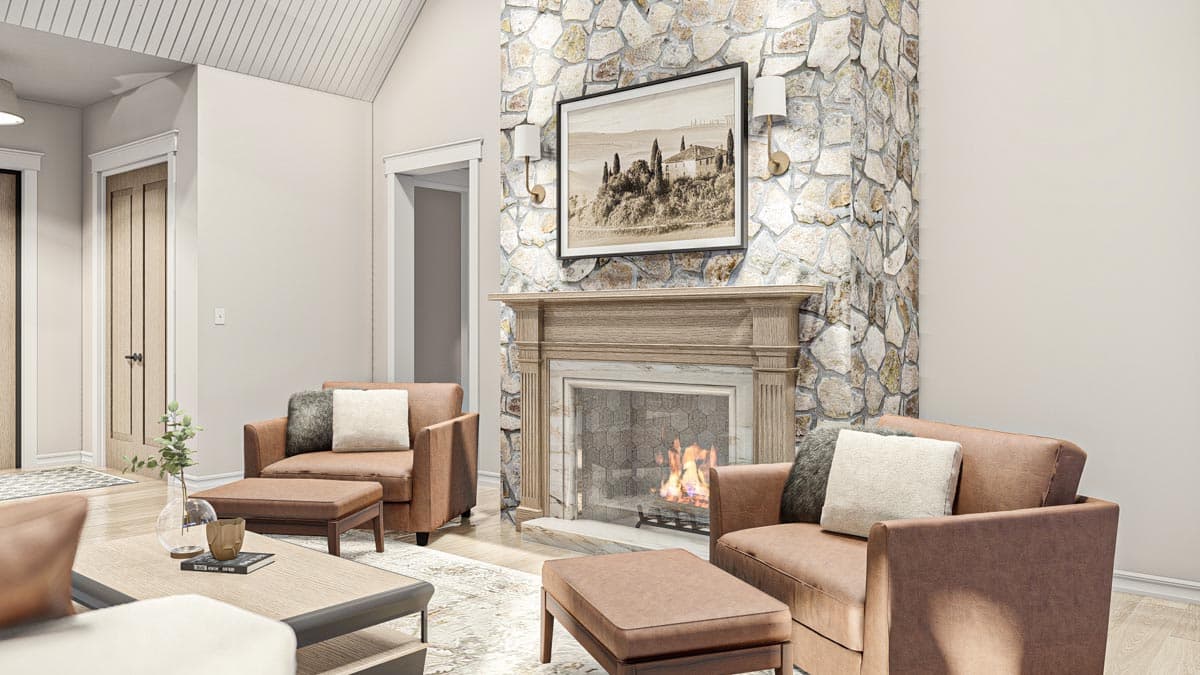

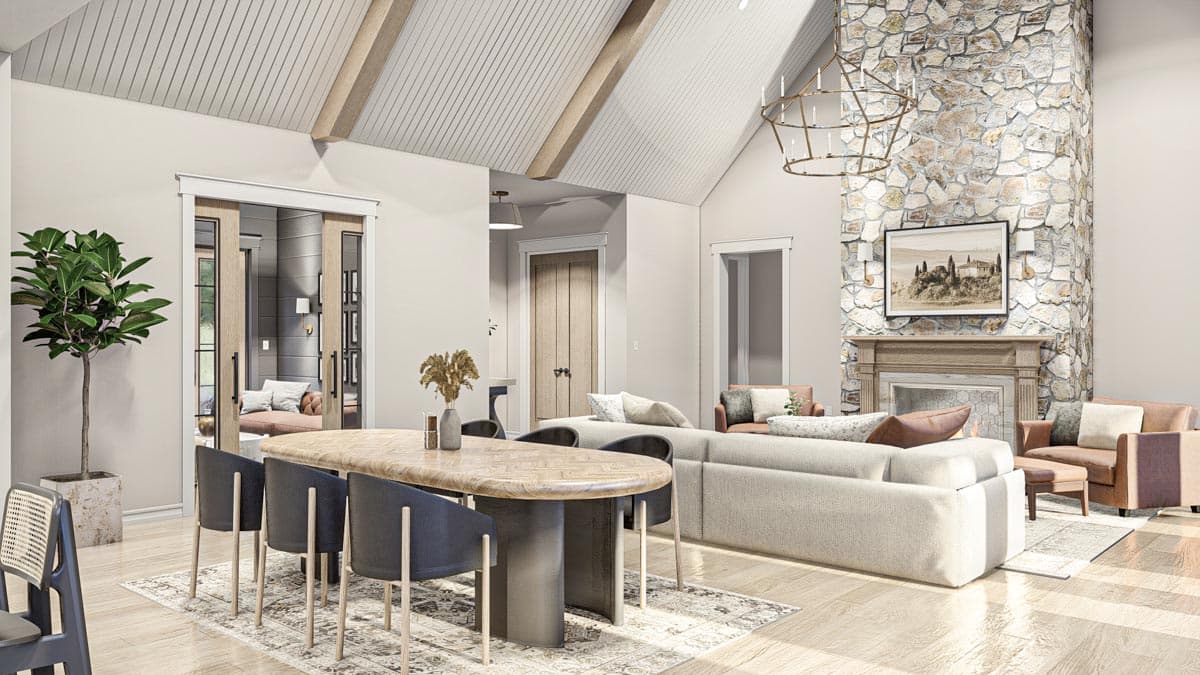

Stepping through the entry, you are immediately welcomed into the great room with fireplace and a cathedral ceiling with exposed beams. An open concept layout seamlessly connects the great room to the dining area, creating a spacious and inclusive atmosphere.

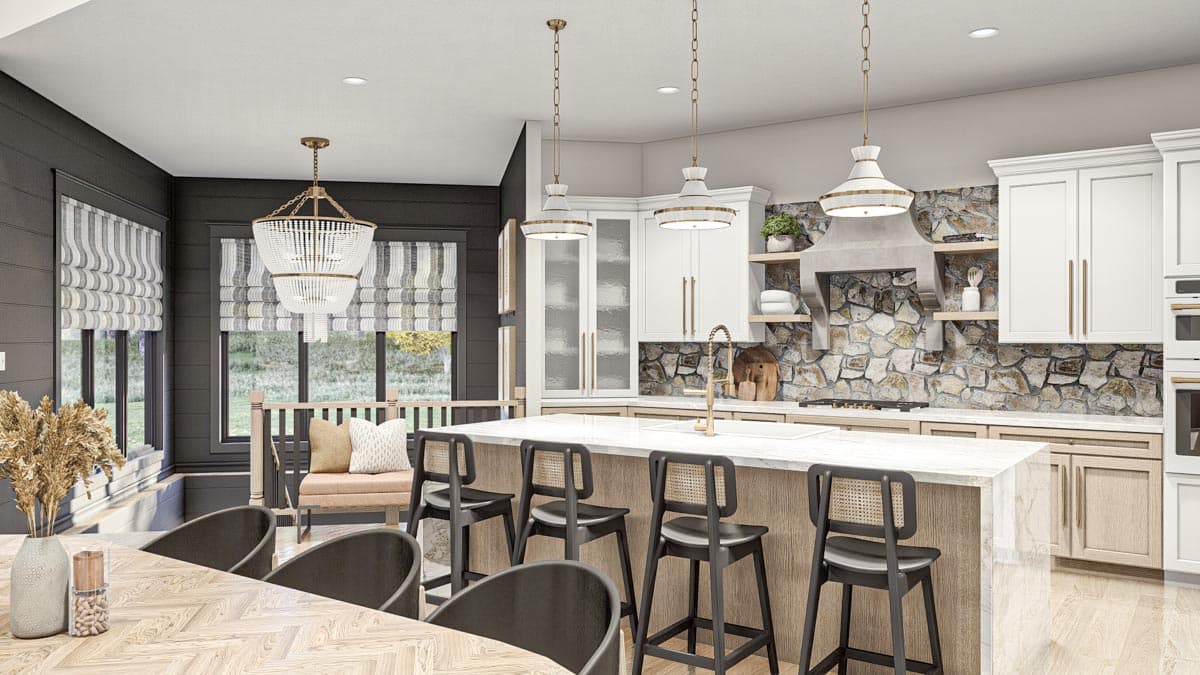

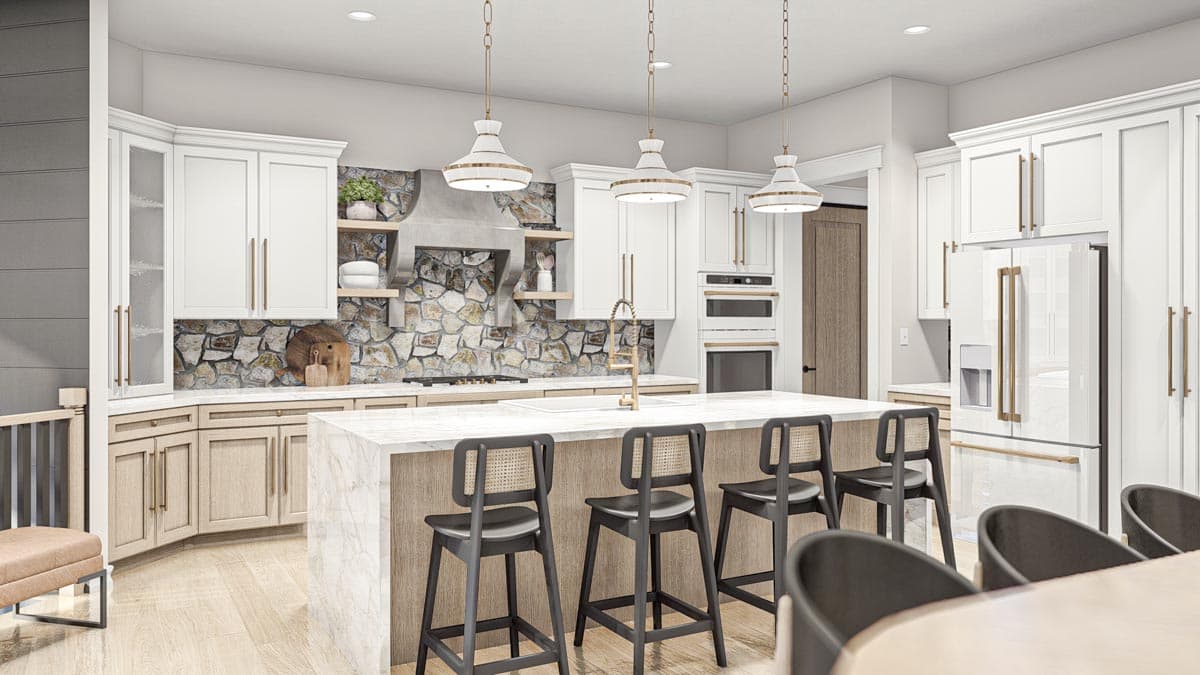

The kitchen is adjacent to the dining area and features a central island providing workspace and casual dining. A practical mudroom is steps away and keeps the rest of the home organized and clutter-free.

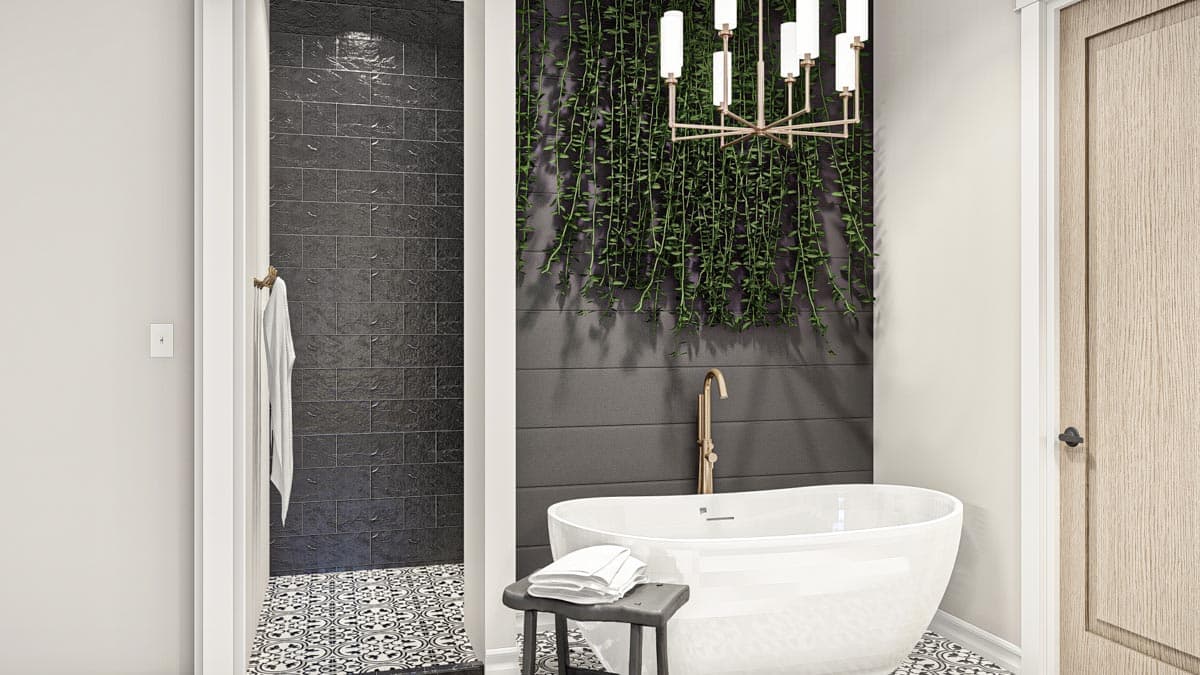

Bedrooms are located on the opposite side of the house. Two of them share a Jack and Jill bathroom. The master bedroom boasts its own private en-suite bathroom and a spacious walk-in closet.

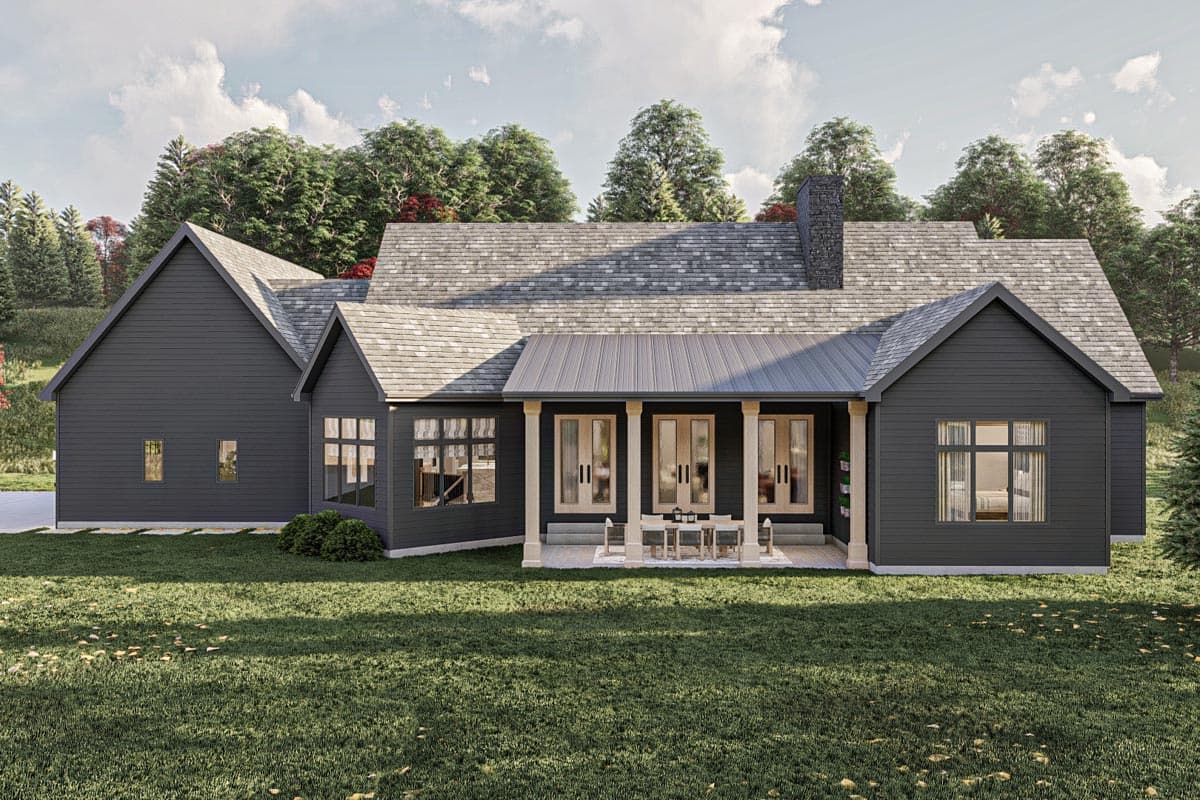

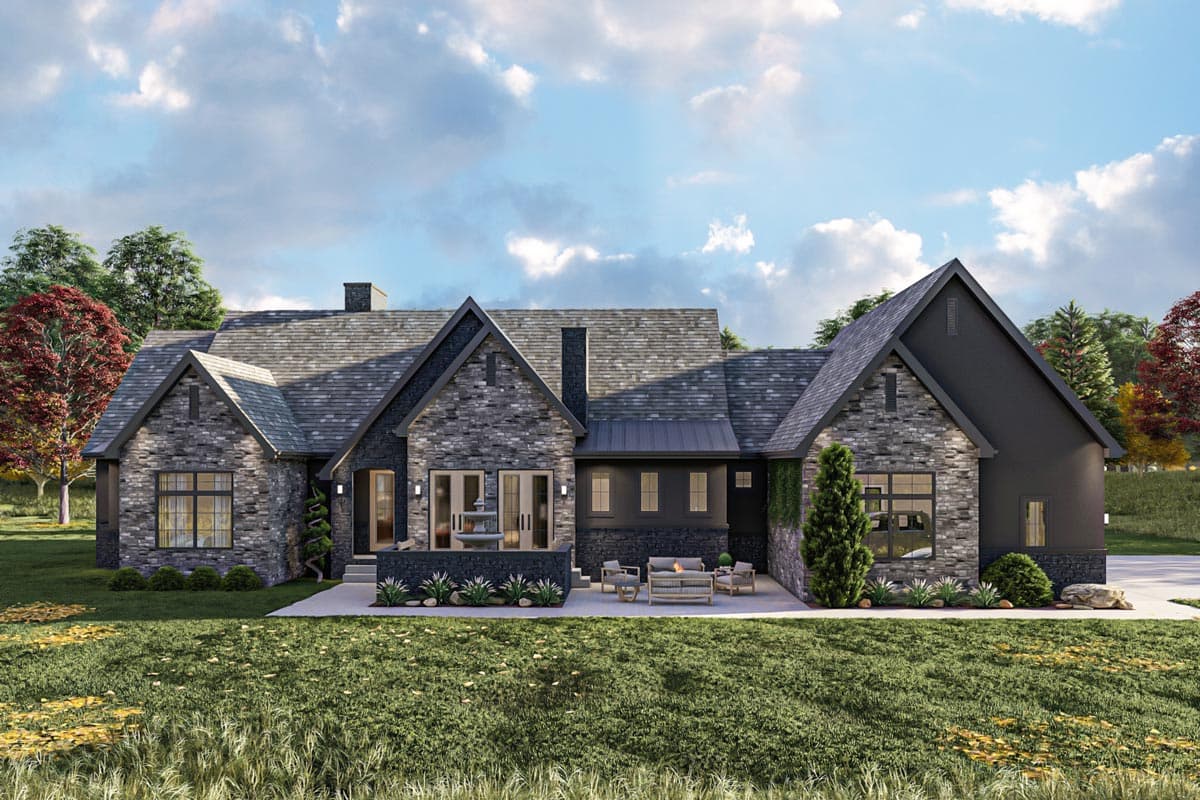

A large covered patio - accessible from both the dining area and great room - gives you a great fresh air space to enjoy.

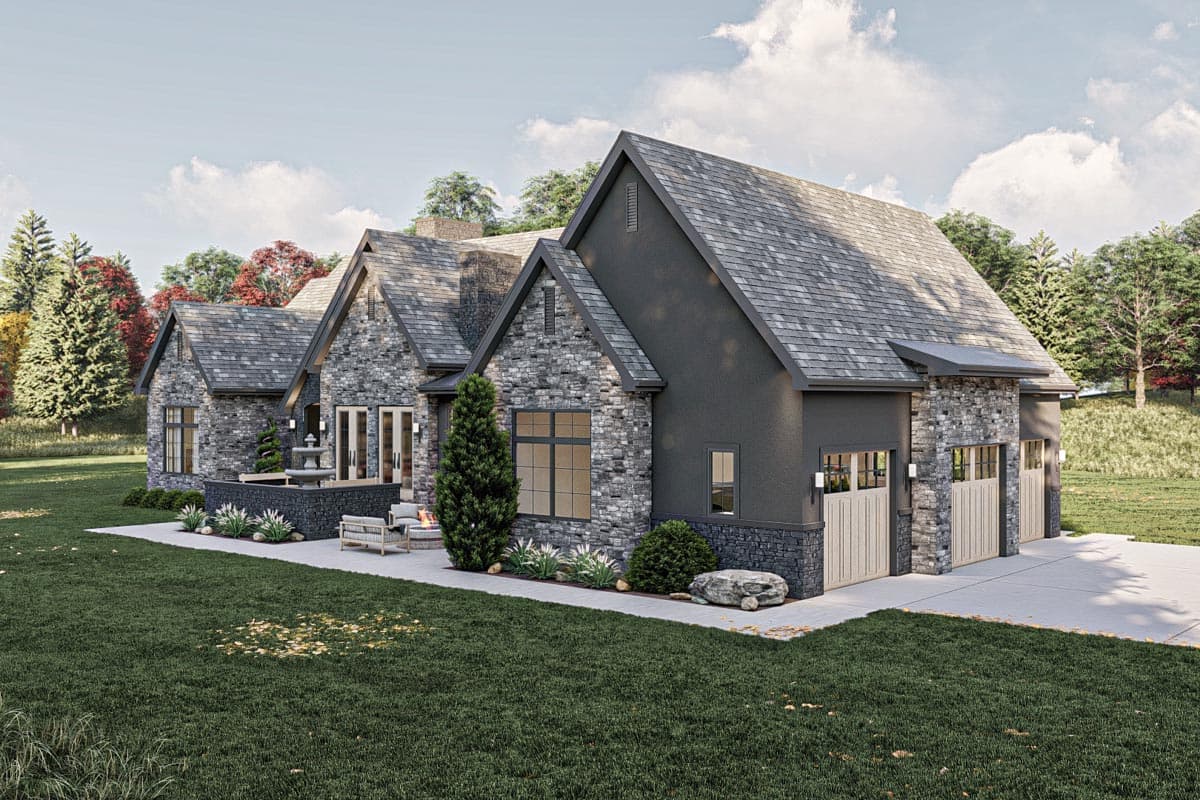

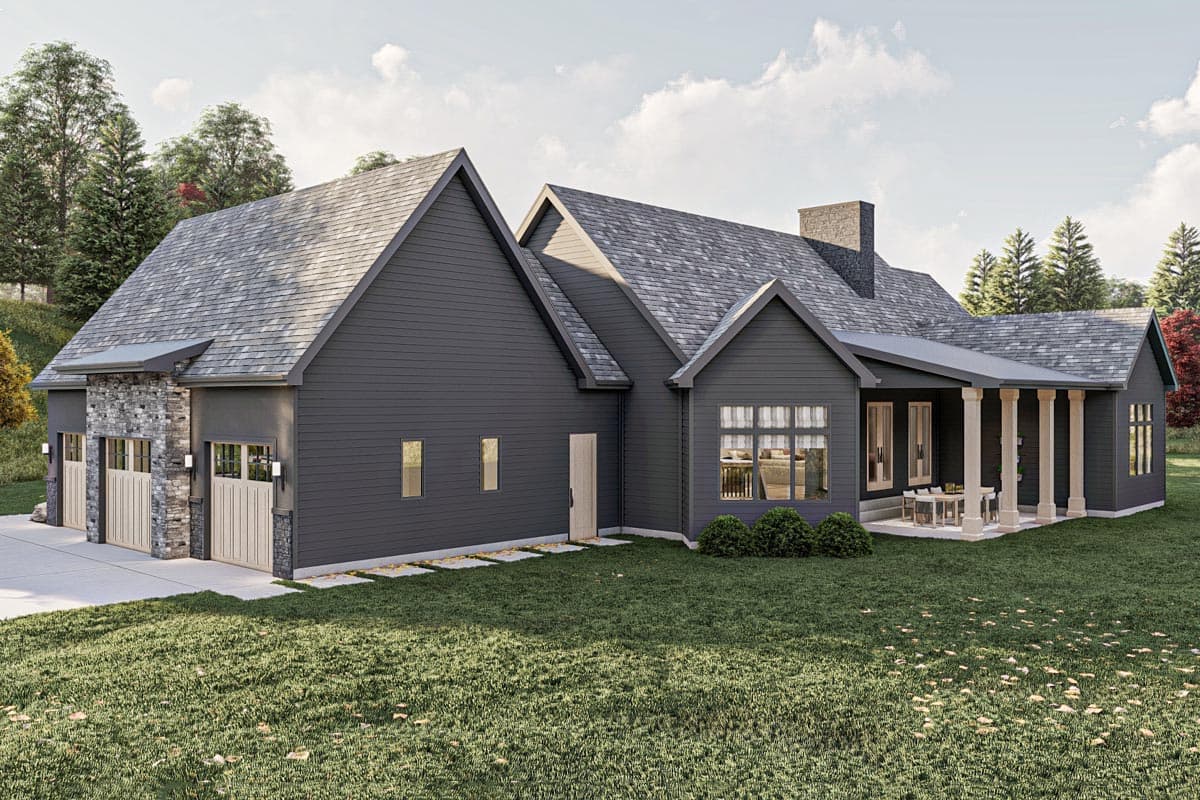

A 3-car side load garage gives you ample space for vehicles and additional storage.

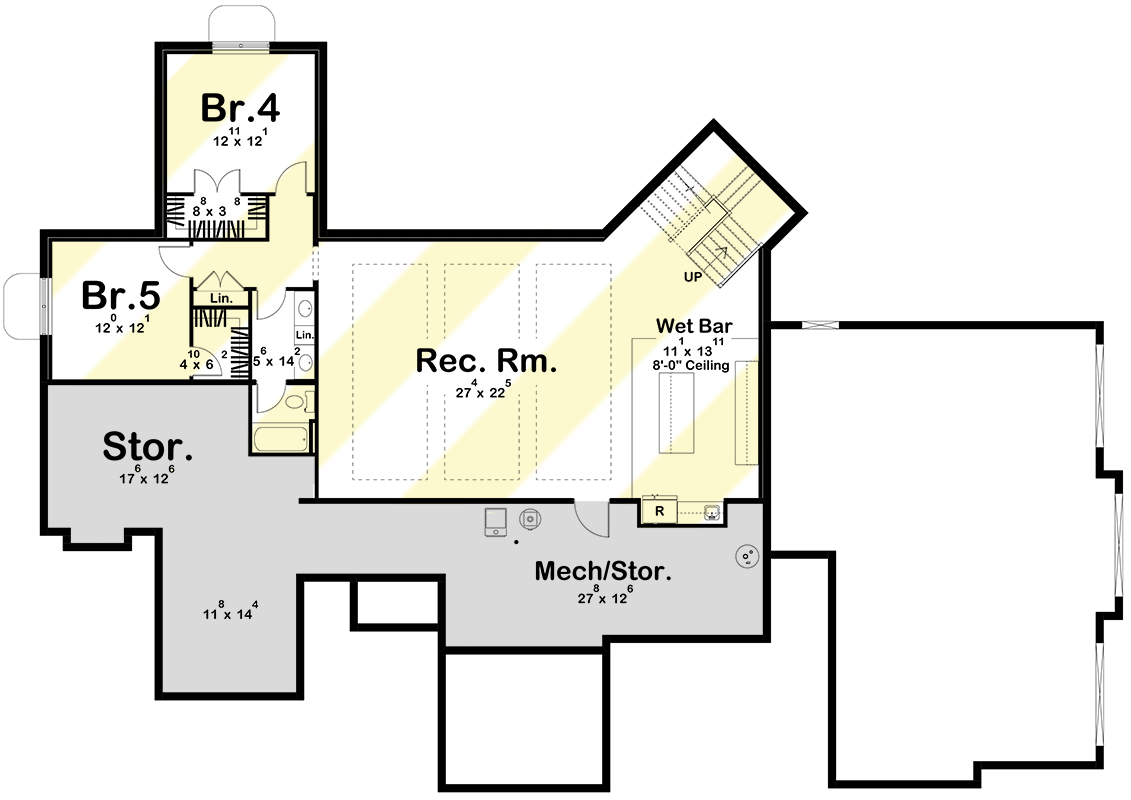

The Optional Finished Basement adds 1,472 finished square feet and 819 unfinished storage/mechanical square feet and is available through the options menu for an additional fee.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
