Plan 735008CAR

2682 Square Foot Angled Ranch House Plan with 3 Bedrooms and Home Office

Heated S.F.

2,682

Beds

3

Baths

2.5

Stories

1

Cars

2

Floor Plan

Main Level

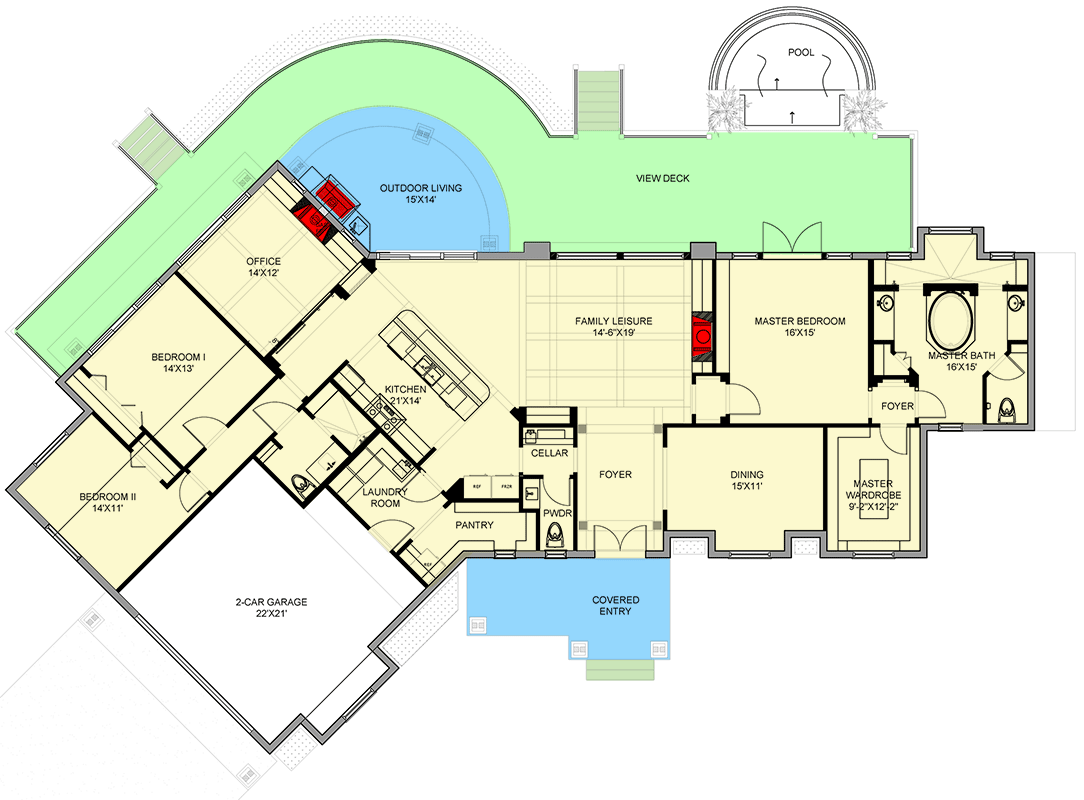

floor plan image Main Level

Plan Details

An angled 2-car garage and 10' ceilings are two nice features of this 2,682 square foot 3 bed, 2.5 bath house plan.
The center portion of the home is open concept with a beamed leisure area with fireplace having views to the rear. The kitchen has a large island with seating and a large pantry near the garage entry.
Enjoy working from home in your home office with fireplace.
The master suite is isolated on the right side of the home and has a spa-like bath. French doors open from the bedroom to the back deck. Across the home, two bedrooms share a hall bath.

What's Included

COVER PAGE-INDEX AND AREA CALCULATIONS
DETAILED FLOOR PLAN/S
EXTERIOR ELEVATIONS
ROOF PLAN
INTERIOR ELEVATIONS & DETAILS
BUILDING SECTION/S
WALL SECTIONS & DETAILS
FOUNDATION PLAN
ROOF FRAMING PLAN
SCHEMATIC ELECTRICAL LAYOUT/S

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

2,682 sq. ft.

Deck

1,174 sq. ft.

Entry

176 sq. ft.

Covered Patio

238 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor) or 2x8

Dimensions

Width

101' 2"

Depth

58' 5"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

498 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

2,682 sq. ft.

Deck

1,174 sq. ft.

Entry

176 sq. ft.

Covered Patio

238 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor) or 2x8

Dimensions

Width

101' 2"

Depth

58' 5"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

498 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections
