Plan 28120J
2682 Square Foot Craftsman Home Plan with 2-Story Foyer and a Flex Room
Heated S.F.
2,682
Beds
5
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28120J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28120J

1-800-854-7852

1-262-521-4596

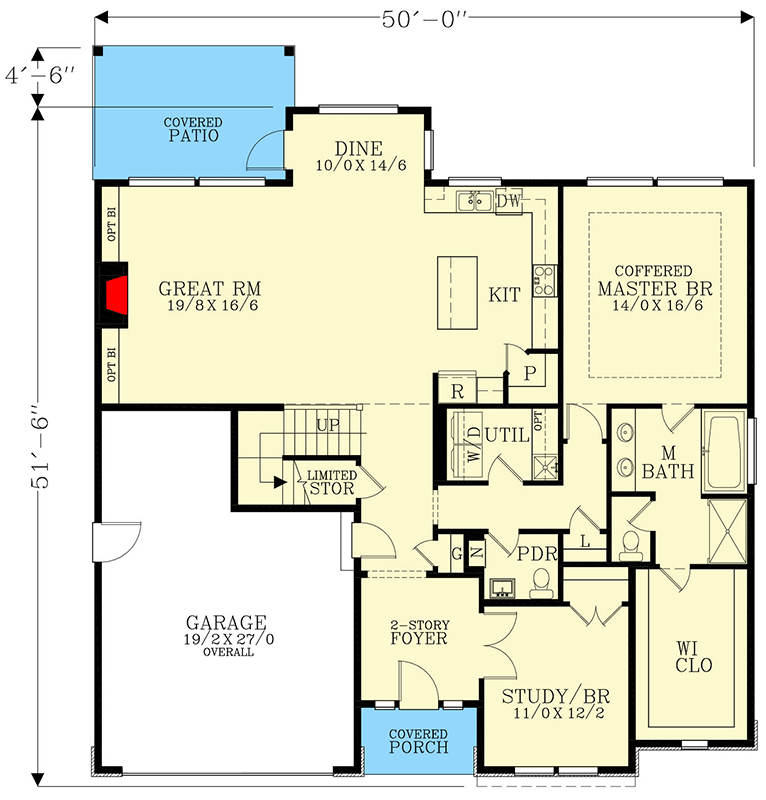

Main Level
floor plan image Main Level

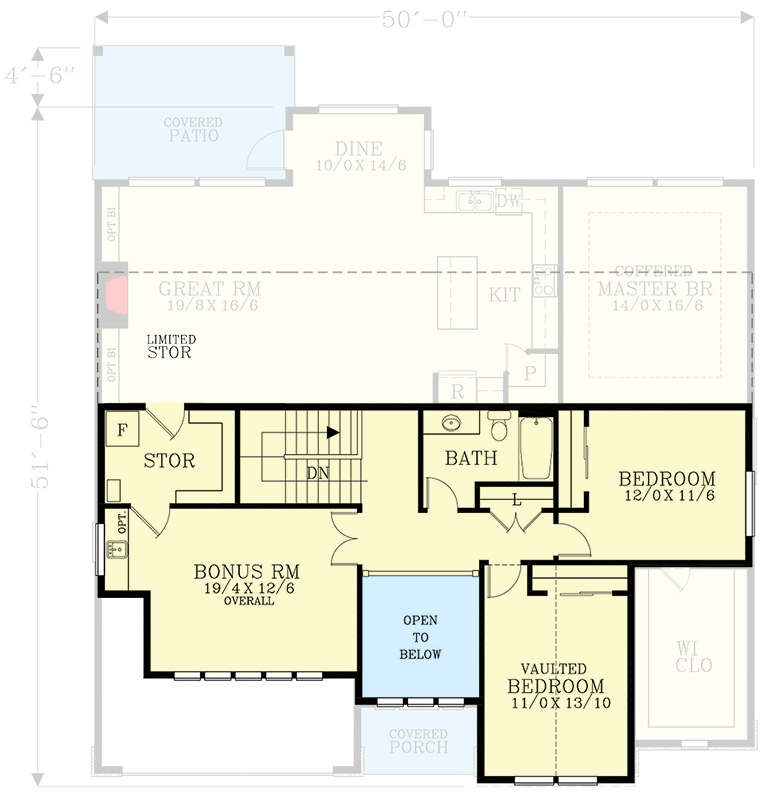

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2,682 square foot Craftsman house plan gives you up to 5 bedrooms with the flexibility of the front flex room (i.e. use it as a home office or as a fifth bedroom).
  • The long and wide foyer leads back to the open concept living area that combines the cooking, eating and living areas.
  • Homeowners get a first floor master suite with a tray ceiling and large walk-in closet.
  • Upstairs, the loft has a built-in desk brightened by a bank of triple windows.
  • Bonus space is included in the second floor square footage.
  • Related Plan: Get an alternate version with house plan 2893J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

1,776 sq. ft.

2nd Floor

906 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

145 sq. ft.

Covered Patio

145 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

51' 6"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Roof Details

Primary Pitch

12 on 10

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Wet Bar
