Plan 28016J
2700 Square Foot Craftsman with Flexible Bedroom Account and a 3-Car Garage
Heated S.F.
2,772
Beds
3 - 5
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 28016J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28016J

1-800-854-7852

1-262-521-4596

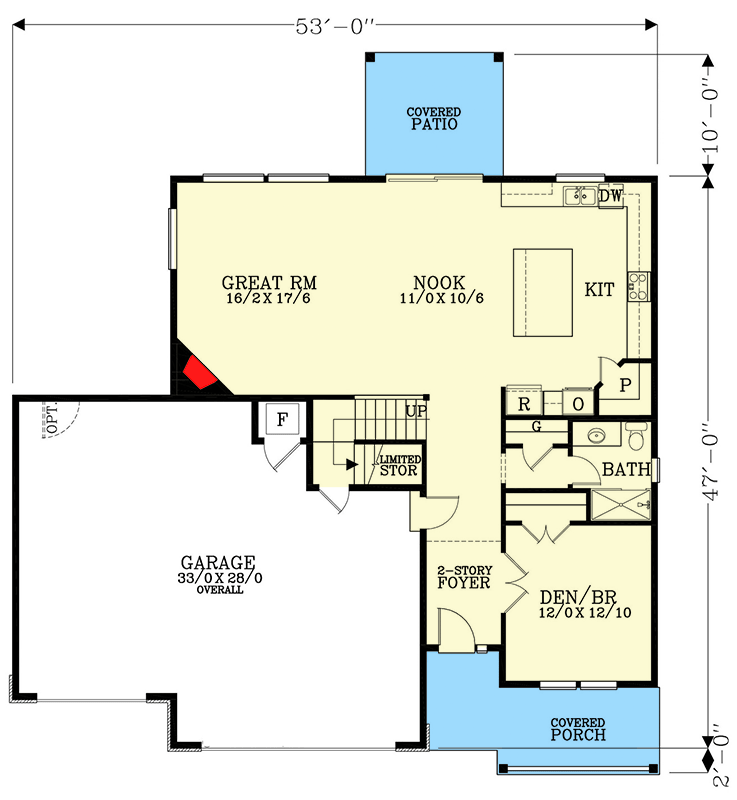

Main Level
floor plan image Main Level

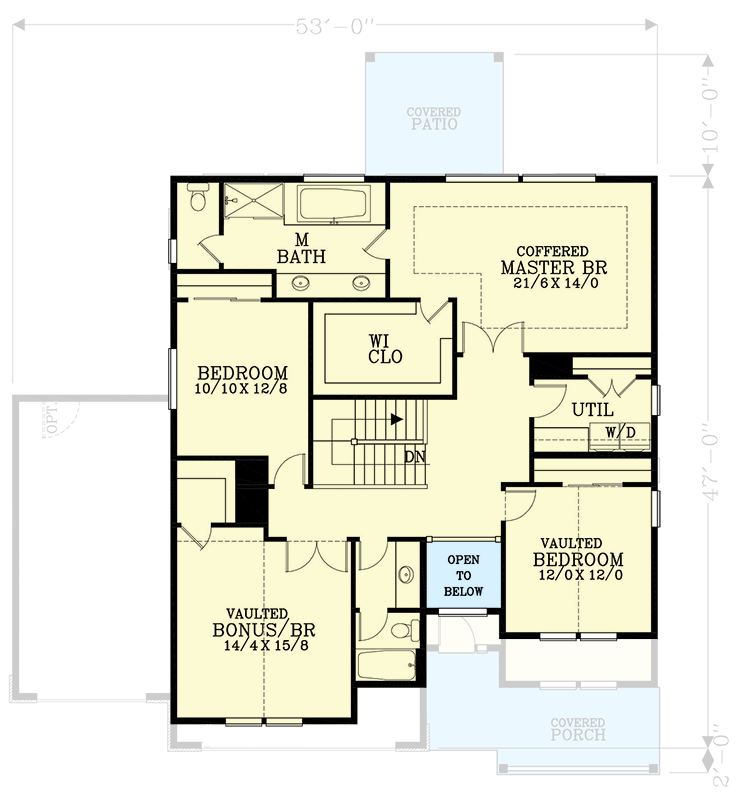

2nd Floor
floor plan image 2nd Floor
Plan Details

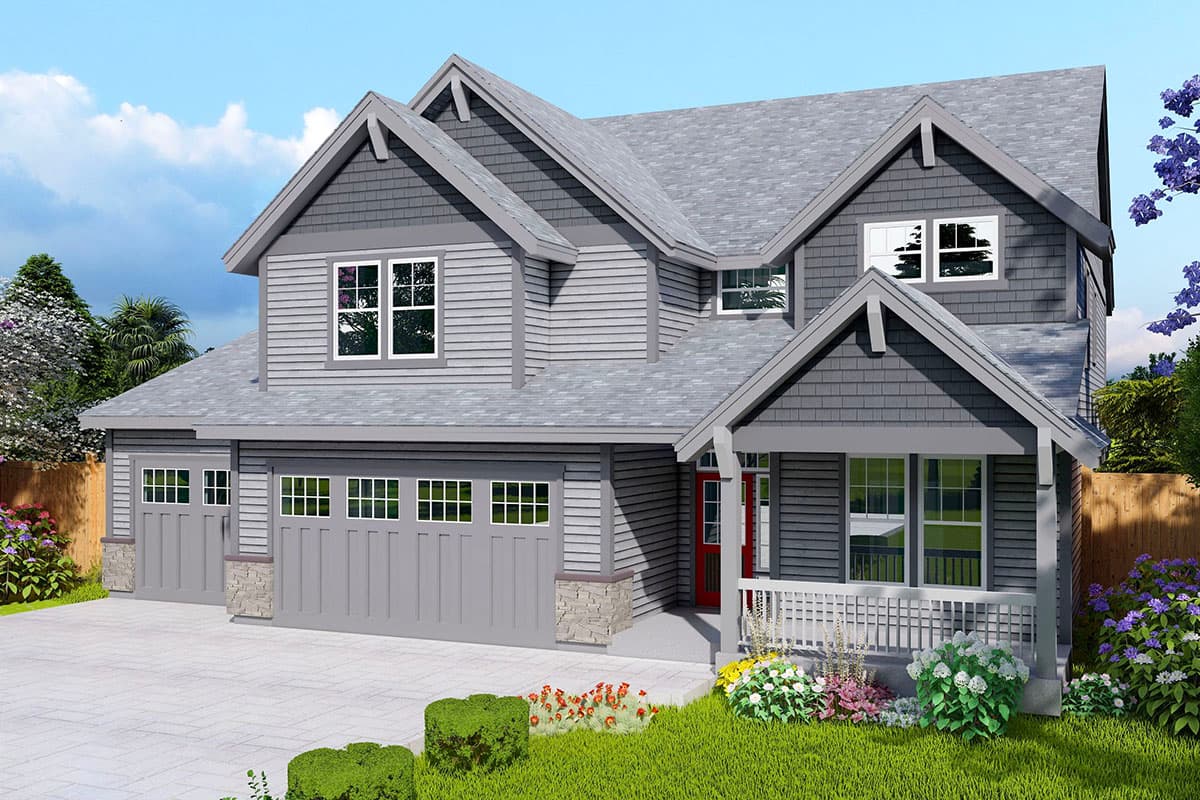

  • This 2-story Craftsman home plan has a roomy 3-car garage and a welcoming front porch. Inside, it gives you 2,772 square feet of heated living space and a flexible plan that delivers anywhere from 3 to 5 bedrooms depending on how you use the main floor flex room and the upstairs bonus room.
  • A pair of French doors off the foyer take you to a flex room that could serve as a home office, den or a guest bedroom.
  • In back, the kitchen is open to the great room with corner fireplace. The nook has sliding door access to the covered patio in back.
  • In the kitchen, there's lots of counter space and an island with seating as well as a corner pantry.
  • Upstairs, the master suite occupies the entire back of the floor. Two more bedrooms plus a bonus room - factored into the total living area - plus a convenient laundry room complete the floor.
  • Related Plan: Get alternate 2-car versions with house plans 28019J, 28017J, 28015J and 2887J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,772 sq. ft.

1st Floor

1,240 sq. ft.

2nd Floor

1,532 sq. ft.

Bonus

195 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

47' 0"

Max Ridge Height

24' 11"

Garage

Type

Attached

Area

924 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Bonus Room

Den

Flex Room

Laundry - Upstairs

Master Suite - 2nd Floor
